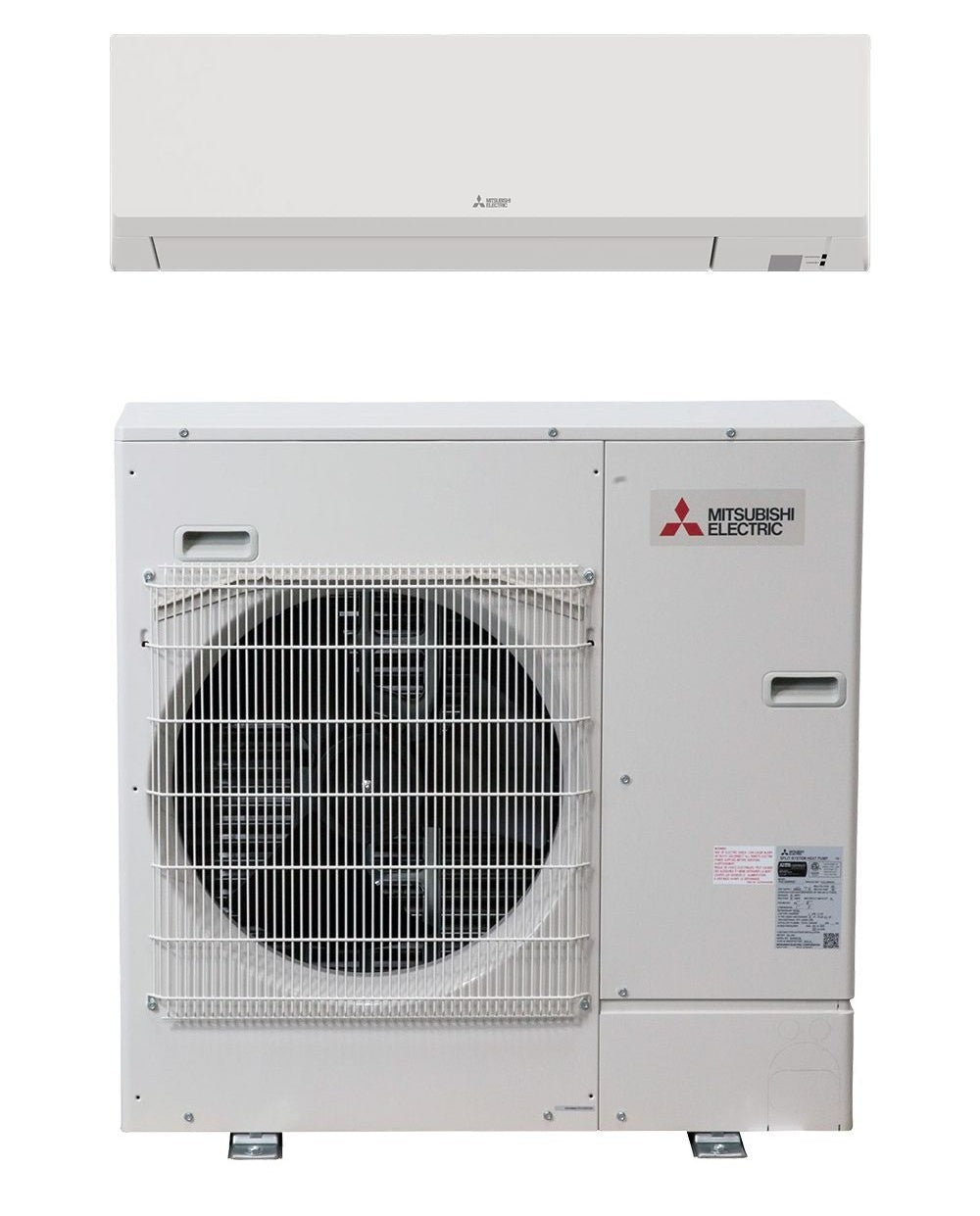

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AK18NL+PKA-AL18NL - BTU 18000 - SEER 19.5 - R454B

Product Description

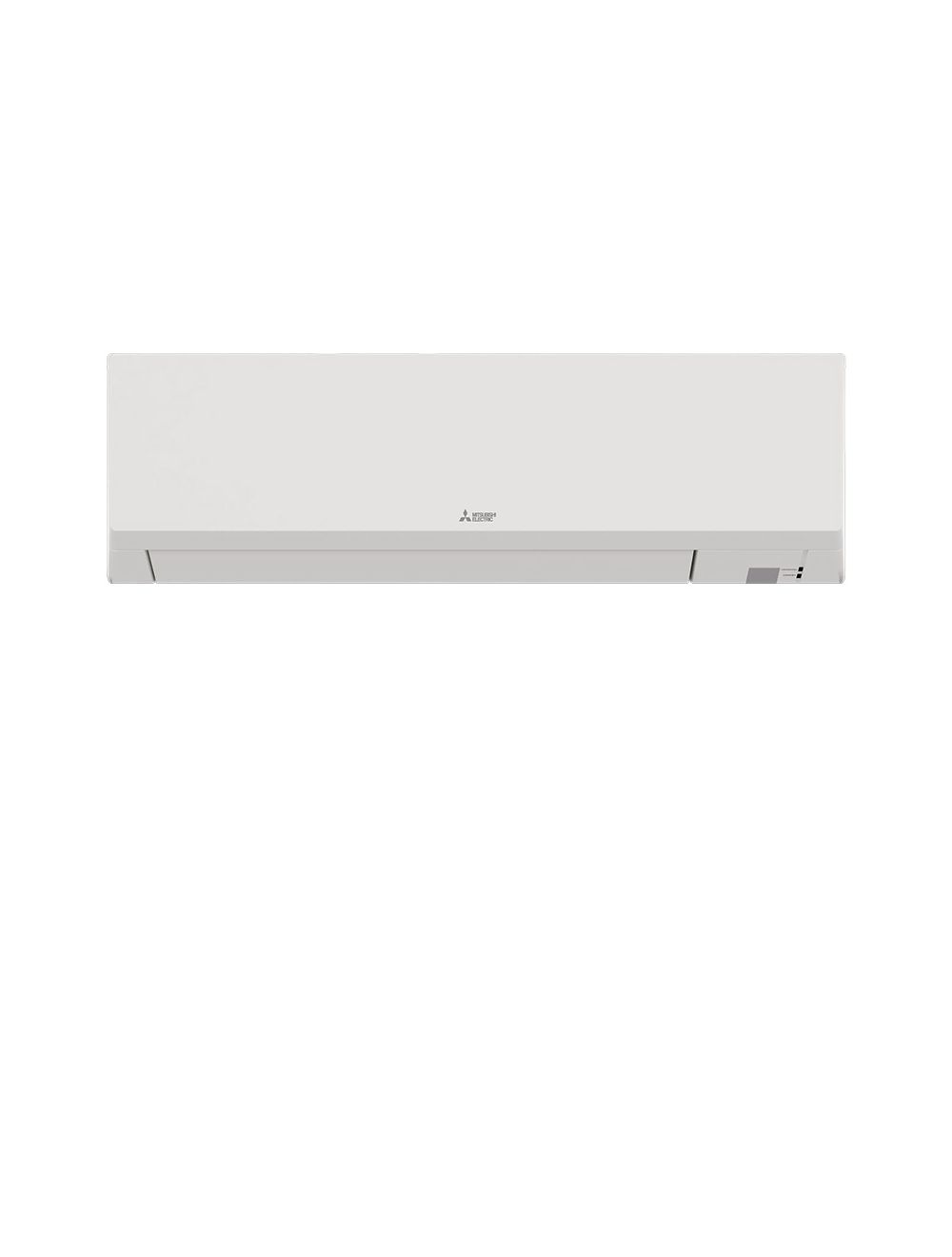

The Mitsubishi Electric PKA-AL18NL is a wall-mounted indoor unit ideal for single-zone ductless mini-split systems. This unit, part of the P-Series, is appropriate for light commercial settings like small offices, daycare centers, and classrooms. It uses R454B refrigerant and has several options for controlling airflow direction. The PKA-AL18NL provides heating and cooling functionality efficiently.

• Single-zone wall-mounted indoor unit.
• Compatible with R454B refrigerant.
• Provides both heating and cooling options.

Product Highlights

The PKA-AL18NL is designed to work efficiently in various indoor environments, providing comfort through reliable heating and cooling.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PKA-AL18NL

Technical Specifications

• Product Line: P-Series
• Unit Type: Single Zone Unit
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-454B
• Unit Capacity: 18,000 BTU
• Cooling Capacity: 18,000 BTU
• Heating Capacity: 22,000 BTU
• Maximum Air Flow: 450 CFM
• Minimum Air Flow: 215 CFM
• Noise Level (Cooling): 34-48 dB(A)
• Noise Level (Heating): 34-48 dB(A)
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Liquid Connection Size: 1/4 Inch
• Gas Connection Size: 1/2 Inch
• Product Dimensions: 35.35 inches Width x 9.17 inches Depth x 11.37 inches Height
• Weight: 28 lb
• Moisture Removal: 6.6 Pints/Hour
• SEER2: 19.5
• HSPF2 [IV]: 8.9

Product Description

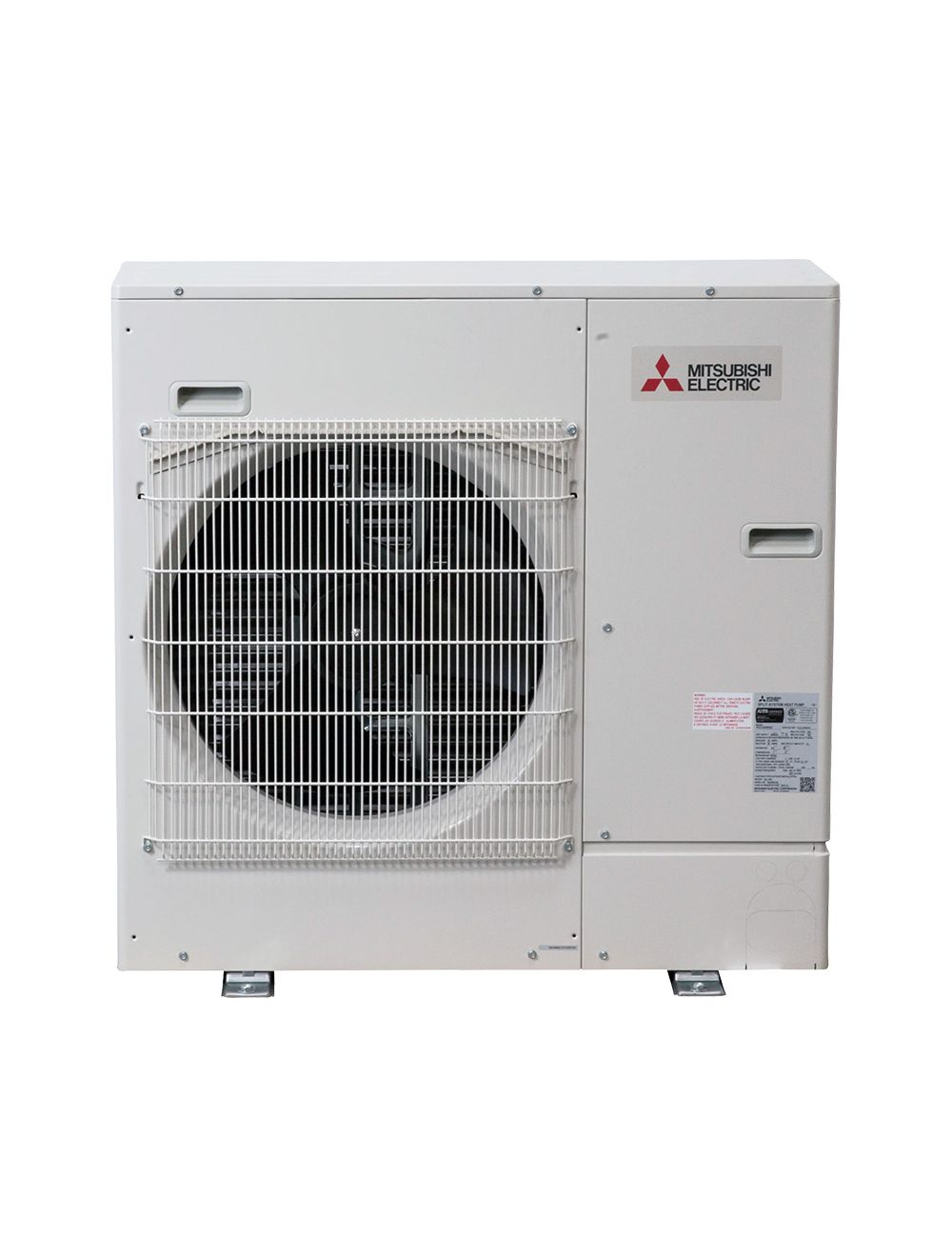

The Mitsubishi Electric PUZ-AK18NL is an outdoor mini-split heat pump condenser designed for single-zone applications. It operates on 208/230V and uses R-454B refrigerant. This unit features an inverter-driven compressor which adjusts capacity to maintain stable temperatures in various conditions.

• Twin rotary compressor for enhanced performance.
• Continuous operation in cooling mode for up to 24 hours.
• Efficient cooling even at low ambient temperatures, down to 0°F.

Product Highlights

This unit is built with Blue Fin coating for corrosion resistance, making it ideal for coastal areas. It is pre-charged with refrigerant, simplifying installation for specified line lengths.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PUZ-AK18NL

Technical Specifications

• Type: Outdoor Unit
• Series: PUZ-AH-NL
• Voltage: 208/230 V
• Amperage: 16 A
• Frequency: 60 Hz
• Refrigerant: R-454B
• Compressor: Twin Rotary Compressor
• Unit Capacity: 18,000 BTU
• Cooling BTU/hr: 4700 to 18500
• Heating BTU/hr: 4200 to 22000
• Cooling Wattage: 1590 W
• Heating Wattage: 1900 W
• EER Rating: 11.7
• SEER: 20.1
• HSPF: 8.8
• Cooling CFM Rating: 1590 cfm
• Cooling Operating Temperature: 23 to 115 deg F
• Heating Operating Temperature: -4 to 70 deg F
• Dimensions: 34-19/64 W x 11-13/16 D x 24-13/16 H
• Color: Ivory
