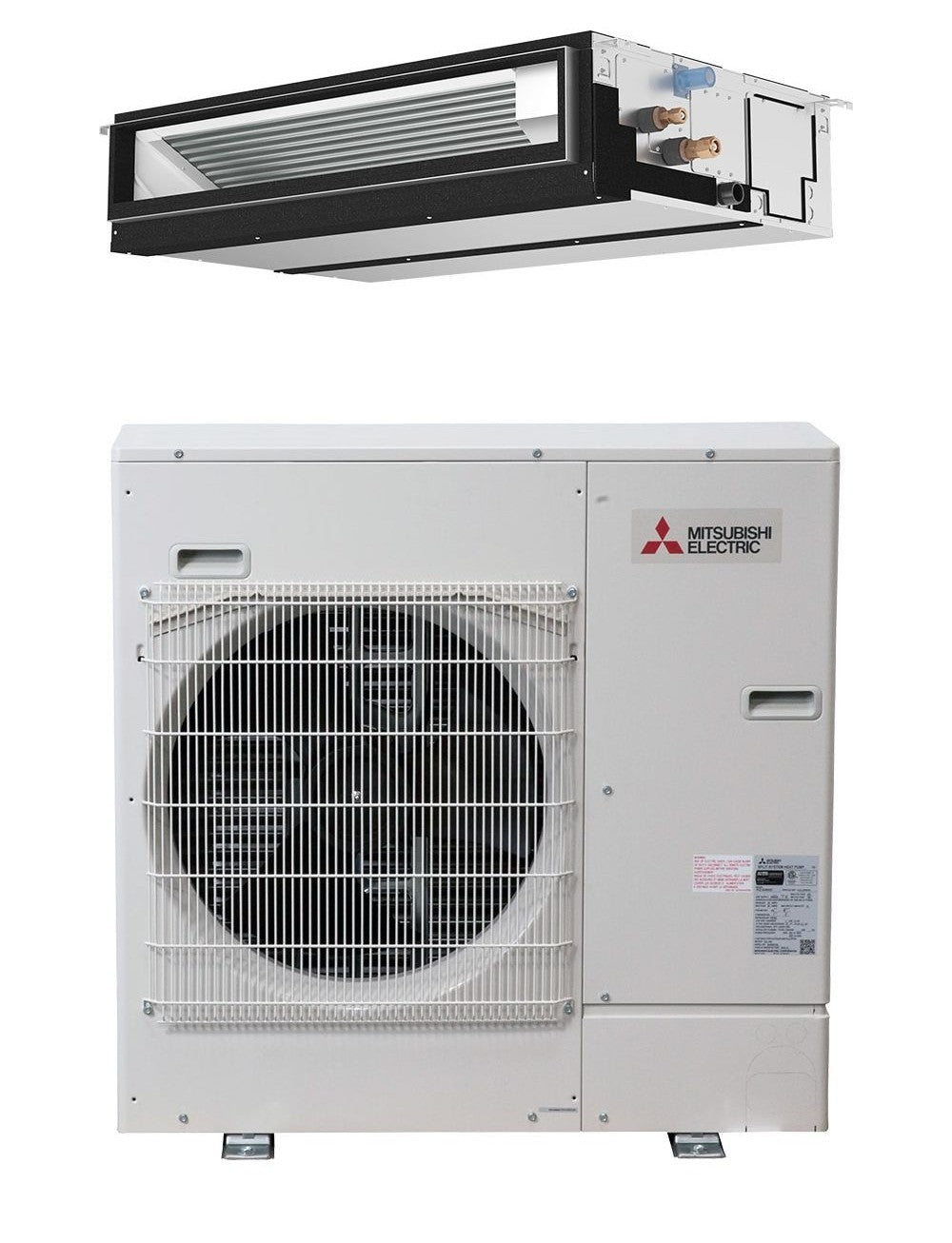

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AK18NL+PEAD-AA18NL - BTU 18000 - SEER 20.1 - R454B

Product Description

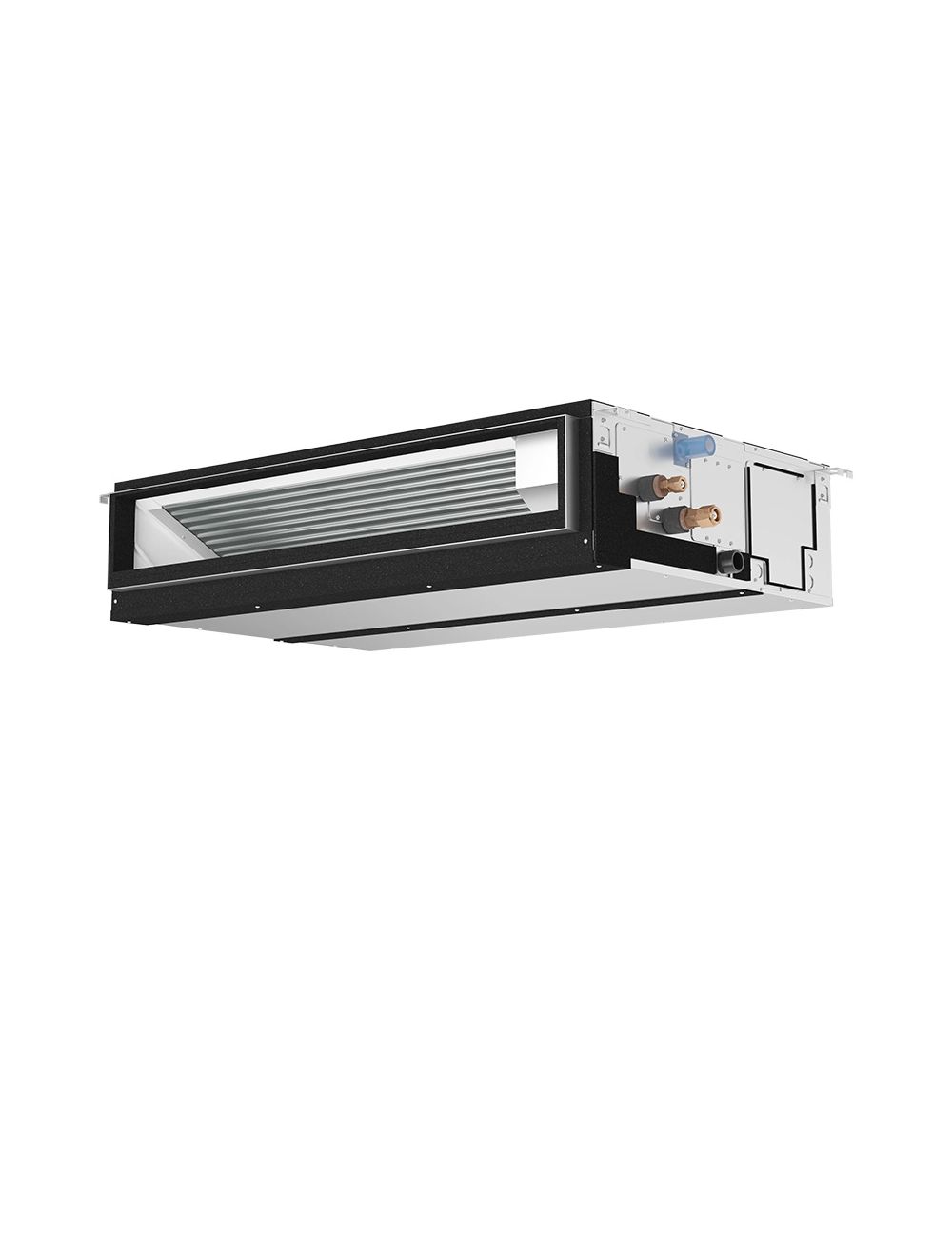

The Mitsubishi Electric PEAD-AA18NL is designed for concealed installation in ducted systems, providing efficient heating and cooling. This unit can function in both single-zone and multi-zone setups.

• Built-in condensate lift mechanism for easy installation.
• Offers multiple control options through an app and third-party devices.
• Features unobtrusive ceiling-concealed installation with short ductwork.

Product Highlights

This indoor unit ensures quiet operation and discreet comfort, making it suitable for various room sizes and types.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PEAD-AA18NL

Technical Specifications

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 18,000 BTU, 20,000 BTU
• Installation Type: Ducted
• Unit Type: Indoor
• Refrigerant: R-454B
• Airflow: 600 CFM, 900 CFM
• Moisture Removal: 2.9 Pints/Hour, 5.9 Pints/Hour
• Voltage: 208/230 V
• Cooling Capacity at 95F: 18,500 BTU/h
• Heating Capacity at 47F: 22,000 BTU/h

Product Description

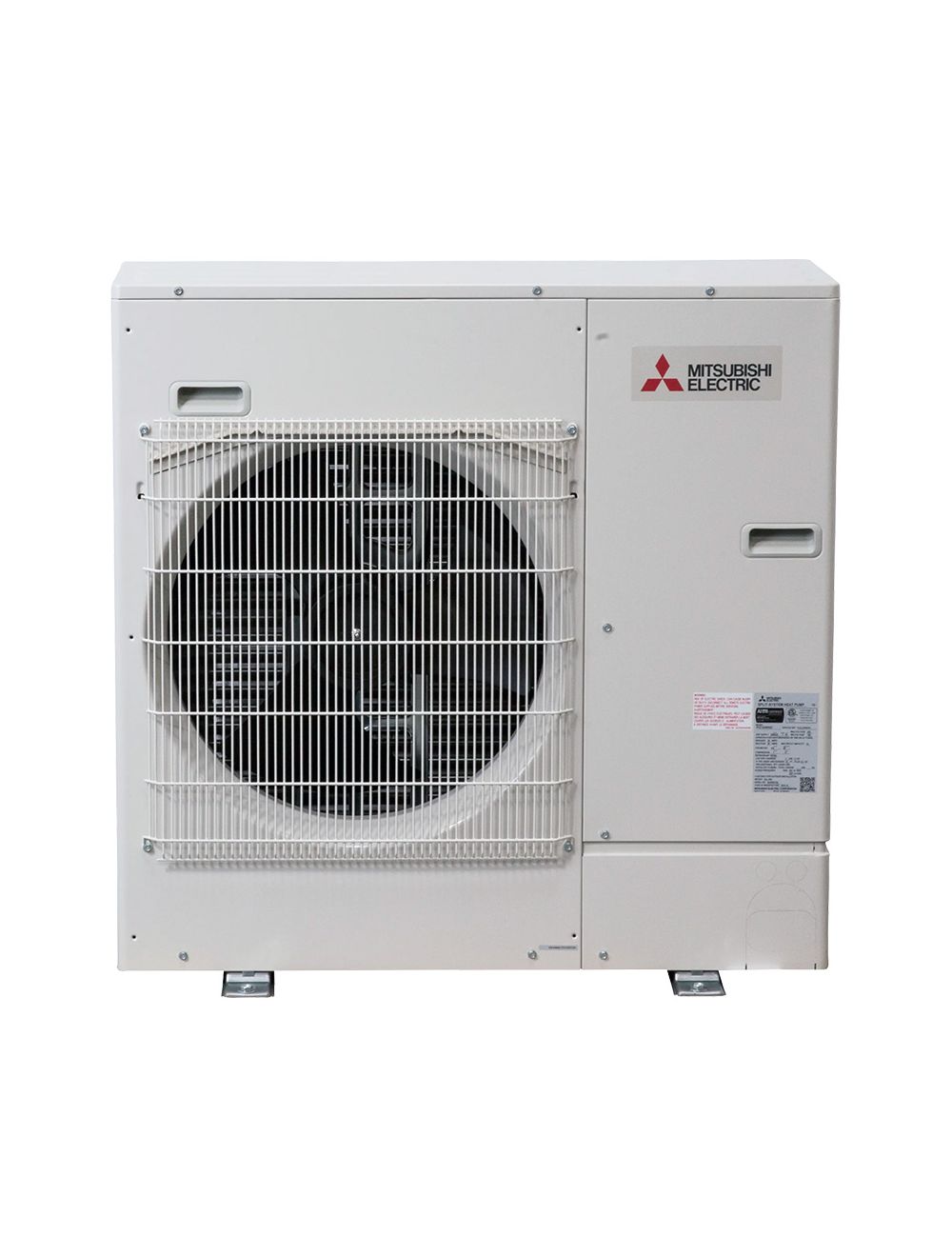

The Mitsubishi Electric PUZ-AK18NL is an outdoor mini-split heat pump condenser designed for single-zone applications. It operates on 208/230V and uses R-454B refrigerant. This unit features an inverter-driven compressor which adjusts capacity to maintain stable temperatures in various conditions.

• Twin rotary compressor for enhanced performance.
• Continuous operation in cooling mode for up to 24 hours.
• Efficient cooling even at low ambient temperatures, down to 0°F.

Product Highlights

This unit is built with Blue Fin coating for corrosion resistance, making it ideal for coastal areas. It is pre-charged with refrigerant, simplifying installation for specified line lengths.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PUZ-AK18NL

Technical Specifications

• Type: Outdoor Unit
• Series: PUZ-AH-NL
• Voltage: 208/230 V
• Amperage: 16 A
• Frequency: 60 Hz
• Refrigerant: R-454B
• Compressor: Twin Rotary Compressor
• Unit Capacity: 18,000 BTU
• Cooling BTU/hr: 4700 to 18500
• Heating BTU/hr: 4200 to 22000
• Cooling Wattage: 1590 W
• Heating Wattage: 1900 W
• EER Rating: 11.7
• SEER: 20.1
• HSPF: 8.8
• Cooling CFM Rating: 1590 cfm
• Cooling Operating Temperature: 23 to 115 deg F
• Heating Operating Temperature: -4 to 70 deg F
• Dimensions: 34-19/64 W x 11-13/16 D x 24-13/16 H
• Color: Ivory
