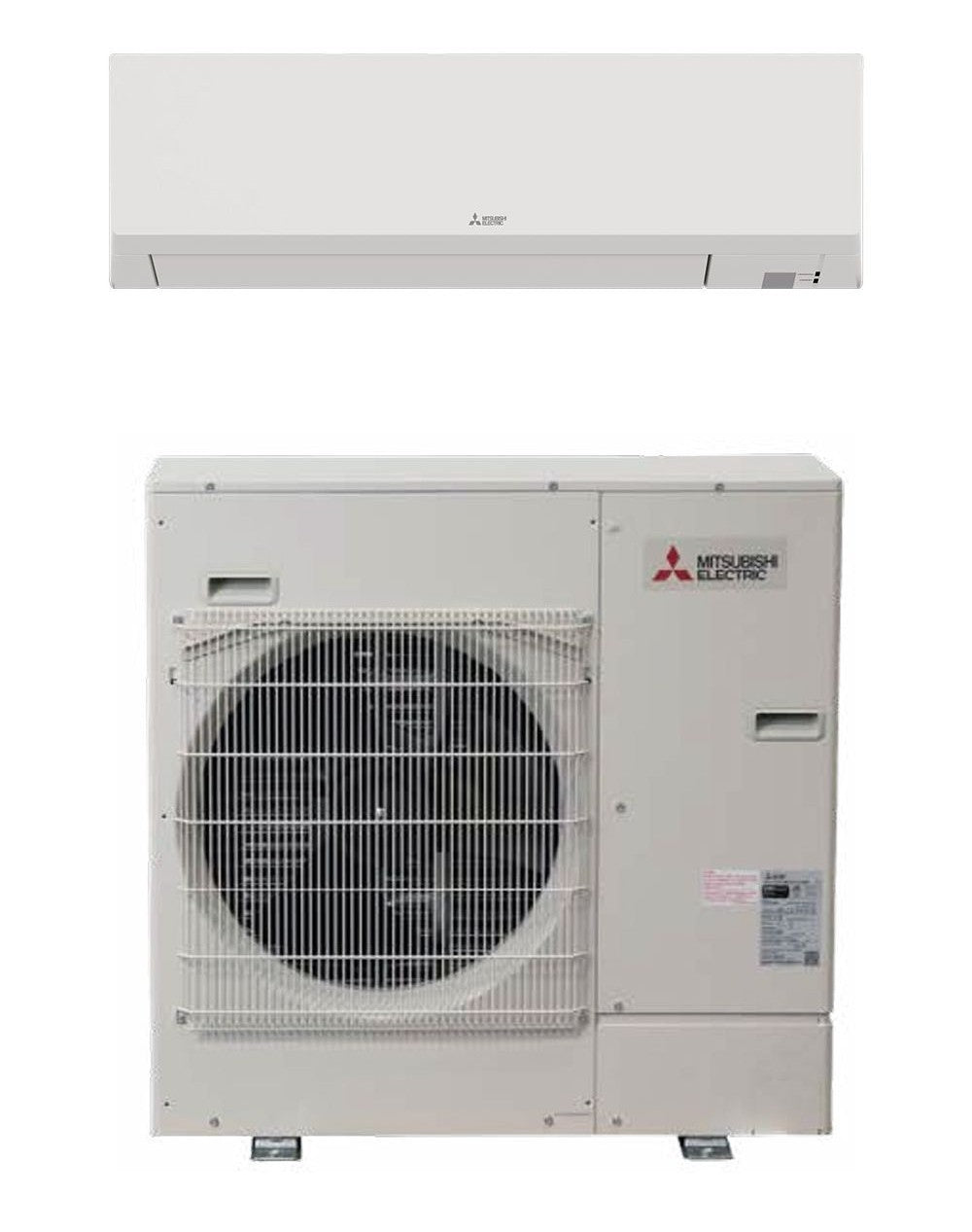

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AK12NL+PKA-AL12NL - BTU 12000 - SEER 21.1 - R454B

Product Description

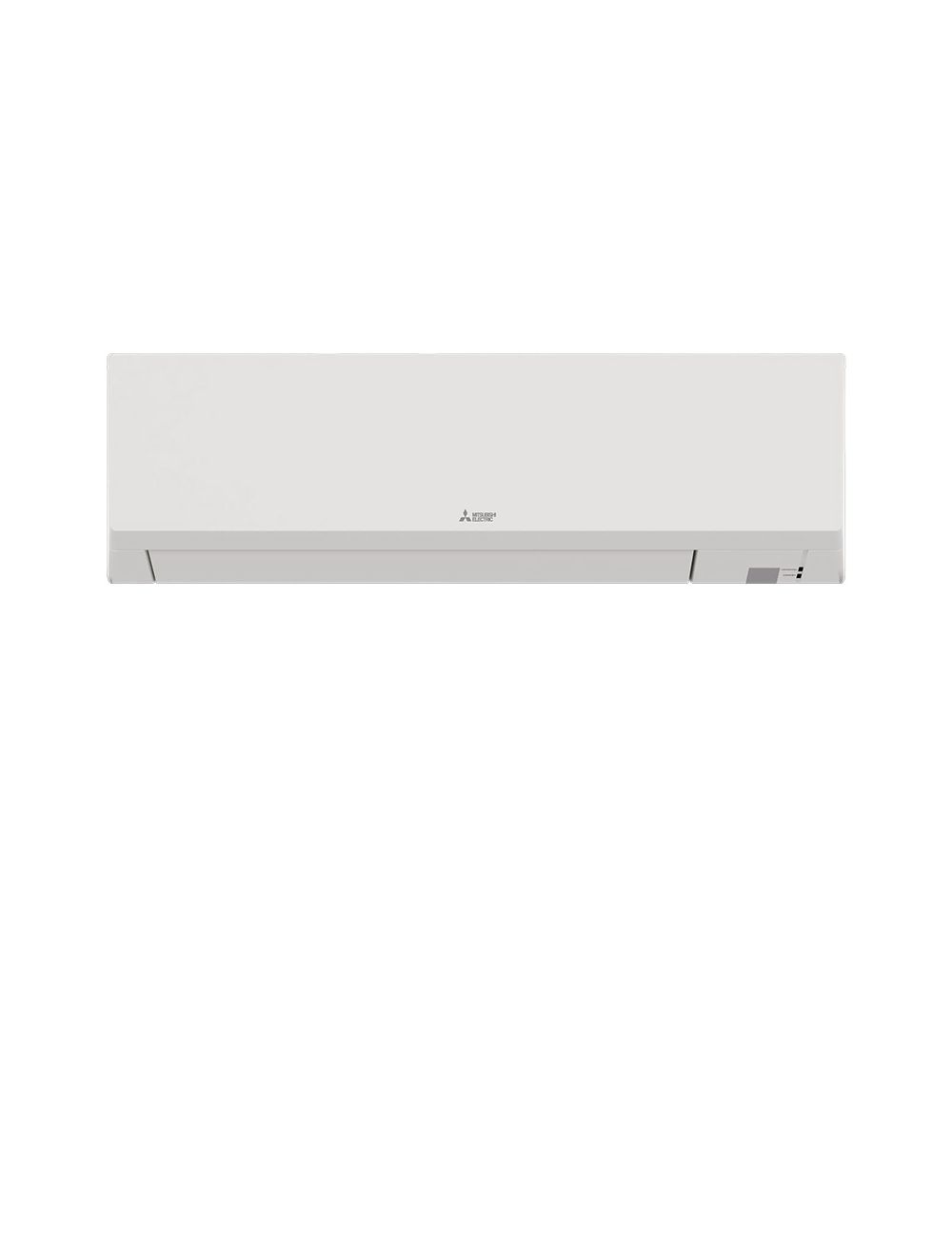

The Mitsubishi Electric PKA-AL12NL is a wall-mounted indoor unit designed for mini-split systems. This unit is part of the Mitsubishi P-Series and works for both heating and cooling. It is suitable for light commercial spaces and offers multiple fan speeds.

• Wall mounted design for efficient space usage.
• Compatible with R-454B refrigerant.
• Quiet operation with a low noise level.

Product Highlights

This unit delivers a powerful performance in both cooling and heating, ensuring comfort in various conditions.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PKA-AL12NL

Technical Specifications

• Product Line: P-Series
• Unit Type: Single Zone Unit
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-454B
• Unit Capacity: 12,000 BTU
• Cooling Capacity: 12,000 BTU
• Heating Capacity: 18,000 BTU
• SEER: 21.1
• EER: 14.8
• HSPF: 10.1
• Energy Star Certified: Yes
• Cooling Minimum Temperature: 0 F
• Heating Minimum Temperature: 5 F
• Room Cooling/Heating Capacity: Up to 550 sq ft
• Maximum Air Flow: 385 CFM
• Minimum Air Flow: 215 CFM
• Noise Level: Cooling: 34-48 dB(A)
• Noise Level: Heating: 34-43 dB(A)
• Input Voltage: 208/230 Volts
• Power Consumption: 830 W
• Dimensions: 35-11/32 W x 9-11/32 D x 11-25/32 H
• Weight: 28 Pounds

Product Description

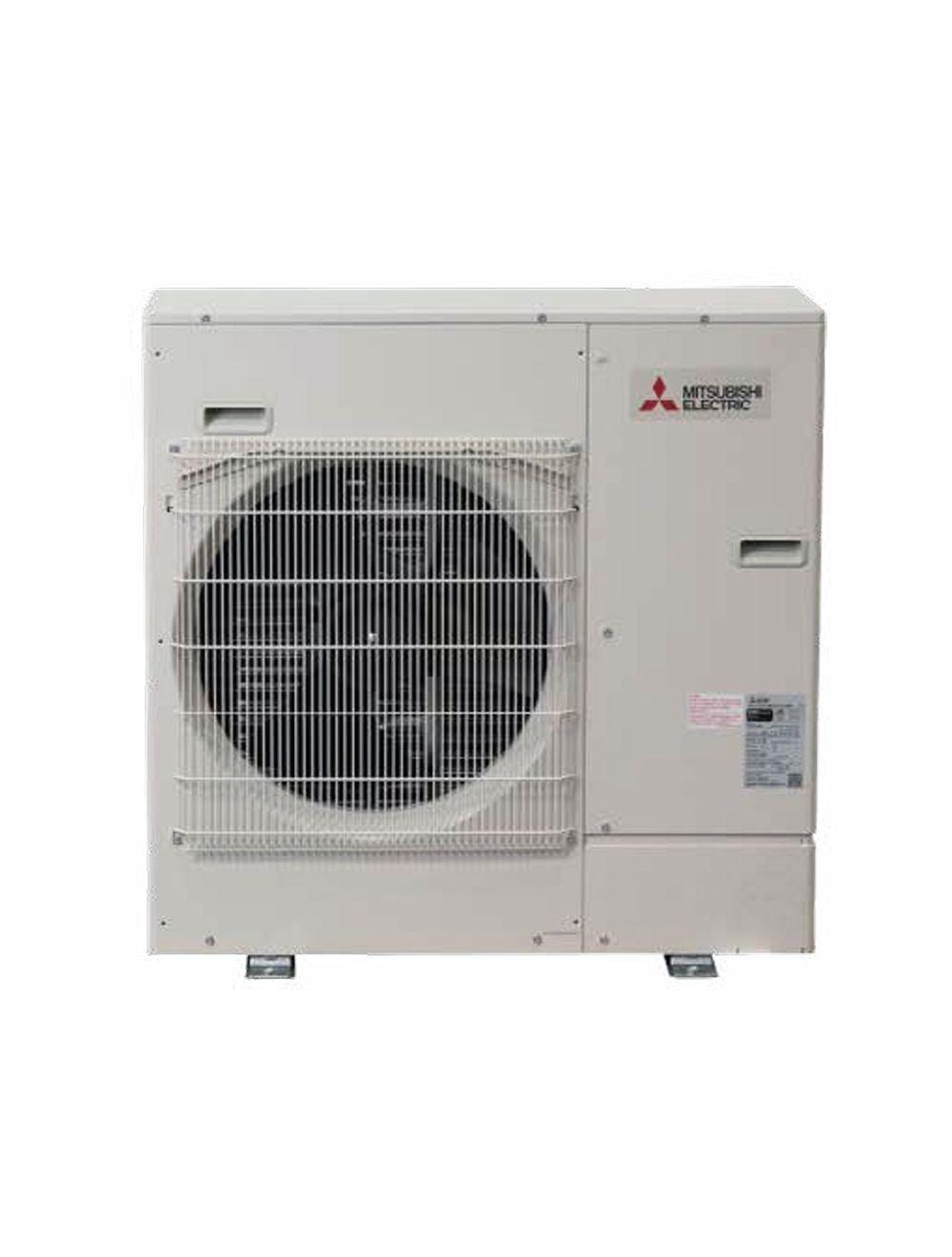

The Mitsubishi Electric PUZ-AK12NL is an outdoor condenser for mini-split systems, effective for both heating and cooling tasks. This unit belongs to the Mitsubishi P-Series, tailored for commercial use. It features inverter technology that precisely adjusts the compressor speed and refrigerant flow. Compatibility with R-454B refrigerant enhances operational efficiency, while the blue fin condenser coating provides protection from the elements.

• Designed for single-zone applications.
• Inverter technology ensures accurate temperature control.
• Blue fin condenser coating extends the system's lifespan.

Product Highlights

Ideal for commercial setups, the PUZ-AK12NL offers dependable performance for spaces up to five hundred fifty square feet.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PUZ-AK12NL

Technical Specifications

• Product Line: P-Series
• Unit Type: 1 Ton Single Zone Unit
• Operating Mode: Cooling & Heating
• Unit Capacity: 12,000 BTU
• Heating Capacity: 18,000 BTU
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Minimum Outdoor Temperature for Heating: -4 F
• Maximum Sound Level: 46 dB
• Weight: 99.21 Pounds
• Energy Star Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
