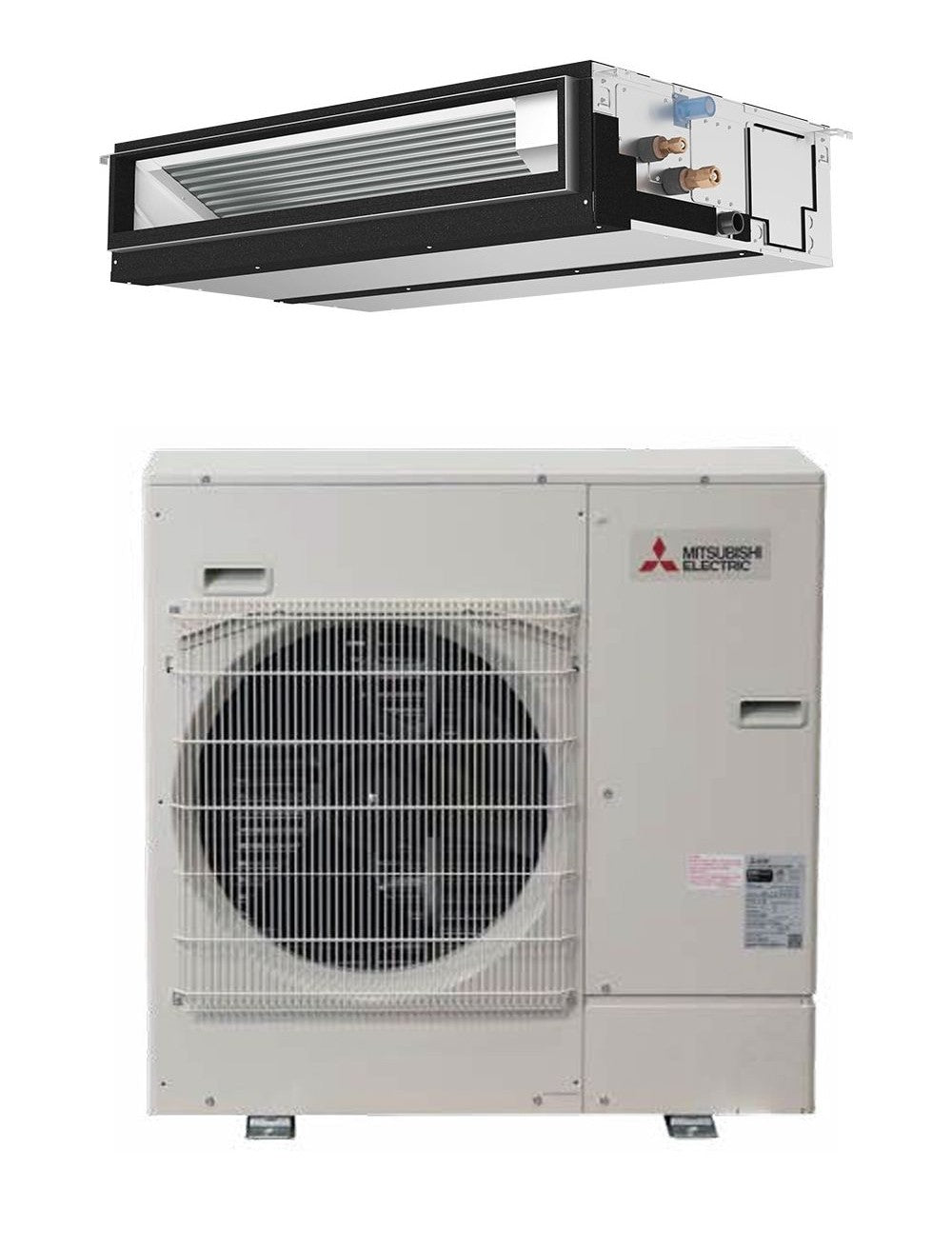

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AK12NL+PEAD-AA12NL - BTU 12000 - SEER 20 - R454B

Product Description

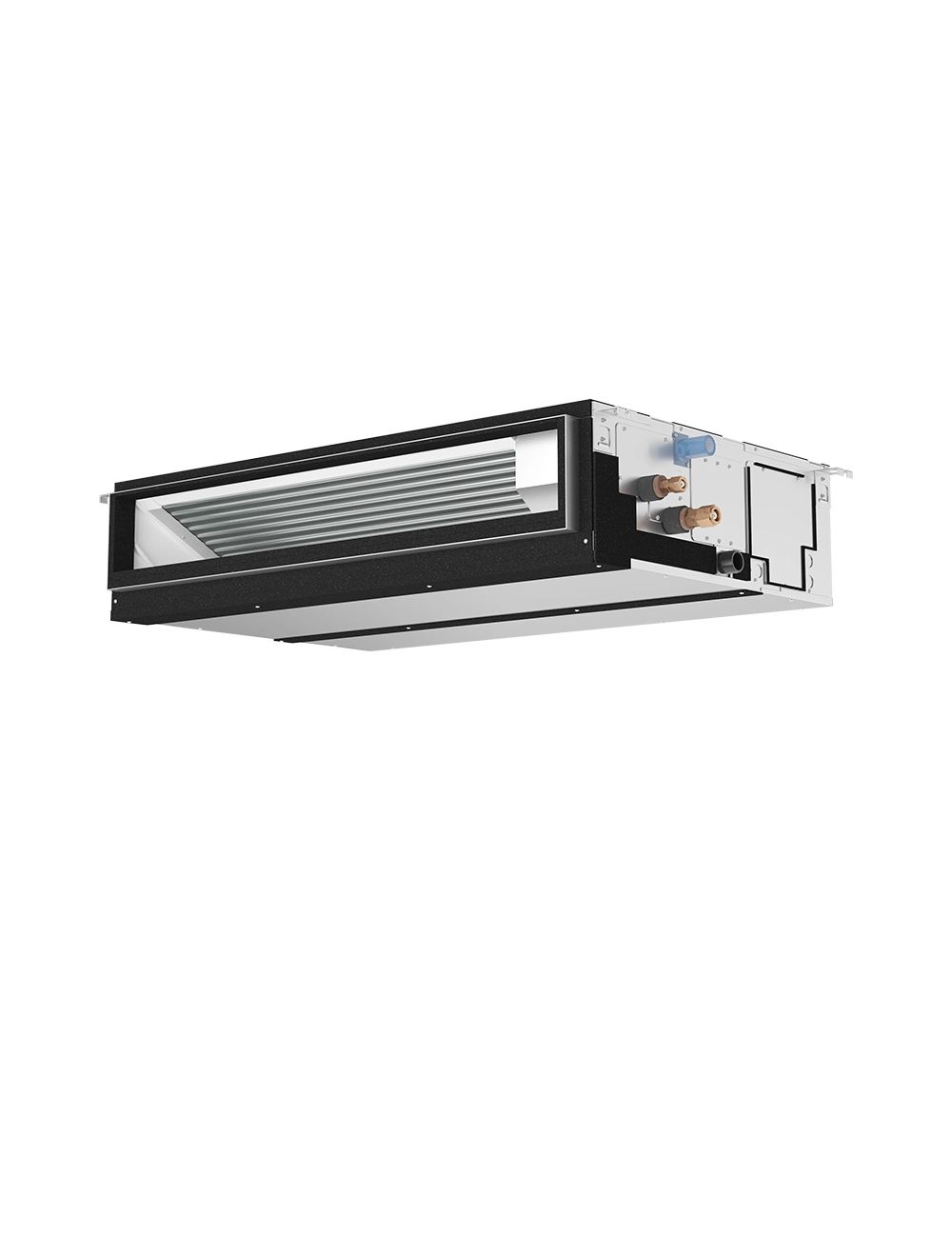

The Mitsubishi Electric PEAD-AA12NL is an indoor unit designed for ceiling installation. This horizontal-ducted unit operates on 208/230 V, sixty Hertz, and uses single-phase power. It has a power consumption of eight hundred seventy watts with a current draw of two point five amps.

The unit utilizes R-454B refrigerant and can deliver airflow rates ranging from three hundred fifty-three to four hundred ninety-four cubic feet per minute. The Mitsubishi Electric PEAD-AA12NL achieves an Energy Efficiency Ratio rating of fourteen point four and a Seasonal Energy Efficiency Ratio rating of twenty. The sound level of this unit is thirty-four decibels, and it operates effectively within a temperature range of sixty-six to ninety degrees Fahrenheit.

• Built-in condensate lift mechanism supports up to twenty-seven and nine sixteenths inches.
• Multiple control options available, including mobile app, wired, and wireless interfaces.
• Wide external static pressure range of zero point fourteen to zero point sixty inches water gauge.

Product Highlights

The Mitsubishi Electric PEAD-AA12NL provides efficient cooling and versatile control capabilities.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PEAD-AA12NL

Technical Specifications

• Product Type: Indoor Unit
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Phase: Single Phase
• Power Consumption: 870 W
• Current: 2.5 A
• Cooling Capacity: 12400 Btu/hr
• Airflow: 353 cfm, 388 cfm, 424 cfm, 494 cfm
• EER Rating: 14.4
• SEER: 20
• Refrigerant: R-454B
• Sound Level: 34 dBA
• Mounting Type: Ceiling Mounting
• Operating Temperature: 66 to 90 deg F
• Overall Length: 28-7/8 in
• Overall Width: 35-7/16 in
• Overall Height: 9-7/8 in
• Connection Type: Flared Connection

Product Description

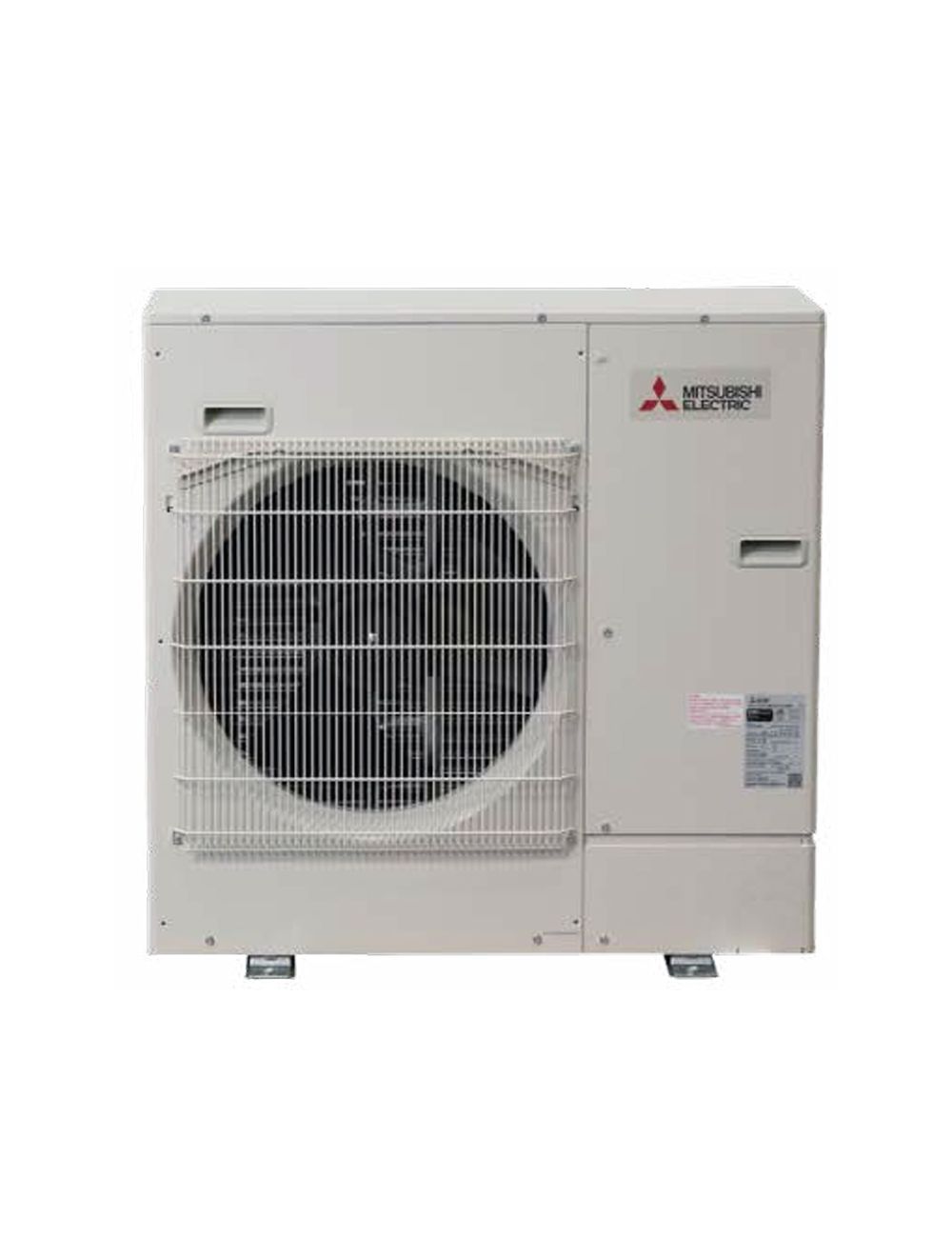

The Mitsubishi Electric PUZ-AK12NL is an outdoor condenser for mini-split systems, effective for both heating and cooling tasks. This unit belongs to the Mitsubishi P-Series, tailored for commercial use. It features inverter technology that precisely adjusts the compressor speed and refrigerant flow. Compatibility with R-454B refrigerant enhances operational efficiency, while the blue fin condenser coating provides protection from the elements.

• Designed for single-zone applications.
• Inverter technology ensures accurate temperature control.
• Blue fin condenser coating extends the system's lifespan.

Product Highlights

Ideal for commercial setups, the PUZ-AK12NL offers dependable performance for spaces up to five hundred fifty square feet.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PUZ-AK12NL

Technical Specifications

• Product Line: P-Series
• Unit Type: 1 Ton Single Zone Unit
• Operating Mode: Cooling & Heating
• Unit Capacity: 12,000 BTU
• Heating Capacity: 18,000 BTU
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Minimum Outdoor Temperature for Heating: -4 F
• Maximum Sound Level: 46 dB
• Weight: 99.21 Pounds
• Energy Star Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
