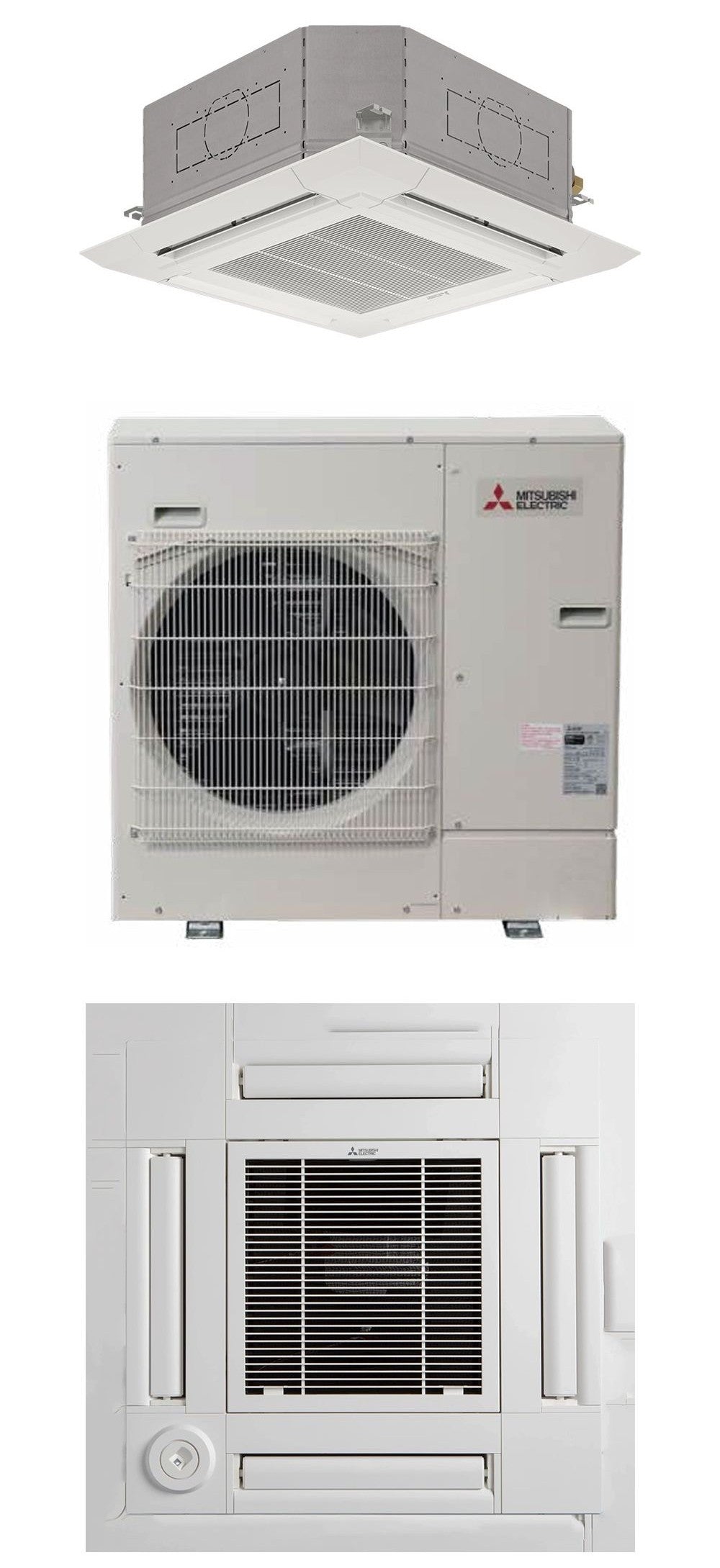

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AH24NL+PLA-AE24NL+PLP-41EAEU - BTU 24000 - SEER 22.6 - R454B

Product Description

The Mitsubishi Electric PLA-AE24NL is a ceiling cassette unit designed for both heating and cooling applications in residential and commercial settings. This unit efficiently provides climate control for single or multi-zone systems. Its low-profile design allows for discreet installation, while the quiet operation minimizes disruption. The integrated sensor is essential for detecting warm and cold spots, ensuring that conditioned air is effectively distributed throughout the space.

• Operates in both heating and cooling modes.
• Built-in condensate lift mechanism included.
• Equipped with a washable filter for easy maintenance.

Product Highlights

This ceiling cassette unit is ideal for those looking to optimize their indoor climate with advanced technology and reliability.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PLA-AE24NL

Technical Specifications

• Unit Type: Ceiling Cassette
• Product Line: P-Series
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• Unit Size: 24,000 BTU
• Refrigerant Type: R-454B
• Cooling Capacity: 24000 BTU
• Heating Capacity: 29000 BTU
• SEER2: 24.7
• EER2: 13.7
• Energy Star Certified: Yes
• Cooling Minimum Temperature: 0 F
• Noise Level Cooling: 28-36 dB(A)
• Noise Level Heating: 28-36 dB(A)
• Dimensions: W 33 1/16 x 33 1/16 x 10 3/16
• Installation Location: Indoor
• Moisture Removal: 4 Pints/Hour
• Maximum Air Flow: 810 CFM
• Minimum Air Flow: 530 CFM
• Voltage: 208/230 Volts
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Weight: 57 Pounds
• AHRI Certified: Yes
• ETL Listed: Yes

Product Description

The Mitsubishi Electric PUZ-AH24NL is an outdoor mini-split heat pump condenser designed for single-zone applications. This unit operates on 208/230V power and uses R-454B refrigerant, providing both cooling and heating functions. The inverter-driven compressor ensures efficient performance, while its pre-charged design facilitates installation. The design also includes anti-corrosion treatments like Blue Fin coating.

• Functions as an outdoor heat pump condenser.
• Equipped with an inverter-driven compressor for efficient operation.
• Designed with anti-corrosion treatments for durability.

Product Highlights

This heat pump condenser supports cooling and heating in moderate environments and provides comfortable indoor conditions throughout the year.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PUZ-AH24NL

Technical Specifications

• Type: Outdoor Unit
• Operating Mode: Cooling & Heating
• System Capacity: 23,400 BTU
• Cooling Capacity: 24,000 BTU
• Heating Capacity: 31,800 BTU
• Input Voltage: 208/230 V
• Cooling Power Consumption: 2120 W
• Heating Power Consumption: 2760 W
• Input Frequency: 60 Hz
• Phase: 1 ph
• Cooling CFM Rating: 1940 cfm
• Heating CFM Rating: 1940 cfm
• EER Rating: 12
• SEER2: 19.2
• EER2: 12
• HSPF2: 8.9
• HSPF Rating: 9.3
• Heating Minimum Temperature: -13 F
• Heating Operating Temperature: -4 to 70 deg F
• Cooling Operating Temperature: 23 to 115 deg F
• Refrigerant: R-454B
• Liquid Line Size: 3/8 in
• Suction Line Size: 5/8 in
• Fuse Rating: 25 A
• Heating Sound Level: 52 dBA
• Cooling Sound Level: 34-40-44 dBA
• Dimensions: 37-13/32 W x 14 D x 37-1/8 H
• Weight: 141 lbs
• Airflow Cooling CFM, Dry: 613-744-875
• Airflow Heating CFM, Dry: 613-744-875

Product Description

The Mitsubishi PLP-41EAEU is a grille designed for the PLFY-EP and PLA-7 series indoor units. It serves as a crucial component in ensuring proper airflow and maintaining optimal conditions in ductless systems.

• Compatible with PLFY-EP and PLA-7 series indoor units
• Made by Mitsubishi, a trusted brand in HVAC solutions
• Lightweight yet durable construction for long-term use

Product Highlights

This grille is essential for efficient operation and air distribution in Mitsubishi ductless systems.

Product Information

Standard Information

• Brand: Mitsubishi
• Part Number: PLP-41EAEU

Technical Specifications

• Weight: 15.4 pounds
• Height: 4.7 inches
• Length: 38.2 inches
• Width: 39.4 inches
• Cubic Measurement: 4.0937
• Dimensional Weight: 54
• Country of Origin: Thailand
• Tier: P-Series
