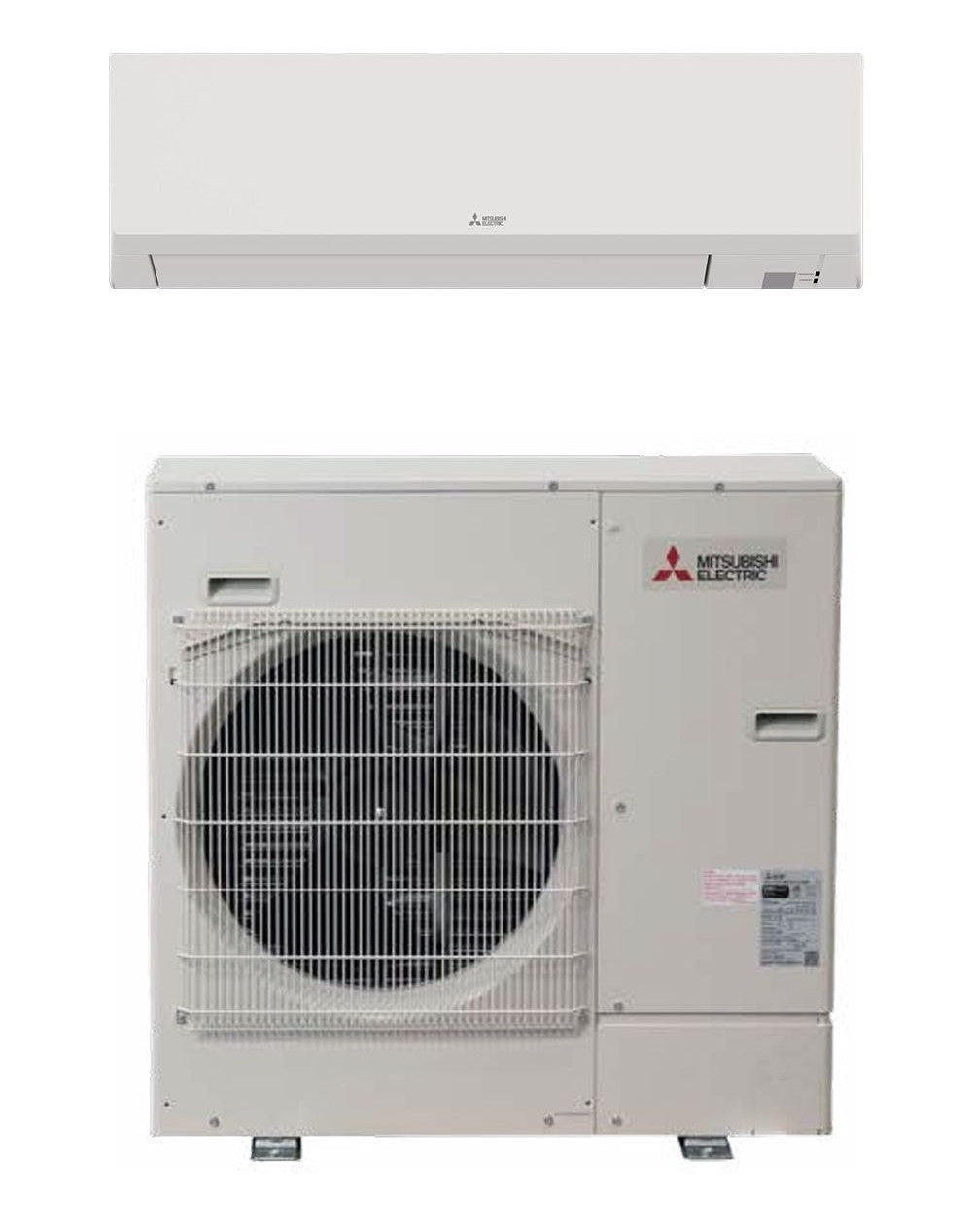

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AH24NL+PKA-AK24NL - BTU 24000 - SEER 21.1 - R454B

Product Description

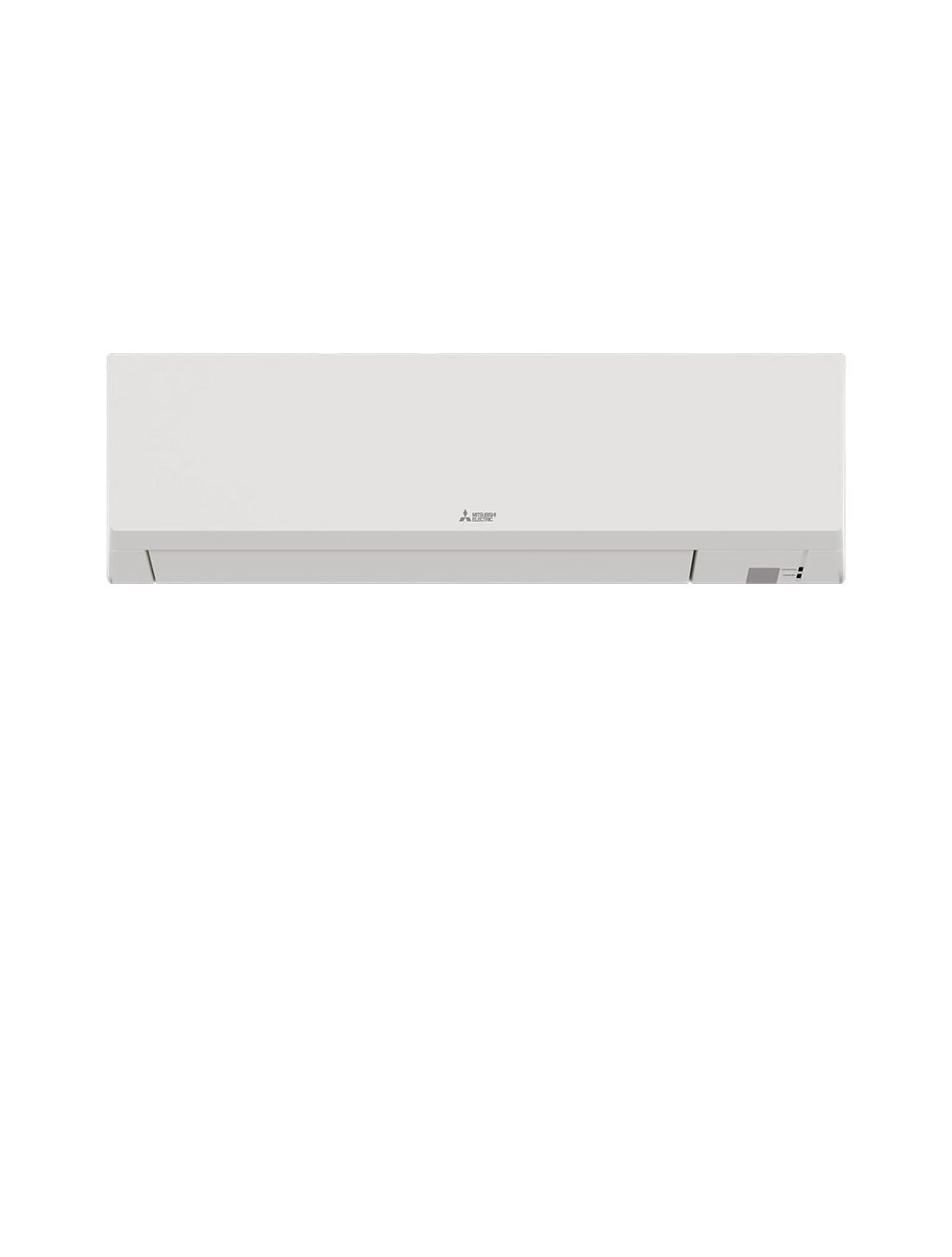

The Mitsubishi Electric PKA-AK24NL is a wall-mounted indoor unit designed specifically for single-zone applications. This unit is part of the Mitsubishi P-Series, suitable for light commercial settings. It works seamlessly with an outdoor unit to offer both cooling and heating capabilities. The PKA-AK24NL is equipped with an inverter-driven compressor that provides efficient performance. Users can control airflow direction using vane settings, and the auto fan speed mode adjusts automatically for optimal comfort.

• Suitable for cooling and heating applications.
• Features auto fan speed mode for convenience.
• Vane settings allow for airflow direction control.

Product Highlights

This unit ensures effective climate control and energy efficiency in commercial and residential spaces.

Product Information

Standard Information

• Product Line: Mitsubishi P-Series
• Operating Mode: Cooling & Heating

Technical Specifications

• Number of Zones: 1
• Unit Capacity: 24,000 BTU
• SEER2: 21.8
• EER Rating: 12
• HSPF2 [IV]: 9.4
• Sound Level: 45 dBA
• Mounting Type: Wall
• Power Rating: 2050 W
• Voltage Rating: 208/230 V
• Frequency Rating: 60 Hz
• Phase: 1 ph
• CFM Rating: 635 cfm, 705 cfm, 775 cfm
• Temperature Rating: 66 to 90 deg F
• Overall Width: 46-1/16 in
• Overall Length: 11-5/8 in
• Overall Height: 14-3/8 in
• Weight: 46 lb
• Fuse Rating: 25 A
• Drive Type: Inverter
• Connection Type: Flared
• Color: White

Product Description

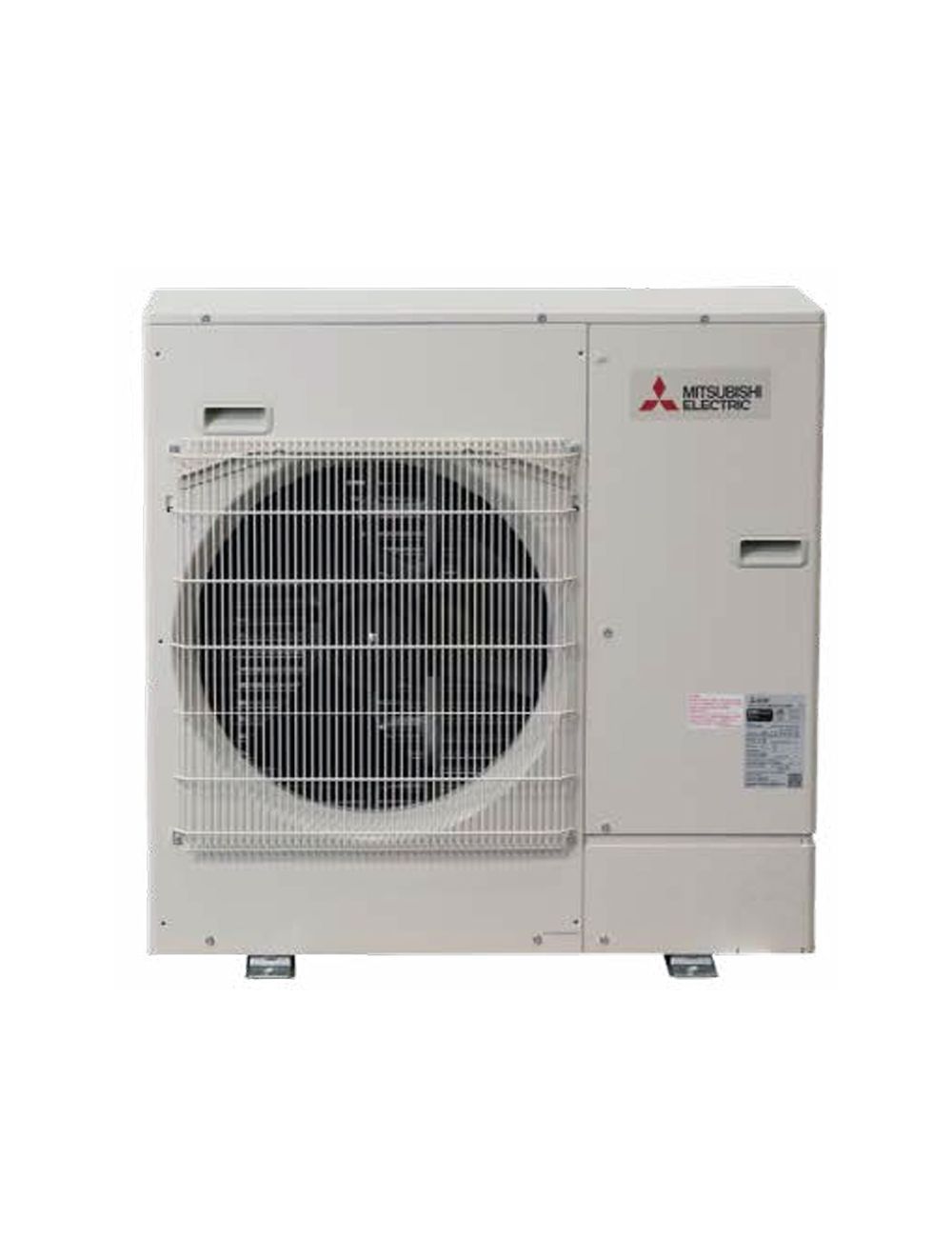

The Mitsubishi Electric PUZ-AH24NL is an outdoor mini-split heat pump condenser designed for single-zone applications. This unit operates on 208/230V power and uses R-454B refrigerant, providing both cooling and heating functions. The inverter-driven compressor ensures efficient performance, while its pre-charged design facilitates installation. The design also includes anti-corrosion treatments like Blue Fin coating.

• Functions as an outdoor heat pump condenser.
• Equipped with an inverter-driven compressor for efficient operation.
• Designed with anti-corrosion treatments for durability.

Product Highlights

This heat pump condenser supports cooling and heating in moderate environments and provides comfortable indoor conditions throughout the year.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PUZ-AH24NL

Technical Specifications

• Type: Outdoor Unit
• Operating Mode: Cooling & Heating
• System Capacity: 23,400 BTU
• Cooling Capacity: 24,000 BTU
• Heating Capacity: 31,800 BTU
• Input Voltage: 208/230 V
• Cooling Power Consumption: 2120 W
• Heating Power Consumption: 2760 W
• Input Frequency: 60 Hz
• Phase: 1 ph
• Cooling CFM Rating: 1940 cfm
• Heating CFM Rating: 1940 cfm
• EER Rating: 12
• SEER2: 19.2
• EER2: 12
• HSPF2: 8.9
• HSPF Rating: 9.3
• Heating Minimum Temperature: -13 F
• Heating Operating Temperature: -4 to 70 deg F
• Cooling Operating Temperature: 23 to 115 deg F
• Refrigerant: R-454B
• Liquid Line Size: 3/8 in
• Suction Line Size: 5/8 in
• Fuse Rating: 25 A
• Heating Sound Level: 52 dBA
• Cooling Sound Level: 34-40-44 dBA
• Dimensions: 37-13/32 W x 14 D x 37-1/8 H
• Weight: 141 lbs
• Airflow Cooling CFM, Dry: 613-744-875
• Airflow Heating CFM, Dry: 613-744-875
