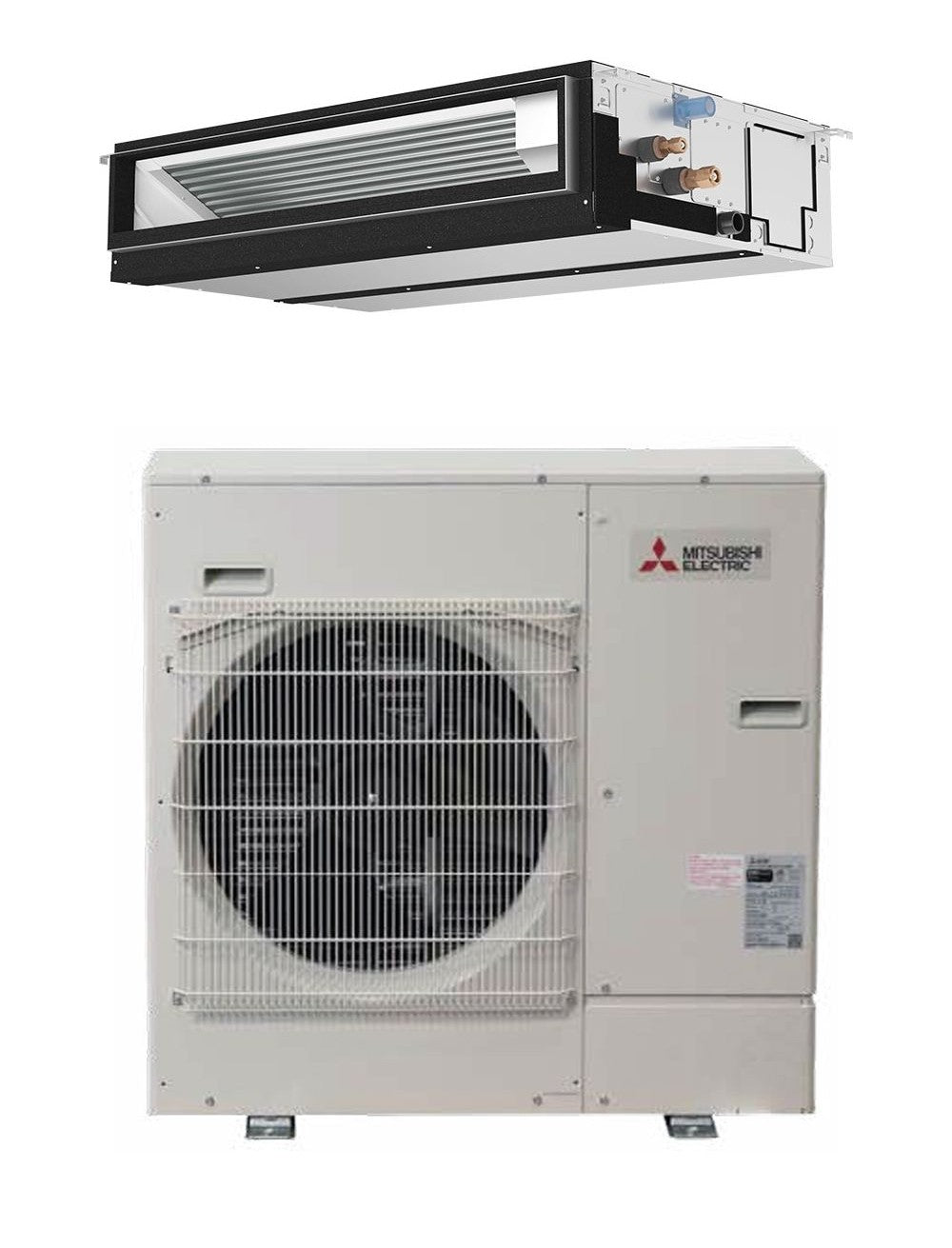

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AH24NL+PEAD-AA24NL - BTU 24000 - SEER 19.6 - R454B

Product Description

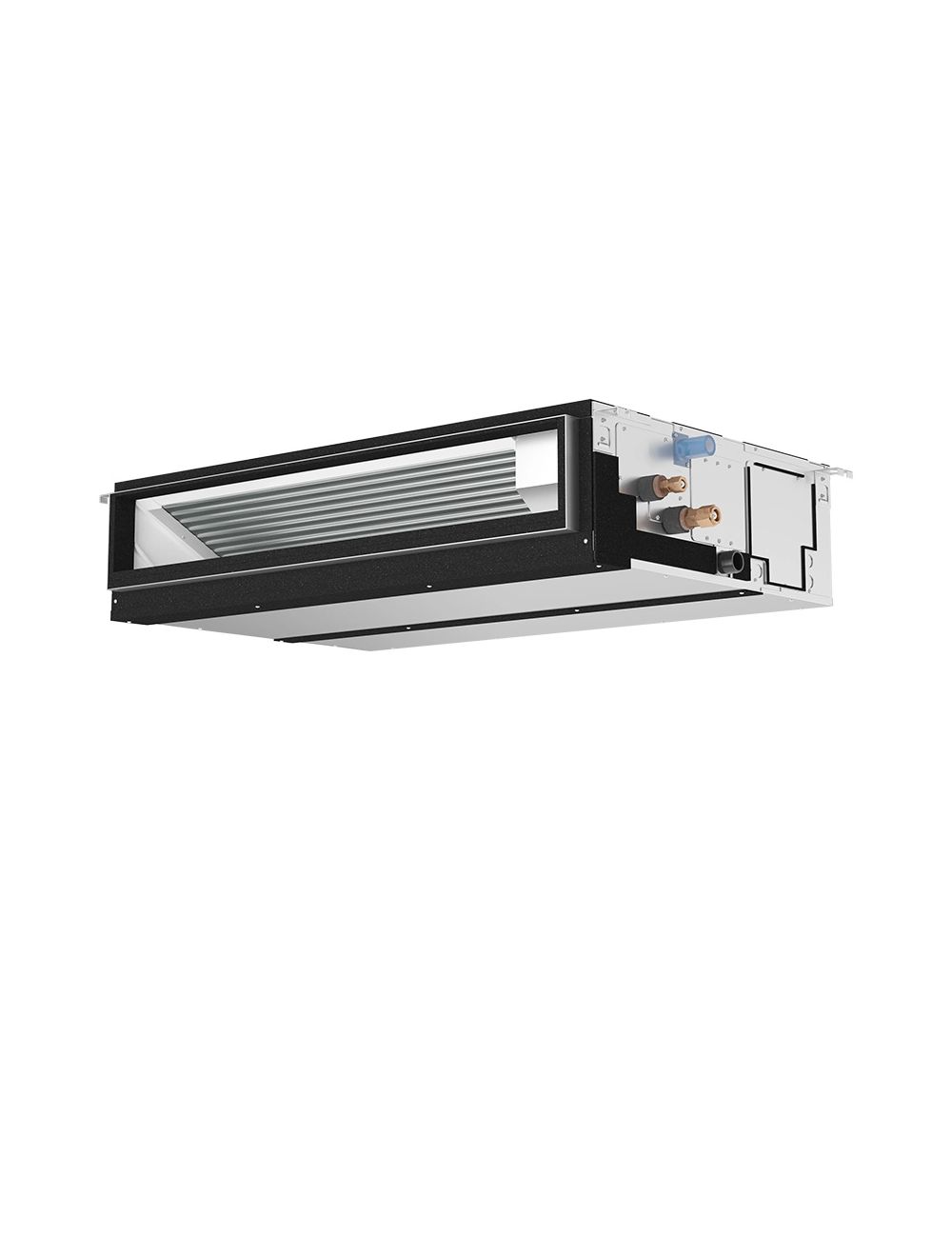

The Mitsubishi Electric PEAD-AA24NL is a ducted indoor unit ideal for residential and light commercial use. It is part of the Mid Static intelli-AIR series and is suitable for small homes or larger settings like offices and restaurants. This horizontal unit distributes heated or cooled air through concealed ductwork, making it suitable for multiple rooms or open layouts.

Installation is designed to be unobtrusive, fitting within attics, ceilings, or under floors. The unit operates quietly and, as a heat pump, it adjusts its power consumption to maintain the desired temperature.

• Built-in condensate lift mechanism, max height of twenty-seven and nine-sixteenths inches
• Wide external static pressure range from zero point fourteen to zero point sixty inches WG
• Concealed installation with short duct runs

Product Highlights

This indoor unit effectively manages airflow in various spaces while remaining discreet.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: PEAD-AA24NL

Technical Specifications

• Dimensions: forty-three and five-sixteenths inches W x twenty-eight and seven-eighths inches D x nine and seven-eighths inches H

Product Description

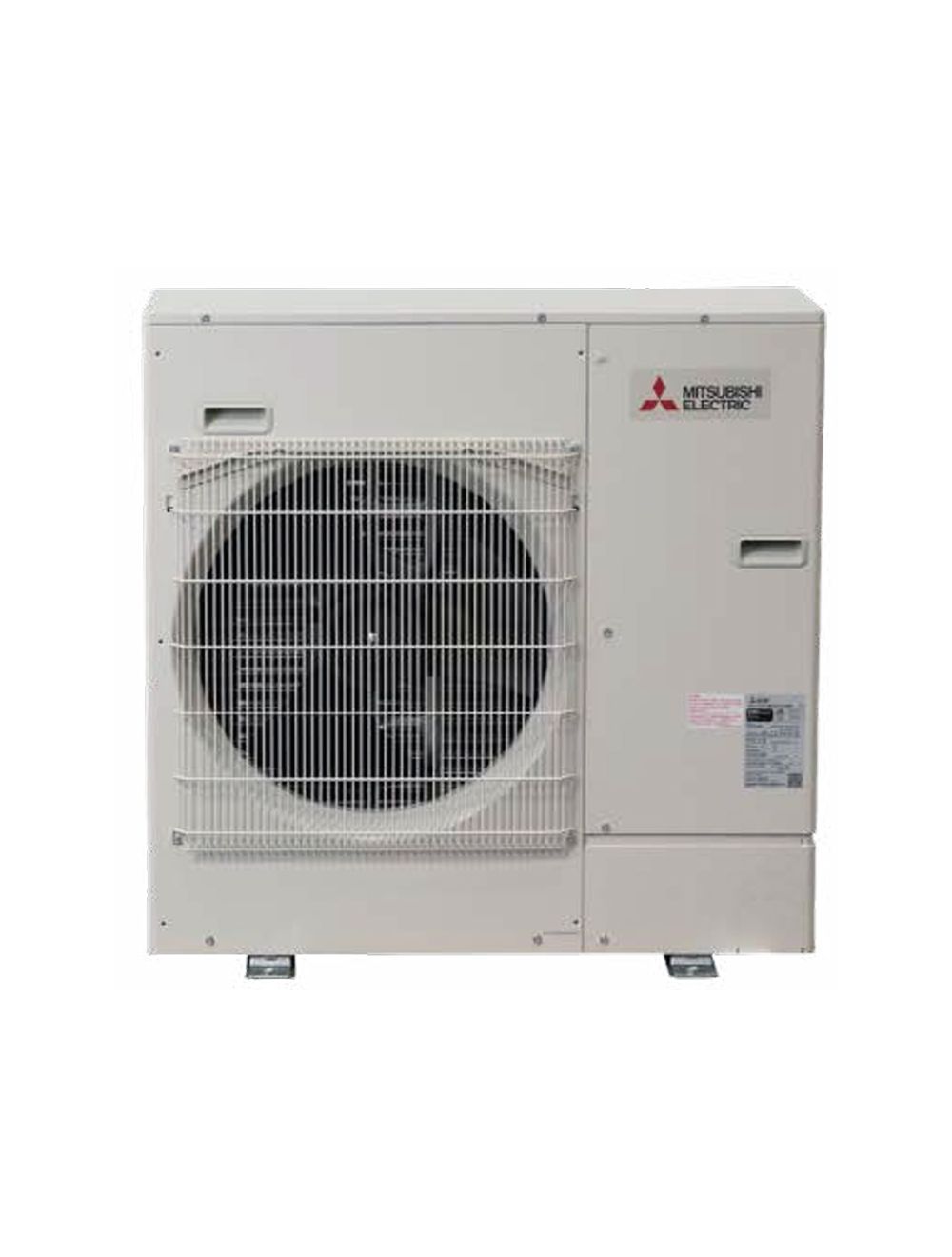

The Mitsubishi Electric PUZ-AH24NL is an outdoor mini-split heat pump condenser designed for single-zone applications. This unit operates on 208/230V power and uses R-454B refrigerant, providing both cooling and heating functions. The inverter-driven compressor ensures efficient performance, while its pre-charged design facilitates installation. The design also includes anti-corrosion treatments like Blue Fin coating.

• Functions as an outdoor heat pump condenser.
• Equipped with an inverter-driven compressor for efficient operation.
• Designed with anti-corrosion treatments for durability.

Product Highlights

This heat pump condenser supports cooling and heating in moderate environments and provides comfortable indoor conditions throughout the year.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PUZ-AH24NL

Technical Specifications

• Type: Outdoor Unit
• Operating Mode: Cooling & Heating
• System Capacity: 23,400 BTU
• Cooling Capacity: 24,000 BTU
• Heating Capacity: 31,800 BTU
• Input Voltage: 208/230 V
• Cooling Power Consumption: 2120 W
• Heating Power Consumption: 2760 W
• Input Frequency: 60 Hz
• Phase: 1 ph
• Cooling CFM Rating: 1940 cfm
• Heating CFM Rating: 1940 cfm
• EER Rating: 12
• SEER2: 19.2
• EER2: 12
• HSPF2: 8.9
• HSPF Rating: 9.3
• Heating Minimum Temperature: -13 F
• Heating Operating Temperature: -4 to 70 deg F
• Cooling Operating Temperature: 23 to 115 deg F
• Refrigerant: R-454B
• Liquid Line Size: 3/8 in
• Suction Line Size: 5/8 in
• Fuse Rating: 25 A
• Heating Sound Level: 52 dBA
• Cooling Sound Level: 34-40-44 dBA
• Dimensions: 37-13/32 W x 14 D x 37-1/8 H
• Weight: 141 lbs
• Airflow Cooling CFM, Dry: 613-744-875
• Airflow Heating CFM, Dry: 613-744-875
