Mitsubishi Electric Trane Hvac SLZ-KF18NA.TH Heat Pump Indoor Unit 18000 Btu/hr

Product Description

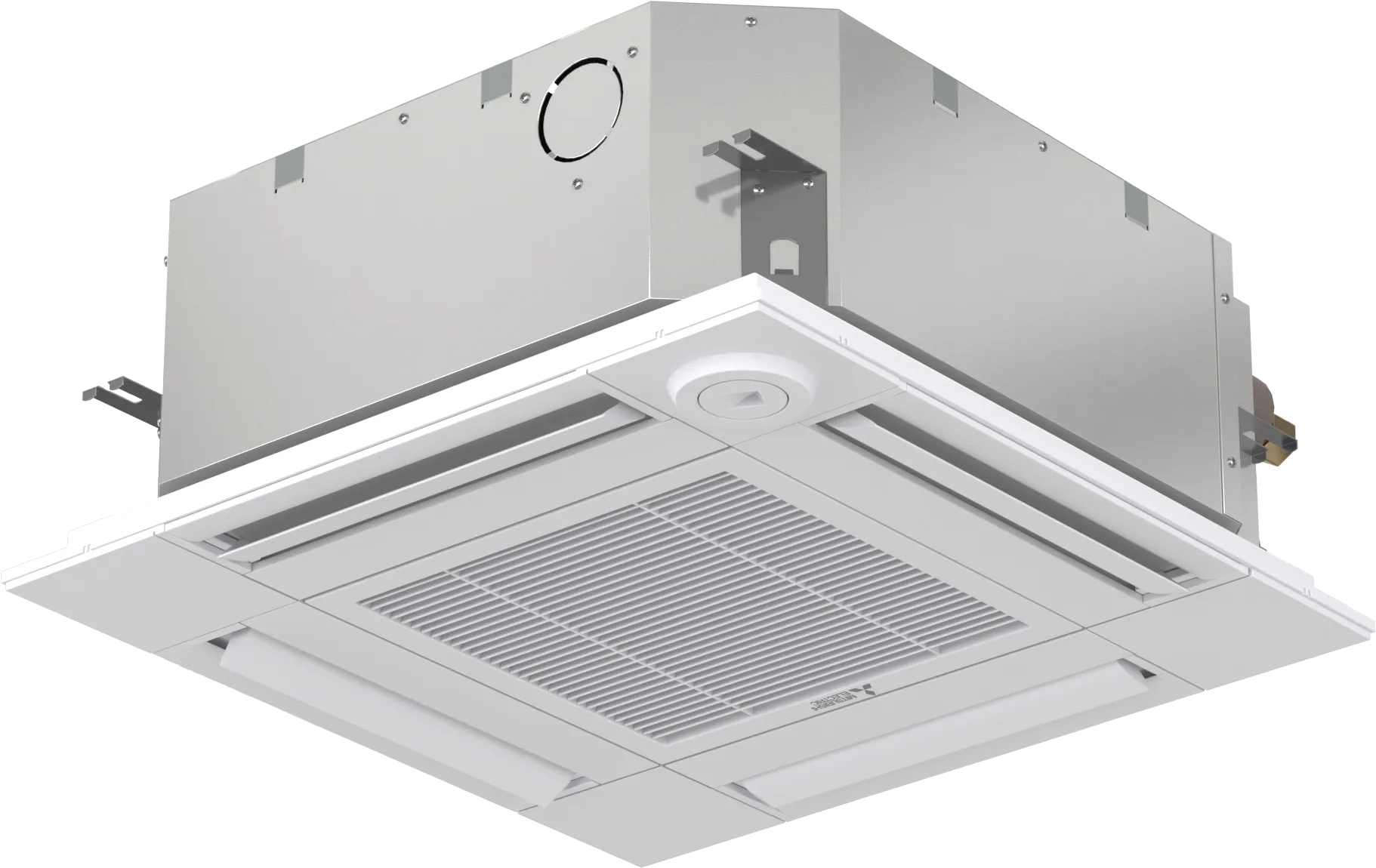

The Mitsubishi Electric Trane HVAC SLZ-KF18NA.TH is a single/multi-zone mini-split indoor unit. This SLZ Series unit operates at 208/230 V and provides 18000 Btu/hr. Designed for ceiling cassette mounting, it features a flared connection and uses R-410A refrigerant.

• Ceiling recessed cassette (24 x24 in) ductless heat pump
• Wide airflow pattern for excellent air distribution
• Individual vane control

Product Highlights

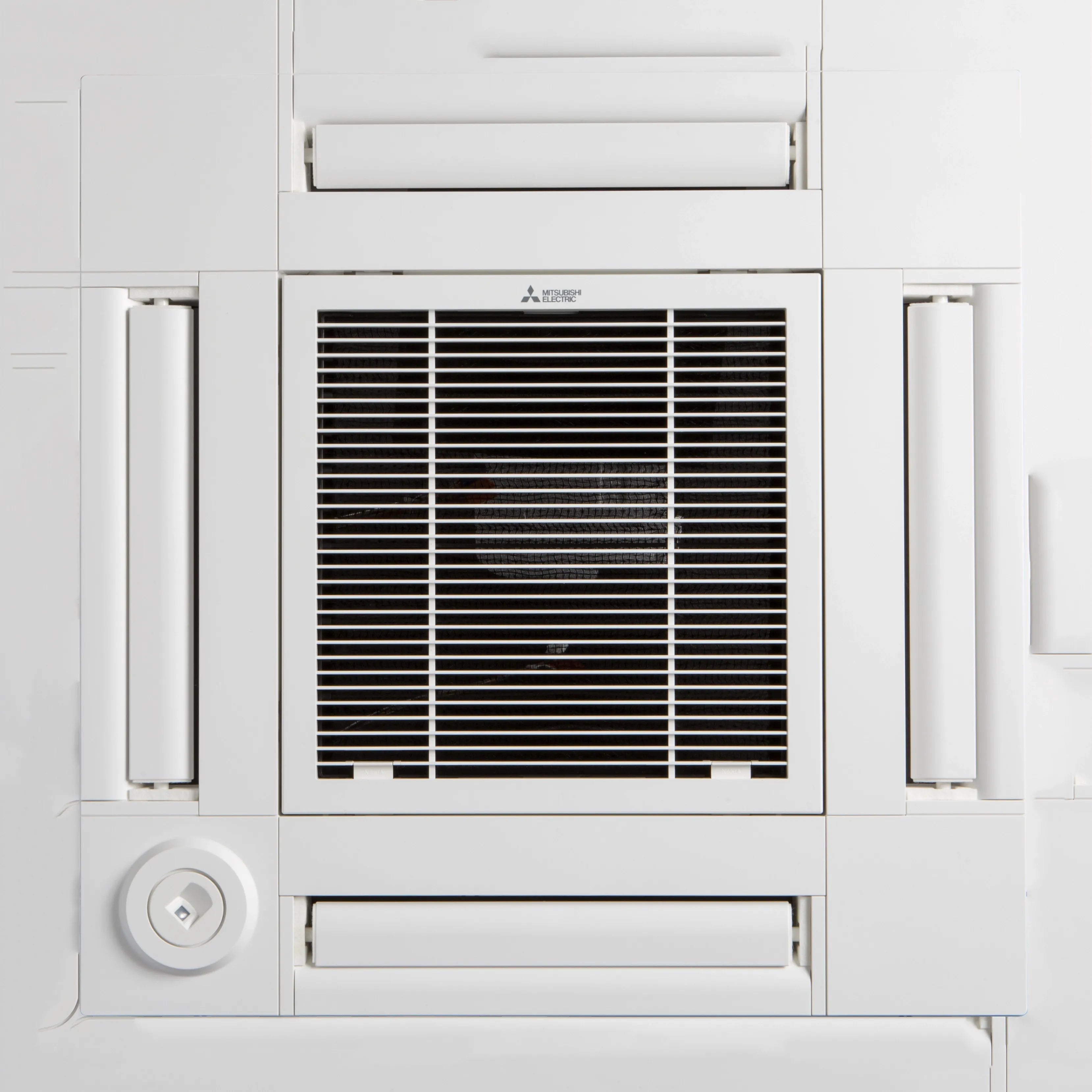

The unit fits into a 2’x2’ suspended ceiling grid and offers customized airflow patterns. It also includes a built-in drain condensate lift mechanism.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC TRANE HVAC
• Manufacturer Part Number: SLZ-KF18NA.TH

Technical Specifications

• Series: P-Series
• Type: Ceiling-mounted
• Model: SLZ
• Capacity range: 9 to 18 BTU/H
• Sound level: As low as 32 dB(A)
• Refrigerant: R410A
• ENERGY STAR: Yes
• SEER2: Up to 24
• HSPF2: Up to 10
• BTU Rating: 18000 Btu/hr
• CFM Rating: 475 cfm
• Color: White
• Connection Type: Flared
• Finish: Galvanized
• Frequency Rating: 60 Hz
• HP Rating: 1/16 hp
• Material: Steel
• Mounting Type: Ceiling Cassette
• Phase: 1 ph
• Refrigerant Type: R-410A
• SEER Rating: 20
• Tonnage: 1.5 ton
• Voltage Rating: 208/230 V
