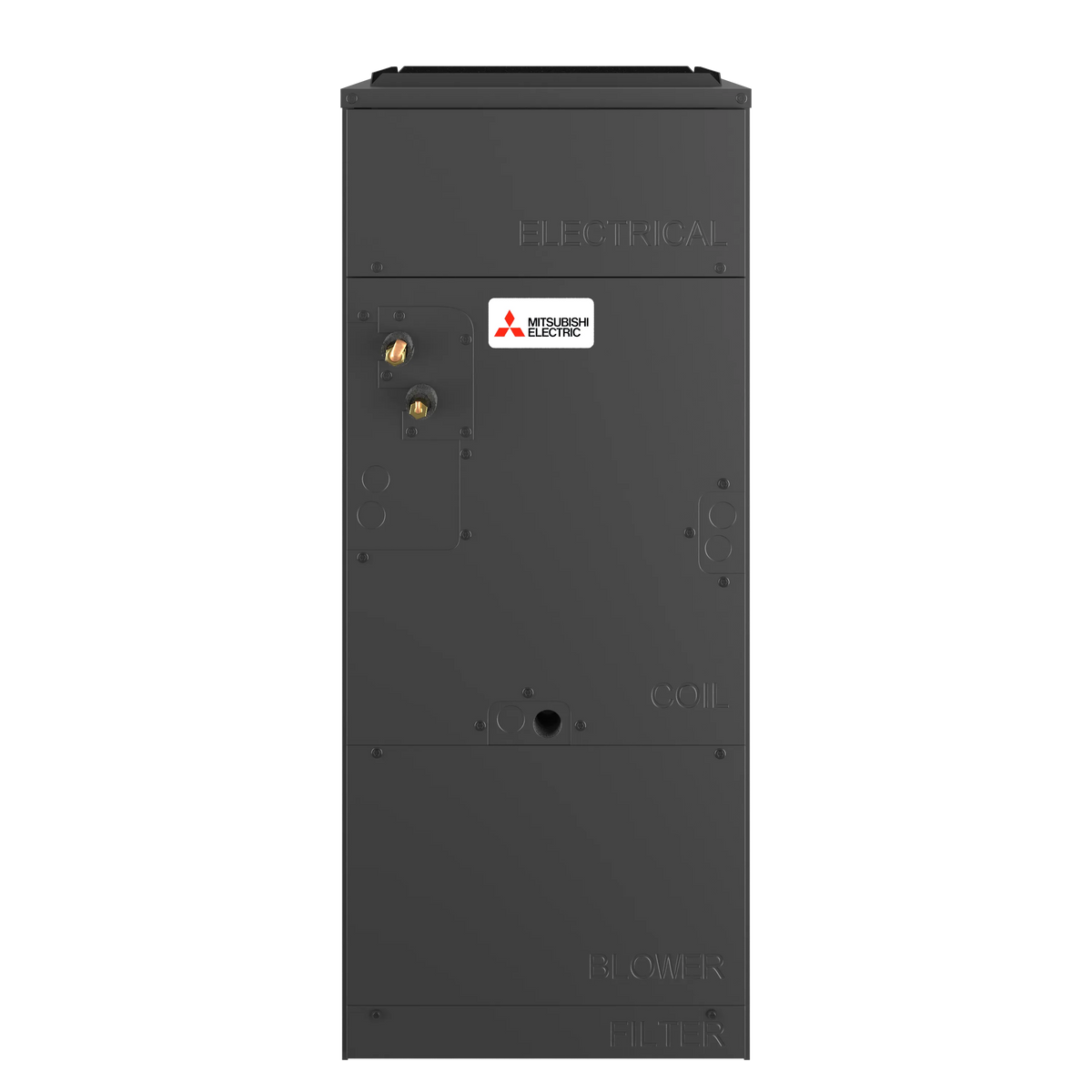

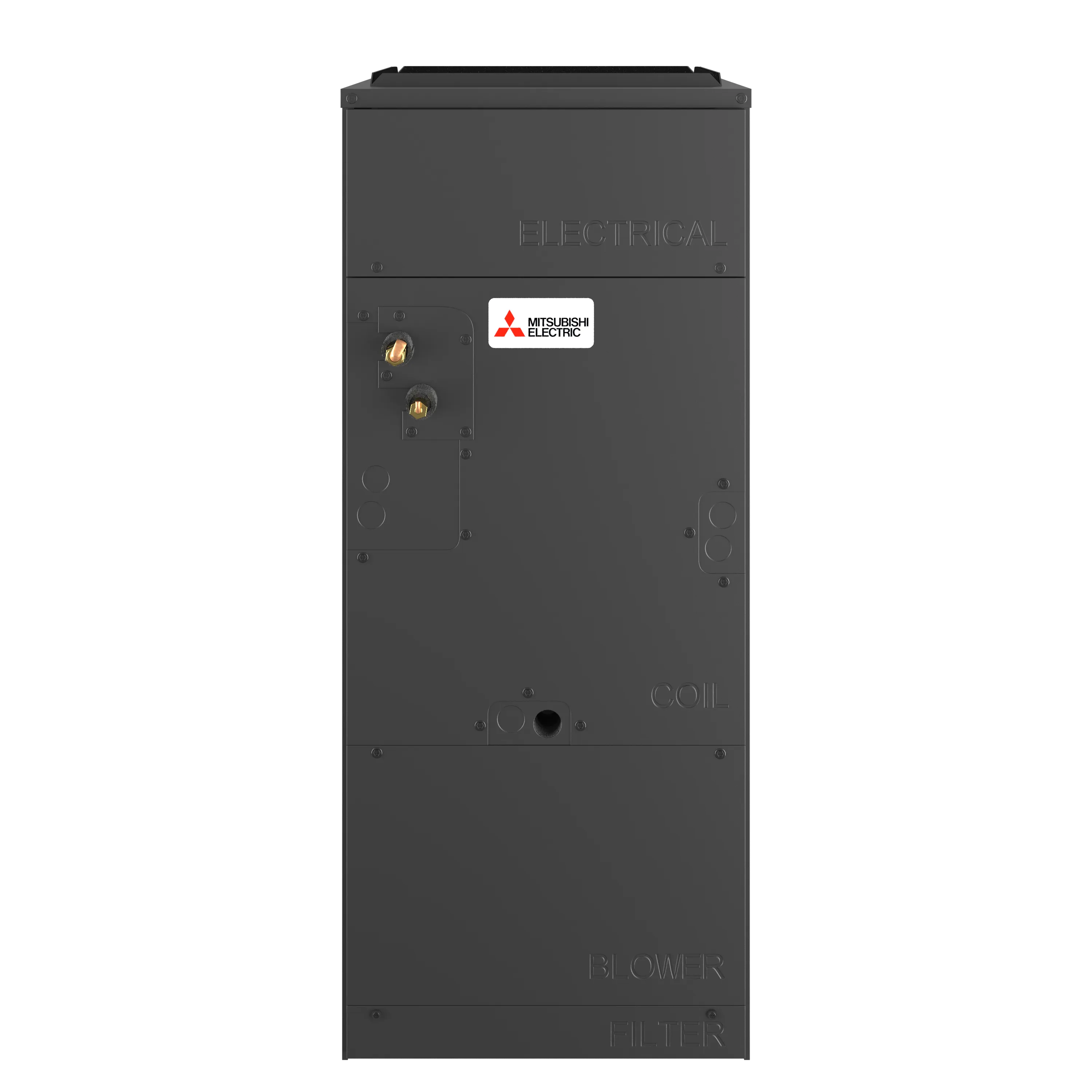

Mitsubishi Electric Trane Hvac PVA-A24AA7 P-Series 24,000 BTU Multi-Position Air Handler

Product Description

The Mitsubishi Electric Trane HVAC PVA-A24AA7 is a 24,000 BTU P-Series Multi-Position ducted air handler that cools and heats zones in commercial spaces or residential homes needing more capacity. It can be installed either vertically or horizontally and has selectable external static pressure. Features 1 inch R4.2 fiberglass free insulation that reduces condensation and boosts efficiency.

• Multi-Position Air Handler
• Selectable external static pressure
• 1 inch R4.2 fiberglass free insulation

Product Highlights

Perfect for conditioning an entire house with existing ductwork while experiencing savings and comfort.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC TRANE HVAC
• Manufacturer Part Number: PVA-A24AA7

Technical Specifications

• Unit Type: Multi-Position Air Handler
• Product Line: P-Series PVA
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• Unit Size: 24,000 BTU
• Line Set Size: 3/8 x 5/8"
• Required Install Kit: IKIT3858
• WiFi Enabled: Yes with Kumo Cloud
• WiFi Built In: No
• Indoor Unit: PVA-A24AA7
• Cooling Capacity: 24,000 BTU
• Heating Capacity: up to 28,000 BTU
• Airflow Rate, CFM: 613-744-875
• Room Cooling/Heating Capacity: up to 1000 sq ft
• Noise Level: Cooling: 30-38 dB(A)
• Noise Level: Heating: 30-38 dB(A)
• Series: P-Series
• Type: Ducted
• Model: PVA
• Refrigerant: R410A
• ENERGY STAR: Yes
• SEER2: Up to 22
• HSPF2: Up to 8.9
