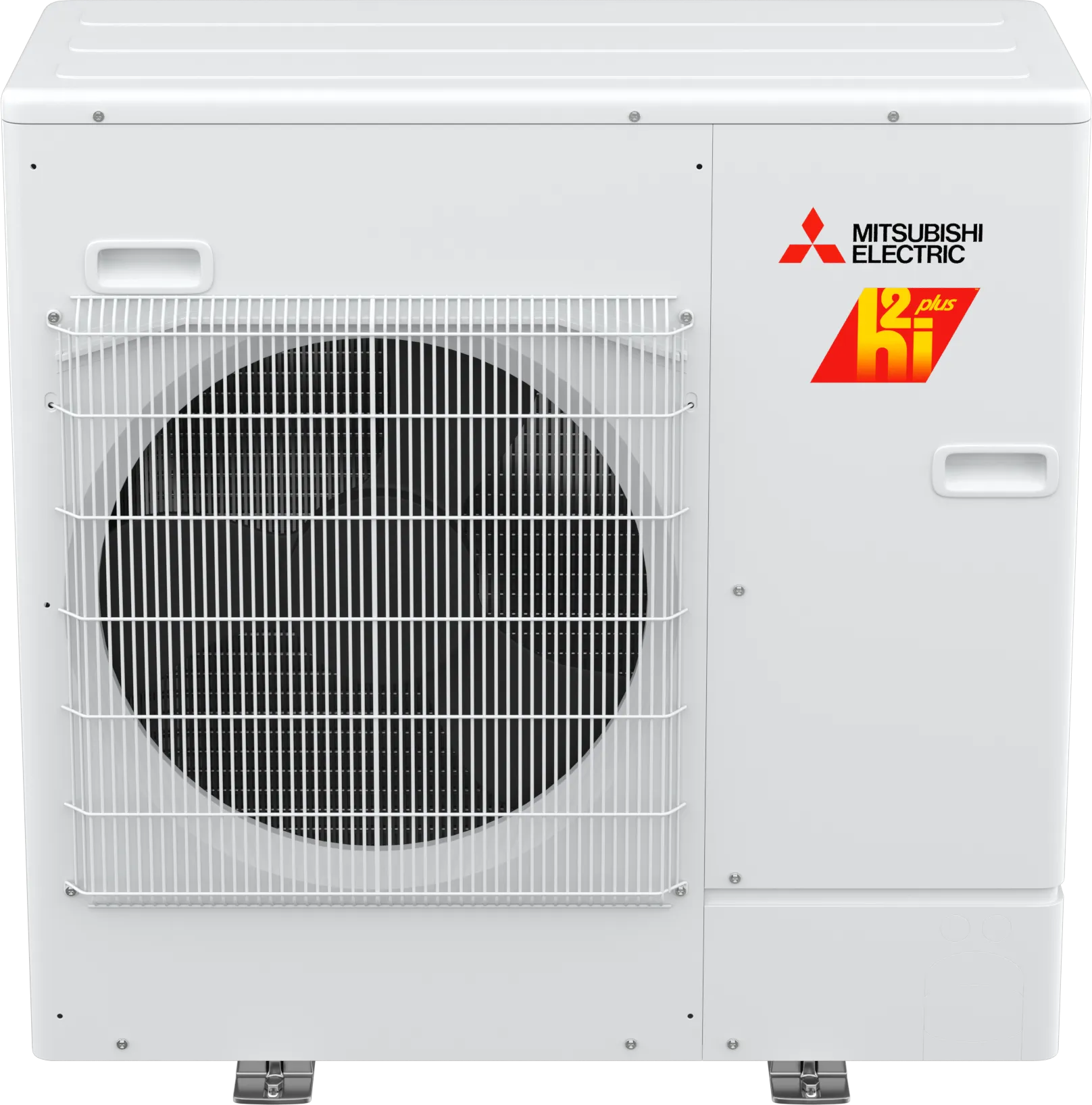

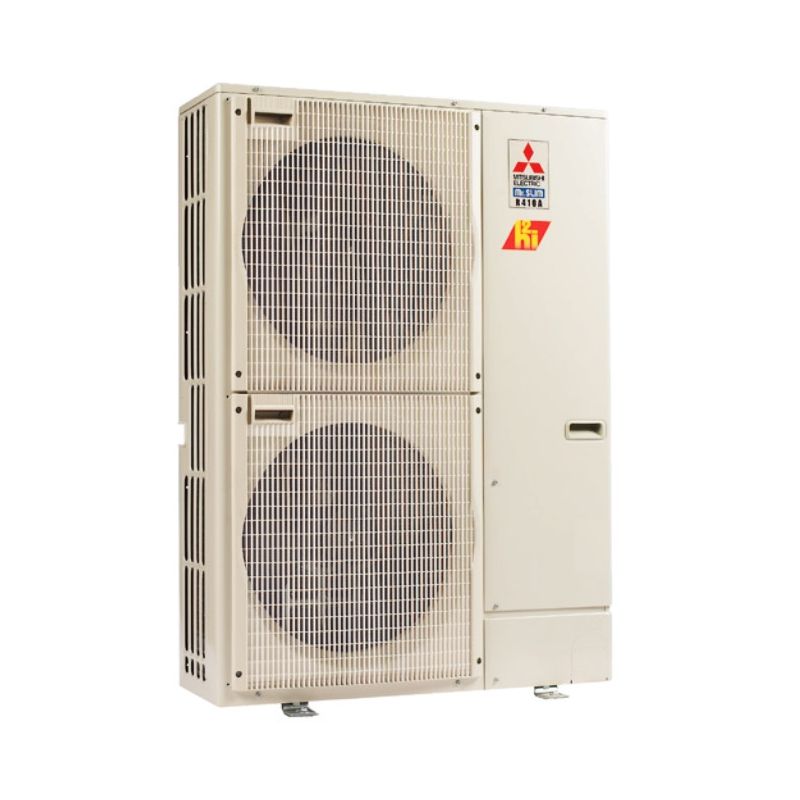

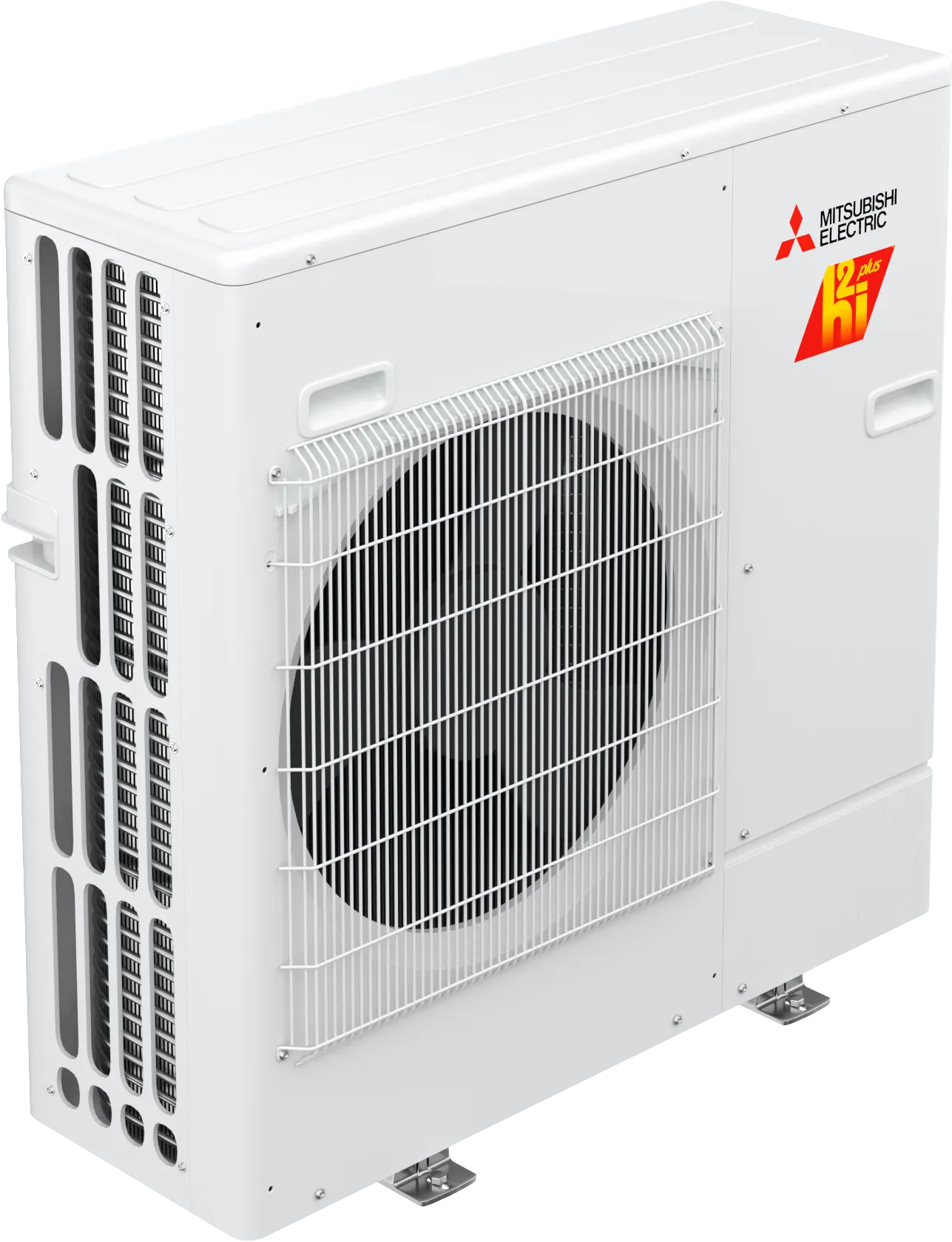

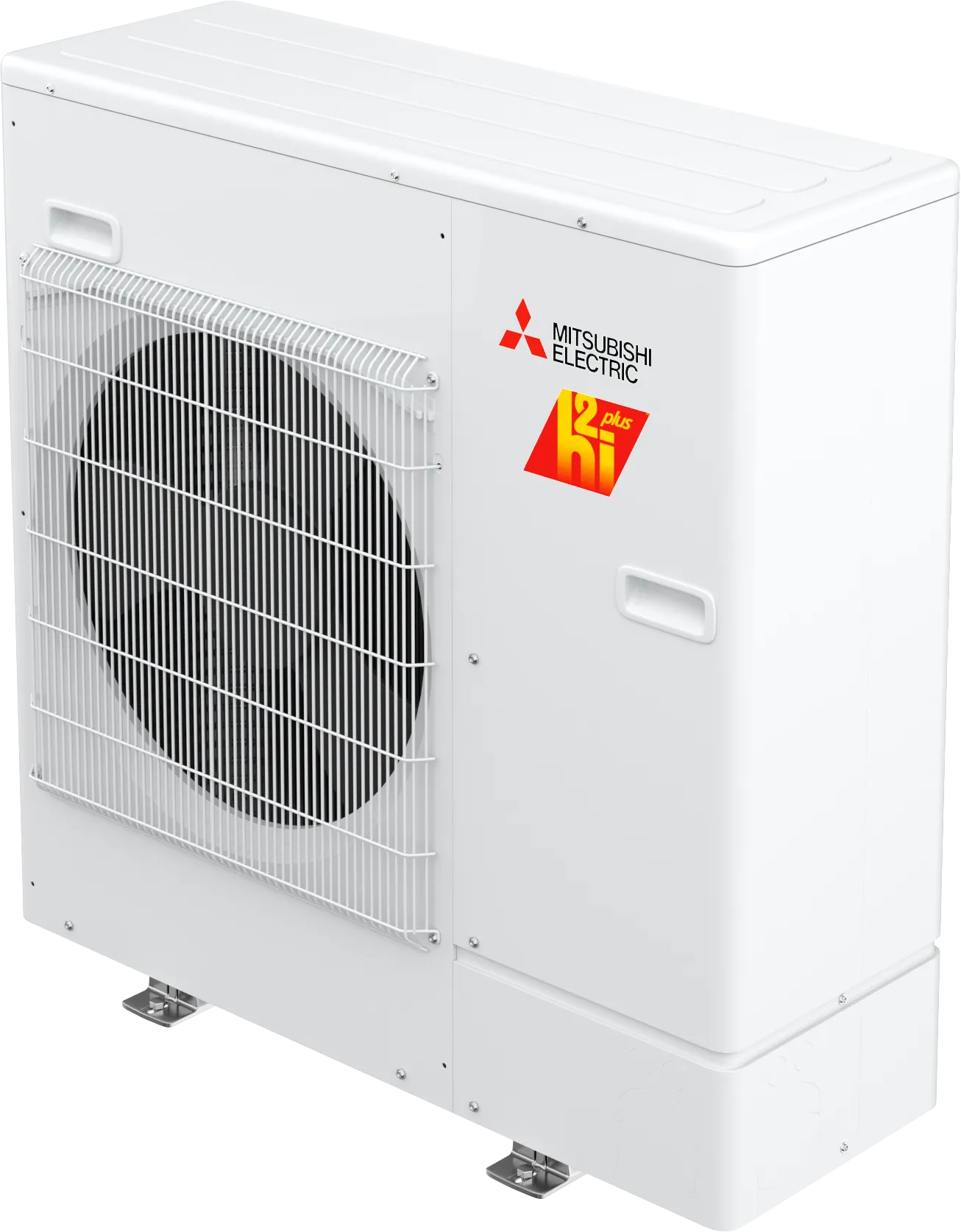

Mitsubishi Electric Trane Hvac PUZ-HA36NKA 36,000 BTU P-Series Single Zone Heat Pump Condenser - R410A

Product Description

The Mitsubishi Electric Trane HVAC PUZ-HA36NKA 36,000 BTU outdoor heat pump offers efficient heating and cooling, providing customized comfort for each zone. It delivers air quietly and consistently for continuous circulation and filtration. With its 36,000 BTU output, the unit is suitable for residential and light commercial applications.

• 36,000 BTU capacity designed for heating and cooling larger spaces
• Blue Fin Coating for enhanced durability
• High-efficiency inverter-driven motor

Product Highlights

This Mitsubishi heat pump features a Blue Fin Coating for enhanced durability and a high-efficiency inverter-driven motor.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC TRANE HVAC
• Manufacturer Part Number: PUZ-HA36NKA

Technical Specifications

• SKU: PUZ-HA36NKA
• Depth: 13"
• Width: 39-3/8"
• Height: 41-5/16"
• Decibel Level (dBA): Cooling: 52 dB(A) | Heating: 53 dB(A)
• Electrical: 208/230V | 1 Phase | 60 Hz
• BTU/Tonnage: 36,000 BTU/3 Ton
• Cooling BTU: 36,000 BTU
• Energy Star: Yes
• Heating BTU: 36,000 BTU
• Liquid Line: 3/8"
• Refrigerant: R410A
• Brand/Manufacturer: Mitsubishi
• Suction Line: 5/8"
• Max Breaker Size: 40
• Min. Breaker Size: 27
• Zone Compatibility: Single Zone
• Unit Type: 3 Ton Inverter Condenser
• Product Line: P-Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: NO
• Number of Zones: 1
• Unit Size: 36,000 BTU
• Outdoor Unit: PUZ-HA36NKA
• Cooling Capacity: up to 36,000 BTU
• Heating Capacity: up to 40,000 BTU
• SEER: 18-20 (depends on the indoor unit)
• EER: 10.3-13 (depends on the indoor unit)
• HSPF: 10.4-11.6 (depends on the indoor unit)
• Heating Minimum Temp: -13 F
• Cooling Minimum Temp: 0 F (with wind baffle)
• Room Cooling/Heating Capacity: up to 1,500 sq ft
• Series: P-Series
• Type: Heat pump
• Model: PUZ-HA
• Capacity range: 30 to 42 BTU/H
• Sound level: As low as 52 dB(A)
• SEER2: Up to 20.2
• HSPF2: Up to 8.8
