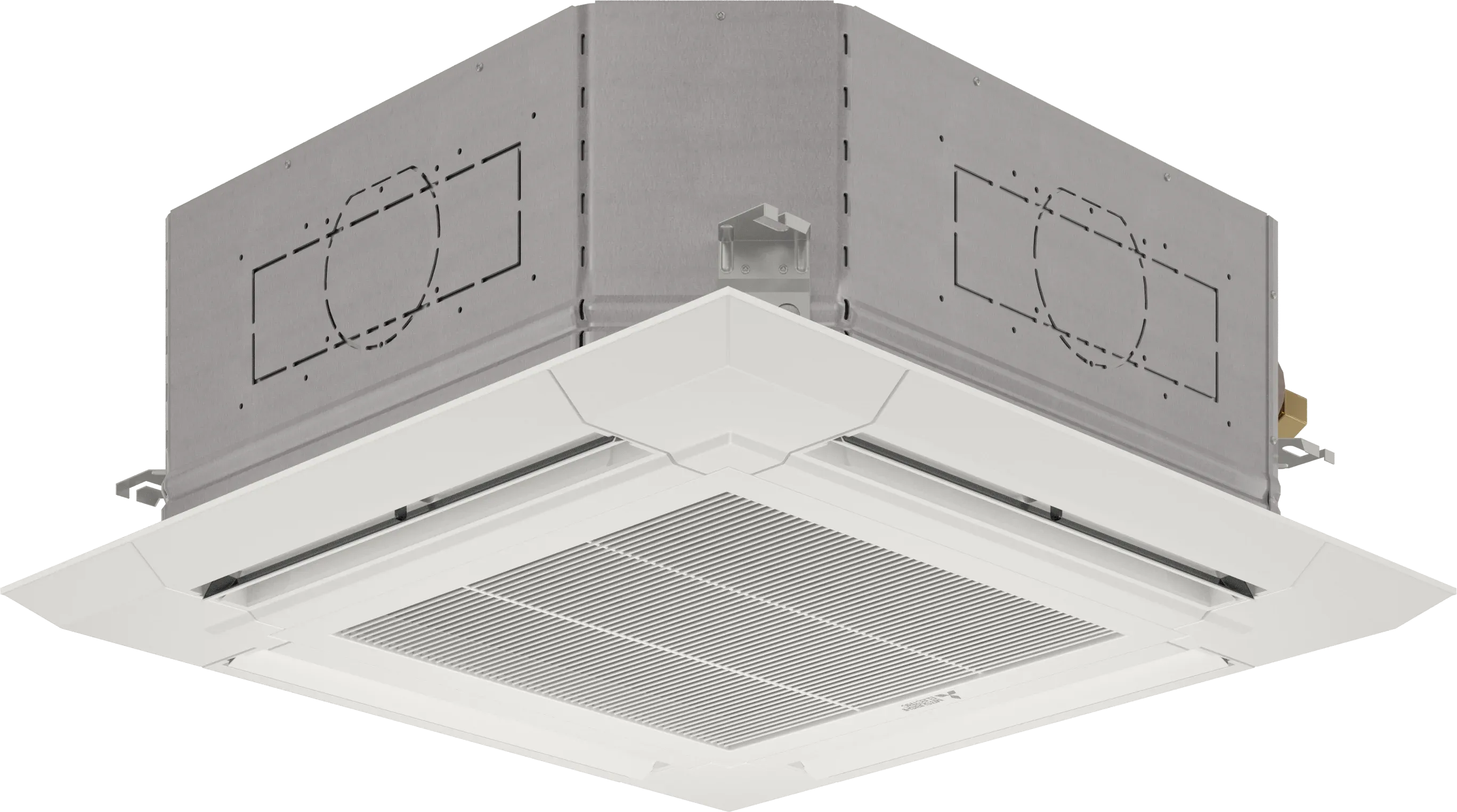

Mitsubishi Electric Trane Hvac PLA-A36EA8 Ceiling Cassette Indoor Unit 36000 BTU/hr

Product Description

The MITSUBISHI ELECTRIC TRANE HVAC PLA-A36EA8 is a 36000 BTU/hr ceiling cassette indoor unit. This unit provides airflow patterns to accommodate different room layouts. It also scans the room for occupancy, adjusting temperature and airflow accordingly, saving energy when a room is empty. Compatible with MXZ and PUMY Heat Pumps Systems.

• 3D i-see Sensor scans the room for occupancy and adjusts temperature and airflow.
• Features a swing mode to move air throughout the room.
• ENERGY STAR certified for energy efficiency.

Product Highlights

Ceiling-mounted indoor unit with advanced sensor technology for efficient and comfortable climate control.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC TRANE HVAC
• Manufacturer Part Number: PLA-A36EA8

Technical Specifications

• BTU Rating: 36000 Btu/hr
• CFM Rating: 670 to 1200 cfm Dry Cooling, 630 to 1160 cfm Wet Cooling, 670 to 1200 cfm Dry Heating
• Connection Type: Flared
• EER Rating: 13
• Frequency Rating: 60 Hz
• Fuse Rating: 35 A
• HSPF Rating: 9, 7.4
• Mounting Type: Ceiling
• Overall Height: 11-3/4 in
• Overall Length: 331/16 in
• Overall Width: 331/16 in
• Phase: 1 ph
• Power Rating: 2750 W Cooling, 2650 to 2715 W Heating
• SEER Rating: 20
• Sound Level: 32 to 44 dBA
• Suitable For Use With: MXZ and PUMY Heat Pumps Systems
• Voltage Rating: 208 - 230 VAC, 24 VDC
• Series: P-Series
• Type: Ceiling-mounted
• Model: PLA
• Refrigerant: R410A
• ENERGY STAR: Yes
• SEER2: Up to 26.9
• HSPF2: Up to 10.9
• Cooling Capacity: 36000 BTU/Hour
• Installation: Ceiling Cassette
• Number of Phases: 1
• Approval: ETL (Canada and US)
