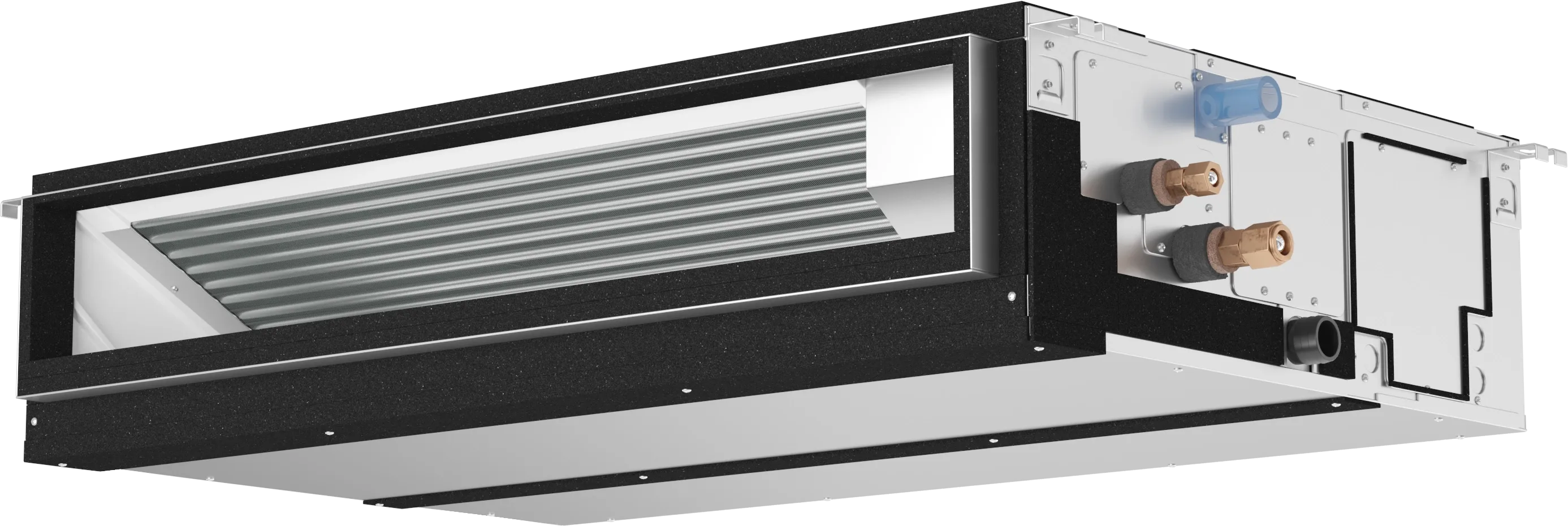

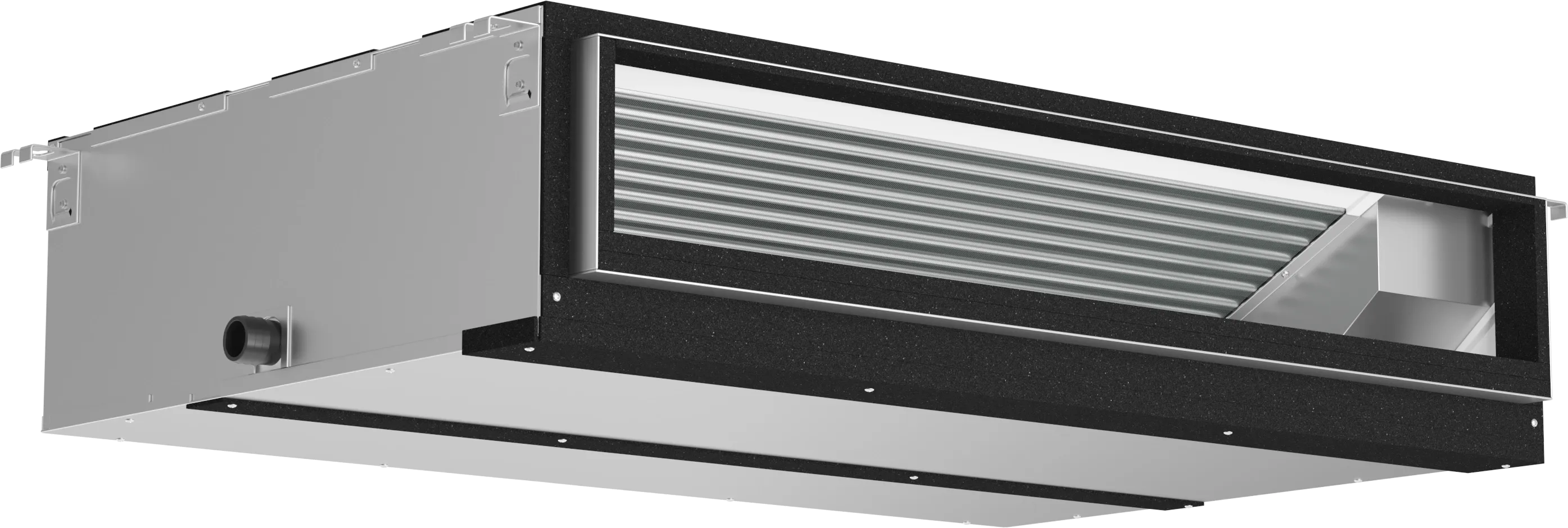

Mitsubishi Electric Trane Hvac PEAD-A30AA9 PEAD Mid Static Horizontal-ducted Indoor Unit

Product Description

The MITSUBISHI ELECTRIC TRANE HVAC PEAD-A30AA9 is a Mid Static intelli-AIR ducted solution, perfect for homes and light commercial applications. It offers low capacities for all size homes and larger capacities for offices, retail spaces, daycares, and restaurants. These ducted solutions heat and cool large spaces or multiple rooms running from a long duct run.

• ENERGY STAR certified for energy efficiency.
• Low sound level as low as 37 dB(A).
• Concealed design for ceiling installation.

Product Highlights

The PEAD-A30AA9 ensures minimal energy use to maintain the desired indoor temperature.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC TRANE HVAC
• Manufacturer Part Number: PEAD-A30AA9

Technical Specifications

• Series: P-Series
• Type: Ducted
• Model: PEAD
• Capacity range: 5 to 5 BTU/H
• Sound level: As low as 37 dB(A)
• Refrigerant: R410A
• ENERGY STAR: Yes
• SEER2: 19.4
• HSPF2: Up to 11.1
• Product Name: PEAD-A30AA9 & SUZ-KA30NA2
• Cooling Capacity at 95°F: 27,000 BTU/H (Rated)
• Heating Capacity at 47°F: 30,000 BTU/H (Rated)
• Heating Capacity at 17°F: 24,800 BTU/H (Rated)
• EER2: 12.0
• HSPF2 [IV]: 11.7
• COP at 47°F: 3.5
• COP at 17°F (Max Capacity): 3.4
• Voltage, Phase, Frequency: 208/230V, 1 Phase, 60 Hz
• Guaranteed Voltage Range: 187-253V
• Short-circuit Current Rating [SCCR]: 5 kA
• Recommended Fuse/Breaker Size (Outdoor): 20 A
• Recommended Wire Size [Indoor - Outdoor]: 14 AWG
• Power Supply: Indoor unit powered by outdoor unit
• MCA (Indoor): 2.25 A
• MCA (Outdoor): 17.0 A
• MOCP (Outdoor): 31 A
• Fan Motor Output (Indoor): 121 W
• Fan Motor Output (Outdoor): 60 W
• Fan Motor Type (Indoor): DC Motor
• Airflow Rate at Cooling, Dry: 618-671-742-883 CFM
• Airflow Rate at Heating, Dry: 618-671-742-883 CFM
• Sound Pressure Level [Cooling]: 30-32-34-38 dB[A]
• Sound Pressure Level [Heating]: 30-32-34-38 dB[A]
• External Static Pressure: 0.14-0.2-0.28-0.4-0.6 in.WG
• Drain Pipe Size: 1-1/4" [32 mm]
• Condensate Lift Mechanism, Maximum Distance: 27-9/16" [700 mm]
• Coating on Heat Exchanger: Galvanized
• Compressor Type: DC INVERTER-driven Twin Rotary
• Compressor Model: SNB220FQGM1T
• Compressor Rated Load Amps: 13 A
• Compressor Locked Rotor Amps: 16.0 A
• Compressor Oil [Type // Charge]: FV50S // 4.0, 14.0 oz.
• External Finish Color (Outdoor Unit): Ivory Munsell 3Y 7.8/1.1
• Base Pan Heater: Optional
• Refrigerant Type: R410A
• Pre-Charged Refrigerant Amount: 4.0, 14.0 Lbs, oz
• Maximum Pre-Charged Piping Length: 25.0 Ft. [7.5 m]
• Gas Pipe Size O.D. [Flared]: 5/8" [15.88 mm]
• Liquid Pipe Size O.D. [Flared]: 3/8" [9.52 mm]
• Maximum Piping Length: 100 Ft. [30 m]
• Maximum Number of Bends: 10
• Cooling Air Temp [Max/Min] Indoor: 95 DB, 71 WB / 67 DB, 57 WB °F
• Cooling Air Temp [Max/Min] Outdoor: 80 DB, 67 WB // 95 DB, 75 WB °F
• Heating Air Temp [Max/Min] Indoor: 80 DB / 70 DB °F
• Heating Air Temp [Max/Min] Outdoor: 70 DB, 60 WB // 47 DB, 43 WB °F
• Cooling Thermal Lock-out / Re-start (Outdoor): 1 / 5 °F
• Heating Thermal Lock-out / Re-start (Outdoor): 4 / 14 °F
