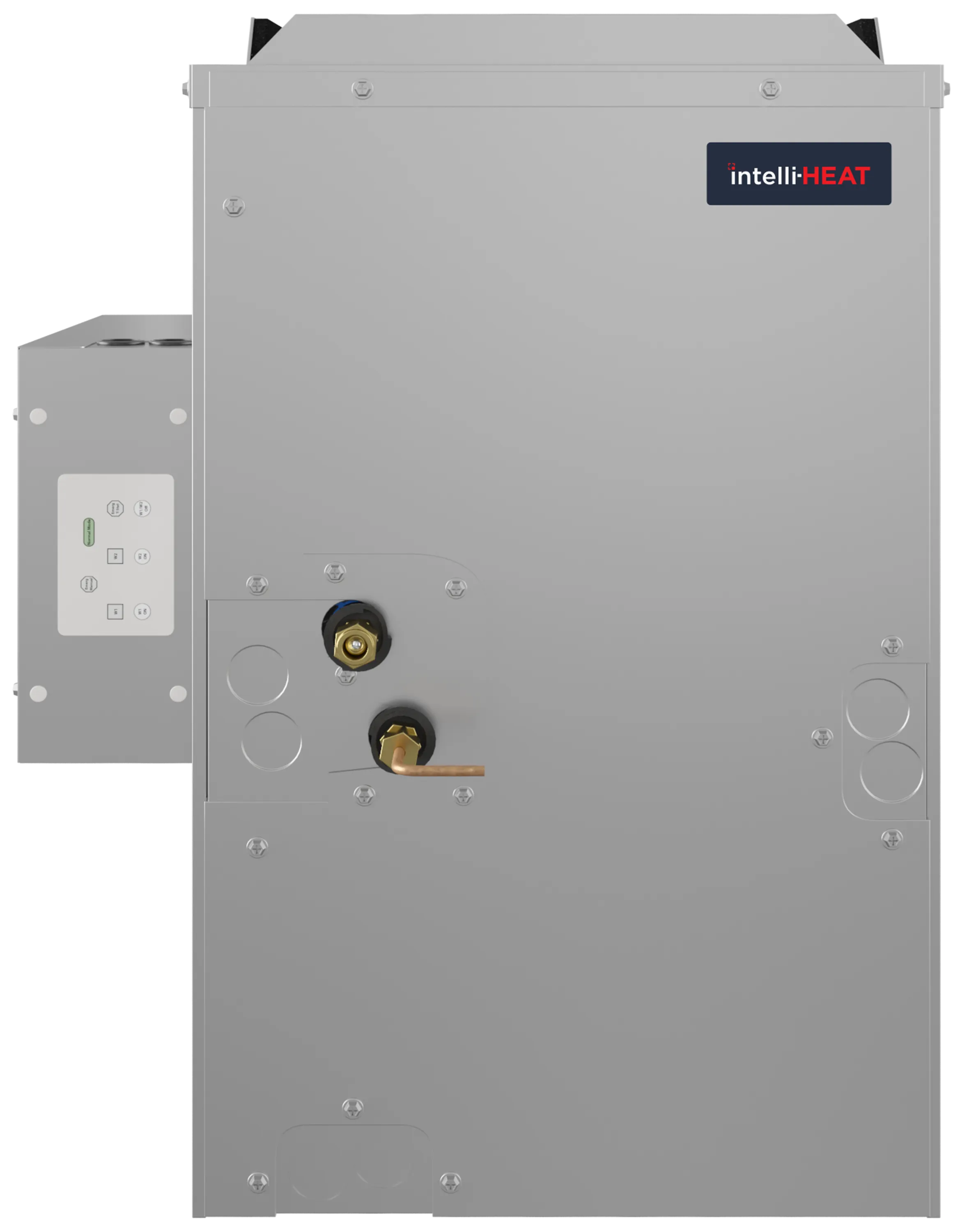

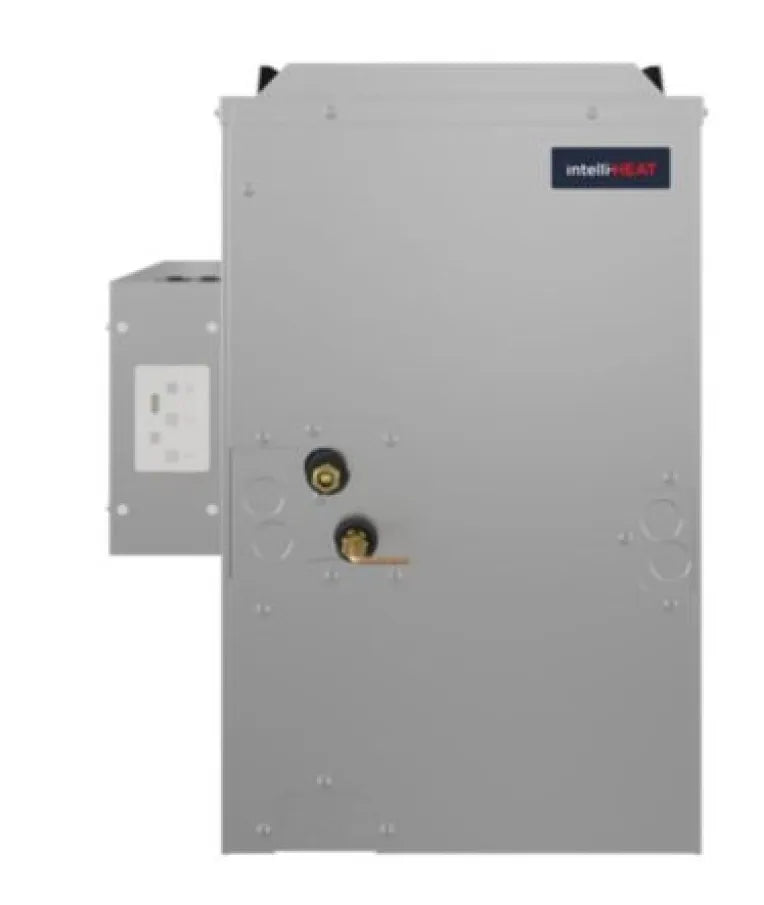

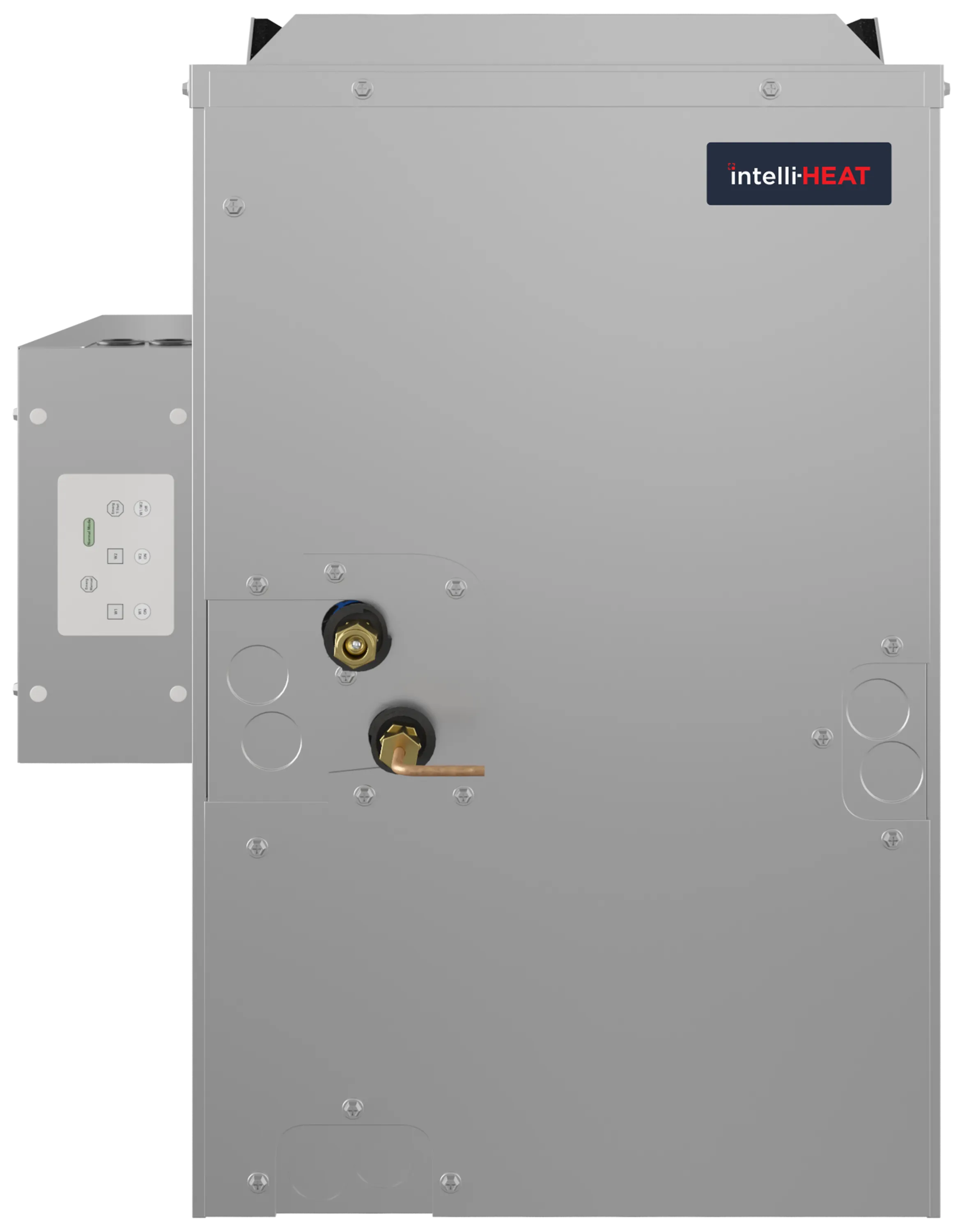

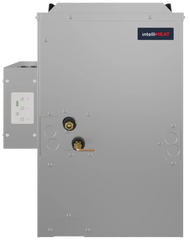

Mitsubishi Electric Trane Hvac PAA-A18AA1 PAA-A18AA1 18,000 BTU/h Intelli-HEAT Coil, 14.5 inches Width

Product Description

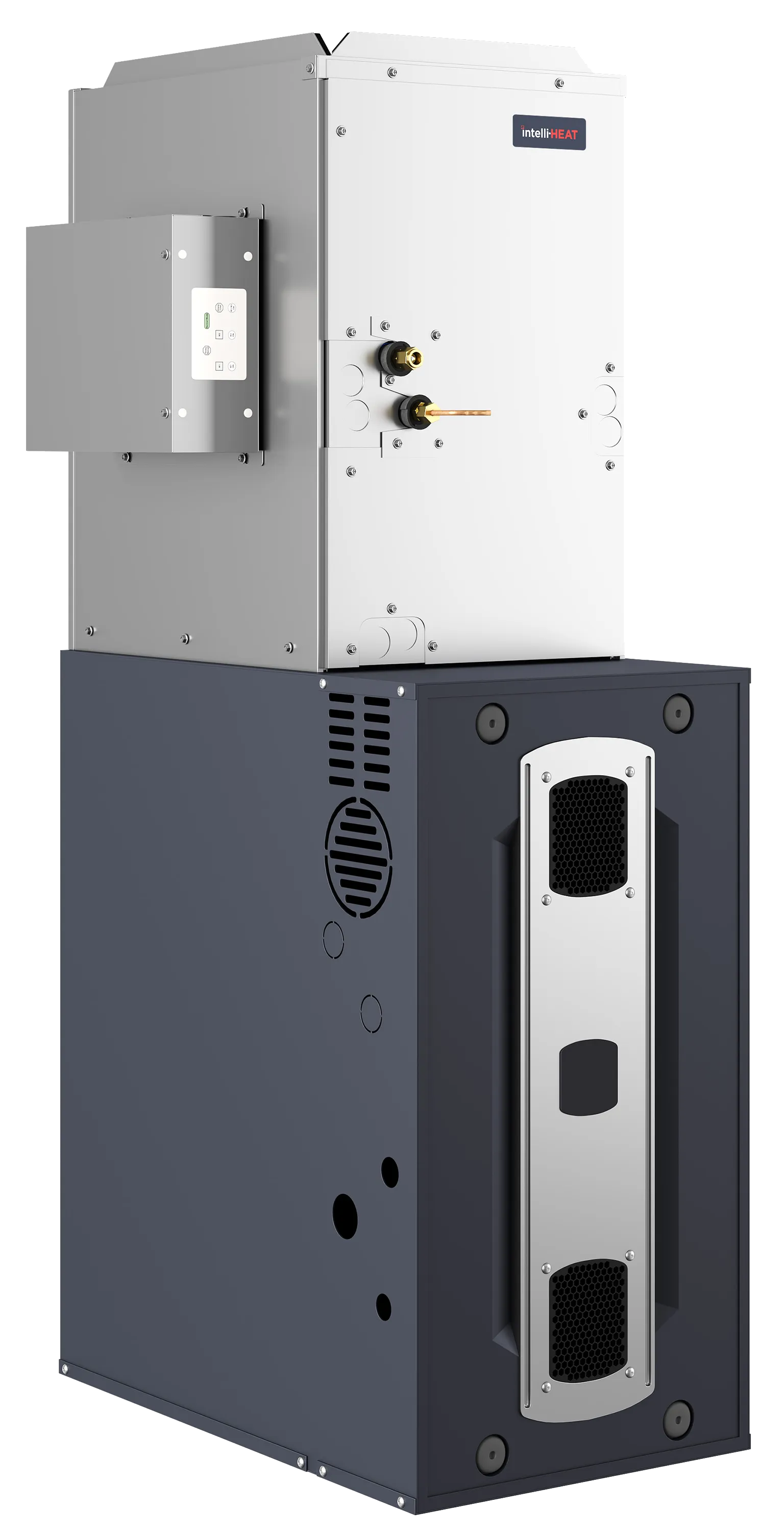

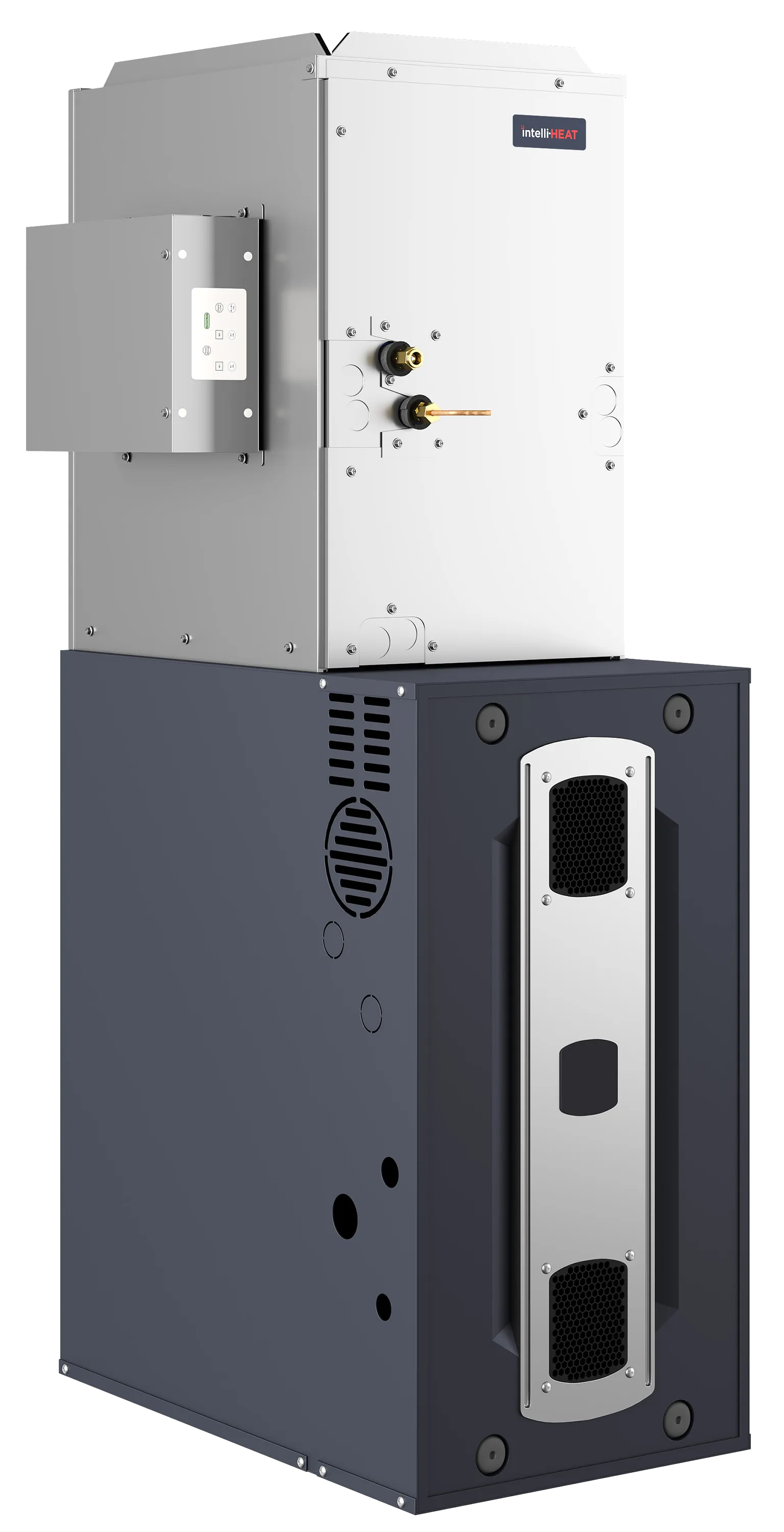

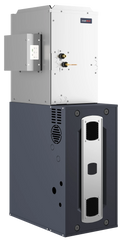

The MITSUBISHI ELECTRIC TRANE HVAC PAA-A18AA1 is an 18,000 BTU/h intelli-HEAT coil with a 14.5 width. The intelli-HEAT Dual Fuel System seamlessly integrates with your existing furnace, replacing your outdoor condensing unit with a Mitsubishi Electric heat pump for year-round comfort. It mounts in-line with existing furnace and ductwork.

• Compatible with any thermostatically controlled (24VAC) natural gas or LP furnace
• Intelligent Comfort Control Function (automatic switchover between heat pump and furnace)
• Includes cased coil and control box

Product Highlights

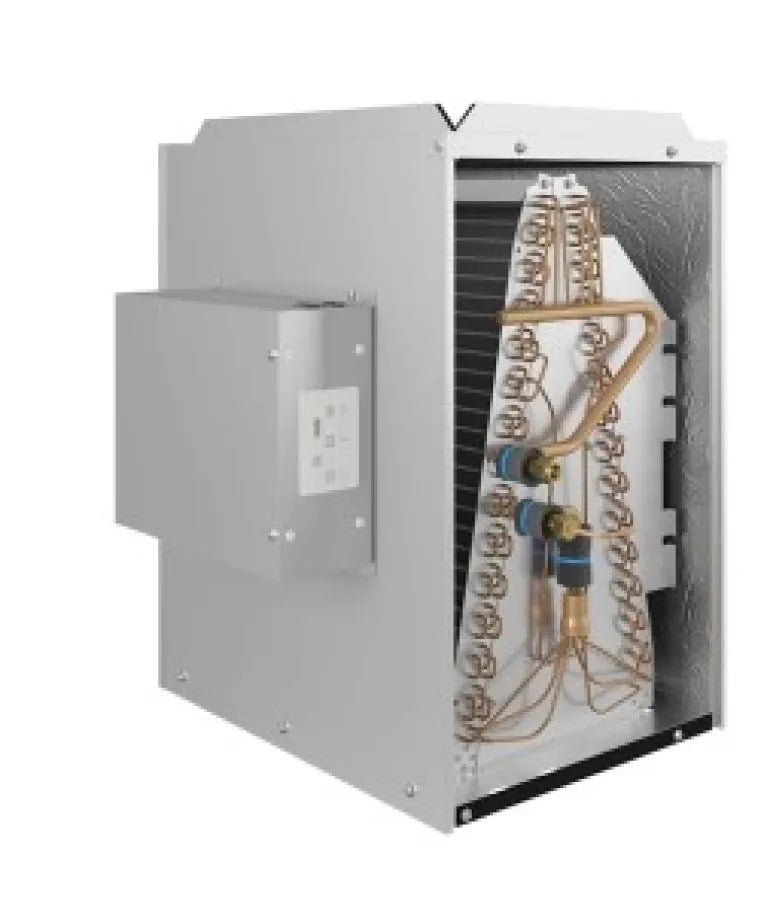

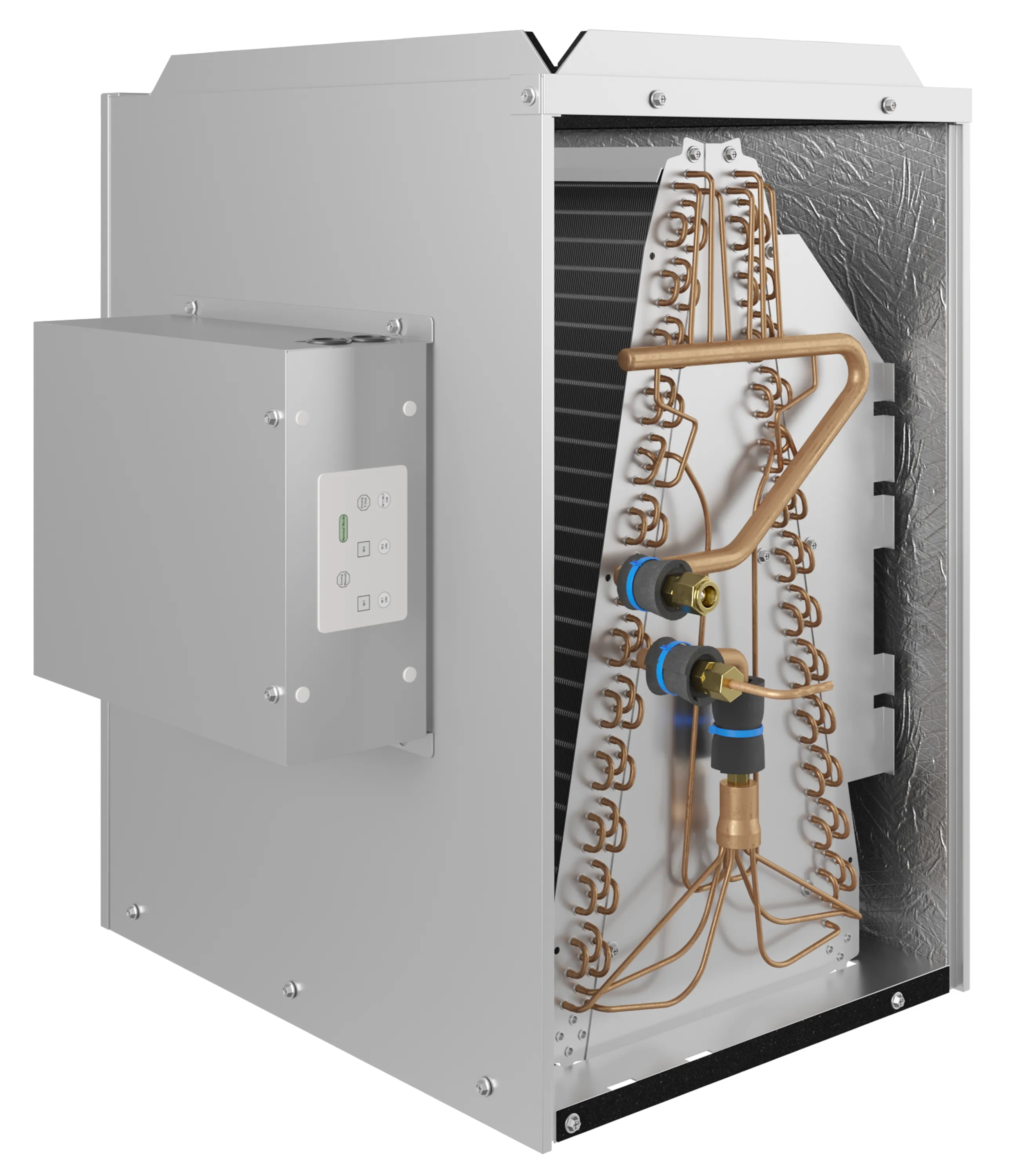

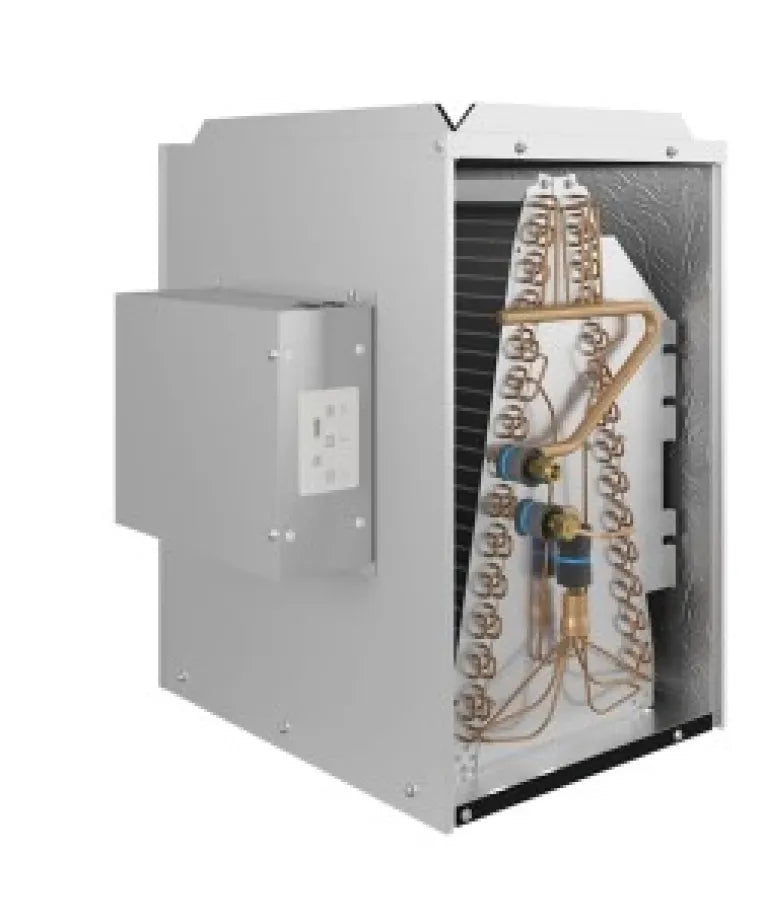

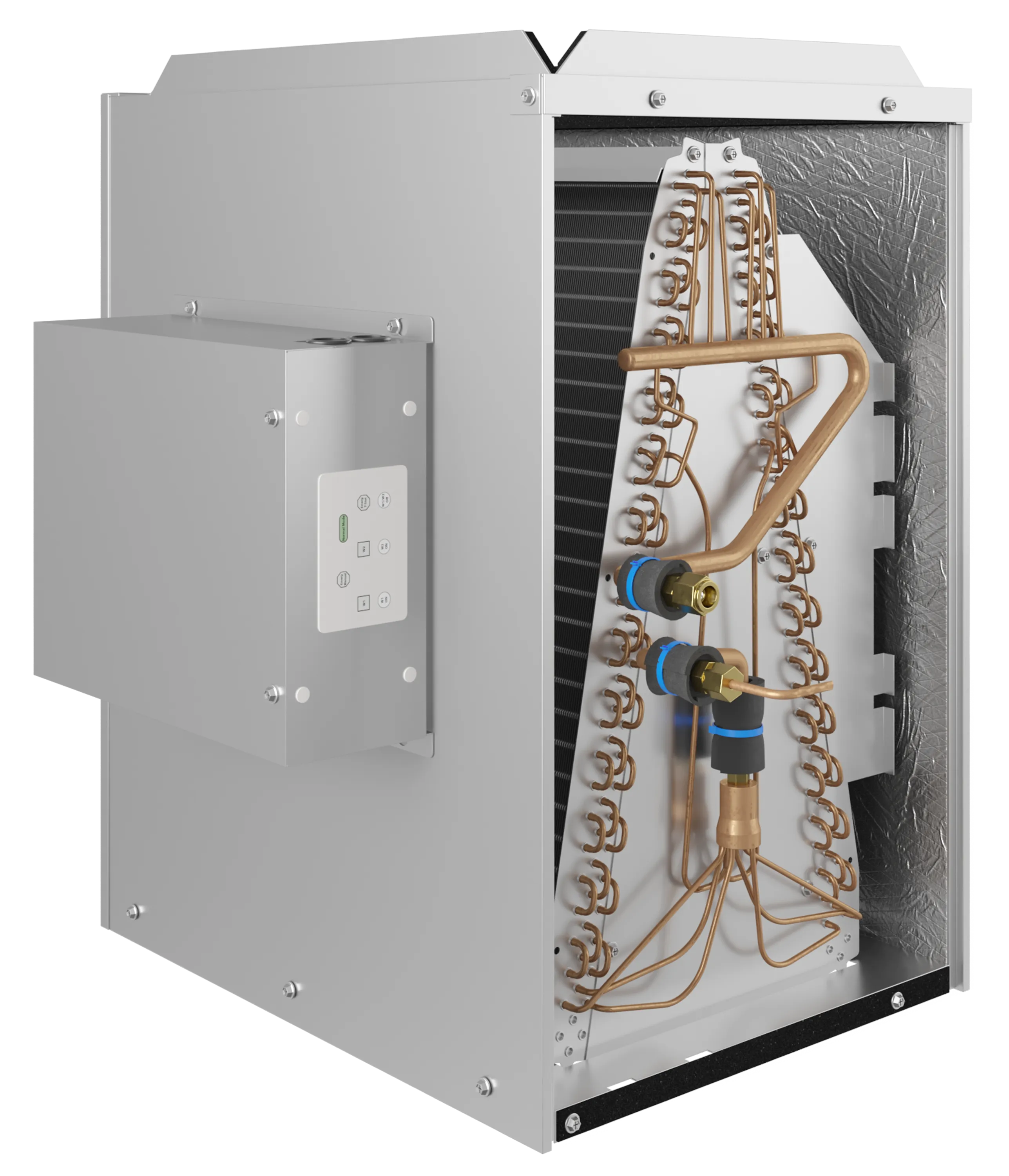

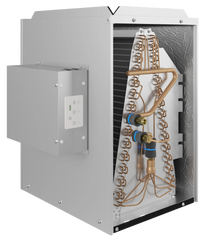

This intelli-HEAT coil features an optimized heat exchanger design, flared piping connection, and a high-quality drain pan. It supports multi-position installation and offers multiple control options.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC TRANE HVAC
• Manufacturer Part Number: PAA-A18AA1

Technical Specifications

• Brand/Manufacturer: Mitsubishi
• Product Family: PAA
• Phase: Single
• Refrigerant: R410A
• CFM: 525
• Cycle: 60 Hz
• Voltage: 208-230 VAC
• Cooling Capacity: 18000
• Tonnage: 1.5
• Color/Finish: Galvanized Steel
• Item: Cased Coil, Type A
• Used On Item: R-410A Indoor Air Conditioner
• Voltage Rating: 208/230 Volt AC 60 Hertz 1-Phase
• Current Rating: 0.2 Amp (MCA), 5 Kiloamp (SCCR)
• Nominal Capacity: 18000 BTU/Hour
• Heating Capacity: 19000 BTU/Hour
• Pipe Size: 1/4 Inch (Liquid), 1/2 Inch (Gas), 3/4 Inch (Drain)
• Dry Rated Airflow Rating: 525 CFM
• Includes: Control Box
• Series: P-Series
• Type: Ducted
• Model: PAA
• Capacity range: 18 to 42 BTU/H
• ENERGY STAR: Yes
• SEER2: Up to 16.5
• HSPF2: Up to 8.5
• Liquid Line Size (OD): 1/4
