Mitsubishi Electric Trane Hvac MSZ-EF09NAW-U2 Designer Wall-mounted Indoor Unit 9,000 BTU/H

Product Description

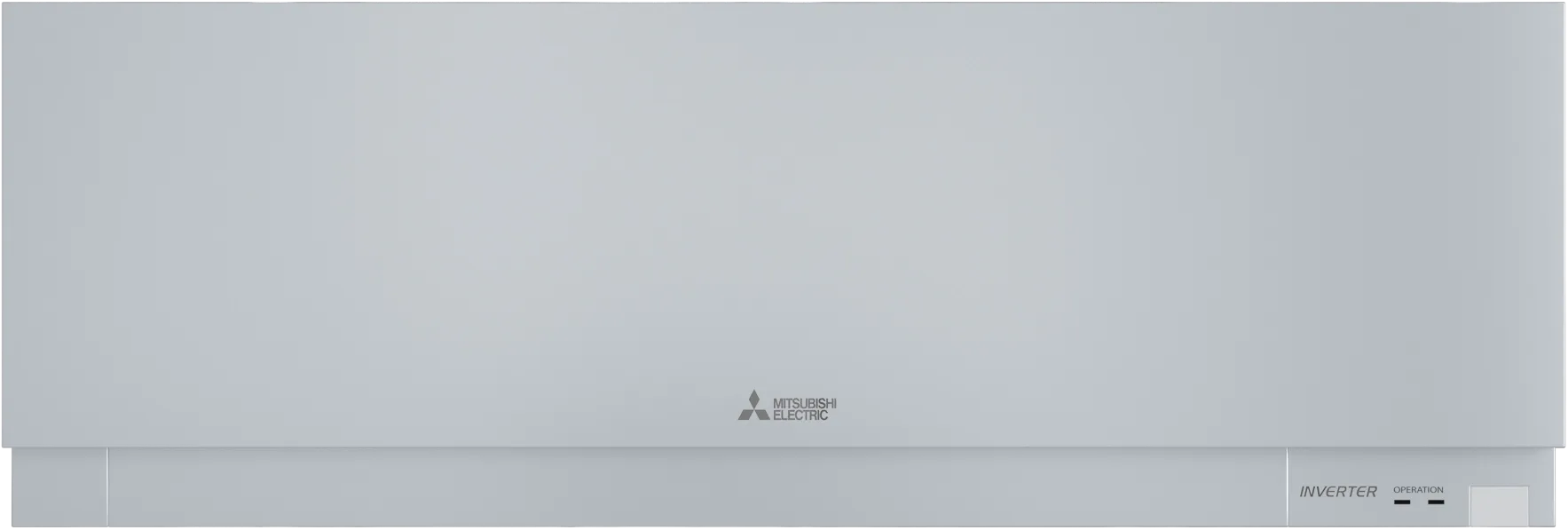

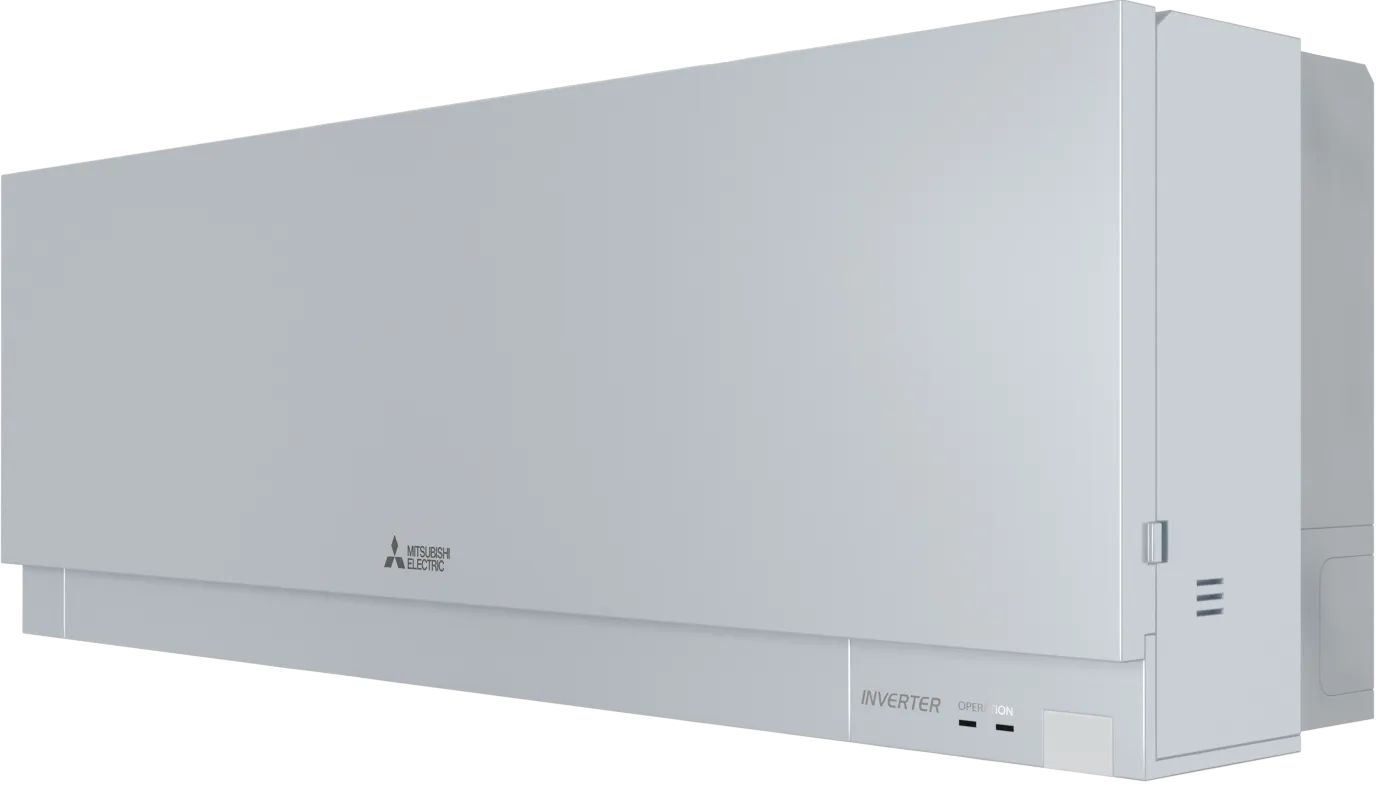

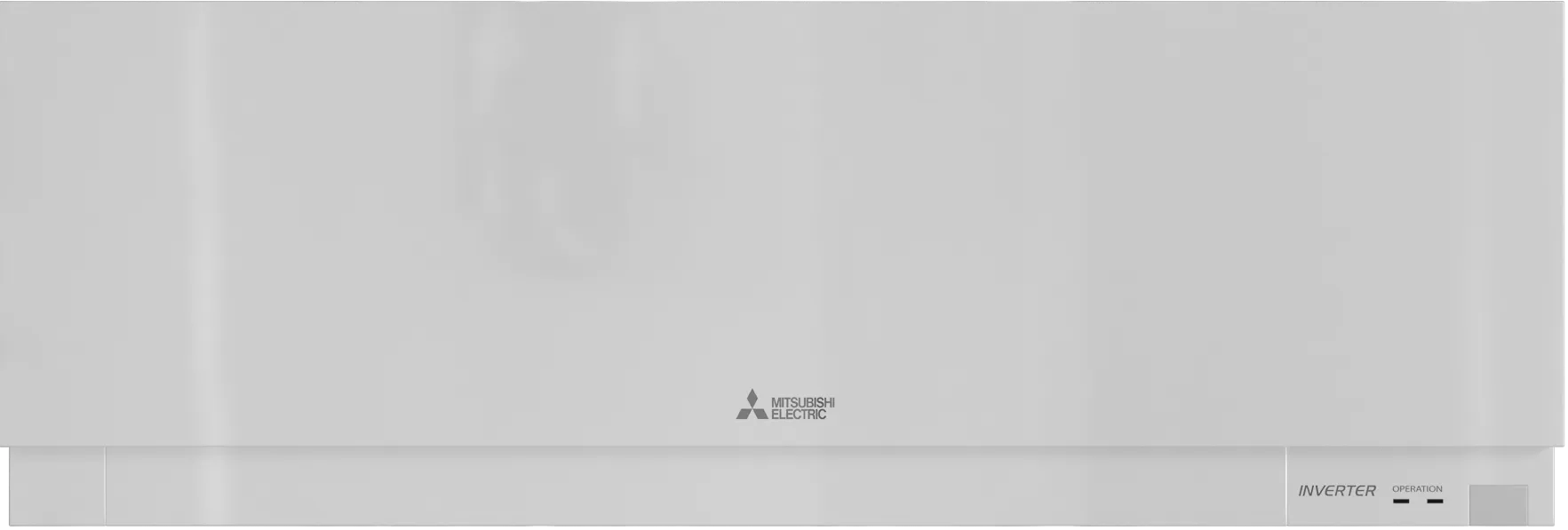

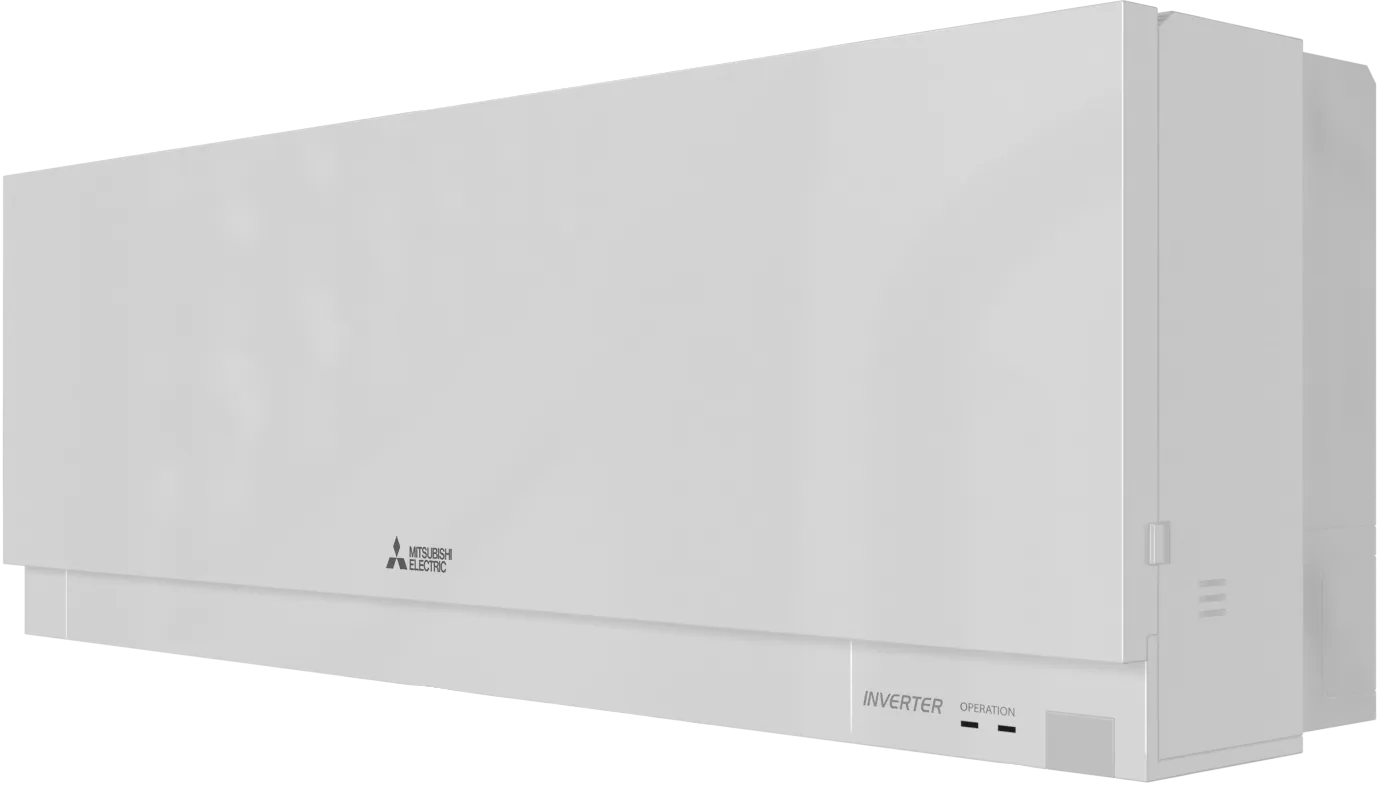

The MITSUBISHI ELECTRIC TRANE HVAC MSZ-EF09NAW-U2 is a 9,000 BTU/H white designer wall mount indoor unit designed for use with MXZ multi-zone systems. It combines innovative technology, multi-stage airflow filtration and a sophisticated design. It features a modern, sleek design and multiple control options.

• Econo Cool temporarily adjusts airflow to maintain comfort while using less energy.
• Nano Platinum Filter reduces the presence of certain nonliving particles, while deodorizing the circulating air.
• Swing Mode moves air throughout the room like an oscillating fan.

Product Highlights

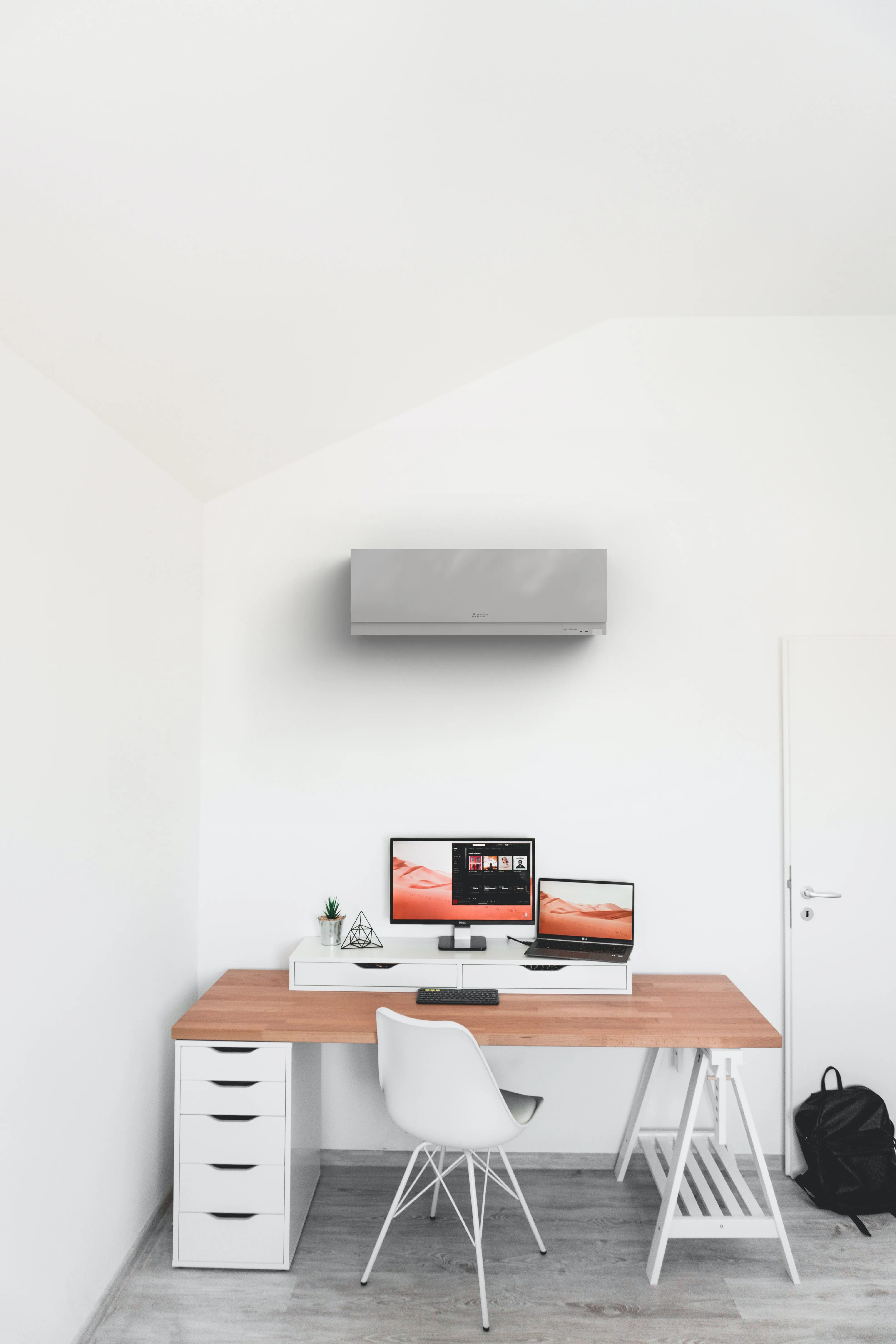

This unit is designed to complement historic and contemporary decor aesthetics. Control options include a back-lit screen handheld remote controller and kumo cloud smart device app for remote access.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC TRANE HVAC
• Manufacturer Part Number: MSZ-EF09NAW-U2

Technical Specifications

• Series: M-Series
• Type: Wall-mounted
• Model: MSZ-EF
• Capacity range: 9 to 18 BTU/H
• Sound level: As low as 30 dB(A)
• Refrigerant: R410A
• Cooling Capacity: 9,000 BTU/H
• Heating Capacity: 10,000 BTU/H
• Voltage, Phase, Frequency: 208/230, 1, 60 V AC
• Guaranteed Voltage Range: 187- 253V AC
• Short-circuit Current Rating [SCCR]: 5 kA
• MCA: 1.0 A
• Fan Motor Full Load Amperage: 0.67 A
• Drain Pipe Size: 5/8 [15.88] In. [mm]
• External Finish Color: Munsell 1.0Y 9.2/0.2
• Gas Pipe Size O.D. [Flared]: 3/8 [9.52] In.[mm]
• Liquid Pipe Size O.D. [Flared]: 1/4 [6.35] In.[mm]
