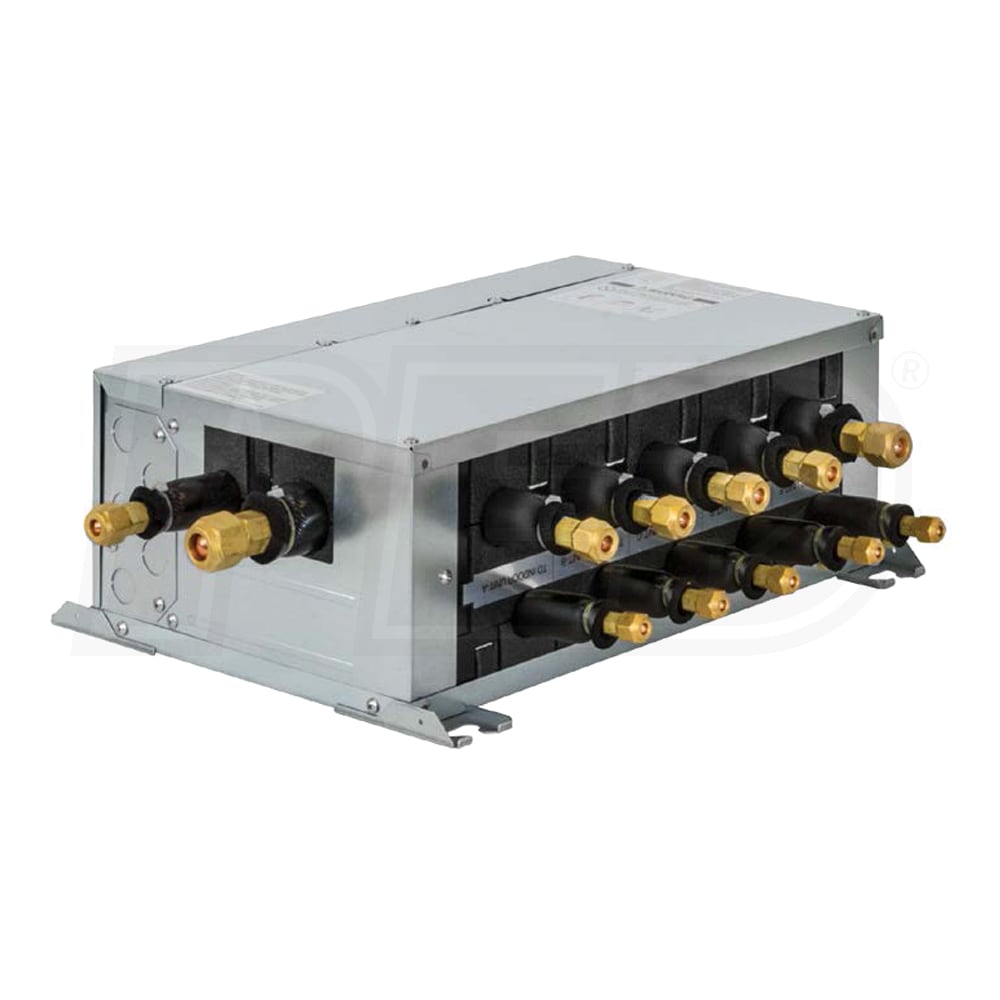

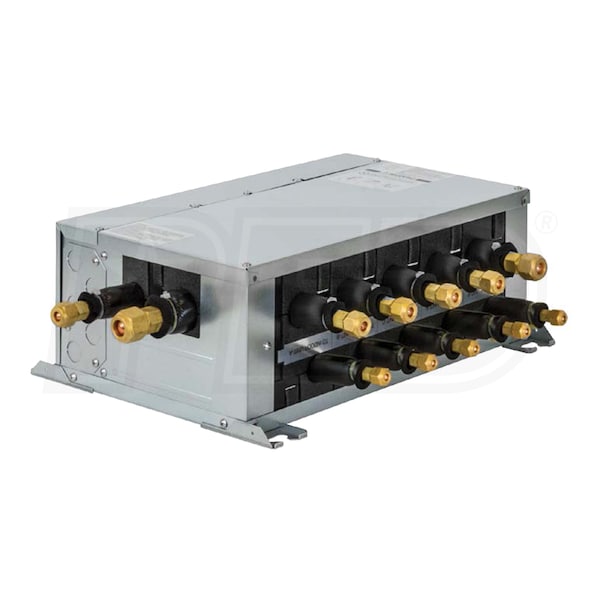

Mitsubishi Electric TAC-MKA52BC 5-Port Branch Box

Product Description

The Mitsubishi Electric TAC-MKA52BC is a branch box with five ports, made for multi-zone mini-split systems. It effectively manages refrigerant flow from the outdoor condenser to the connected indoor units. This branch box can connect directly to the condensing unit or work with either the MSDD-50AR-E or MSDD-50BR-E for additional branching. It supports optimal refrigerant distribution across multiple indoor units.

• Five ports for connecting indoor units.
• Manages refrigerant flow in multi-zone systems.
• Compatible with Mitsubishi MXZ-4C, MXZ-5C, and MXZ-8C outdoor condensers.

Product Highlights

This product is ideal for integrating multiple indoor units with a single outdoor condenser, providing flexibility in climate control setups.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Product Line: M-Series

Technical Specifications

• Type: Branch Box
• Ports Quantity: 5
• Phase: 1
• Frequency: 60 Hz
• Refrigerant: R410A
• Gas Connection Size: 5/8 Inch
• Suction Connection Size: 3/8 Inch
• Liquid Line: 5x 1/4
• Suction Line: 4x 3/8, 1x 1/2
• Valve Type: Flare
• Product Height: 6 11/16 Inches
• Product Width: 21 5/16 Inches
• Product Depth: 16 17/48 Inches
• Product Weight: 21 Pounds
• Parts Warranty Days: 90
• Weight: 21.00 lbs
• Width: 17 23/32 Inches
• Depth: 11 1/32 Inches
