Mitsubishi Electric SVZ-AP60NL 60,000 Btu Svz Series Mini Split Air Handler, R-454B

Product Description

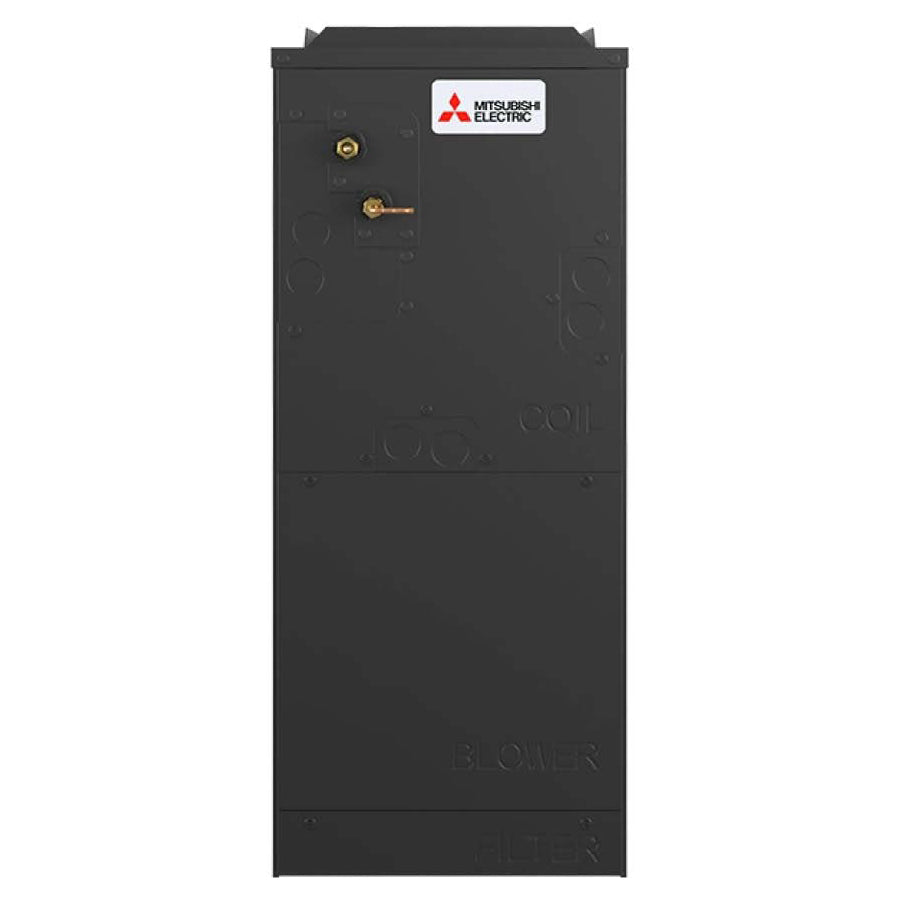

The SVZ-AP60NL is a 60,000 Btu Svz Series Mini Split Air Handler, R-454B manufactured by Mitsubishi Electric. This ducted air handler provides a solution to cool and heat large zones. Features a unique blow through design that allows simple coil cleaning when the blower is removed. It also has selectable external static pressure.

• Unique blow through design allows simple coil cleaning
• Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting
• Multi-position installation: horizontal (left or right), vertical (up or down)

Product Highlights

The SVZ-AP60NL air handler offers efficient cooling and heating for large zones, with features like a blow-through design and multi-position installation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SVZ-AP60NL
• Country of Origin: MEX

Technical Specifications

• Amperage Rating: 9.3 A
• CFM Rating: 1155 to 1650 cfm
• Compressor Type: Twin Rotary
• Connection Size: 3/4 in
• Connection Type: Flared
• Cooling Capacity: 60000 Btu/hr
• EER Rating: 9
• Filter Size: 20 x 24 x 1 in
• Frequency Rating: 60 Hz
• Fuse Rating: 40 A
• Heating Capacity: 66500 Btu/hr
• Liquid Line Size: 3/8 in
• Motor Type: ECM
• Number of Speeds: 3
• Phase: 1 ph
• Pressure Rating: 0.8 in-WG
• Refrigerant Type: R-454B
• SEER Rating: 17
• Sound Level: 56 dBA
• Suction Line Size: 5/8 in
• Voltage Rating: 208/230 V
• Wattage: 5490 W
• Installation Type: Ducted
• Unit Type: Indoor
• AHRI - Usage: Indoor AHU
• Approvals: ETL Listed
• Cooling Capacity (BTU): 60000
• Cooling Rated Capacity Btu/h: 60000
• Energy Star Rated: No
• Prop 65: Yes
• SEER2: 17
• Blower Motor Speeds: 3
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Mounting Type: Ducted Multi-Position
• Equipment Type: Heat Pump
• Multi Zone: Yes
• Product Family: SVZ-AP
• Remote Control Included: No
• Cycle/Hertz: 60 Hz
• Substantial Commodity: Steel; Copper; Aluminum; Petroleum
• Voltage: 208-230 VAC
• Liquid Line Fitting Type: Flare
• Sound Level (dBA): 48-56
• Suction Line Fitting Type: Flare
• Liquid Line Size (OD): 3/8"
• Suction Line Size (OD): 3/4"
• Tonnage: 5
