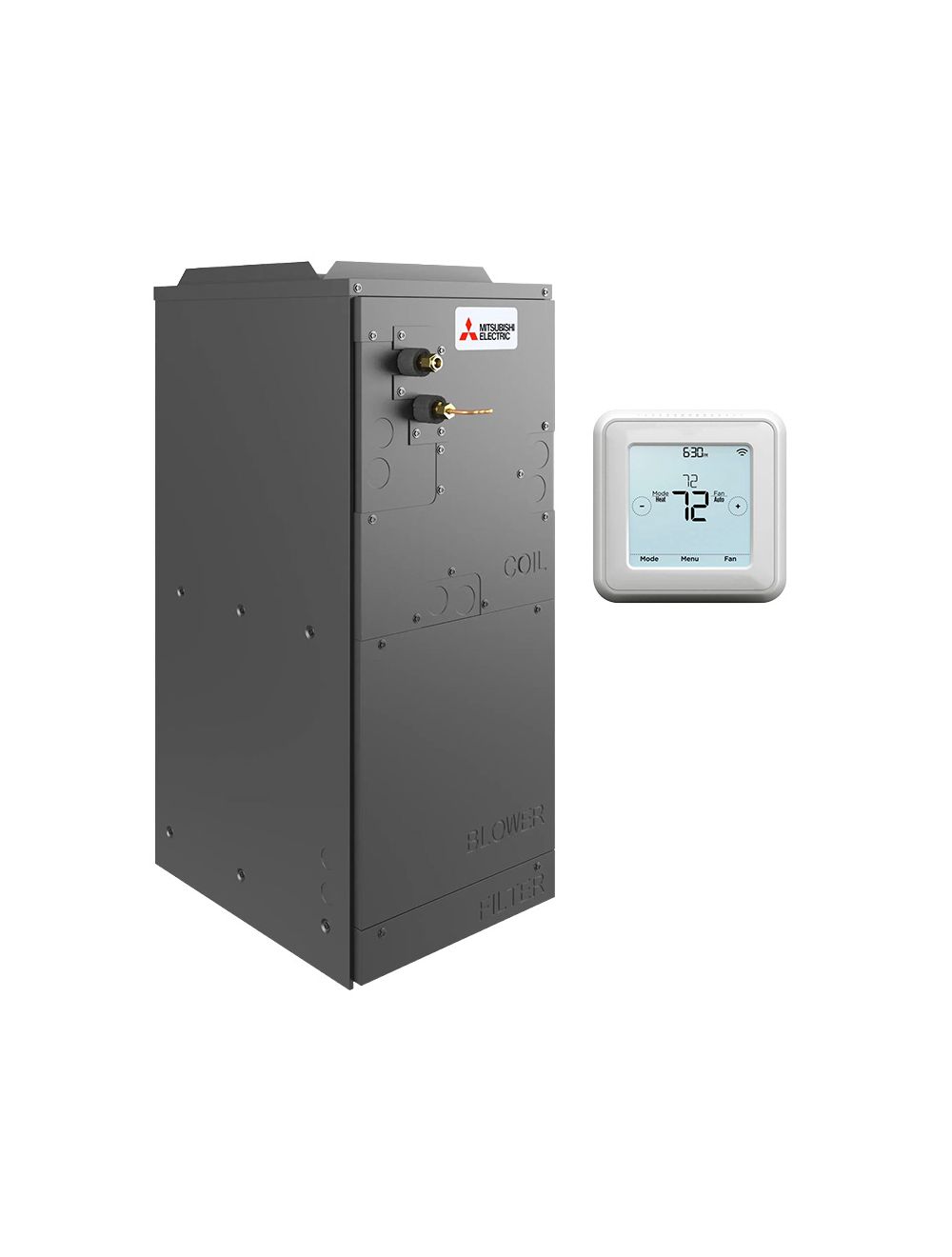

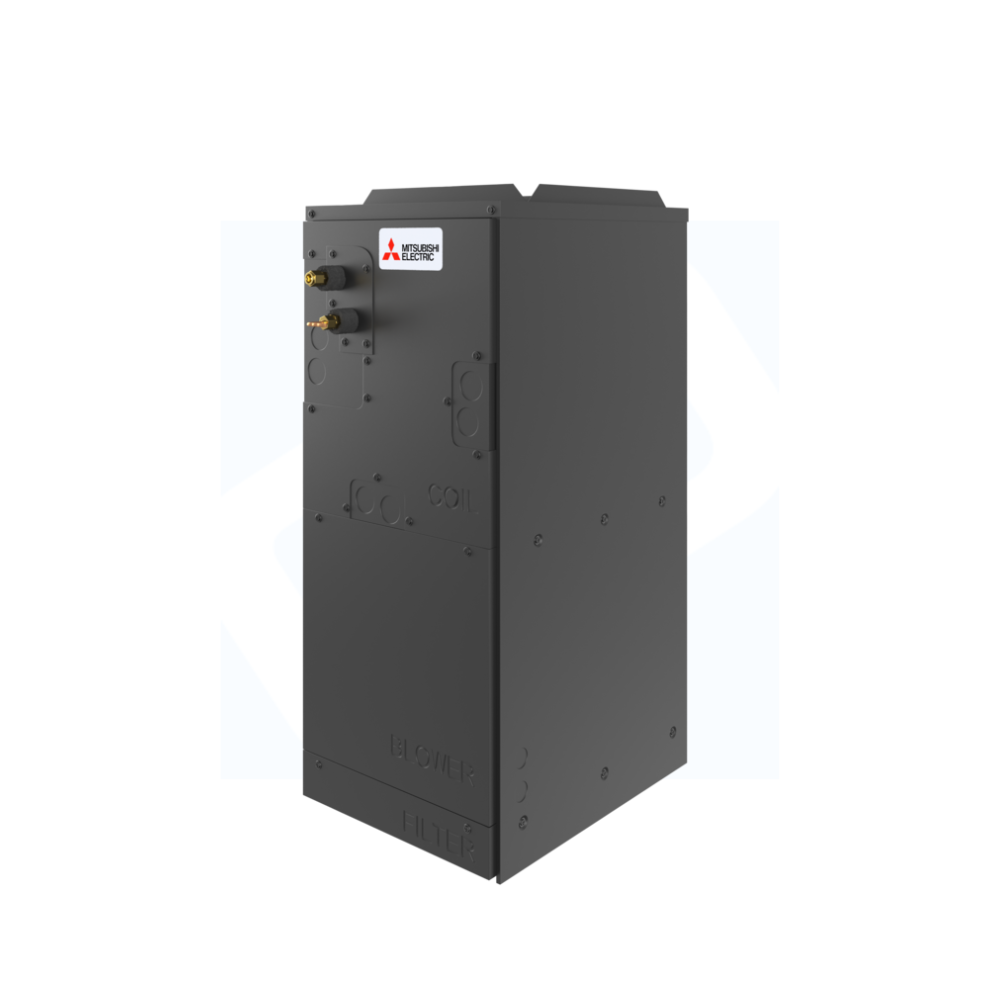

Mitsubishi Electric SVZ-AP36NL Multi-Position Air Handler 36,000 BTU

Product Description

The Mitsubishi Electric SVZ-AP36NL is a multi-position air handler suitable for both single and multi-zone applications. This ducted air handler is compatible with R-454B refrigerant and is designed for efficient operation in heating and cooling modes. It supports horizontal and vertical installation, making it versatile for various setups. The enclosed ECM motor ensures quiet performance, while an INVERTER-driven compressor manages temperature efficiently.

• Ducted system for both heating and cooling.
• Flexible installation options: can be mounted horizontally or vertically.
• Compatible with Comfort App for remote management.

Product Highlights

This air handler is designed with functionality in mind, offering a reliable solution for comfortable indoor climates.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SVZ-AP36NL

Technical Specifications

• Unit Type: Single Zone
• Product Line: AP Series
• Operating Mode: Cooling & Heating
• System Capacity: 36,000 BTU
• Cooling Capacity: 36,000 BTU/hr
• Heating Capacity: 40,000 BTU/hr
• SEER2: 15.8
• EER2: 9.3
• HSPF2: 8.2
• Refrigerant: R-454B
• Input Voltage: 208/230 V
• Amperage: 2.7 A
• Cooling Wattage: 3410 W
• Heating Wattage: 3620 W
• Dimensions: 21 inches W x 21-5/8 inches D x 43-7/8 inches H
• Weight: 122 lbs
• WiFi Enabled: Yes, with Comfort App
• Indoor Unit Model: SVZ-AP36NL
