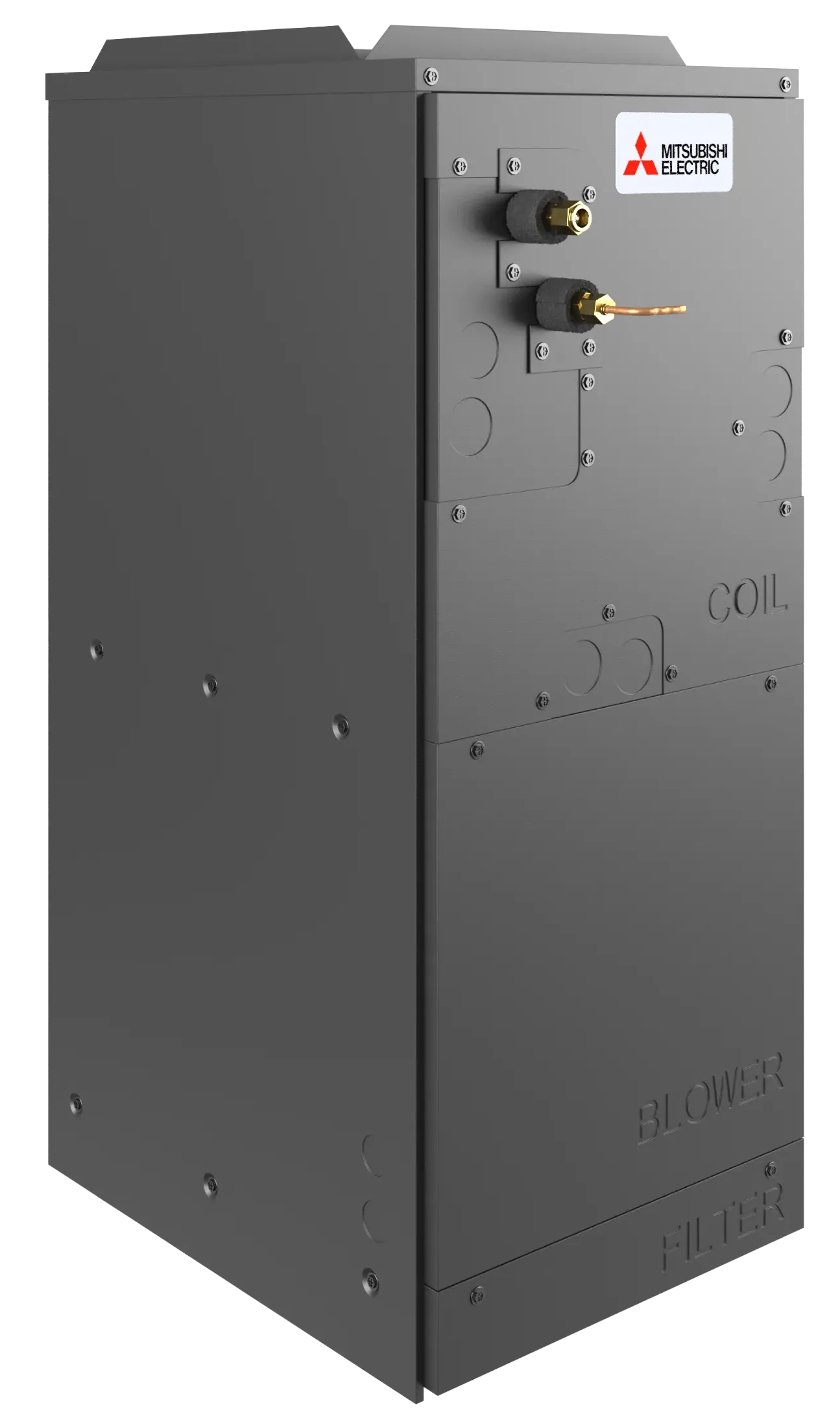

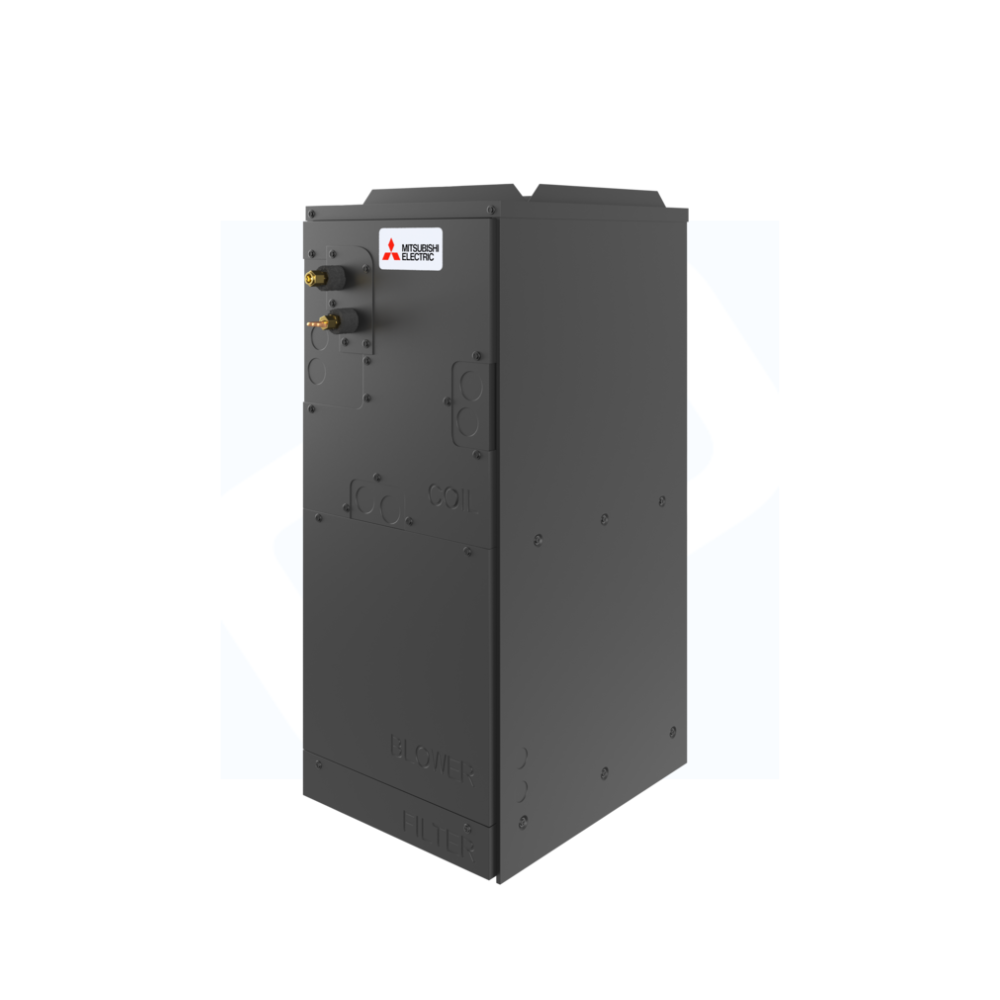

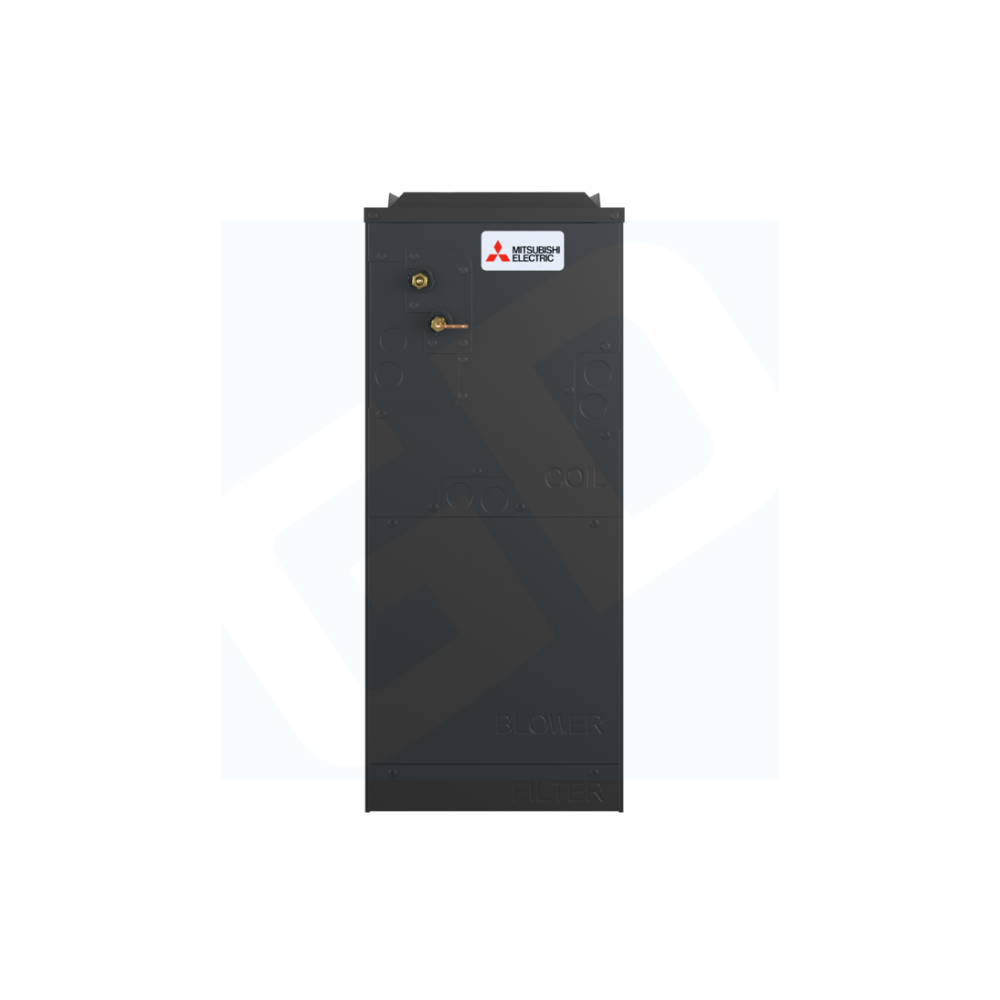

Mitsubishi Electric SVZ-AP30NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 30k BTU - R-454B

Product Description

The Mitsubishi Electric SVZ-AP30NL is a multi-position air handler designed for flexible installation in horizontal or vertical configurations. This ducted unit supports multi-zone applications, effectively managing temperature across various spaces. It features a positive pressure cabinet that enhances efficiency, fiberglass-free insulation for greater safety, and an enclosed ECM motor for improved performance. The unit is compatible with the Comfort App, allowing for remote control and various user-friendly options. It utilizes R454B refrigerant for eco-friendly operation and offers selectable external static pressure settings.

• Suitable for horizontal or vertical installation.
• Incorporates a positive pressure cabinet and an enclosed ECM motor.
• Compatible with the Comfort App for easy remote access.

Product Highlights

This air handler is suitable for residential and commercial use, providing reliable temperature control and efficient operation.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SVZ-AP30NL

Technical Specifications

• Product Line: AP Series
• Unit Type: Multi Zone
• Operating Mode: Cooling & Heating
• System Capacity: 30,000 BTU
• Cooling Capacity: up to 27,000 BTU
• Heating Capacity: up to 32,000 BTU
• SEER2: 17.8
• EER2: 11.2
• HSPF2: 9
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Room Cooling/Heating Capacity: up to 1,250 sq ft
• Airflow Cooling CFM, Dry: 613-744-875
• Dimensions (W x D x H): 21 x 21-5/8 x 43-7/8
