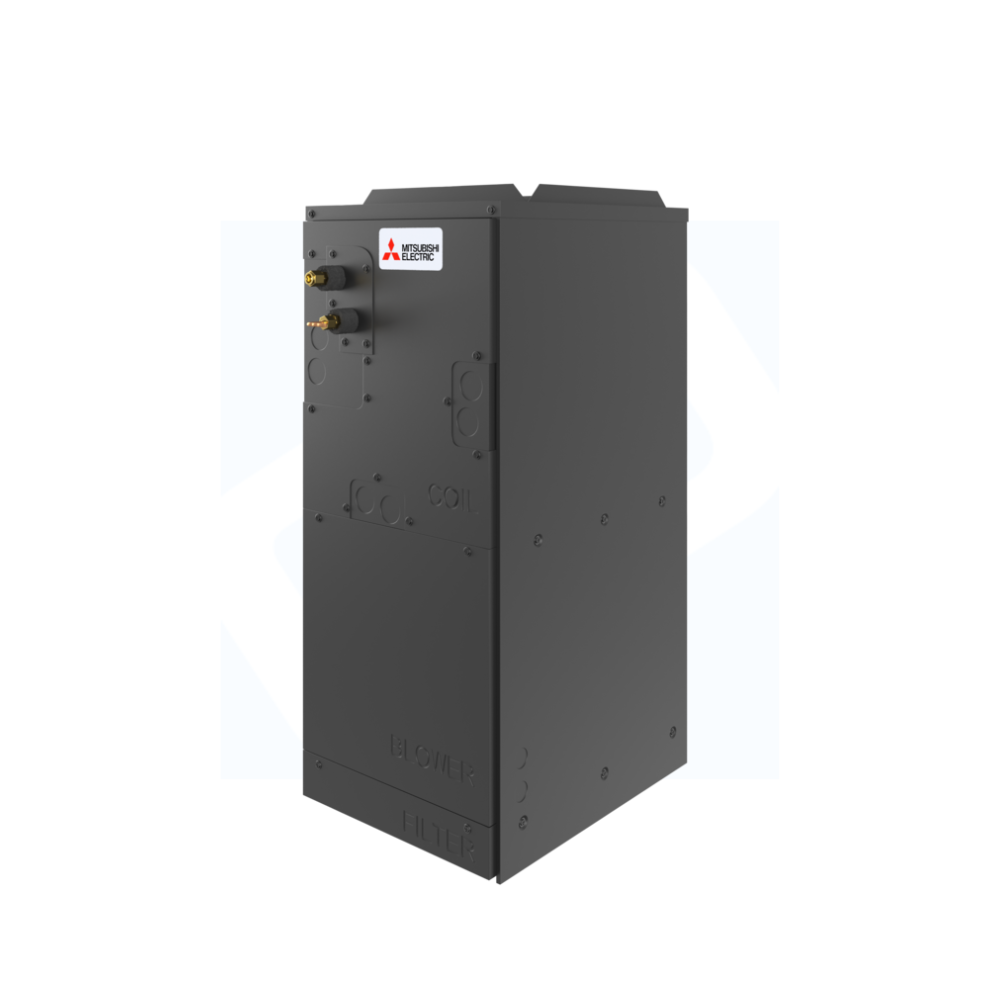

Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 24k BTU - R-454B

Product Description

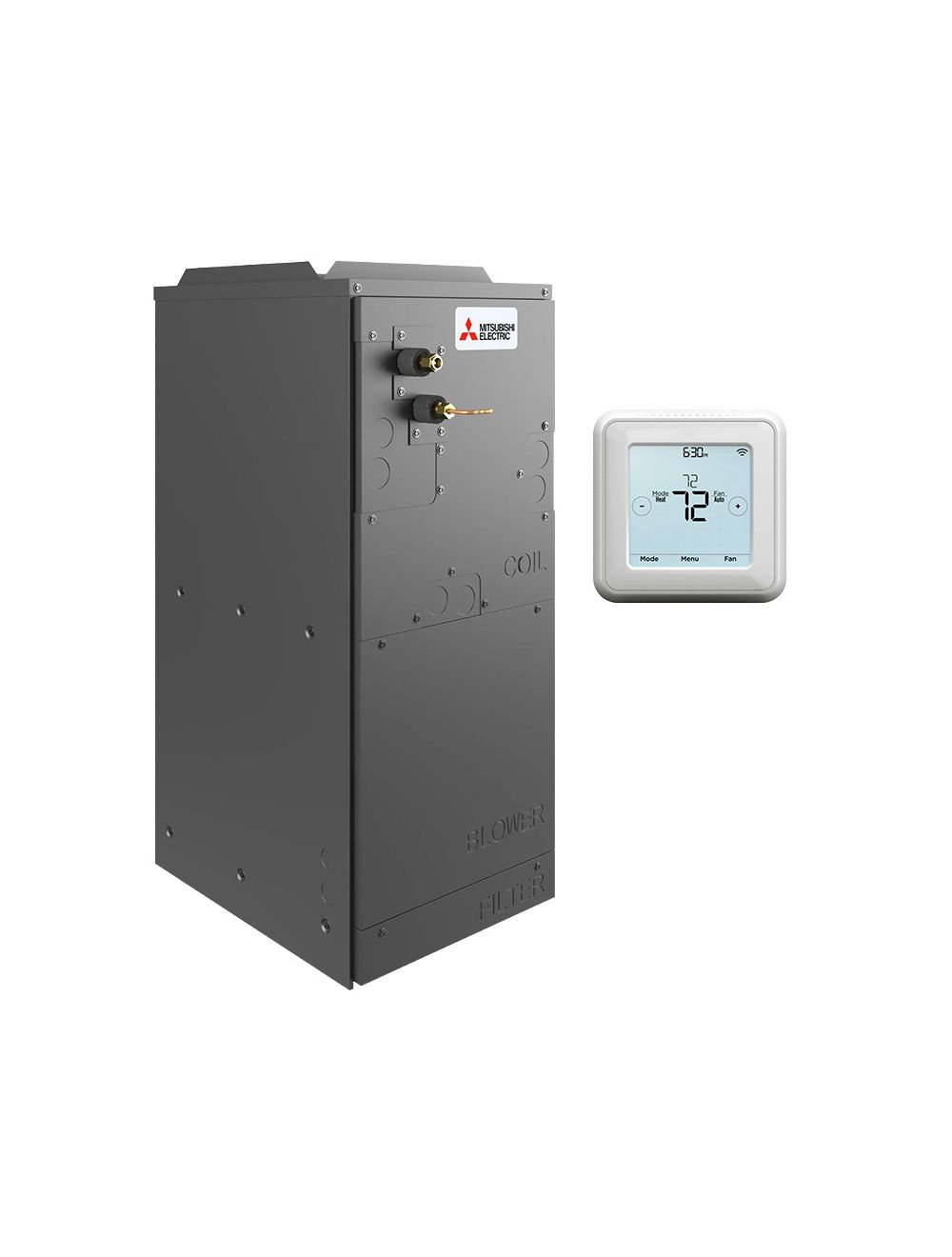

The Mitsubishi Electric SVZ-AP24NL is a ducted indoor unit suitable for multi-zone heating and cooling applications. This versatile unit allows for installation in either horizontal or vertical orientations. It is designed with a positive pressure cabinet and features fiberglass-free insulation, enhancing durability and efficiency. The enclosed ECM motor and blow-through design facilitate easy coil cleaning, ensuring optimal performance. This unit also offers selectable external static pressure and various control options, making it adaptable to user preferences. Optional accessories include an electric heat kit, humidifier control, and ERV control.

• Ducted air handler for large zone heating and cooling
• Multi-position installation options: horizontal and vertical
• Selectable external static pressure settings

Product Highlights

Product Information

Standard Information

• Unit Type: Indoor Unit
• Product Line: AP Series

Technical Specifications

• Operating Mode: Cooling & Heating
• Number of Zones: Multi
• System Capacity: 24,000 BTU
• Line Set Size: 3/8 x 5/8 inches
• WiFi Enabled: Yes with Comfort App
• Cooling Capacity: 24,000 BTU
• Heating Capacity: 23,000 BTU
• Room Capacity: 1,000 sq ft
• Airflow Cooling CFM: 471-573-700
• Noise Level dB(A): 36-41-45
• Dimensions (W x D x H): 17 x 21-5/8 x 39-13/16 inches
