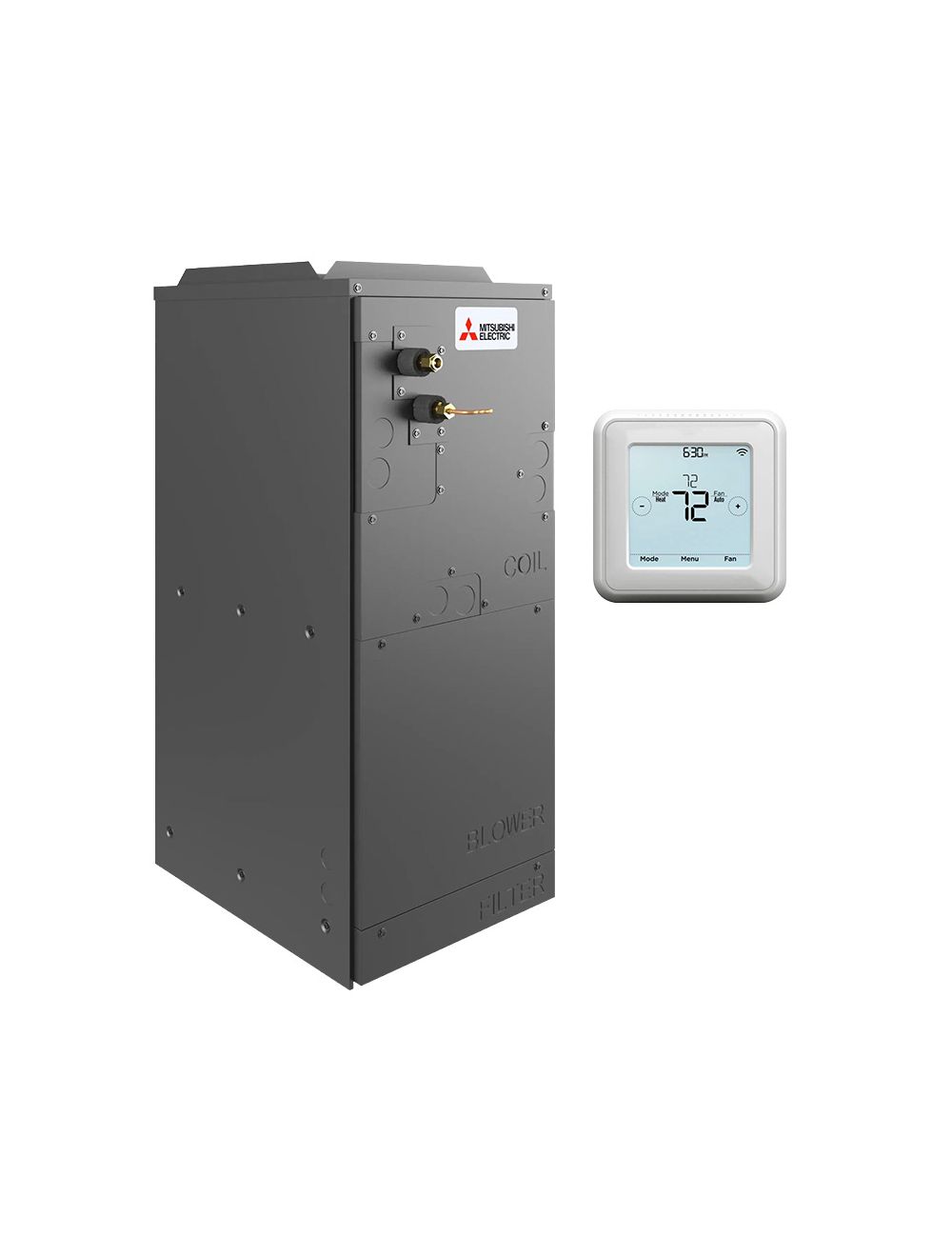

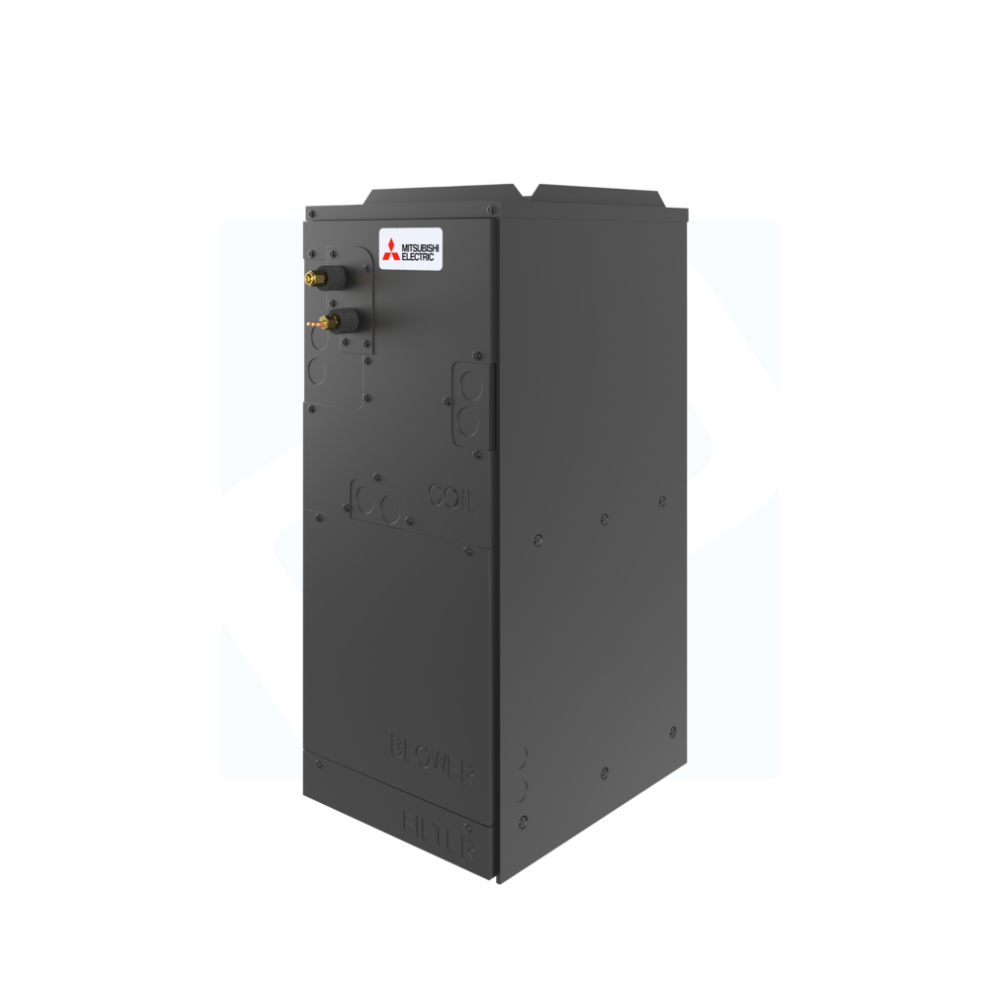

Mitsubishi Electric SVZ-AP18NL Multi-Position Air Handler

Product Description

The Mitsubishi Electric SVZ-AP18NL is a multi-position air handler suited for horizontal or vertical installation. This ducted unit effectively handles heating and cooling for larger spaces. It includes a positive pressure cabinet and fiberglass-free insulation. With its enclosed ECM motor, it is ideal for multi-zone setups.

• Multi-position installation: horizontal or vertical
• Selectable external static pressure: 0.30, 0.50, and 0.80 in.WG
• Compatible with Comfort App for remote operation

Product Highlights

This air handler can cater to various heating and cooling needs across different zones, making it suitable for residential and light commercial applications.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SVZ-AP18NL

Technical Specifications

• Product Line: AP Series
• Unit Type: Single Zone
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 18,000 BTU
• Cooling Capacity up to: 18,000 BTU
• Heating Capacity up to: 23,800 BTU
• SEER2: 16.2
• EER2: 12
• HSPF2: 9.8
• Refrigerant: R454B
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Room Cooling/Heating Capacity up to: 750 sq ft
• Airflow Cooling CFM, Dry: 471-573-675
• Airflow Heating CFM, Dry: 471-573-675
• Noise Level dB(A), Cooling: 36-41-45
• Noise Level dB(A), Heating: 36-41-45
• Dimensions: 17 x 21-5/8 x 39-13/16
• Indoor Unit Model Number: SVZ-AP18NL

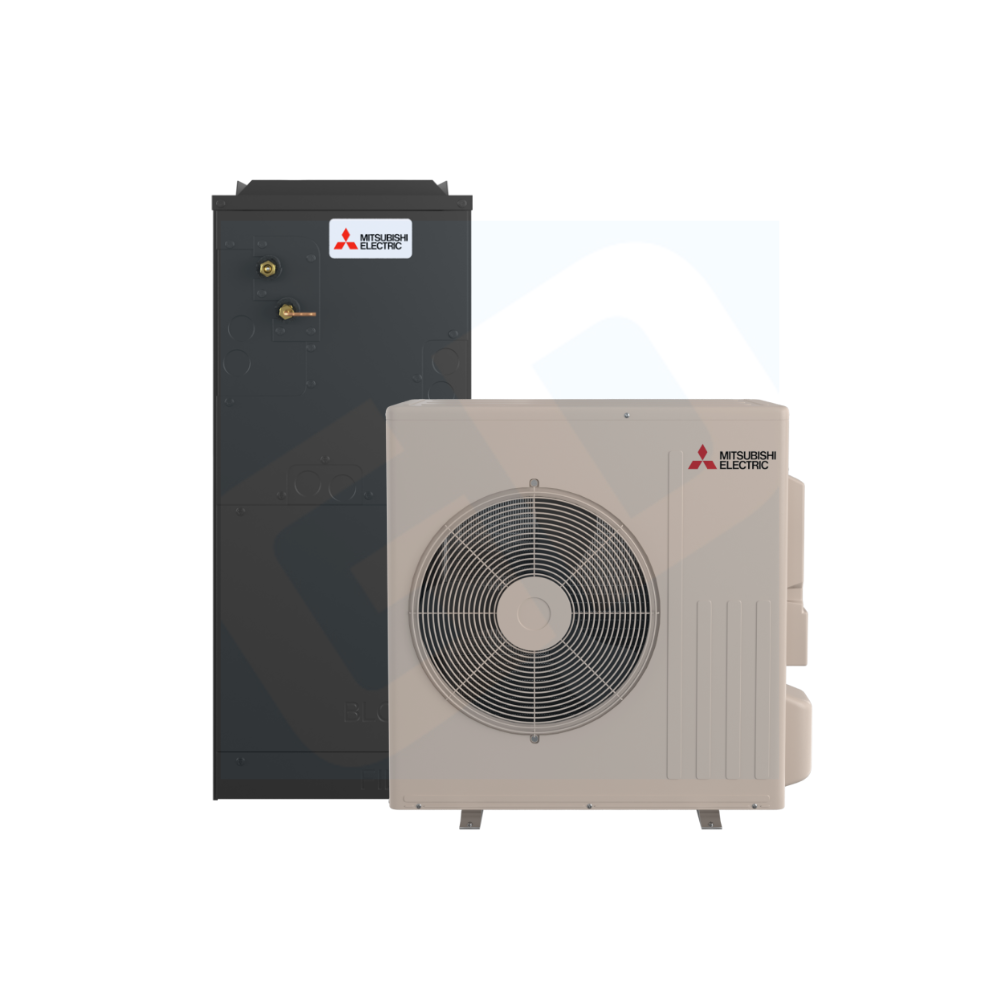

• Outdoor Unit: SUZ-AA18NL
• Controller Model Number: MRCH2
• Wireless Receiver Model Number: MIFH2
• Cable Model Number: MRC2
• Line Set Size: 1/4 x 1/2
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No
• Remote Controller: NOT Included
