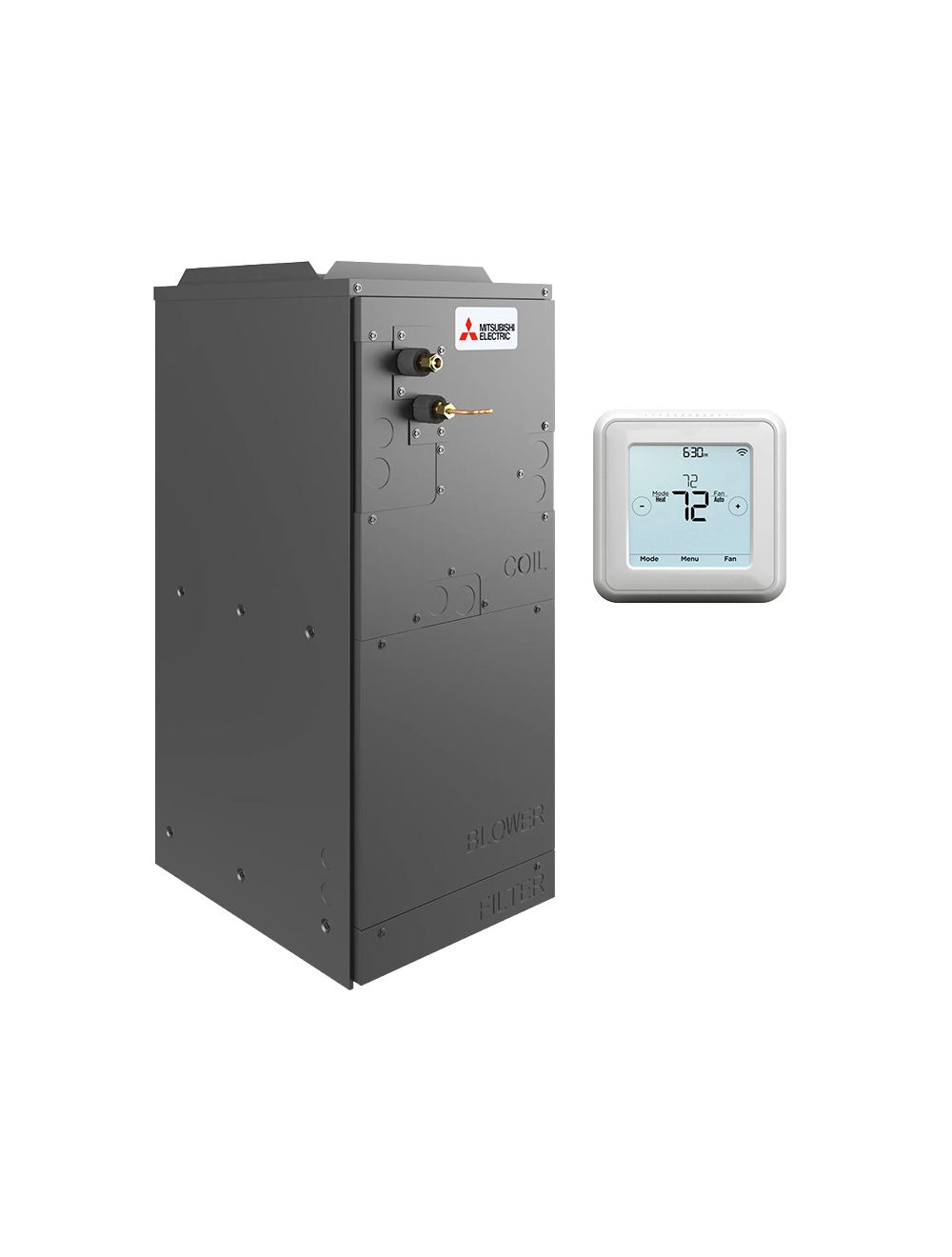

Mitsubishi Electric SVZ-AP12NL Multi-Position Air Handler

Product Description

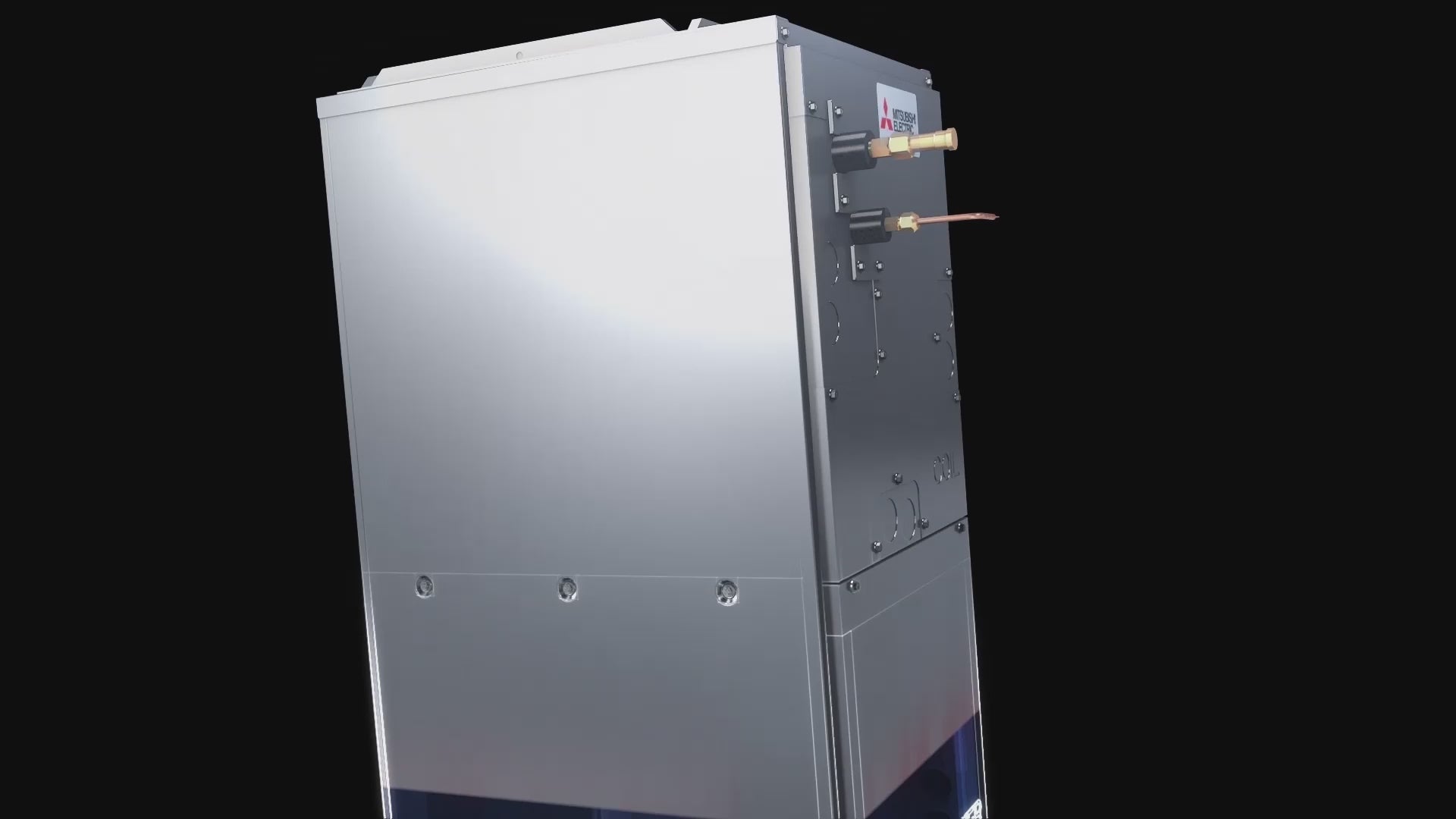

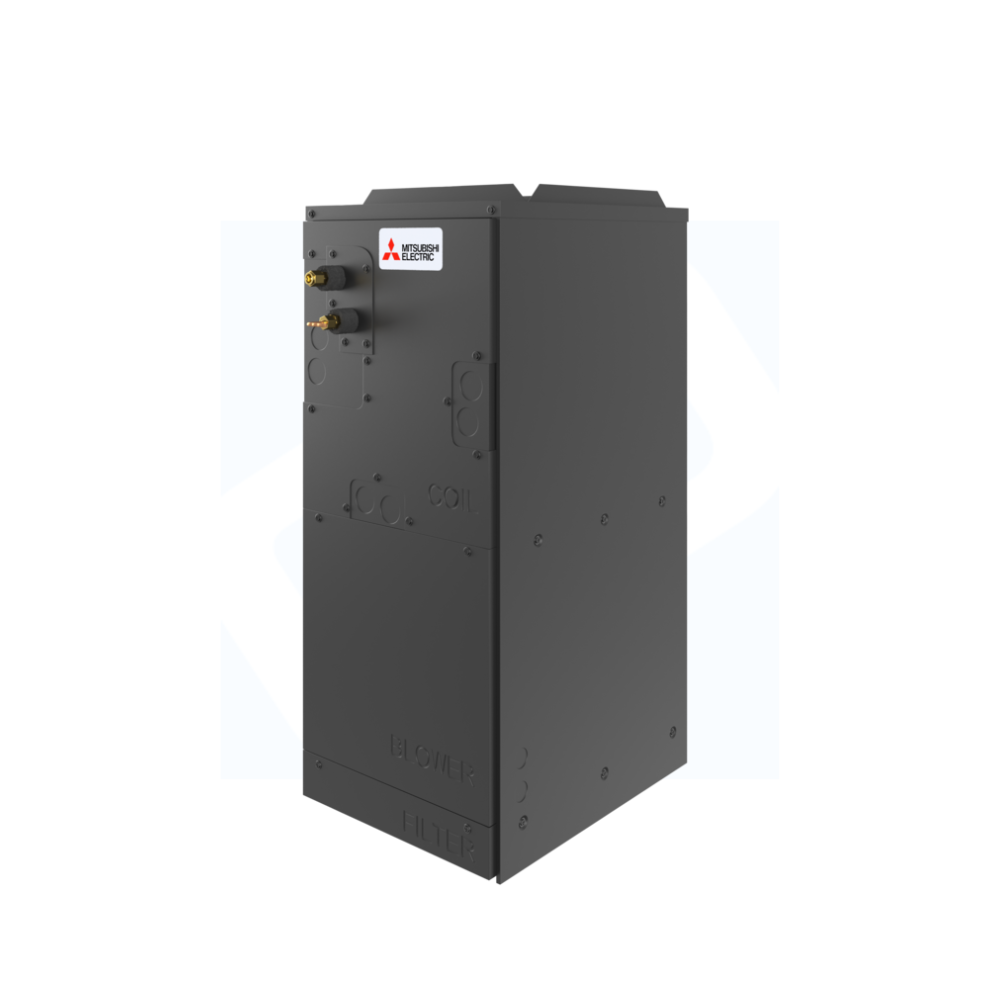

The Mitsubishi Electric SVZ-AP12NL is a ducted air handler for indoor installation with multi-position capabilities. It is designed for both cooling and heating, offering a nominal capacity of twelve thousand BTU. The unit can be installed either horizontally or vertically and comes with an enclosed ECM motor.

• Supports horizontal (left or right) and vertical (up or down) installation.
• Includes positive pressure cabinet design.
• Compatible with optional electric heat kit, humidifier control, and ERV control.

Product Highlights

This air handler provides efficient air circulation and temperature control for diverse applications in residential or commercial spaces.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Unit Type: Indoor Unit

Technical Specifications

• MPN: SVZ-AP12NL
• Operating Mode: Cooling & Heating
• System Capacity: 12,000 BTU
• Cooling Capacity: 11,400 BTU/hr
• Heating Capacity: 15,000 BTU/hr
• Refrigerant: R-454B
• Input Voltage: 208/230 V
• Amperage: 14 A
• Noise Level dB(A), Cooling: 36-41-45
• Noise Level dB(A), Heating: 36-41-45
• Dimensions: 17 x 21-5/8 x 39-13/16 inches
• Weight: 97 lbs
• WiFi Enabled: Yes with Comfort App
• Controller Model Number: MRCH2
• Cable Model Number: MRC2
• Cable Length: 39-23/64 inches
