Mitsubishi Electric SUZ-KA24NAHZ-R1 KA 24,000 BTU 16 SEER Hyper Heat Universal Heat Pump Outdoor Unit

Product Description

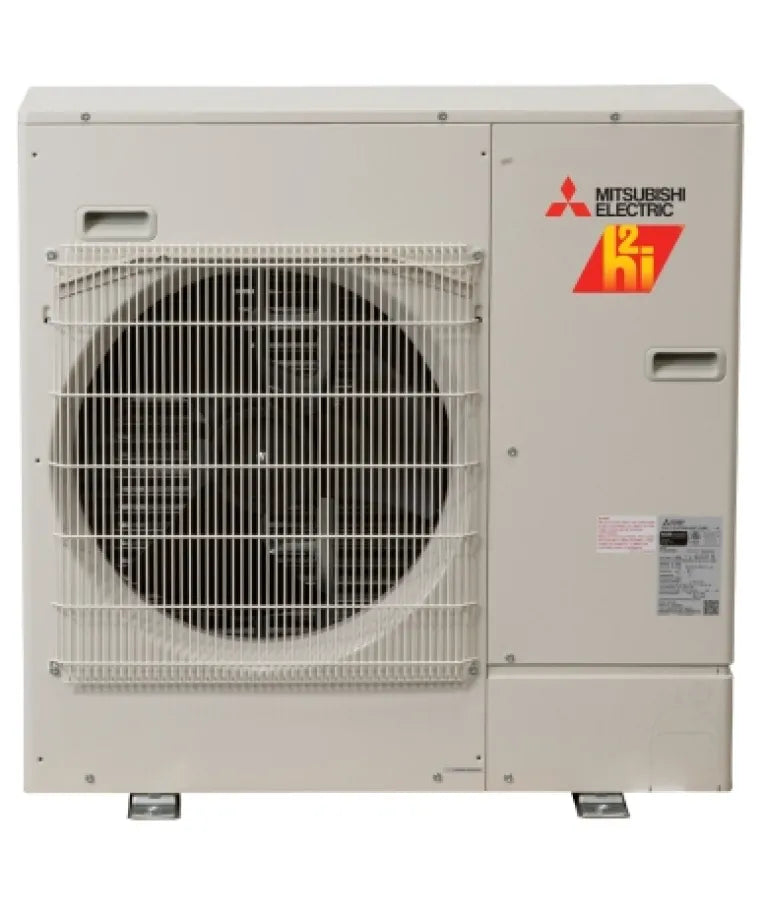

The Mitsubishi Electric SUZ-KA24NAHZ-R1 is a 24,000 BTU universal heat pump outdoor unit with hyper-heating and a SEER rating of 16. The outdoor unit powers the indoor unit, and in the event of a power outage, the system automatically restarts when power returns. It features an INVERTER-driven compressor and LEV for high efficiency.

• Hyper-heating performance offers 100% heating capacity at 5° F
• Hot-Start Technology prevents cold air rush at startup or after Defrost Cycle
• Quiet operation with a built-in base pan heater

Product Highlights

This unit provides efficient and reliable heating and cooling with innovative features like hyper-heating and quiet operation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-KA24NAHZ-R1

Technical Specifications

• Cooling Capacity: 24,000 Btu/h
• Heating Capacity: 28,000 Btu/h
• SEER2: 16.7
• EER2: 11.7
• HSPF2: 9.4
• COP at 47 1. 7: 3.7
• Voltage, Phase, Frequency: 208/230, 1, 60
• MCA: 17.0 A
• Fan Motor Output: 27 A
• Airflow Rate [Cooling / Heating]: 1940 / 1940 CFM
• Sound Pressure Level, Cooling: 52 dB(A
• Sound Pressure Level, Heating: 53 dB(A
• Compressor Type: Scroll
• Compressor Rated Load Amps: 9 A
• Compressor Locked Rotor Amps: 18.0 A
• Product Height (in.): 37.125
