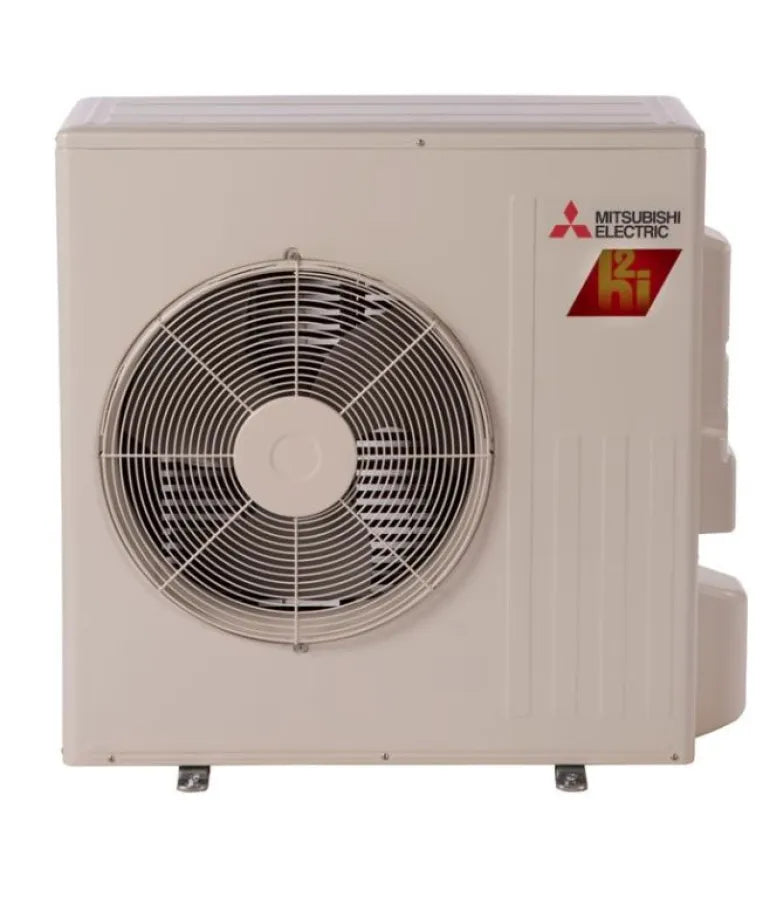

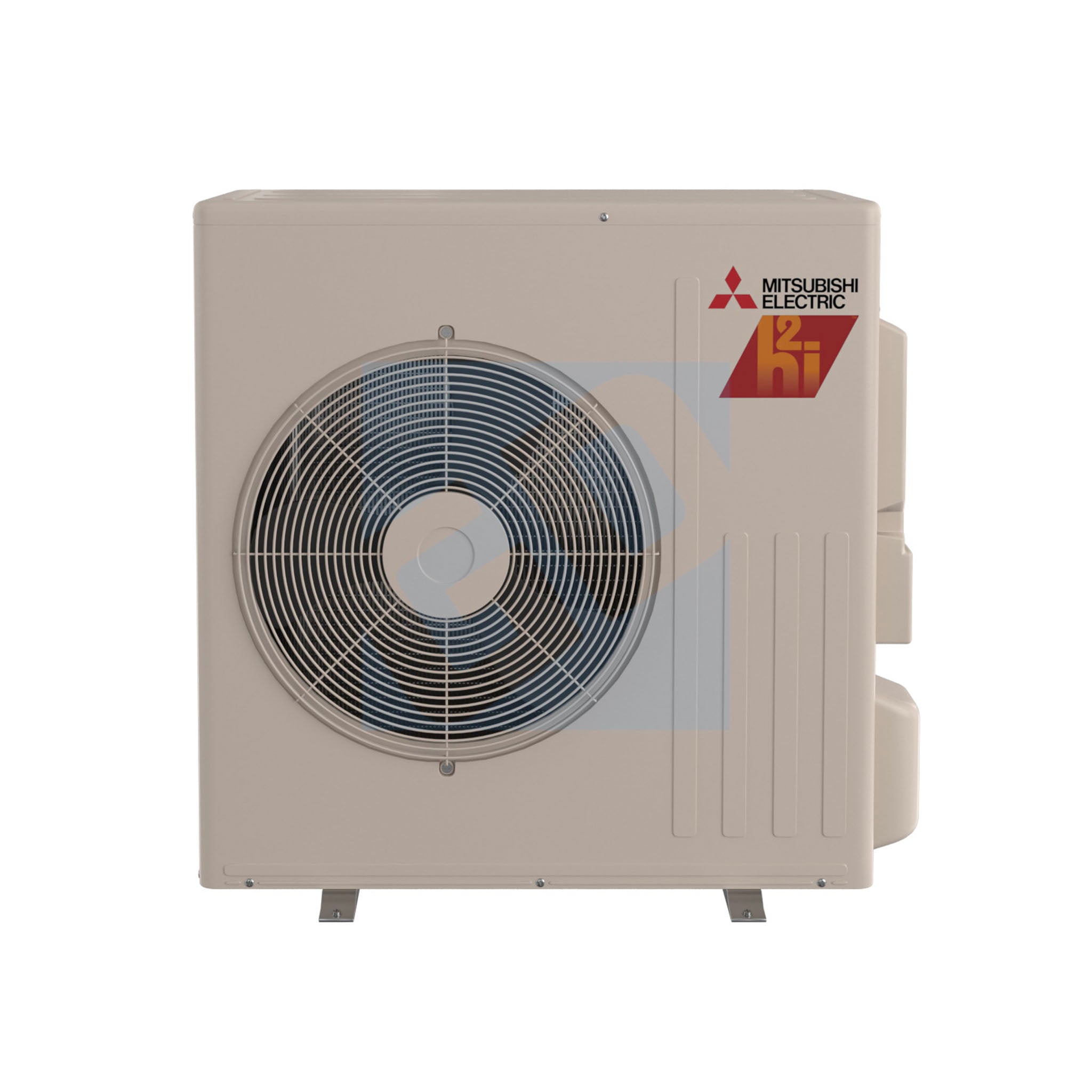

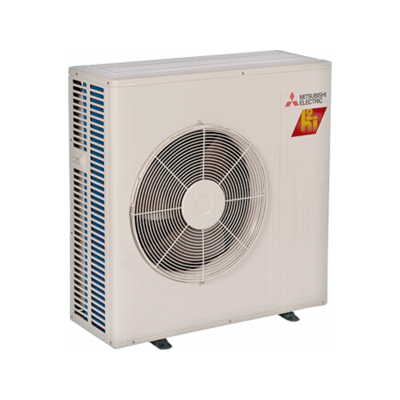

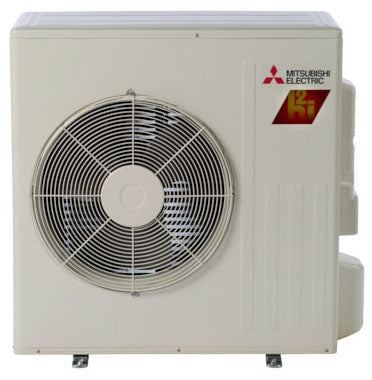

Mitsubishi Electric SUZ-KA18NAHZ.TH Hyper Heat H2i Universal Cond Unit 18000 BTU/Hour

Product Description

The MITSUBISHI ELECTRIC SUZ-KA18NAHZ.TH is a mini-split heat pump condensing unit designed for 1-zone, horizontal applications. It operates at 208/230 Volt AC and 60 Hertz, with a cooling capacity of 18000 BTU/Hour and a heating capacity of 21600 BTU/Hour. The unit features a thermostat for temperature control and a flared connection type, suitable for residential use.

• Energy Star Rated
• Operating temperature range of 14 to 115 Deg F (Cooling) and -4 to 65 Deg F (Heating)
• Features H2i hyper heat performance offering 100% heating capacity at 5° F

Product Highlights

This Mitsubishi Electric unit ensures efficient and reliable heating and cooling with its innovative features and robust design. Ideal for maintaining optimal comfort in residential environments.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-KA18NAHZ.TH

Technical Specifications

• Cooling Capacity: 18000 BTU/Hour
• Heating Capacity: 21600 BTU/Hour
• Voltage Rating: 208/230 V
• Frequency Rating: 60 Hz
• Power Rating: 1340 Watt (Cooling), 2020 Watt (Heating)
• Current Rating: 1.35 Amp (Fan Motor)
• Refrigerant Type: R-410A
• EER Rating: 12.5
• SEER Rating: 19.1
• HSPF Rating: 10
• Connection Type: Flared
• Operating Temperature: 14 to 115 Deg F (Cooling), -4 to 65 Deg F (Heating)
• Application: Residential
• Approval: ETL (Canada and US)
• Number Of Phases: 1
• Temperature Control Type: Thermostat
• Type: 1-Zone, Horizontal
• Enclosure Finish: Munsell 3Y 7.8/1.1
• Airflow Rating: 2020 cfm, 1930 cfm
• Applicable Standard: ASHRAE, AHRI
• Compressor Type: Twin Rotary
• Drive Type: DC Inverter
• Liquid Line Size: 1/4 in
• Fuse Rating: 20 A
• Tonnage: 1.5 ton
• Vent, Ducted or Ductless: Ducted
• Sound Level: 55 dB
• Cooling Temperature: 95 deg F
• Heating Temperature: 5 to 47 deg F
