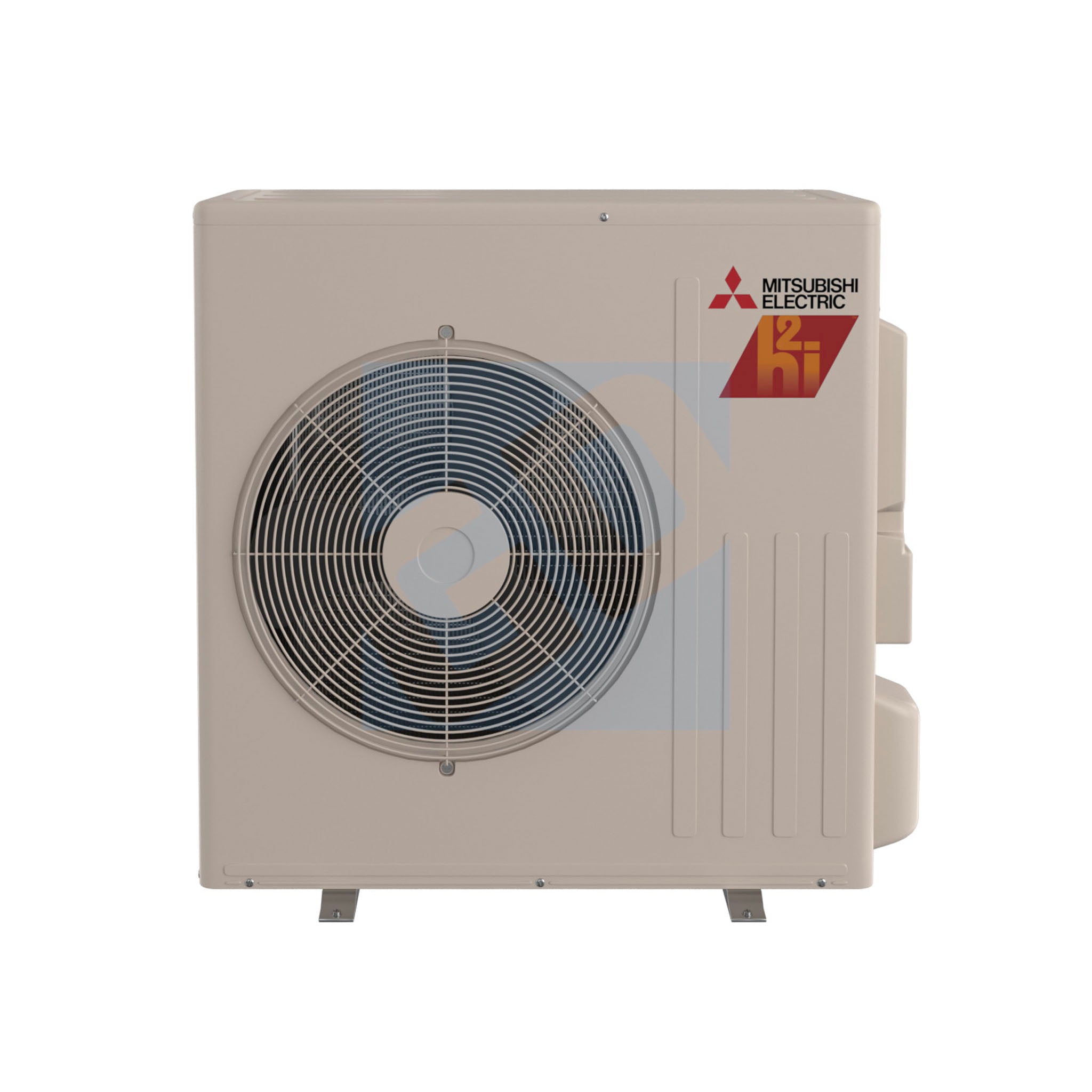

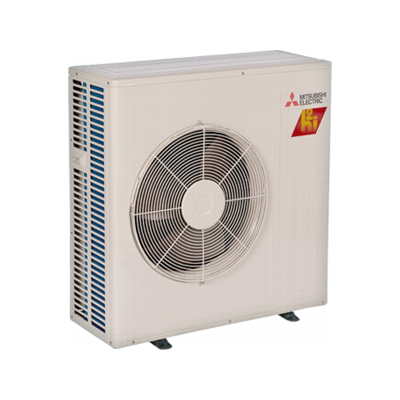

Mitsubishi Electric SUZ-KA15NAHZ KA 15,000 BTU Hyper Heat Universal Heat Pump Outdoor Unit

Product Description

The MITSUBISHI ELECTRIC SUZ-KA15NAHZ is a KA 15,000 BTU hyper heat universal heat pump outdoor unit. This single-zone outdoor unit is compatible with multiple indoor unit types in a 1-to-1 configuration. It features H2i technology, providing 100% heating performance down to 5° F and guaranteed heating down to -13° F. The unit also boasts a blue fin anti-corrosion treatment on the heat exchanger.

• Single-zone operation for targeted comfort control.
• H2i hyper heat technology ensures reliable heating in extreme cold.
• ENERGY STAR certified for energy efficiency.

Product Highlights

High-efficiency heat pump with hyper-heating capabilities, designed for single-zone applications and compatibility with various indoor unit types.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-KA15NAHZ

Technical Specifications

• Series: P-Series
• Type: Heat pump
• Model: SUZ
• Capacity range: 9 to 36 BTU/H
• Sound level: As low as 55 dB(A)
• Refrigerant: R410A
• ENERGY STAR: Yes
• SEER2: Up to 24
• HSPF2: Up to 11.9
• Application: Single-Zone
• BTUH Cool: 15000
• BTUH Heat: 23000
• Electrical: 208/230, 1 Ph, 60Hz
• HyperHeat?: Yes
• Liquid Line Size: 1/2"
• Suction Line Size: 1/4"
• Usage: Heat & Cool
• Amperage Rating: 17 A
• BTU Rating: 15000 Btu/hr
• CFM Rating: 2020 cfm, 1930 cfm
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Drive Type: DC Inverter
• EER Rating: 12.5
• Frequency Rating: 60 Hz
• Fuse Rating: 20 A
• HSPF Rating: 9.5
• Phase: 1 ph
• Power Rating: 1200 W, 1920 W, 1660 W
• Refrigerant Type: R-410A
• SEER Rating: 17.3
• Temperature Rating: 95 deg F Cooling, 5 to 47 deg F Heating
• Tonnage: 1.25 ton
• Vent, Ducted or Ductless: Ducted
• Voltage Rating: 208/230 V
