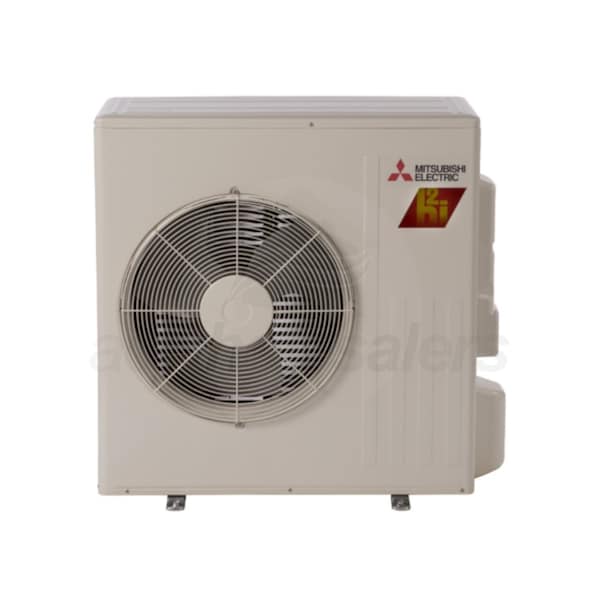

Mitsubishi SUZ-KA12NAHZ.TH 12k BTU M-Series H2i Outdoor Condenser Single Zone Only

Product Description

The Mitsubishi SUZ-KA12NAHZ.TH is a 12k BTU M-Series H2i outdoor condenser designed for single zone only. This condenser requires a compatible indoor unit. Mitsubishi is known for its innovative mini split systems offering highly efficient and easy-to-use comfort solutions.

• Precision temperature control
• Seacoast protected condenser
• Energy-efficient inverter compressor

Product Highlights

This outdoor condenser uses inverter technology and an electronic linear expansion valve for accurate temperature control and system efficiency. It features a protective anti-rust coating for durability and an inverter-driven compressor for superior performance and energy savings.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: SUZ-KA12NAHZ.TH

Technical Specifications

• Cooling Capacity: 12000 BTU
• Heating Capacity: 18000 BTU
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 14 Amps
• Recommended Breaker Size: 15 Amps
• Refrigerant Type: R-410A
• Product Line: M-Series H2i
• Product Sub-line: Hyper-Heating
• Operating Mode: Heating and Cooling
• Max Sound Level: 55 dB
• Base Pan Heater Included: Yes
• Max Number of Zones: 1
• Liquid Connection Size: 1/4 Inch
• Gas Connection Size: 3/8 Inch
• Max Line Length: 65 Feet
• Minimum Outdoor Temperature for Cooling: 14 F
• Minimum Outdoor Temperature for Heating: -13 F
• Installation Location: Outdoor
• Multi-Zone Compatible: No
• ETL Listed: Yes
• Compressor Warranty: 7 Years
• Parts Warranty: 5 Years
• Product Depth: 13 Inches
• Product Width: 38 9/16 Inches
• Product Height: 34 5/8 Inches
• Product Weight: 129 Pounds
• Shipping Weight: 148 Pounds
