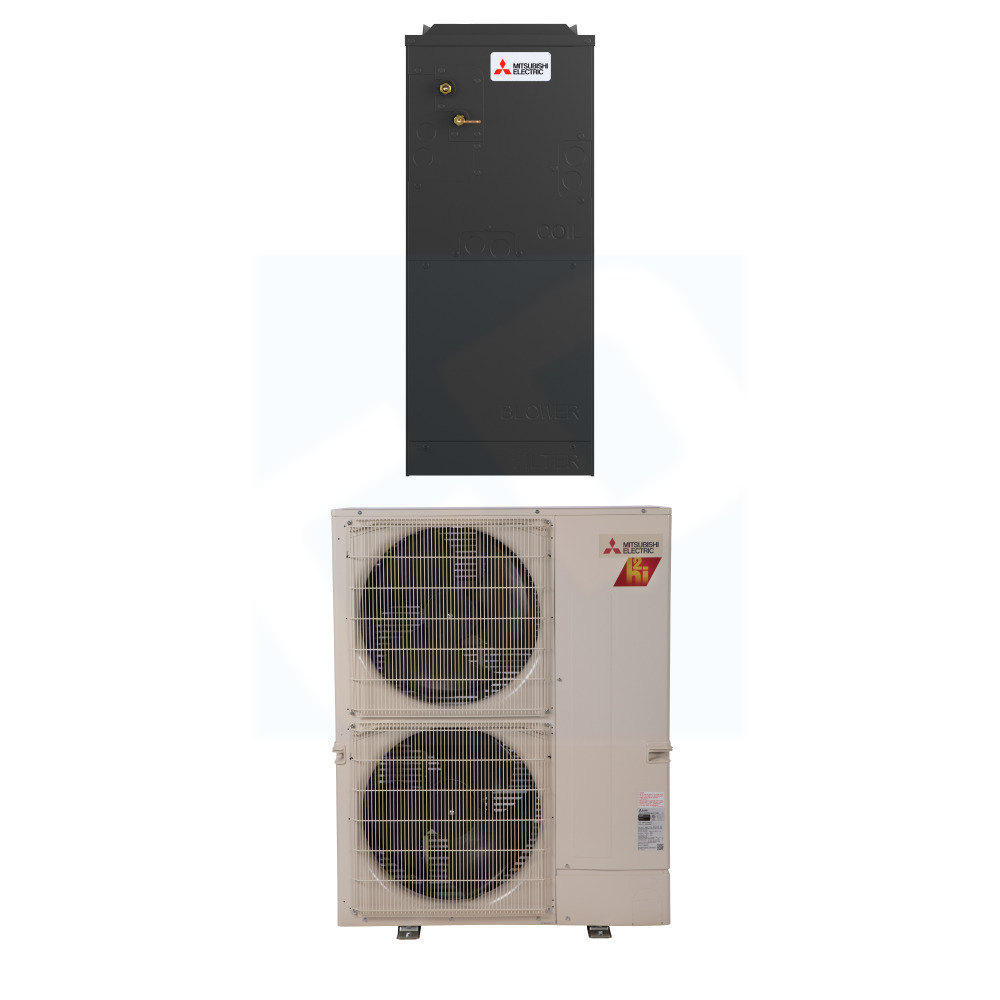

Mitsubishi Electric SUZ-AK48NLHZ air handler 48,000 BTU

Product Description

The Mitsubishi Electric SUZ-AK48NLHZ delivers 48,000 BTU cooling and 60,000 BTU heating with Hyper-Heating INVERTER (H2i) technology, providing full heat to 5°F and reliable operation to -13°F, with restart at -22°F. Features include Blue Fin protection, base pan heater, quiet operation, and flexible installation.

• Unique blow through design allows simple coil cleaning when the blower is removed
• Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting
• Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in.WG

Product Highlights

This ducted air handler provides a solution to cool and heat large zones. It has multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-AK48NLHZ

Technical Specifications

• Unit Type: Single Zone
• Product Line: S-Series AP
• Operating Mode: Cooling & Heating
• Low Ambient Heat: No
• Number of Zones: 1
• System Capacity: 48,000 BTU
• Line Set Size: 3/8" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No

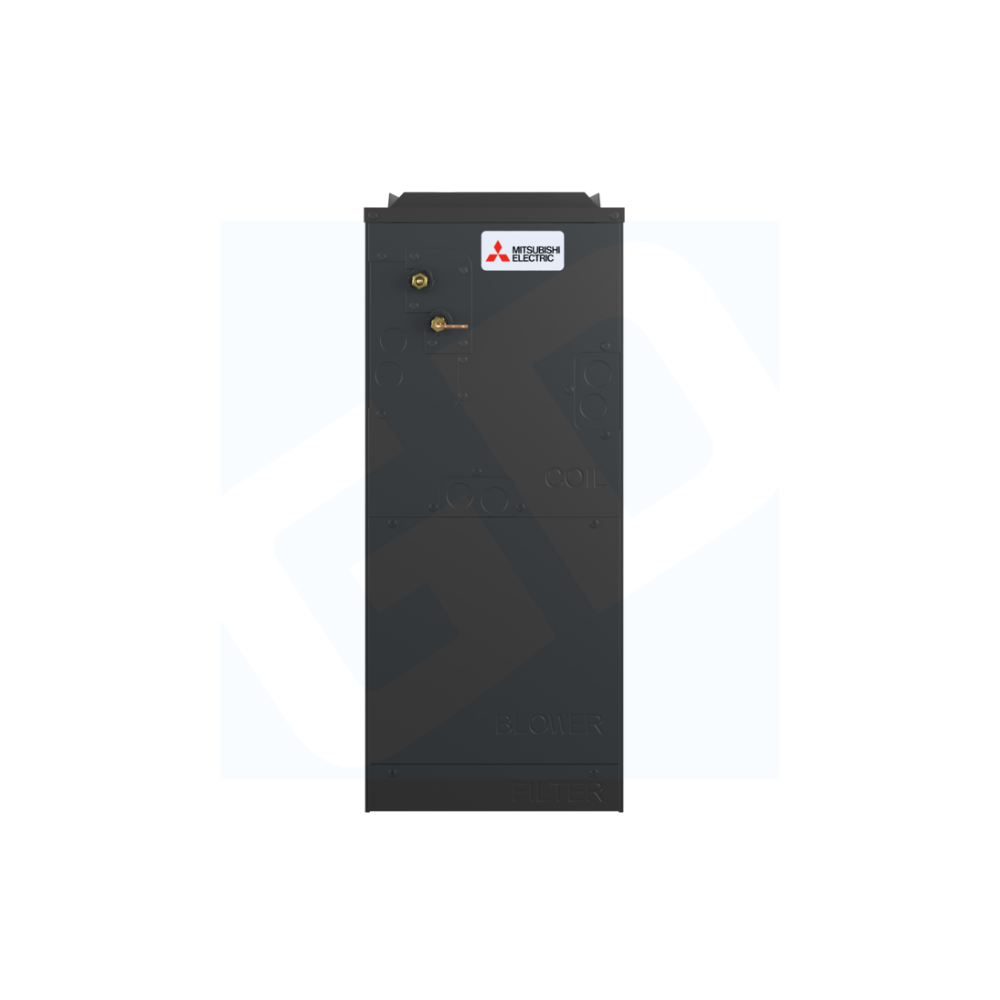

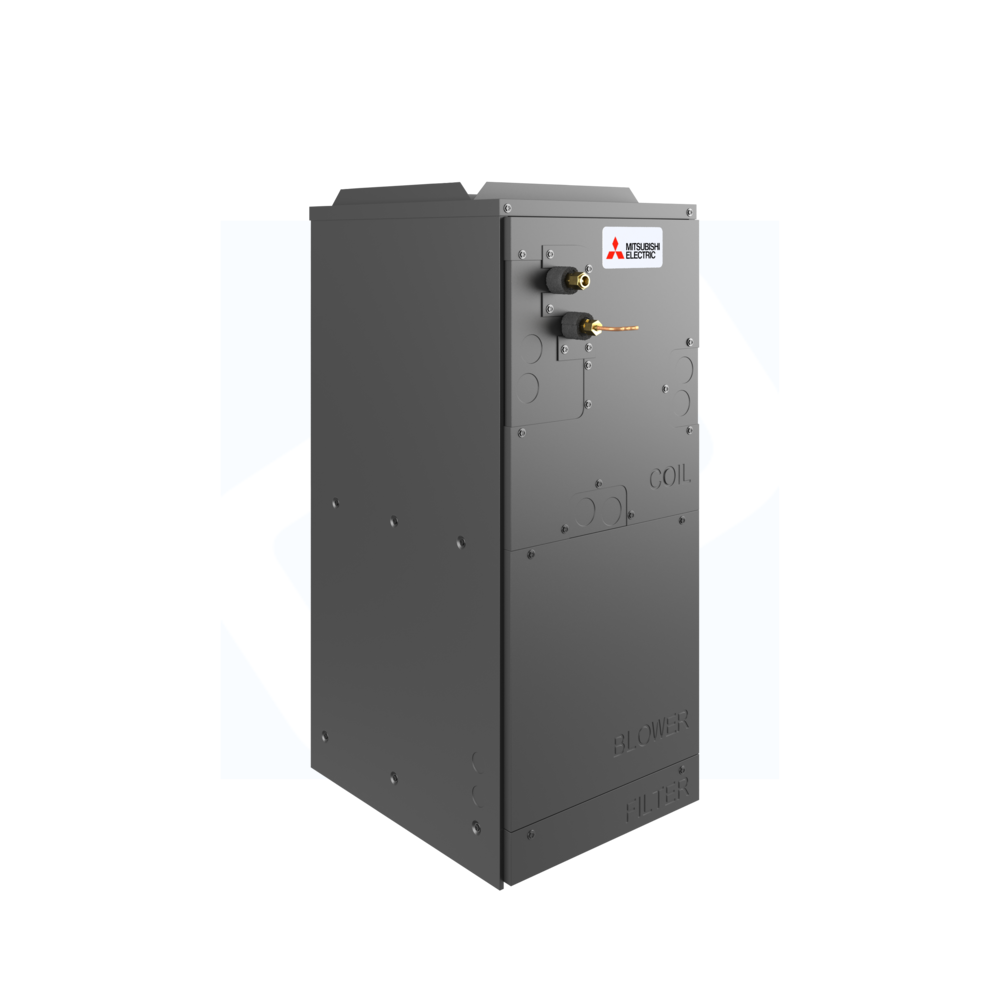

• Indoor Unit: SVZ-AP48NL

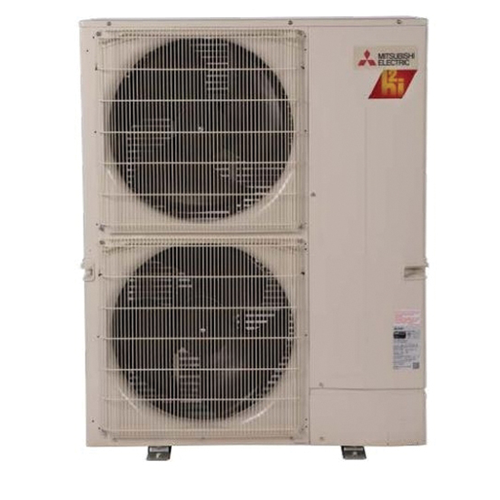

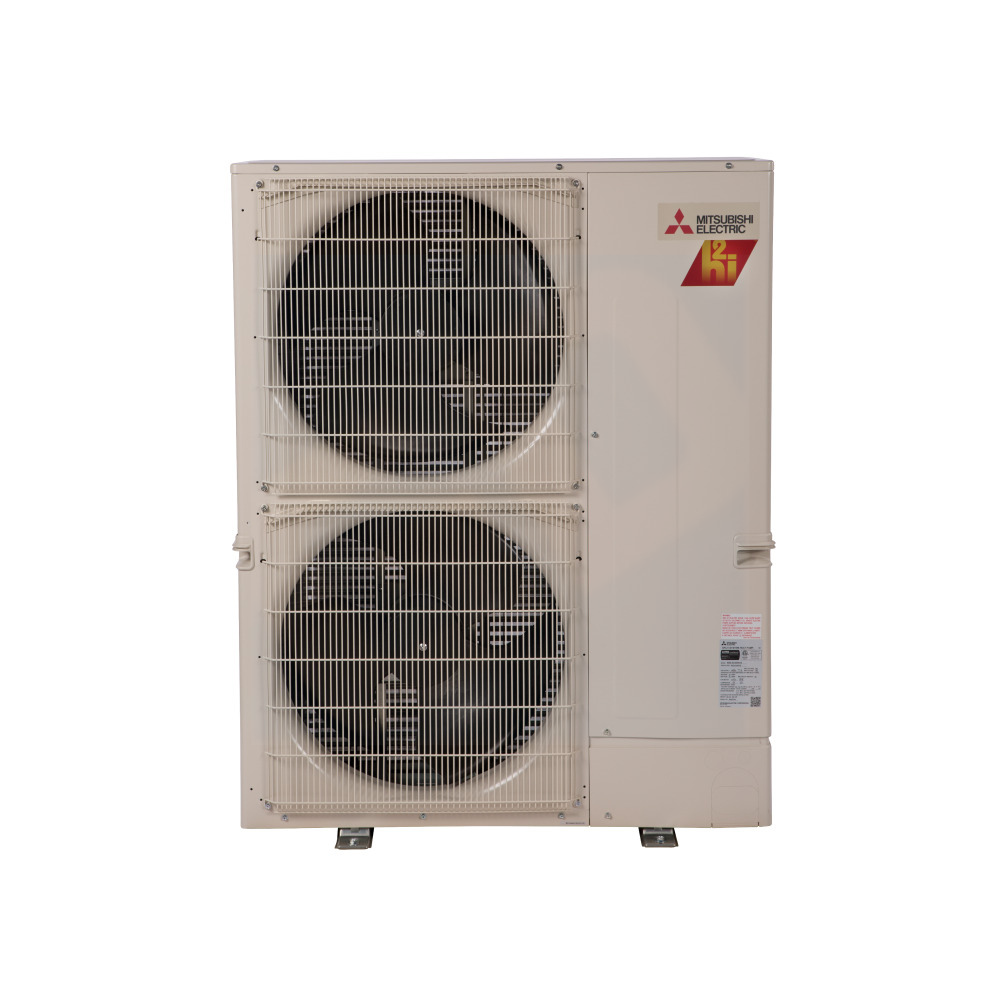

• Outdoor Unit: SUZ-AK48NLHZ
• Cooling Capacity: up to 52,000 BTU
• Heating Capacity: up to 60,000 BTU
• SEER2: 18.1
• EER2: 9.4
• HSPF2: 8.5
• Heating Minimum Temp: -22 F
• Cooling Minimum Temp: N/A
• Room Cooling/Heating Capacity: up to 2,000 sq ft
• Airflow Cooling CFM, Dry: 1,040-1,262-1,485
• Airflow Heating CFM, Dry: 1,040-1,262-1,485
• Noise Level dB(A), Cooling: 45-48-52
• Noise Level dB(A), Heating: 45-48-52
• Brand Name: Mitsubishi Electric
• MPN: SUZ-AK48NLHZ
