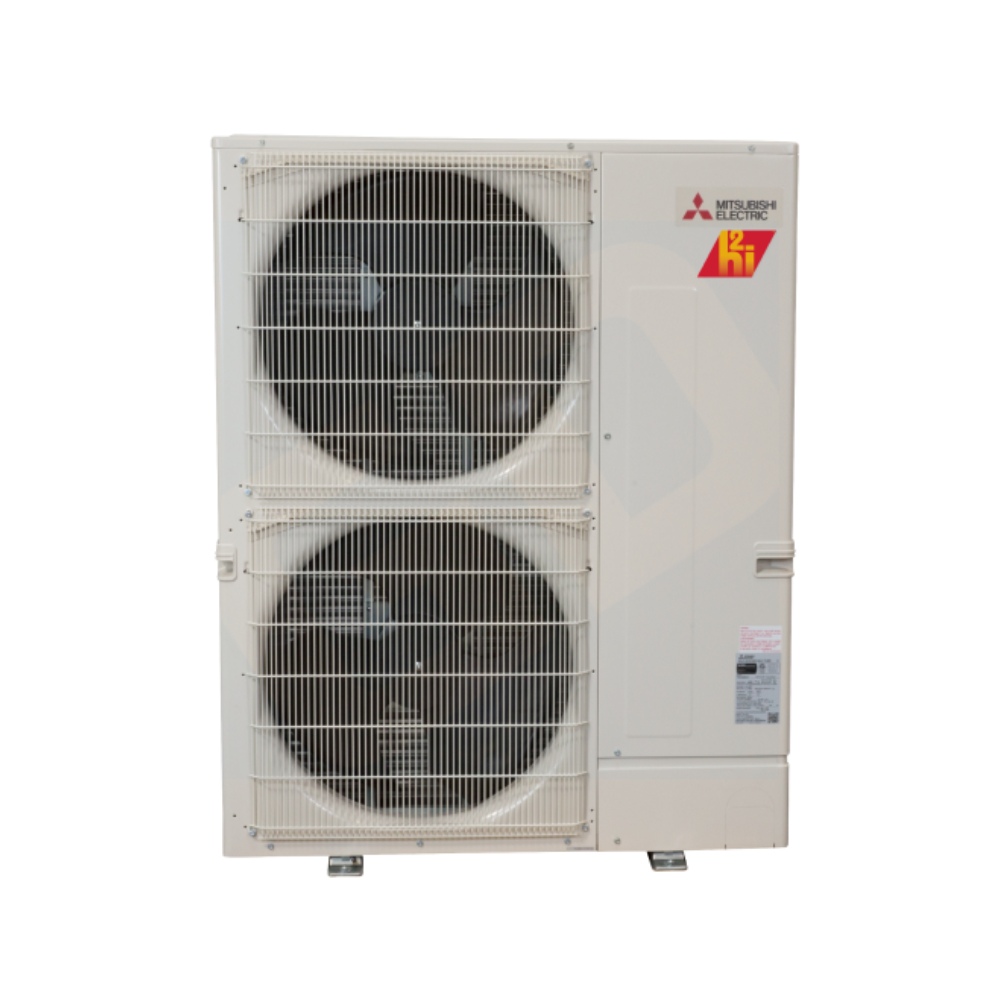

Mitsubishi Electric SUZ-AK36NLHZ 36,000 BTU Hyper Heat Pump Outdoor Unit - R454B

Product Description

The Mitsubishi Electric SUZ-AK36NLHZ is a 36,000 BTU outdoor heat pump unit with Hyper-Heating INVERTER technology, utilizing R-454B refrigerant. It delivers up to 48,000 BTU heating and reliable performance in cold climates. Designed for quiet operation and durability, it offers flexible comfort for homes up to 1,500 sq ft.

• Features Blue Fin Coating for corrosion protection in coastal and industrial areas.
• Includes a built-in base pan heater for efficient cold-weather operation.
• Utilizes Hot-Start Technology to prevent cold air blasts during start-up.

Product Highlights

Efficient and durable heat pump with Hyper-Heating INVERTER, ensuring reliable heating even in extremely cold conditions.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-AK36NLHZ

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: SUZ Series
• Operating Mode: Cooling & Heating
• System Capacity: 36,000 BTU
• Line Set Size: 3/8" x 5/8"
• Outdoor Unit: SUZ-AK36NLHZ
• Cooling Capacity: up to 37,000 BTU
• Heating Capacity: up to 40,000 BTU
• Room Cooling/Heating Capacity: up to 1,500 sq ft
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas
• Built-in base pan heater: true
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up
• Hyper-Heating INVERTER® (H2i®): 100% heating capacity down to 5deg F with guaranteed heating down to -13deg F
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize compressor performance, ensuring precise capacity control and reduced energy consumption
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet
• Amperage Rating: 3.5 A
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling BTU Rating: 14600 to 37000 Btu/hr
• Cooling CFM Rating: 3740 cfm
• Cooling Operating Temperature: 95 deg F
• Cooling Sound Level: 52 dBA
• Drive Type: Inverter
• EER Rating: 12.3
• Frequency Rating: 60 Hz
• Fuse Rating: 30 A
• HSPF Rating: 8.5
• Heating BTU Rating: 13000 to 40000 Btu/hr
• Heating CFM Rating: 3740 cfm
• Heating Operating Temperature: 47 deg F
• Heating Sound Level: 53 dBA
• Liquid Line Size: 3/8 in
• Overall Height: 52-43/64 in
• Overall Length: 41-11/32 in
• Overall Width: 14 in
• Phase: 1 ph
• Power Rating: 2970 W Cooling, 2930 W Heating
• Refrigerant Type: R-454B
• SEER Rating: 19.5
• Series: SUZ-AK-NLHZ Series
• Suction Line Size: 5/8 in
• Voltage Rating: 208/230 V
