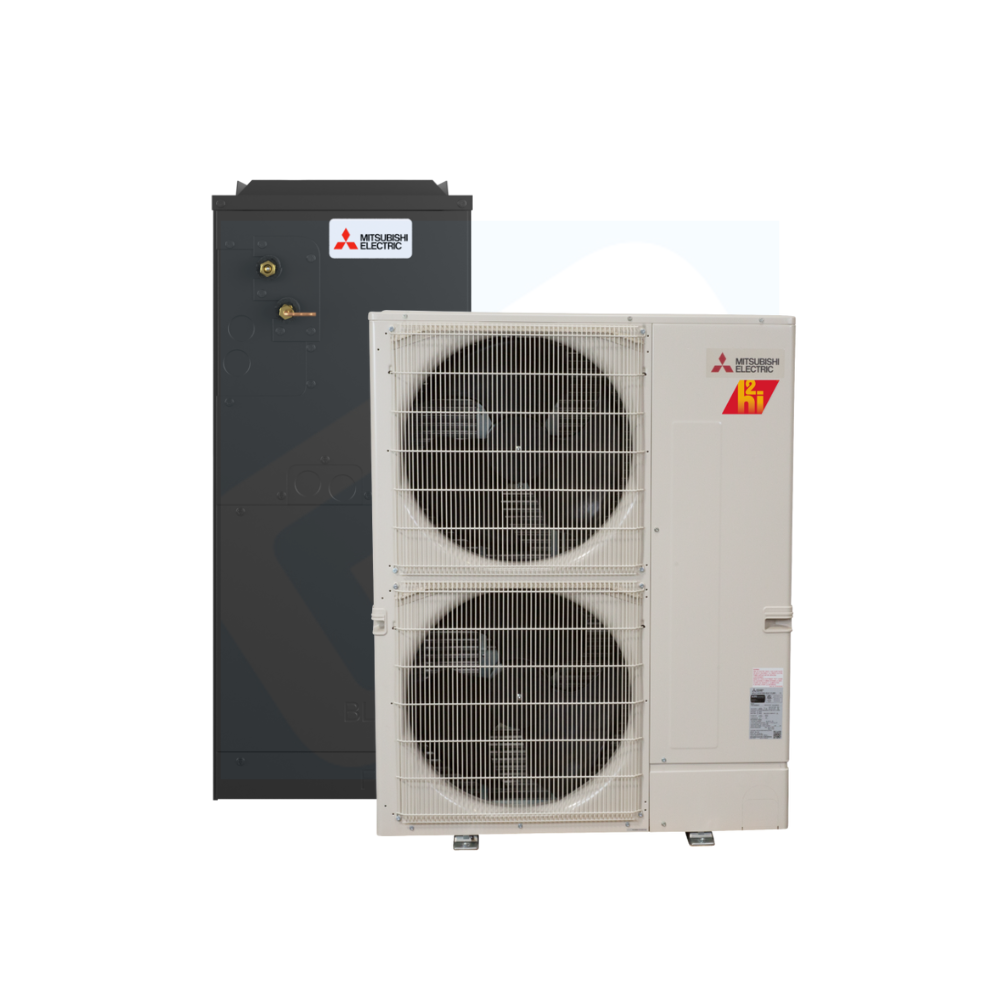

Mitsubishi Electric SUZ-AK24NLHZ-U1 Heat Pump System 24,000 BTU

Product Description

The Mitsubishi Electric SUZ-AK24NLHZ-U1 is a 23,800 BTU ducted heat pump system with Hyper-Heating INVERTER® tech, 100% heating at 5°F, and ENERGY STAR® certification, ideal for large homes or light commercial use. The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns.

• Ducted air handler provides a solution to cool and heat large zones
• Highly efficient totally enclosed ECM motor
• 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency

Product Highlights

This system features multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers. It also has an optional electric heat kit for additional heat capacity.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-AK24NLHZ-U1

Technical Specifications

• Unit Type: Single Zone
• Product Line: AP Series
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 24,000 BTU
• Line Set Size: 3/8" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No
• Indoor Unit: SVZ-AP24NL

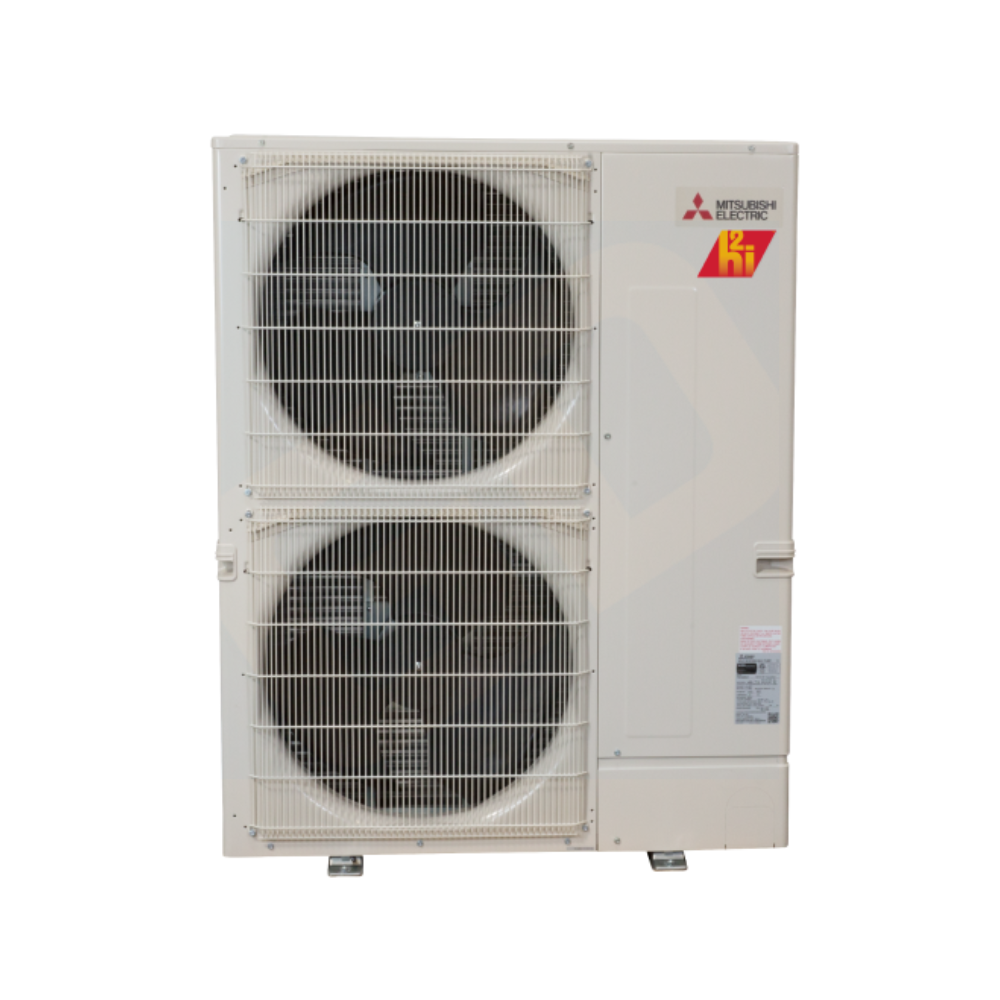

• Outdoor Unit: SUZ-AK24NLHZ
• Remote Controller: NOT Included
• Cooling Capacity: up to 25,000 BTU
• Heating Capacity: up to 28,000 BTU
• SEER2: 18.6
• EER2: 11.7
• HSPF2: 8.6
• Heating Minimum Temp: N/A
• Cooling Minimum Temp: N/A
• Room Cooling/Heating Capacity: up to 1,000 sq ft
• Airflow Cooling CFM, Dry: 471-573-700
• Airflow Heating CFM, Dry: 471-573-700
• Noise Level dB(A), Cooling: 36-41-45
• Noise Level dB(A), Heating: 36-41-45
• Type: Outdoor Unit
• Voltage: 208/230 V
• Current: 2.25 A
• Cooling Power: 1840 W
• Heating Power: 2217 W
• Frequency: 60 Hz
• Phase: 1 ph
• Heating BTU/hr: 12800 to 28000
• Cooling BTU/hr: 12700 to 24800
• Connection: Flared Connection
• Compressor: Twin Rotary Compressor
• Refrigerant: R-454B Refrigerant
• Liquid Line: 3/8 in
• Suction Line: 5/8 in
• Fuse Rating: 25 A
• Drive: Inverter Drive
• Heating Sound Level: 53 dBA
• Cooling Sound Level: 52 dBA
• Heating Operating Temperature: 47 deg F
• Cooling Operating Temperature: 95 deg F
• Overall Length: 41-11/32 in
• Overall Width: 14 in
• Overall Height: 52-43/64 in
