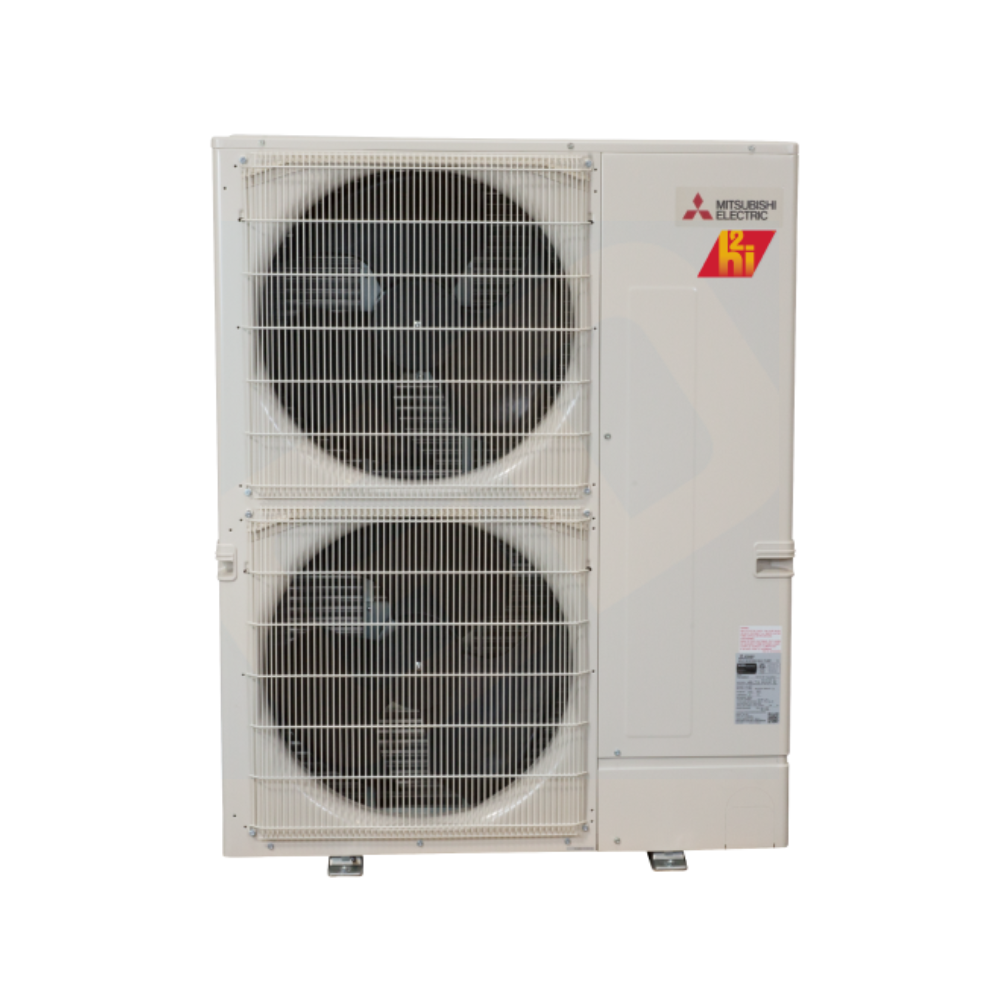

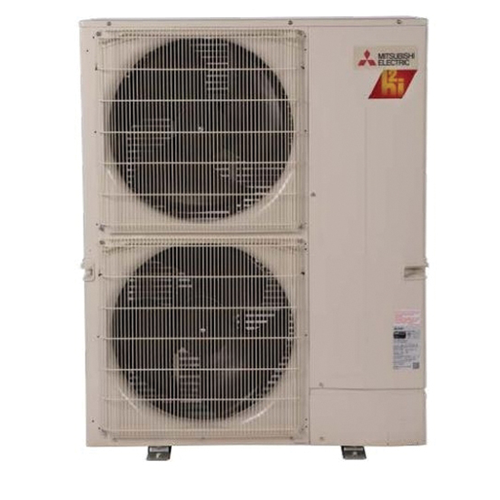

Mitsubishi Electric SUZ-AK24NLHZ 24,000 BTU Hyper Heat Pump Outdoor Unit - R454B

Product Description

The Mitsubishi Electric SUZ-AK24NLHZ is a 24,000 BTU Hyper-Heating inverter heat pump using eco-friendly R-454B refrigerant. It provides full heating down to 5 °F and operates at –13 °F, delivering quiet, efficient comfort all year, and pairs with multiple indoor unit options. This unit features blue fin coating, a built-in base pan heater and hot-start technology.

• Anti-corrosion treatment applied to the aluminum fins of the heat exchanger
• Ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• 100% heating capacity down to 5° F with guaranteed heating down to -13° F.

Product Highlights

The Mitsubishi Electric SUZ-AK24NLHZ heat pump provides efficient heating and cooling with features like a blue fin coating and hot-start technology.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-AK24NLHZ

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: SUZ Series
• Operating Mode: Cooling & Heating
• System Capacity: 23,800 - 24,000 BTU
• Line Set Size: 3/8" x 5/8"
• Outdoor Unit: SUZ-AK24NLHZ
• Cooling Capacity: up to 24,800 - 25,000 BTU
• Heating Capacity: up to 28,000 BTU
• Room Cooling/Heating Capacity: up to 1,000 sq ft
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas
• Built-in base pan heater: true
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up
• Hyper-Heating INVERTER® (H2i®): 100% heating capacity down to 5deg F with guaranteed heating down to -13deg F
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize compressor performance, ensuring precise capacity control and reduced energy consumption
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet
• Amperage Rating: 2.25 A
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling BTU Rating: 12700 to 24800 Btu/hr
• Cooling Operating Temperature: 95 deg F
• Cooling Sound Level: 52 dBA
• Drive Type: Inverter
• EER Rating: 12.3
• Frequency Rating: 60 Hz
• Fuse Rating: 25 A
• HSPF Rating: 8.5
• Heating BTU Rating: 12800 to 28000 Btu/hr
• Heating Operating Temperature: 47 deg F
• Heating Sound Level: 53 dBA
• Liquid Line Size: 3/8 in
• Overall Height: 52-43/64 in
• Overall Length: 41-11/32 in
• Overall Width: 14 in
• Phase: 1 ph
• Power Rating: 1840 W Cooling, 2217 W Heating
• Refrigerant Type: R-454B
• SEER Rating: 17.3
• Series: SUZ-AK-NLHZ Series
• Suction Line Size: 5/8 in
• Voltage Rating: 208/230 V
