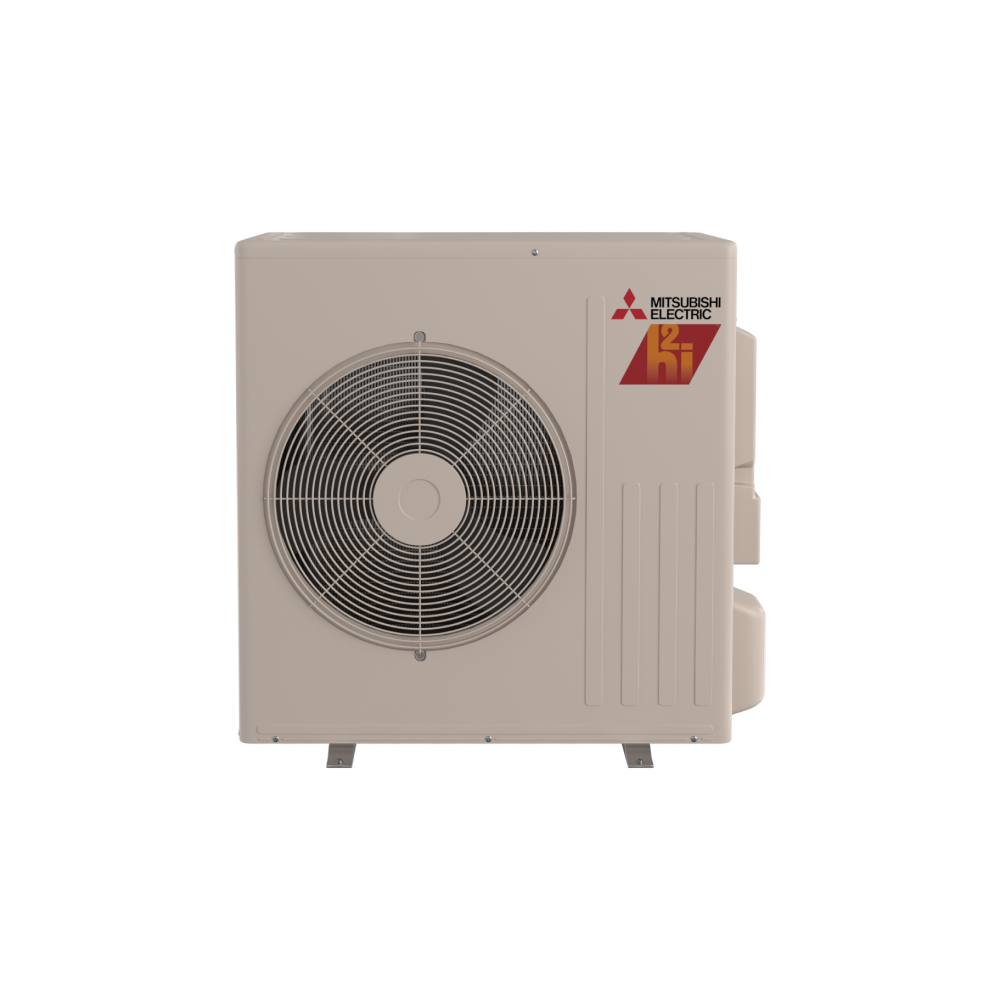

Mitsubishi Electric SUZ-AA18NLHZ M-Series H2i Ceiling Cassette Mini Split Heat Pump System - Single-Zone - 18k BTU

Product Description

The Mitsubishi Electric SUZ-AA18NLHZ is a single-zone heat pump mini split system designed for discreet heating and cooling. Featuring H2i technology, it provides 100% heating capacity down to 5 degrees Fahrenheit. The outdoor condenser modulates temperature without energy-wasting overshoots. With an included wireless remote controller, this system offers convenience and comfort for any application.

• H2i Technology provides 100% heating capacity down to 5 degrees Fahrenheit.
• Precision Temperature Control Technology improves temperature accuracy and system efficiency.
• Dehumidification removes unwanted moisture, improving comfort and reducing the chance of mold growth.

Product Highlights

The SUZ-AA18NLHZ mini split system delivers efficient heating and cooling with advanced technology and user-friendly features.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-AA18NLHZ

Technical Specifications

• Condition: New
• Type: Ceiling Cassette
• Product Line: SUZ Series
• Refrigerant Type: R-454B
• Number of Zones: 1
• Cooling BTU: 18000
• Cooling Capacity: 18000 BTU
• Heating Capacity: 20000 BTU
• Maximum Sound Level: 43 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -14 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 17.5
• EER2: 12.0
• HSPF2: 9.3
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 25 Amps
• Recommended Breaker Size: 42 Amps
• Suction Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215734919
• Outdoor Unit Size: 18000 BTU
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 1/2"
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Maximum Sound Level (Outdoor): 55 dB
• Maximum Line Length: 100 Feet
• Gas Connection Size (Outdoor): 1/2 Inch
• Liquid Connection Size (Outdoor): 1/4 Inch
• Product Height (Outdoor): 34 5/8 Inches
• Product Width (Outdoor): 33 1/16 Inches
• Product Depth (Outdoor): 13 Inches
• Product Weight (Outdoor): 115 Pounds
• Multi-Zone Compatible (Indoor): Yes
• Installation Location (Indoor): Indoor
• Grille: Not Included
• Required Grille Model: SLP-18FAU
• Moisture Removal: 4.8 Pints/Hour
• Maximum Air Flow (Indoor): 475 CFM
• Minimum Air Flow (Indoor): 300 CFM
• Minimum Sound Level (Indoor): 32 dB
• Maximum Sound Level (Indoor): 43 dB
• Gas Connection Size (Indoor): 1/2 Inch
• Liquid Connection Size (Indoor): 1/4 Inch
• Product Height (Indoor): 8 3/16 Inches
• Product Width (Indoor): 22 7/16 Inches
• Product Depth (Indoor): 22 7/16 Inches
• Programmable: Yes
• Power Source: AA Batteries
• Interface: Touchscreen
• Minimum Operating Temperature: 32 F
• Maximum Operating Temperature: 120 F
• Product Height (Controller): 4 1/12 Inches
• Product Width (Controller): 4 1/12 Inches
• Product Depth (Controller): 1 1/16 Inches
• Product Height (Grille): 6/15 Inch
• Product Width (Grille): 24 29/48 Inches
• Product Depth (Grille): 24 29/48 Inches
• Unit Type: Outdoor Unit
• Operating Mode: Cooling & Heating
• System Capacity: 16,400 - 18,000 BTU
• Outdoor Unit: SUZ-AA18NLHZ
• Room Cooling/Heating Capacity: up to 750 sq ft
• Series: M-Series
• Model: SUZ-NLHZ
• Capacity range: 9,000 to 48,000 BTU/H
• Sound level: As low as 52 dB(A)
• Refrigerant: R454B
