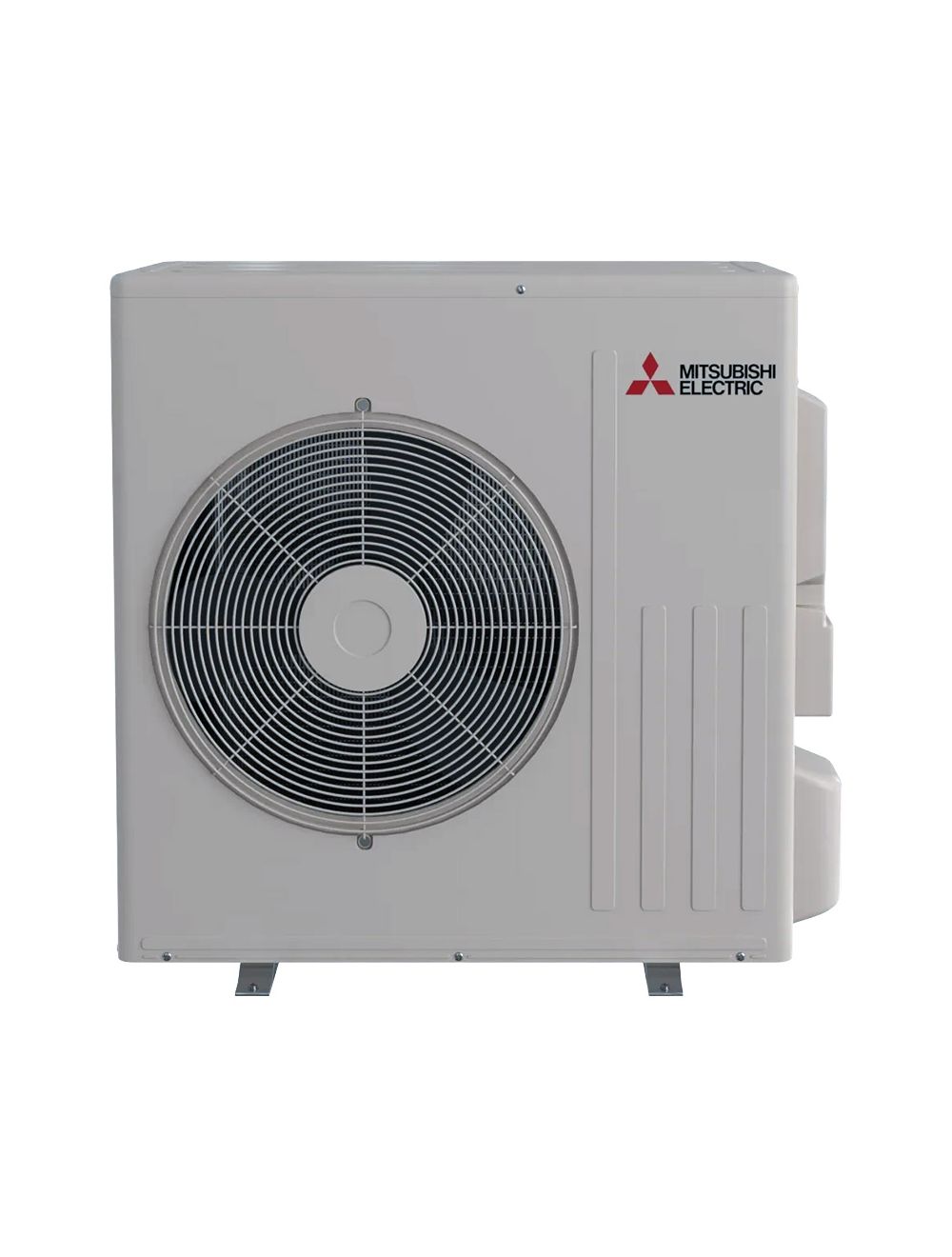

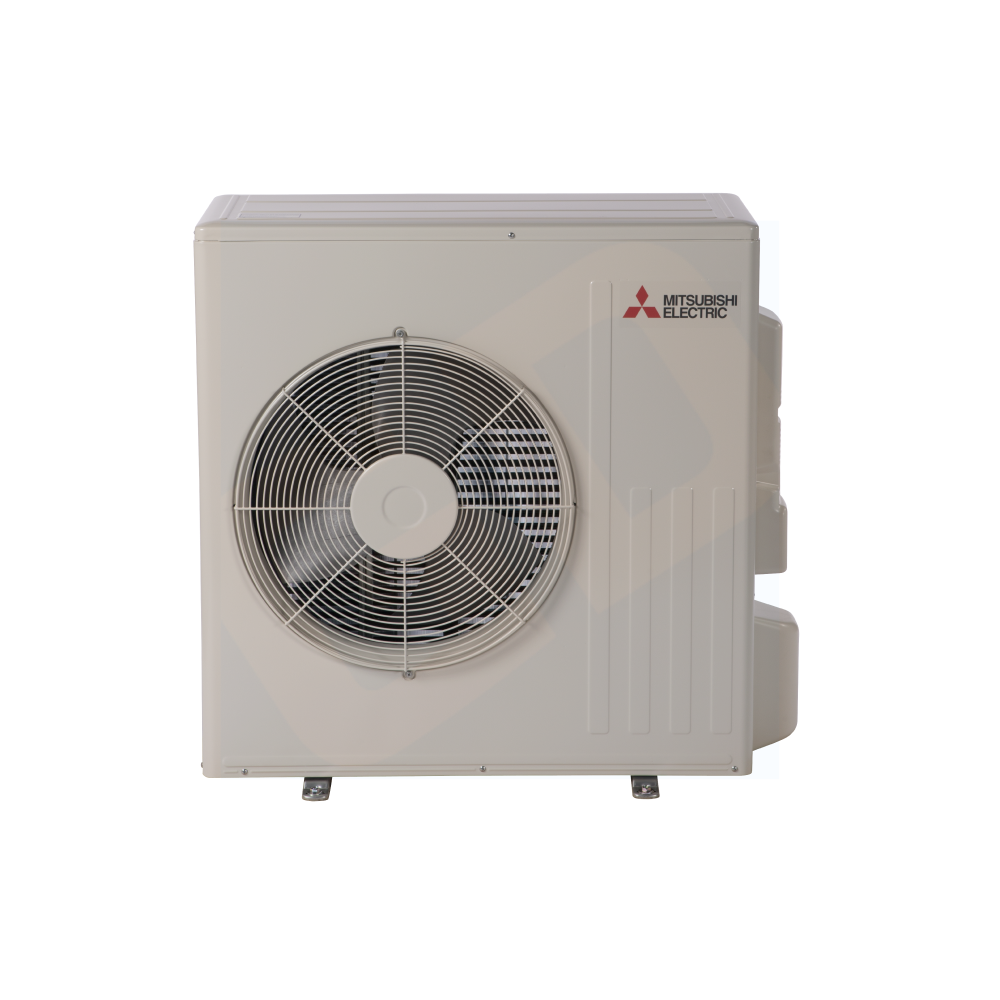

Mitsubishi Electric SUZ-AA18NL Heat Pump Outdoor Unit

Product Description

The Mitsubishi Electric SUZ-AA18NL is a single-zone heat pump outdoor unit designed for efficient cooling and heating solutions. This unit is part of the SUZ Series and features an inverter-driven compressor for optimal performance. It is compatible with a variety of indoor units, providing flexibility in installation and system design.

• Single-zone outdoor unit connects to one indoor unit.
• Uses R-454B refrigerant.
• Designed for quiet operation with Blue Fin corrosion protection.

Product Highlights

This heat pump unit is ideal for residential and light commercial use, offering reliable heating and cooling with energy efficiency.

Product Information

Standard Information

• Model Number: SUZ-AA18NL
• Unit Type: Outdoor Unit

Technical Specifications

• Product Line: SUZ Series
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 16,400 - 18,000 BTU
• Cooling Capacity: up to 16,400 - 18,000 BTU
• Heating Capacity: up to 21,000 - 23,800 BTU
• Room Cooling/Heating Capacity: up to 750 sq ft
• Line Set Size: 1/4 x 1/2 inches
• Dimensions: 33-1/16 W x 13 D x 34-5/8 H inches
