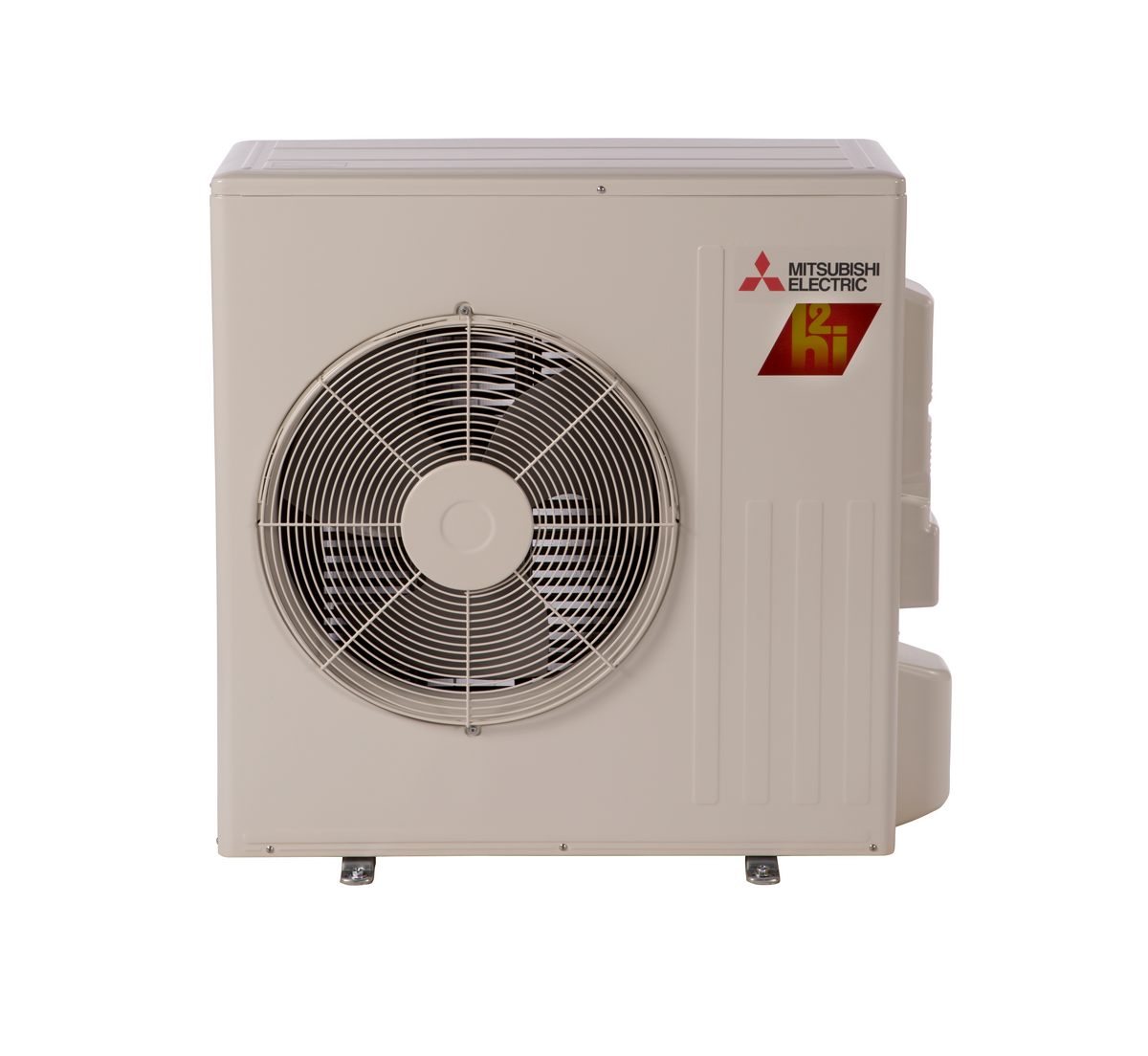

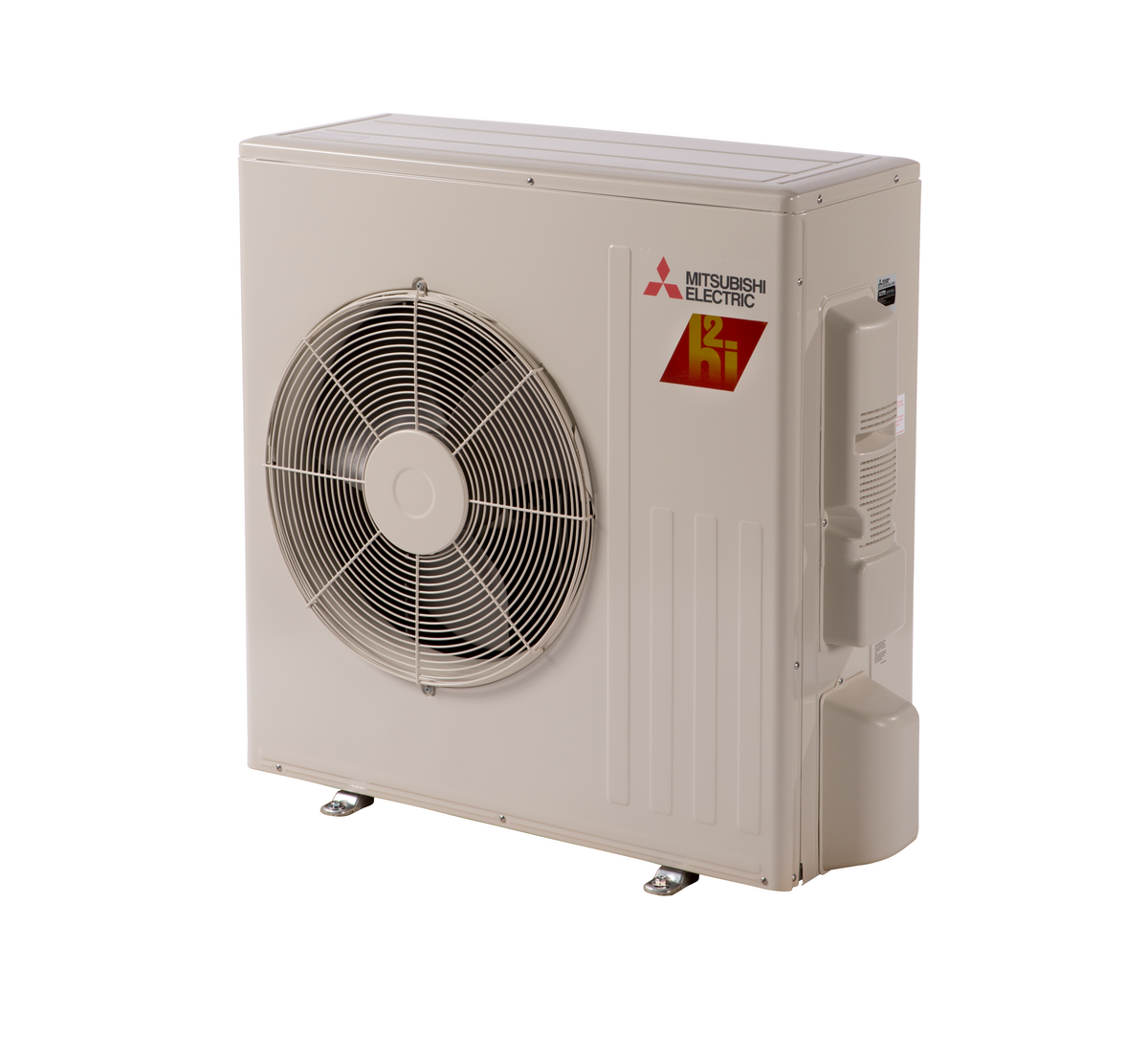

Mitsubishi Electric SUZ-AA15NLHZ-U1 Heat Pump Condenser 15,000 BTU

Product Description

The Mitsubishi Electric SUZ-AA15NLHZ-U1 is a 15,000 BTU heat pump condenser. This mini-split heat pump is part of the SUZ-AA-NLHZ Series and is designed for outdoor use. It features Hyper-Heat technology and operates quietly at 26 dB(A). Ideal for spaces up to 650 sq ft, it provides reliable heating even at -13°F.

• Hyper-Heat technology ensures reliable heating down to -13°F
• Operates quietly at 26 dB(A)
• Features a slim design

Product Highlights

This mini-split heat pump condenser offers efficient and reliable heating and cooling with smart app controls and a durable design.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-AA15NLHZ-U1

Technical Specifications

• Unit Type: Single Zone
• Product Line: M-Series
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 15,000 BTU
• Line Set Size: 1/4" x 1/2"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes

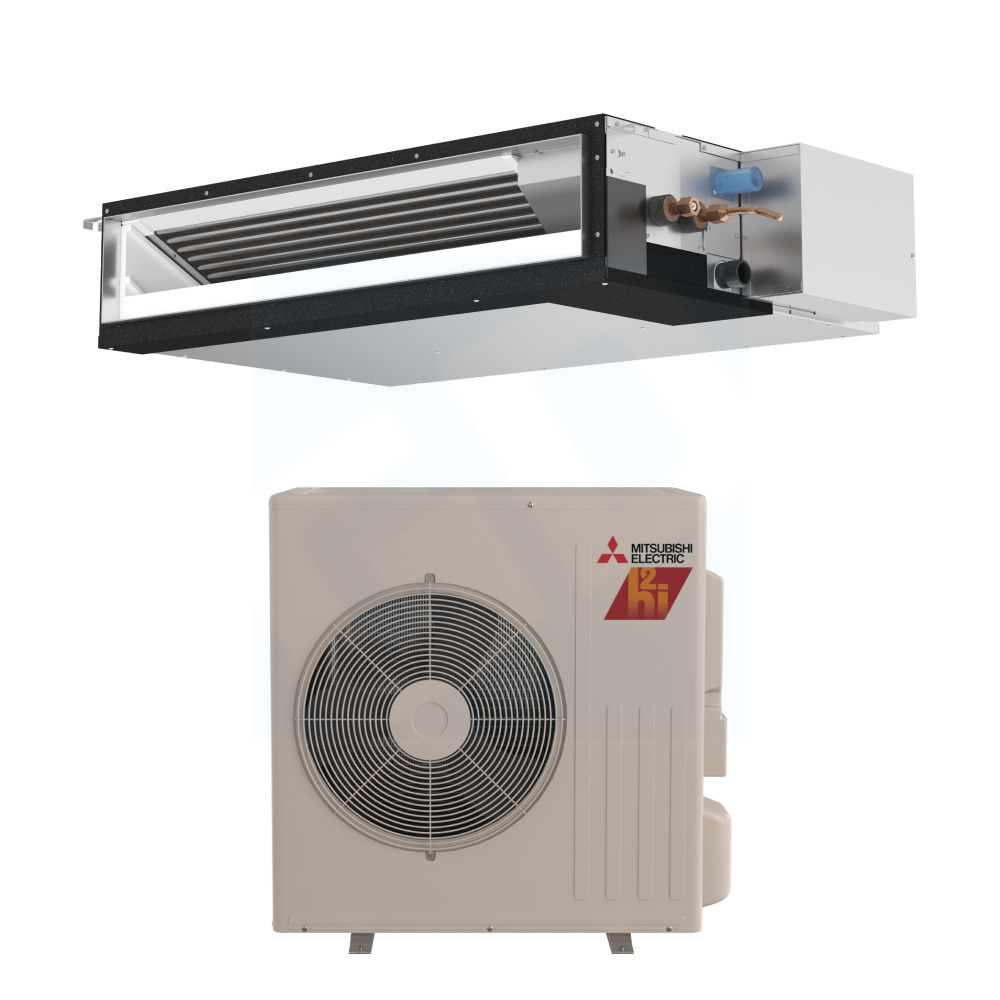

• Indoor Unit: PEAD-AA15NL
• Outdoor Unit: SUZ-AA15NLHZ
• Cooling Capacity: up to 15,000 BTU/hr
• Heating Capacity: up to 20,400 BTU/hr
• SEER2: 17.2
• EER2: 13
• HSPF2: 10.2
• Heating Minimum Temp: -1 F
• Cooling Minimum Temp: -22.5 F
• Room Cooling/Heating Capacity: up to 650 sq ft
• Airflow Cooling CFM, Dry: 403-424-512-600
• Airflow Heating CFM, Dry: 403-424-512-600
• Noise Level dB(A), Cooling: 28-29-34-37
• Noise Level dB(A), Heating: 28-29-34-37
• Amperage Rating: 25 A
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling BTU Rating: 5200 to 15000 Btu/hr
• Drive Type: Inverter
• EER Rating: 12.8
• Frequency Rating: 60 Hz
• Fuse Rating: 30 A
• HSPF Rating: 10
• Heating BTU Rating: 8400 to 19000 Btu/hr
• Heating Operating Temperature: 14 to 115 deg F
• Liquid Line Size: 1/4 in
• Phase: 1 ph
• Power Rating: 1170 W Cooling, 1500 W Heating
• Refrigerant Type: R-454B
• SEER Rating: 17.3
• Series: SUZ-AA-NLHZ Series
• Suction Line Size: 1/2 in
• Voltage Rating: 208/230 V
• Brand Name: Mitsubishi Electric
• MPN: SUZ-AA15NLHZ-U1
