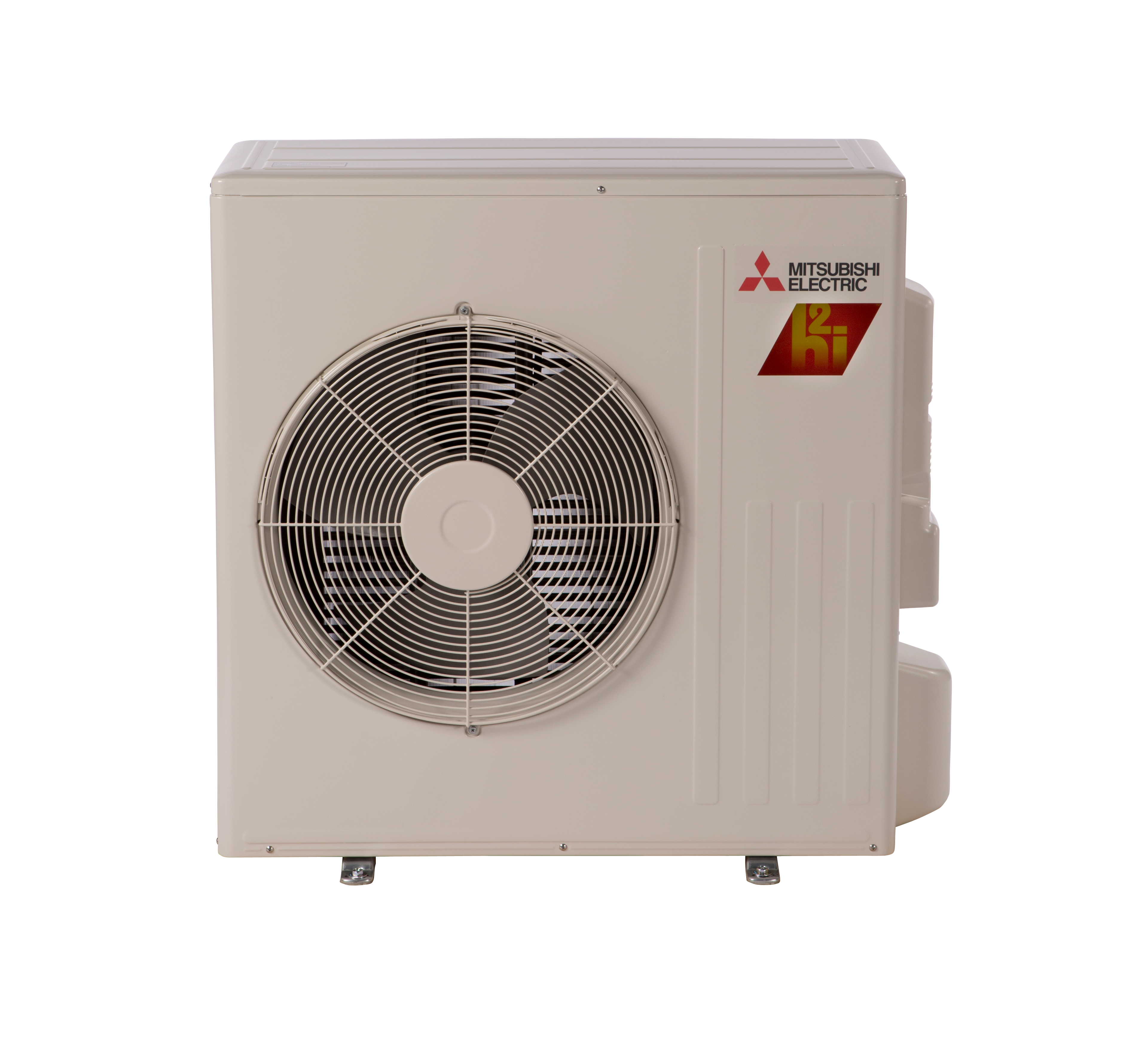

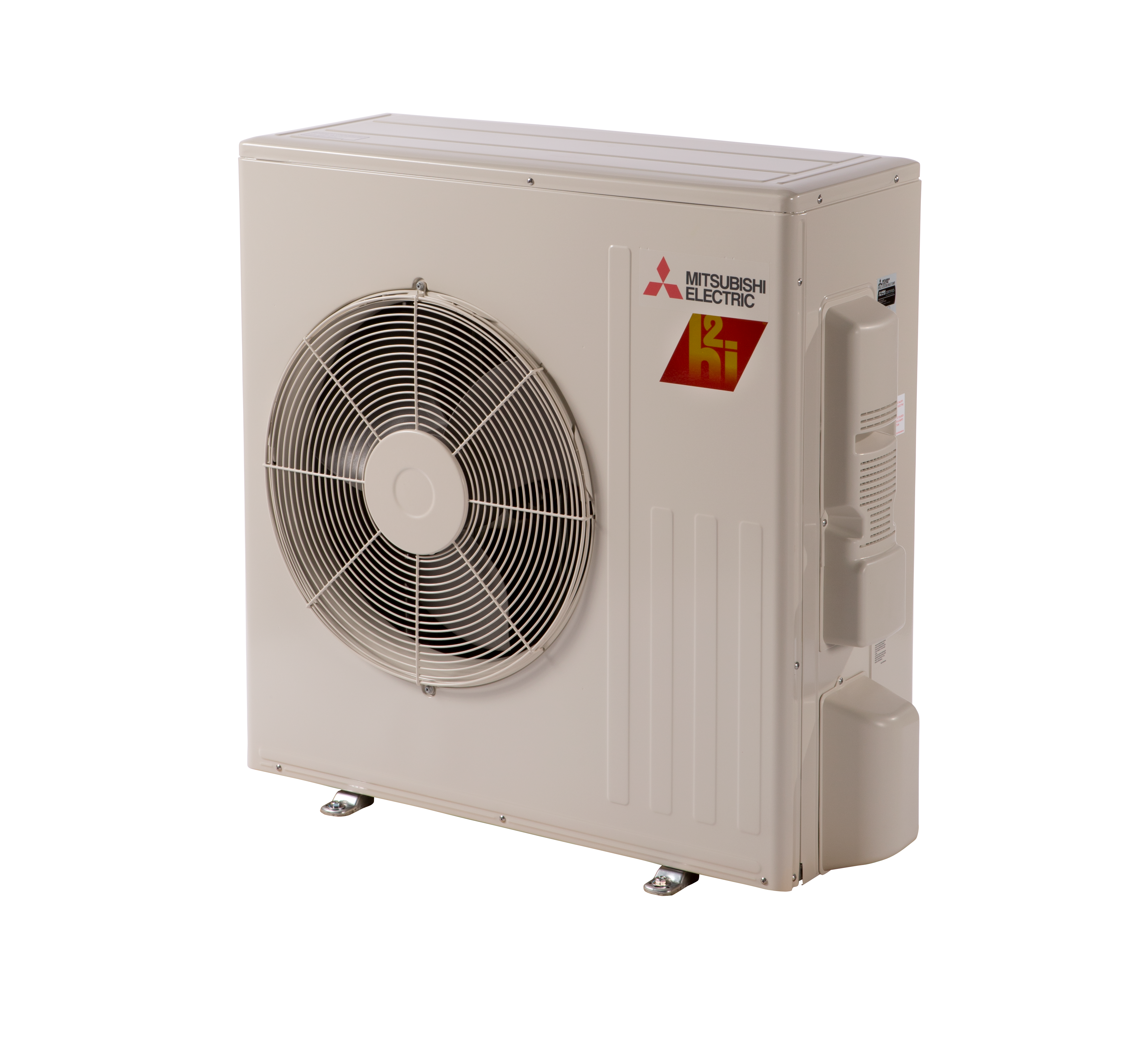

Mitsubishi Electric SUZ-AA15NLHZ M-Series H2i Ceiling Cassette Mini Split Heat Pump System - Single-Zone - 15k BTU - 17.0 SEER2 - R-454B

Product Description

The Mitsubishi Electric SUZ-AA15NLHZ SLZ-AF15NL is a single-zone heat pump mini split system designed for discreet heating and cooling. Featuring H2i technology, it provides 100% heating capacity down to 5 degrees Fahrenheit. The outdoor condenser modulates temperature efficiently, avoiding energy-wasting overshoots. Includes a wireless remote controller for convenience and comfort. The indoor cassette unit thermally scans for warm and cold spots so conditioned air can be directed effectively.

• H2i Technology
• Precision Temperature Control Technology
• Dehumidification
• Multiple Vane Control Options
• Powerful Mode
• Condensate Removal System
• Integrated Base Pan Heater
• Blue Fin Condenser

Product Highlights

Single-zone heat pump mini split system with H2i technology for efficient heating and cooling. Includes wireless remote and advanced temperature modulation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-AA15NLHZ

Technical Specifications

• Condition: New
• Type: Ceiling Cassette
• Product Line: SUZ Series
• Cooling BTU: 15000
• Cooling Capacity: 15000 BTU
• Heating Capacity: 17000 BTU
• Maximum Sound Level: 55 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -14 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 17.0
• EER2: 12.7
• HSPF2: 9.2
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 25 Amps
• Recommended Breaker Size: 42 Amps
• Suction Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215734916
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Maximum Line Length: 100 Feet
• Gas Connection Size: 1/2 Inch
• Product Weight (Outdoor Unit): 115 Pounds
• Shipping Weight (Outdoor Unit): 133 Pounds
• Multi-Zone Compatible (Indoor Unit): Yes
• Indoor Unit Size(s): 15
• Grille: Not Included
• Required Grille Model: SLP-18FAU
• Heating Capacity (Indoor Unit): 18000 BTU
• Moisture Removal: 3.8 Pints/Hour
• Maximum Air Flow: 405 CFM
• Minimum Air Flow: 245 CFM
• Minimum Sound Level (Indoor Unit): 27 dB
• Maximum Sound Level (Indoor Unit): 39 dB
• Product Height (Indoor Unit): 8 3/16 Inches
• Product Width (Indoor Unit): 22 7/16 Inches
• Product Depth (Indoor Unit): 22 7/16 Inches
• Product Weight (Indoor Unit): 31 Pounds
• Shipping Weight (Indoor Unit): 36 Pounds
• Programmable: Yes
• Power Source: AA Batteries
• Interface: Touchscreen
• Minimum Operating Temperature: 32 F
• Maximum Operating Temperature: 120 F
• Product Height (Controller): 4 1/12 Inches
• Product Width (Controller): 4 1/12 Inches
• Product Depth (Controller): 1 1/16 Inches
• Product Height (Grille): 6/15 Inch
• Product Width (Grille): 24 29/48 Inches
• Product Depth (Grille): 24 29/48 Inches
• Product Weight (Grille): 5.3 Pounds
• Unit Type: Outdoor Unit
• Operating Mode: Cooling & Heating
• System Capacity: 15,000 BTU
• Line Set Size: 1/4" x 1/2"
• Room Cooling/Heating Capacity: up to 650 sq ft
• Sound level: As low as 52 dB(A)
• Refrigerant: R454B
• SEER Rating: 17.3
• HSPF Rating: 10
• Amperage Rating: 25 A
• Compressor Type: Twin Rotary
• Cooling CFM Rating: 2193 cfm
• Cooling Operating Temperature: -13 to 75 deg F
• Cooling Sound Level: 55 dBA
• Drive Type: Inverter
• EER Rating: 12.8
• Fuse Rating: 30 A
• Heating CFM Rating: 1949 cfm
• Heating Operating Temperature: 14 to 115 deg F
• Heating Sound Level: 55 dBA
• Power Rating: 1170 W Cooling, 1500 W Heating
