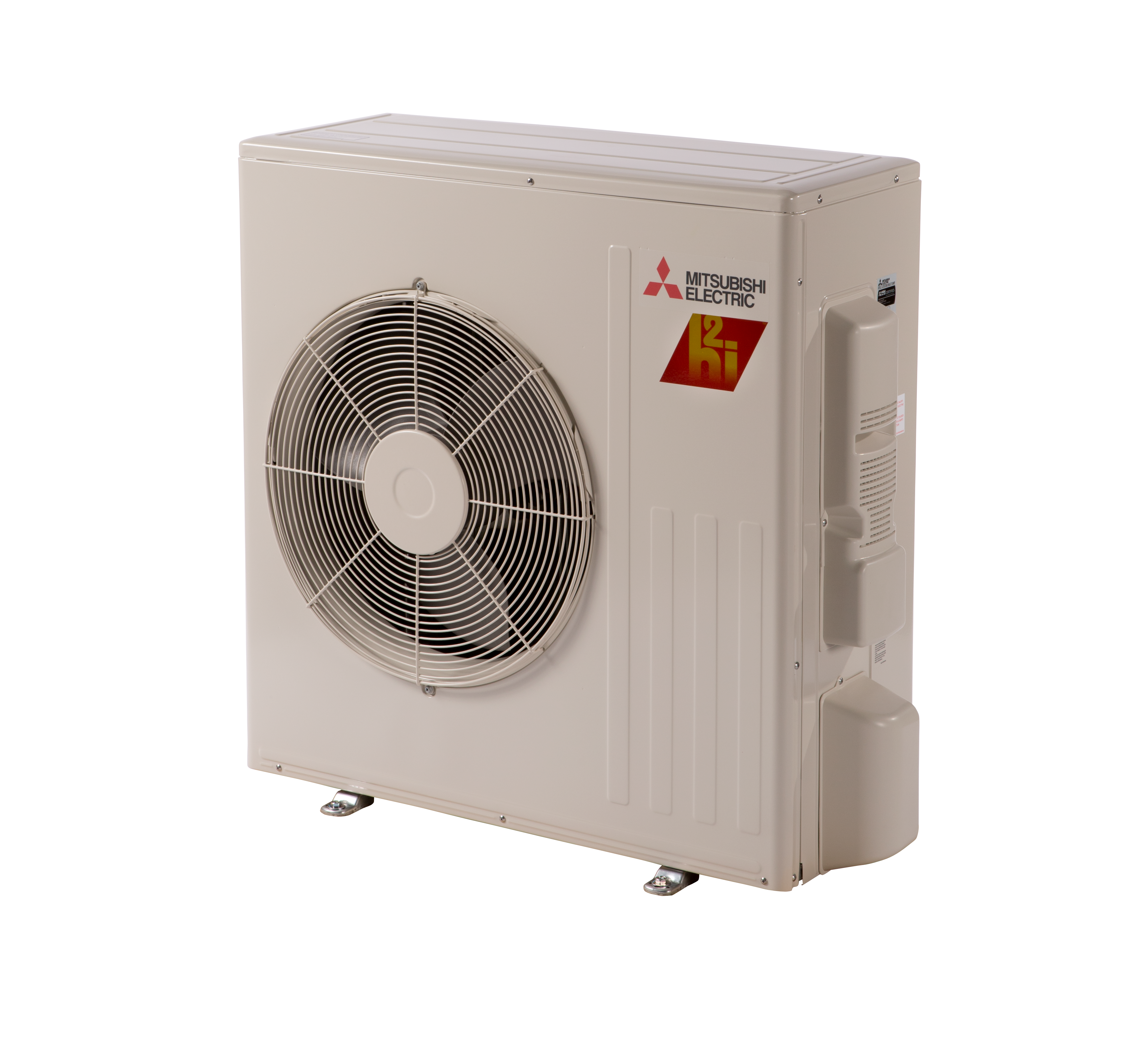

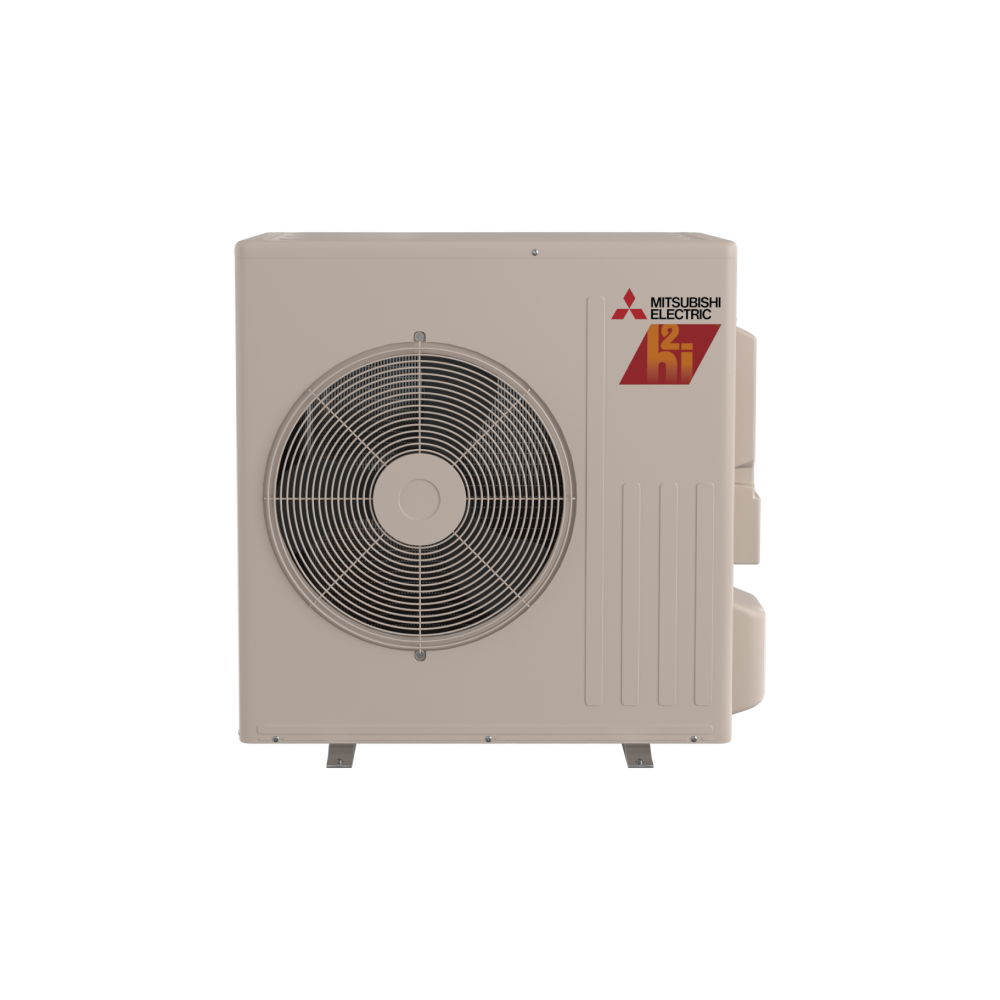

Mitsubishi Electric SUZ-AA12NLHZ M-Series H2i Ceiling Cassette Mini Split Heat Pump System - Single-Zone - 12k BTU

Product Description

The Mitsubishi Electric SUZ-AA12NLHZ is a single-zone heat pump mini split system designed for discreet heating and cooling. Featuring H2i technology, it provides 100% heating capacity down to 5 degrees Fahrenheit. The outdoor condenser modulates temperature without energy-wasting overshoots. With an included wireless remote controller, this system offers convenience and comfort for any application.

• H2i Technology provides 100% heating capacity down to 5 degrees Fahrenheit.
• Precision Temperature Control Technology improves temperature accuracy and system efficiency.
• Features a condensate removal system with an internal drain mechanism capable of lifting condensate 33".

Product Highlights

This mini split system delivers efficient heating and cooling with advanced technology and convenient features.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-AA12NLHZ

Technical Specifications

• Condition: New
• Type: Outdoor Unit
• Product Line: M-Series H2i
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• Refrigerant Type: R-454B
• Outdoor Unit Size: 12000 BTU
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 3/8"
• Cooling BTU: 12000
• Cooling Capacity: 12000 BTU
• Heating Capacity: 15000 BTU
• Maximum Sound Level: 55 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -14 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 16.8
• EER2: 13.9
• HSPF2: 9.4
• Voltage: 208/230 Volts
• Phase: 1 ph
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 25 Amps
• Recommended Breaker Size: 42 Amps
• Suction Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215734911
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Maximum Line Length: 100 Feet
• Gas Connection Size: 3/8 Inch
• Product Height: 34 5/8 Inches
• Product Width: 33 1/16 Inches
• Product Depth: 13 Inches
• Multi-Zone Compatible (Ceiling Cassette): Yes
• Grille: Not Included
• Required Grille Model: SLP-18FAU
• Moisture Removal: 1.8 Pints/Hour
• Maximum Air Flow: 335 CFM
• Minimum Air Flow: 230 CFM
• Minimum Sound Level (Ceiling Cassette): 25 dB
• Maximum Sound Level (Ceiling Cassette): 34 dB
• Product Height (Ceiling Cassette): 8 3/16 Inches
• Product Width (Ceiling Cassette): 22 7/16 Inches
• Product Depth (Ceiling Cassette): 22 7/16 Inches
• Programmable: Yes
• Minimum Operating Temperature: 32 F
• Maximum Operating Temperature: 120 F
• System Capacity: 12,000 BTU
• Outdoor Unit: SUZ-AA12NLHZ
• Cooling BTU Rating: 5000 to 12000 Btu/hr
• Heating BTU Rating: 8200 to 18000 Btu/hr
• EER Rating: 13.9
• HSPF Rating: 10
• Amperage Rating: 25 A
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling CFM Rating: 2193 cfm
• Cooling Operating Temperature: -13 to 75 deg F
• Cooling Sound Level: 54 dBA
• Drive Type: Inverter
• Fuse Rating: 30 A
• Heating CFM Rating: 1949 cfm
• Heating Operating Temperature: 14 to 115 deg F
• Heating Sound Level: 55 dBA
• Liquid Line Size: 1/4 in
• Overall Height: 34-5/8 in
• Overall Length: 13 in
• Overall Width: 33-1/16 in
• Power Rating: 860 W Cooling, 1560 W Heating
• SEER Rating: 17.2
• Series: SUZ-AA-NLHZ Series
• Suction Line Size: 3/8 in
• Voltage Rating: 208/230 V
• Maximum Capacity (Cooling): 12,000 Btu/h
• Rated Capacity (Cooling): 12,000 Btu/h
• Minimum Capacity (Cooling): 2,900 Btu/h
• Maximum Power Input (Cooling): 900 W
• Rated Power Input (Cooling): 900 W
• Sensible Heat Factor: 0.73
• Power Factor [208V / 230V] (Cooling): 96 / 96 %
• Maximum Capacity (Heating at 47F): 18,000 Btu/h
• Rated Capacity (Heating at 47F): 15,000 Btu/h
• Minimum Capacity (Heating at 47F): 7,900 Btu/h
• Maximum Power Input (Heating at 47F): 1,790 W
• Rated Power Input (Heating at 47F): 1,330 W
• Power Factor [208V / 230V] (Heating at 47F): 96 / 96 %
• Maximum Capacity (Heating at 17F): 15,000 Btu/h
• Rated Capacity (Heating at 17F): 9,500 Btu/h
• Maximum Power Input (Heating at 17F): 1,950 W
• Rated Power Input (Heating at 17F): 1,140 W
• Maximum Capacity (Heating at 5F): 15,000 Btu/h
• Maximum Power Input (Heating at 5F): 2,198 W
• Maximum Capacity (Heating at -13F): 9,000 Btu/h
• EER21: 13.3
• HSPF2 [IV]: 9.6
• COP at 47°F: 3.3
• COP at 17°F at Maximum Capacity: 2.2
• COP at 5°F at Maximum Capacity: 2
• COP at -13°F at Maximum Capacity: 1.42
• ENERGY STAR® Certified: Yes
• Guaranteed Voltage Range: 198 - 253 V AC
• Voltage: Indoor - Outdoor, S1-S2: 208/230 V AC
• Voltage: Indoor - Outdoor, S2-S3: 12-24 V DC
• Short-circuit Current Rating [SCCR]: 5 kA
• Recommended Fuse/Breaker Size (Outdoor): 30 A
• Recommended Wire Size [Indoor - Outdoor]: 14 AWG
• MCA (Outdoor): 25 A
• MOCP (Outdoor): 42 A
• Fan Motor Output (Outdoor): 50 W
• Airflow Rate Cooling (Outdoor): 2,193 CFM
• Airflow Rate Heating (Outdoor): 1,949 CFM
• Defrost Method (Outdoor): Reverse Cycle
• Coating on Heat Exchanger (Bluefin, Sea Coast) (Outdoor): Yes, Yes
• Sound Pressure Level, Cooling (Outdoor): 54 dB (A)
• Sound Pressure Level, Heating (Outdoor): 55 dB (A)
• Compressor Model (Outdoor): SRB172FQHMT
• Compressor Oil [Type // Charge] (Outdoor): RM68EH // 14.54 Type // oz
• External Finish Color (Outdoor): Munsell No.3Y 7.8/1.1
• Base Pan Heater (Outdoor): Built-in
• Cooling Intake Maximum Air Temp [Maximum / Minimum*] (Outdoor): 115 / 14 °FDB
• ODU Operating Temp. Range (Outdoor): -1 / 3 °FDB
• Heating Air Temp [Maximum / Minimum] (Outdoor): 75, 65 / -13, -14 °FDB, °FWB / °FDB, °FWB
• Heating Thermal Lock-out / Re-start Temperatures** (Outdoor): -22.5 / -14 °FDB
• Pre-Charged Refrigerant Amount: 3 lbs
• Maximum Pre-Charged Piping Length: 25 [7.60] ft [m]
• Additional Refrigerant Charge Per Additional Piping Length: 0.22 oz/ft
• Gas Pipe Size O.D. [Flared]: 3/8 [9.52] inch [mm]
• Liquid Pipe Size O.D. [Flared]: 1/4 [6.35] inch [mm]
• Maximum Piping Length: 100 [30.48] ft [m]
• Maximum Height Difference: 50 [15.24] ft [m]
• Maximum Number of Bends: 10
