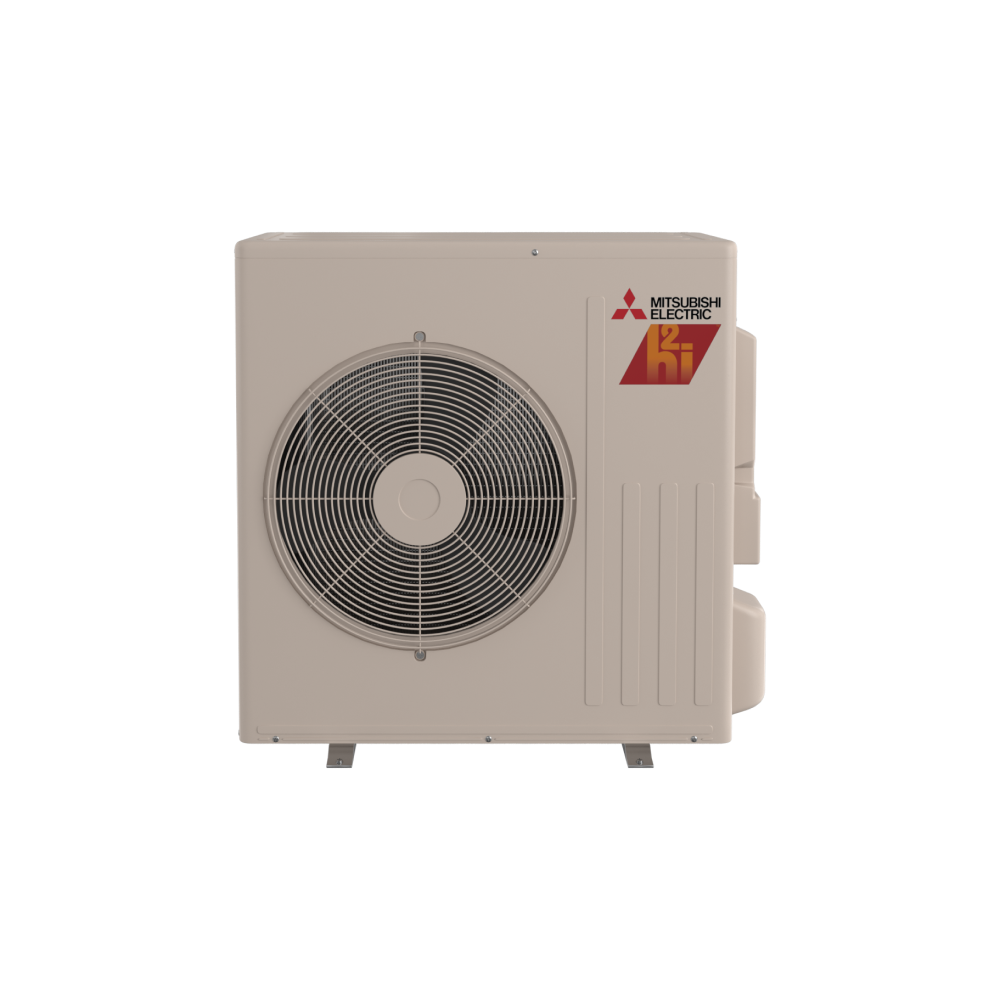

Mitsubishi Electric SUZ-AA09NLHZ M-Series H2i 9000 BTU

Product Description

The Mitsubishi Electric SUZ-AA09NLHZ is a single-zone heat pump mini split system designed for effective heating and cooling. Featuring H2i technology, it provides 100% heating capacity down to 5 degrees Fahrenheit. The outdoor condenser modulates temperature without energy-wasting overshoots. With an included wireless remote controller, this system offers convenience and comfort for any heating or cooling application.

• H2i Technology provides 100% heating capacity down to 5 degrees Fahrenheit.
• Precision Temperature Control Technology improves temperature accuracy and system efficiency.
• Features Smart Set function to save cooling and heating profiles.

Product Highlights

The Mitsubishi Electric SUZ-AA09NLHZ mini split system delivers efficient heating and cooling with advanced technology and user-friendly features.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SUZ-AA09NLHZ

Technical Specifications

• Type: Floor Mounted
• Product Line: M-Series H2i
• Product Sub-line: Hyper-Heating
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 9
• Outdoor Unit Size: 9000 BTU
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 3/8"
• Cooling BTU: 9000
• Cooling Capacity: 9000 BTU
• Heating Capacity: 12000 BTU
• Maximum Sound Level: 46 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -14 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 17.0
• EER2: 12.5
• HSPF2: 10.0
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 24 Amps
• Recommended Breaker Size: 41 Amps
• Suction Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215734909
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Maximum Sound Level (Outdoor): 55 dB
• Maximum Line Length: 100 Feet
• Gas Connection Size (Outdoor): 3/8 Inch
• Liquid Connection Size (Outdoor): 1/4 Inch
• Product Height (Outdoor): 34 5/8 Inches
• Product Width (Outdoor): 33 1/16 Inches
• Product Depth (Outdoor): 13 Inches
• Product Weight (Outdoor): 115 Pounds
• Multi-Zone Compatible (Indoor): Yes
• Remote Control: Wireless
• Installation Location (Indoor): Indoor
• Moisture Removal: 0.6 Pints/Hour
• Maximum Air Flow: 417 CFM
• Minimum Air Flow: 138 CFM
• Minimum Sound Level (Indoor): 21 dB
• Maximum Sound Level (Indoor): 46 dB
• Gas Connection Size (Indoor): 3/8 Inch
• Liquid Connection Size (Indoor): 1/4 Inch
• Product Height (Indoor): 23 5/8 Inches
• Product Width (Indoor): 29 1/2 Inches
• Product Depth (Indoor): 8 7/16 Inches
• Product Weight (Indoor): 33 Pounds
