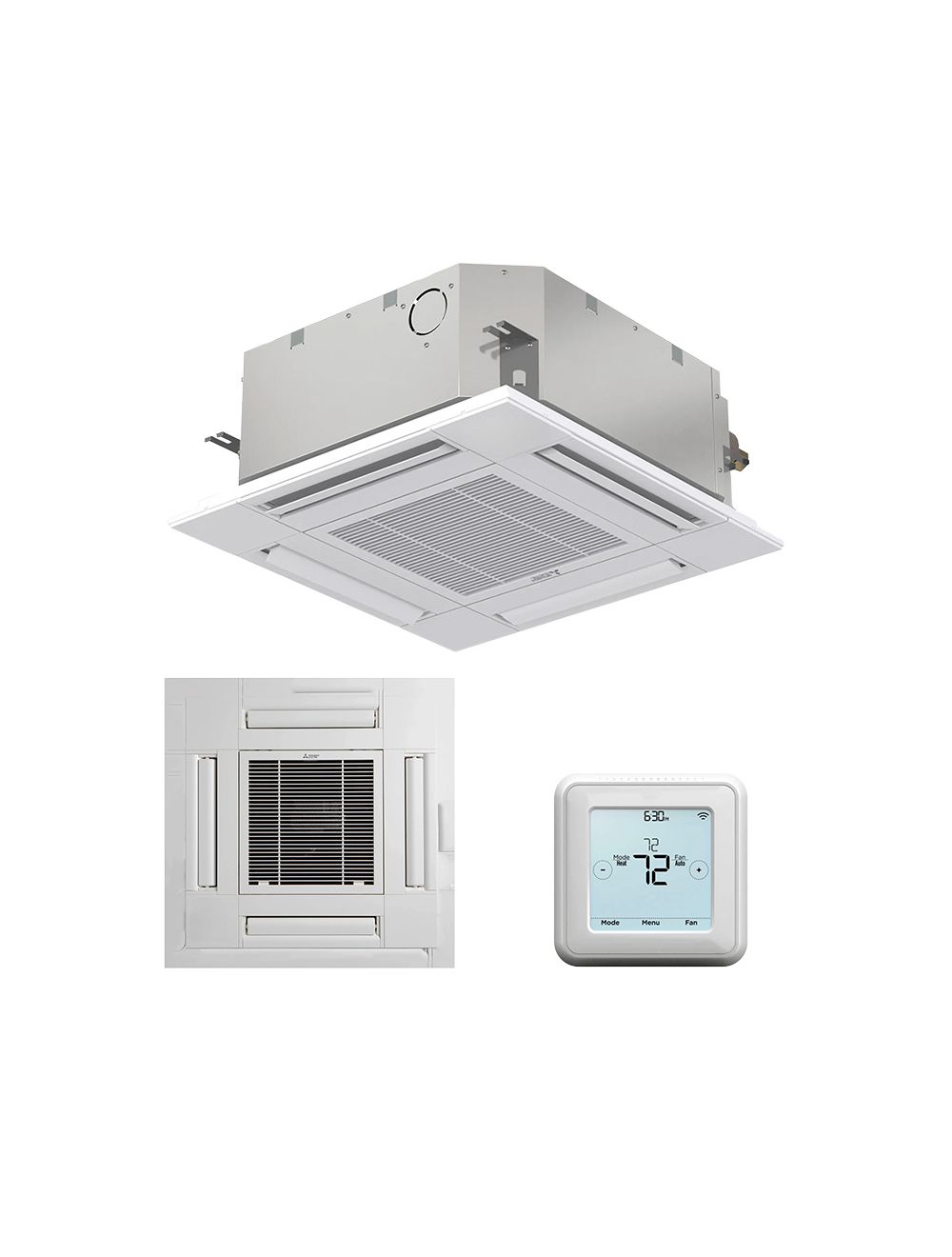

Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Grille not included - SLP-18FAU)

Product Description

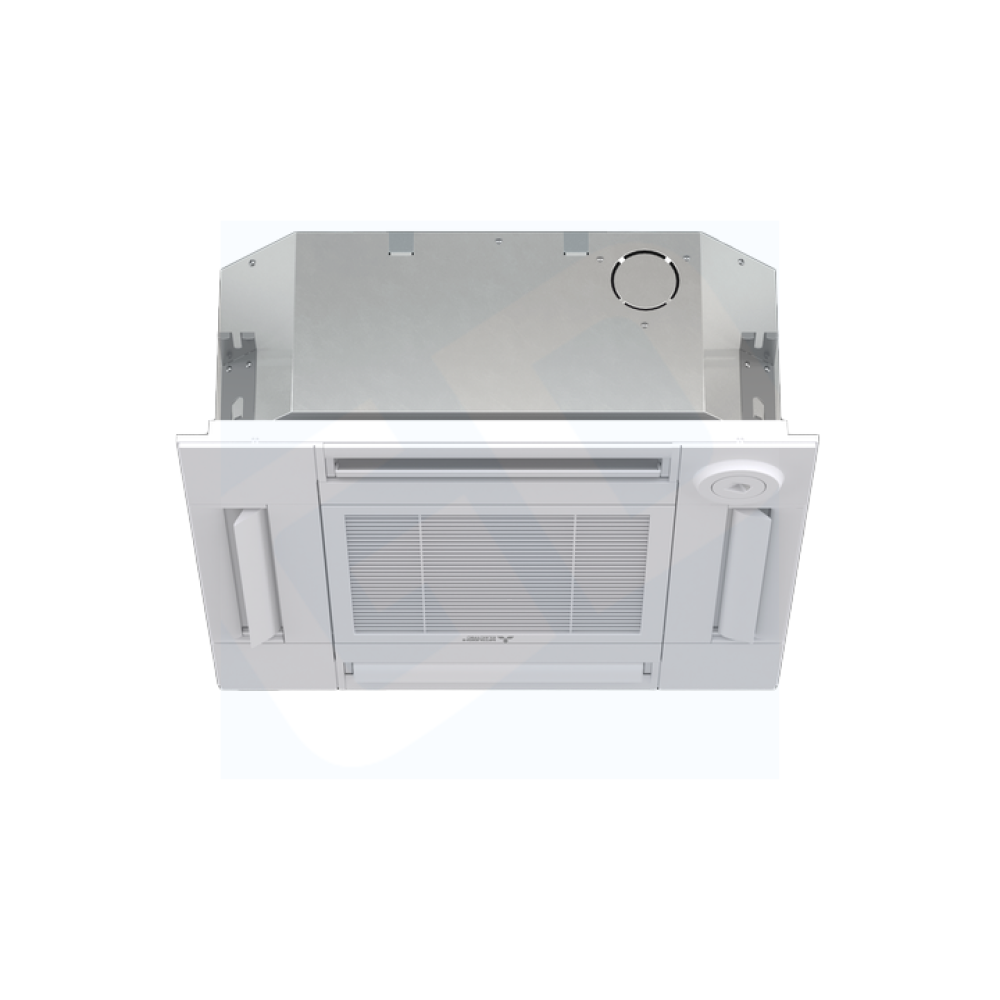

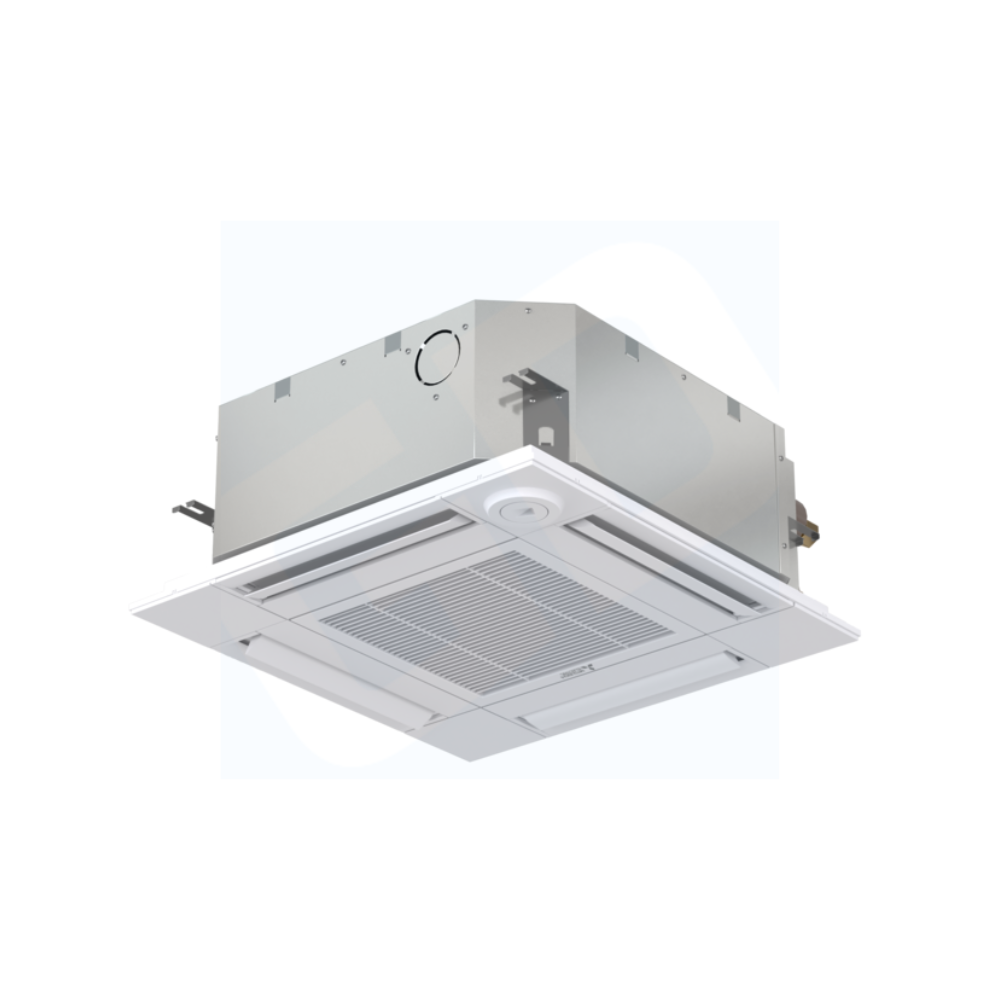

The Mitsubishi Electric SLZ-AF15NL is an indoor unit designed for mini-split systems. This ceiling cassette unit fits into a standard two feet by two feet ceiling grid. It offers both heating and cooling options, making it versatile for different climates. The adjustable vents allow for multiple airflow patterns, ensuring efficient temperature control. The built-in condensate drain lift helps in maintaining optimal performance.

• Ceiling-recessed cassette design

• Compatible with single and multi-zone systems

• Built-in condensate drain lift

Product Highlights

This indoor unit is suitable for various applications, providing efficient air conditioning and heating for smaller spaces.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC

• MPN: SLZ-AF15NL

• Type: Ceiling Cassette

• Product Line: M-Series

• Refrigerant Type: R-454B

• Installation Location: Indoor

Technical Specifications

• Operating Mode: Heating and Cooling

• Multi-Zone Compatible: Yes

• Grille: Included

• Required Grille Model: SLP-18FAU

• Cooling BTU: 15000

• Cooling Capacity: 15000 BTU

• Heating Capacity: 18000 BTU

• Moisture Removal: 3.8 Pints/Hour

• Maximum Air Flow: 405 CFM

• Minimum Air Flow: 245 CFM

• Minimum Sound Level: 27 dB

• Maximum Sound Level: 39 dB

• Voltage: 208/230 Volts

• Phase: 1

• Frequency: 60 Hz

• Gas Connection Size: 1/2 Inch

• Liquid Connection Size: 1/4 Inch

• Product Height: 8 3/16 Inches

• Product Width: 22 7/16 Inches

• Product Depth: 22 7/16 Inches

• Product Weight: 31 Pounds

• Shipping Weight: 36 Pounds

• AHRI Certified: Yes

• Grille Height: 0.40 Inch

• Grille Width: 24.60 Inches

• Grille Depth: 24.60 Inches
