Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Grille not included - SLP-18FAU)

Product Description

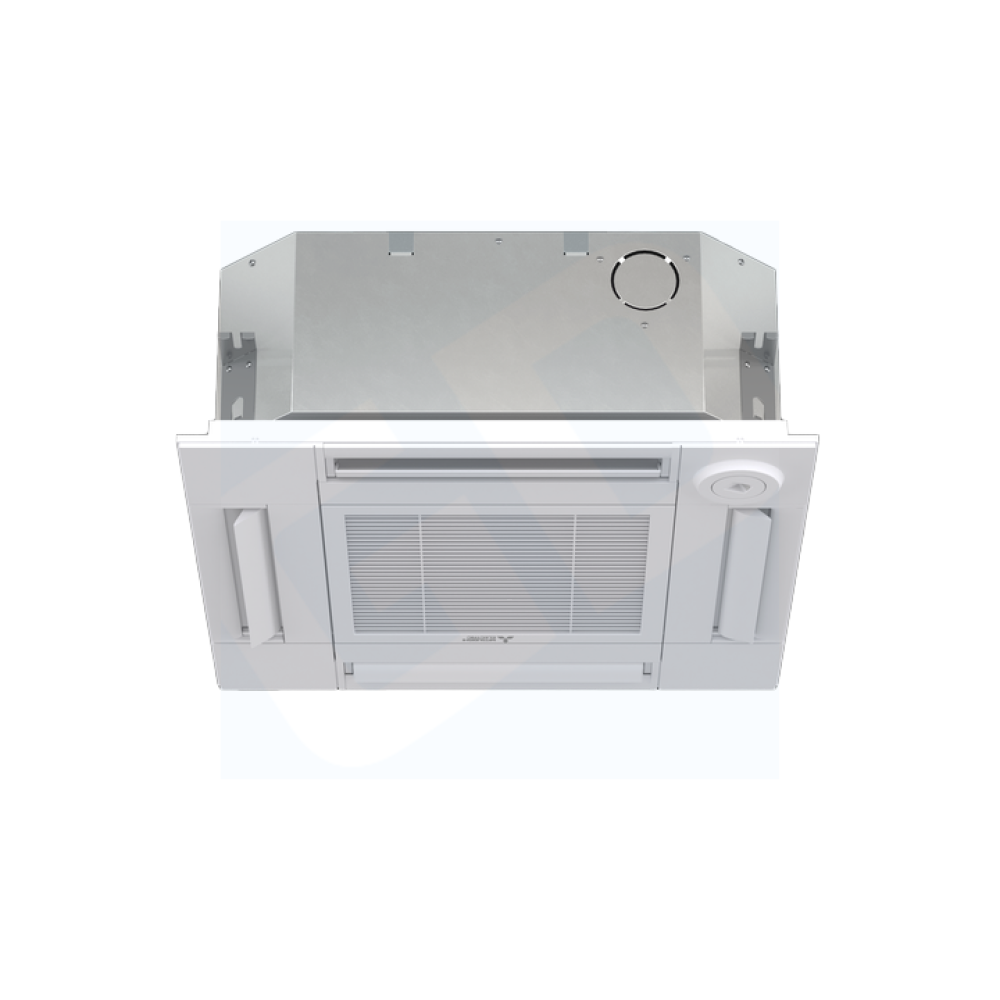

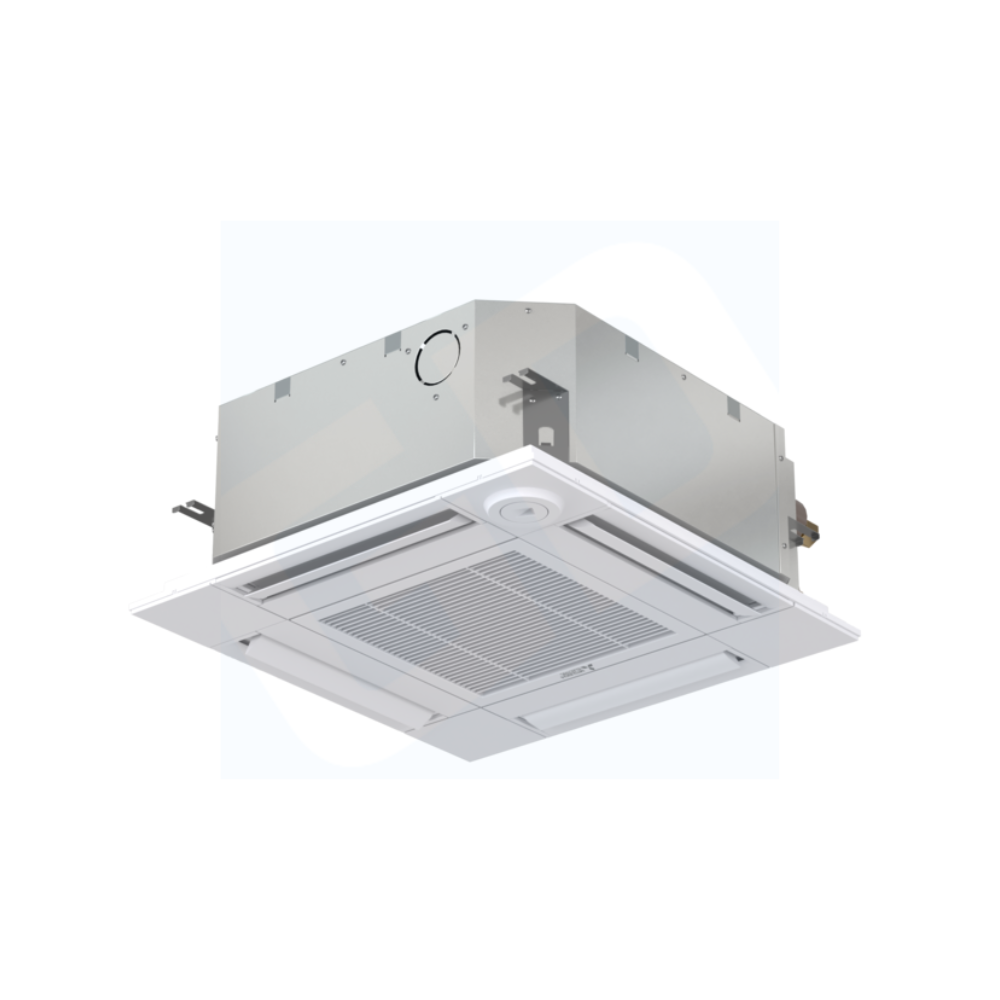

The Mitsubishi Electric SLZ-AF12NL is a mini-split air handler designed for efficient heating and cooling in single-zone applications. This unit uses R-454B refrigerant and is built for ceiling mounting, making it suitable for various installation types including drywall ceilings or a two feet by two feet drop ceiling.

• Delivers cooling capacity of three thousand to twelve thousand BTU per hour.
• Heating capacity ranges from four thousand nine hundred to fifteen thousand BTU per hour.
• Features individual vane control and includes a built-in condensate lift mechanism.

Product Highlights

This air handler offers flexibility in air management with multiple control options, including remote access through a comfort app.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SLZ-AF12NL

Technical Specifications

• Unit Type: Single Zone
• Product Line: AF Series
• System Capacity: 12,000 BTU
• Refrigerant: R-454B
• Input Voltage: 208/230 V
• Cooling Power Consumption: 960 W
• Heating Power Consumption: 1370 W
• Airflow Cooling CFM: 230-280-335
• Airflow Heating CFM: 230-280-335
• Mounting Type: Ceiling Mounting
• Dimensions: 22-7/16 x 22-7/16 x 8-4/16 inches
• WiFi Enabled: Yes
