Mitsubishi Electric SLZ-AF09NL-U1 9,000 Btu Slz Series 2 feetX2 feet Mini Cassette Mini Split Air Handler, R-454B

Product Description

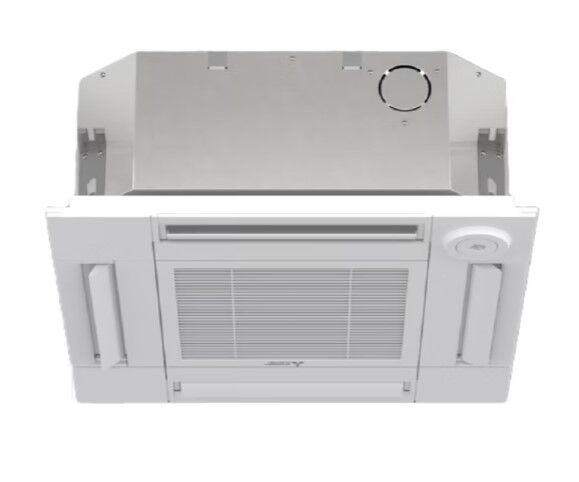

The MITSUBISHI ELECTRIC SLZ-AF09NL-U1 is a 9,000 Btu Slz Series 2'X2' Mini Cassette Mini Split Air Handler, R-454B. It delivers 9,000 BTU cooling and 11,000 BTU heating with 360° airflow and quiet operation. Ideal for ceiling grid installs and smart system integration in homes or offices. Provides quick comfort through rapid heating or cooling.

• R454B Refrigerant
• Energy Star Rated
• Four-Way Ceiling Cassette Indoor Unit

Product Highlights

The SLZ-AF09NL-U1 is suitable for light commercial applications such as small offices, restaurants, and retail.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SLZ-AF09NL-U1

Technical Specifications

• Application: Cooling Heating
• Refrigerant Type: R454B
• Voltage: 208/230V
• Cooling Capacity (BTU): 9000
• Product Type: Indoor Unit
• Mount: Ceiling
• Heating Capacity (BTU): 11000
• Number of Zones: 1
• Energy Star Rated: Yes
• Nominal Tons: 0.75 Ton
• Suction Line: 3/8"
• Liquid Line: 1/4"
• Cooling Power: 680 W
• Heating Power: 1020 W
• Frequency: 60 Hz
• Phase: 1 ph
• Cooling Rate: 2300 to 9000 Btu/hr
• Heating Rate: 4900 to 12800 Btu/hr
• Cooling Airflow: 230/265/300 cfm
• Heating Airflow: 230/265/300 cfm
• EER Rating: 13.2
• SEER: 21
• HSPF: 11.8
• Fuse Rating: 15 A
• Drive: Inverter Drive
• Sound Level: 25 dBA, 28 dBA, 31 dBA
• Cooling Temperature: 67 to 80 deg F
• Heating Temperature: 47 to 70 deg F
• Overall Length: 22-7/16 in
• Overall Width: 22-7/16 in
• Overall Height: 8-3/16 in
