MITSUBISHI ELECTRIC SINGLE-ZONE HYPER HEATING HEAT PUMP SYSTEMS MUZ-FX18NLHZ+MSZ-FX18NL - BTU 18000 - SEER 25.5 - R454B

Product Description

The Mitsubishi Electric MSZ-FX18NL is designed for wall mounting as a versatile indoor unit. It supports both heating and cooling for efficient climate control. This model works well in single-zone or multi-zone setups and uses R-454B refrigerant.

• Quiet operation with multiple fan speeds.
• Automatic filtration and humidity control options.
• Compatible for indoor installations.

Product Highlights

This unit is ideal for residential or light commercial spaces needing reliable temperature management.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-FX18NL

Technical Specifications

• Product Line: FX Series
• Unit Type: Single Zone
• Operating Mode: Heating and Cooling
• Installation Location: Indoor
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Remote Control: Wireless
• System Capacity: 18000 BTU
• Cooling Capacity: 17200 BTU
• Heating Capacity: 17000 BTU
• Cooling Capacity up to: 21500 BTU
• Heating Capacity up to: 30200 BTU
• SEER2: 25.5
• EER2: 13.05
• HSPF2: 11.1
• Moisture Removal: 3.8 Pints/Hour
• Maximum Air Flow: 614 CFM
• Minimum Air Flow: 231 CFM
• Input Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Product Height: 12 Inches
• Product Width: 39 13/48 Inches
• Product Depth: 9 3/4 Inches
• Product Weight: 31.4 Pounds

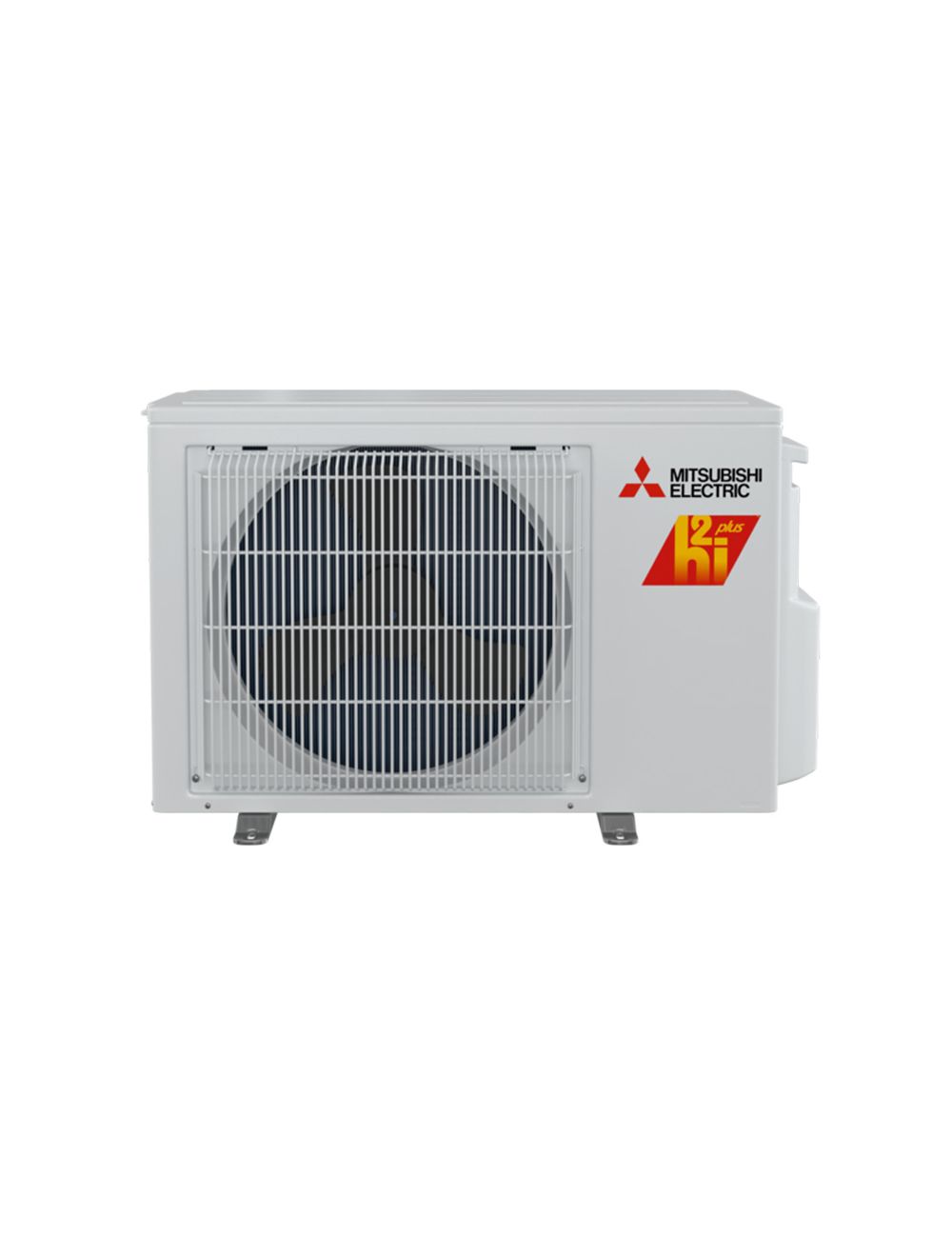

Product Description

The Mitsubishi Electric MUZ-FX18NLHZ is an outdoor condenser for single-zone mini-split systems. This unit supports both heating and cooling functions, making it versatile for seasonal needs. Equipped with H2i technology, it ensures reliable heating performance even in low temperatures down to -22 degrees Fahrenheit. The base pan heater is included to help prevent freezing of condensate, promoting efficient operation. Additionally, the blue fin coating enhances corrosion resistance, which extends the lifespan of the unit.

• Designed for single-zone mini-split systems.
• Offers heating and cooling functionalities.
• Includes a base pan heater to prevent freezing.

Product Highlights

This product is suitable for a wide range of applications where climate control is needed in one space.

Product Information

Standard Information

• Product Line: FX Series
• Unit Type: Single Zone

Technical Specifications

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 17,000 BTU
• Operating Mode: Heating and Cooling
• Minimum Outdoor Temperature for Heating: -22 F
• Voltage: 208/230 Volts
• Weight: 119 Pounds
• Dimensions: 39 -9/32 x 9-3/4 x 12 Inches
• Warranty for Parts: 5 Years
• Warranty for Compressor: 7 Years
