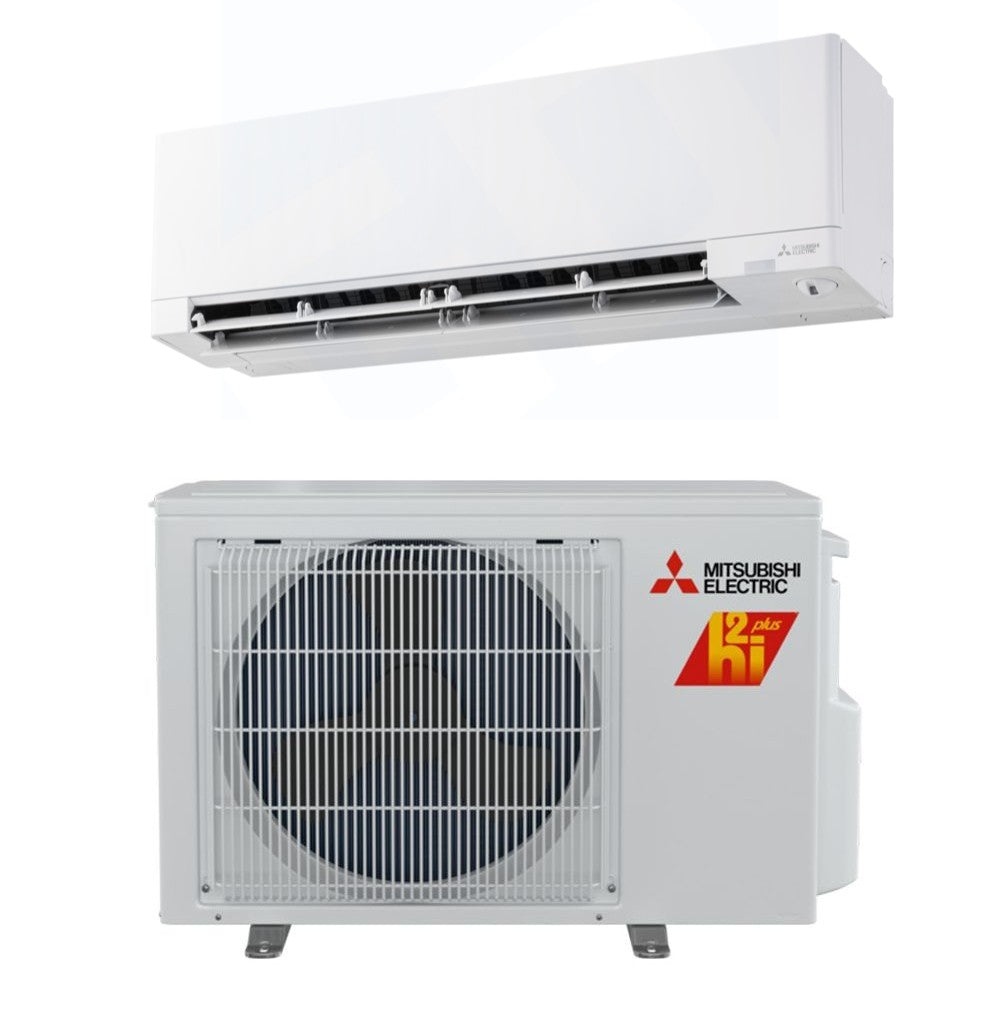

MITSUBISHI ELECTRIC SINGLE-ZONE HYPER HEATING HEAT PUMP SYSTEMS MUZ-FX06NLHZ+MSZ-FX06NL - BTU 6000 - SEER 35 - R454B

Product Description

The Mitsubishi Electric MSZ-FX06NL is a wall-mounted, ductless, mini-split indoor unit that delivers reliable heating and cooling functions. It is suitable for both single-zone and multi-zone systems, making it flexible for various applications. This unit is part of the FX Series and supports WiFi control through the Comfort App, allowing for convenient adjustments from a mobile device.

• Provides heating and cooling functionality.
• Compatible with single and multi-zone applications.
• Includes a remote controller for easy operation.

Product Highlights

This system operates quietly and offers adjustable fan speeds and airflow directions, ensuring optimal comfort indoors.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-FX06NL

Technical Specifications

• Product Line: FX Series
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 6000 BTU
• Heating Capacity: 9000 BTU
• Air Flow Maximum: 477 CFM
• Air Flow Minimum: 150 CFM
• Sound Level Minimum: 20 dB
• Sound Level Maximum: 42 dB
• Input Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 12 Inches
• Product Width: 39 13/48 Inches
• Product Depth: 9 3/4 Inches
• Product Weight: 31.4 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Installation Location: Indoor
• Remote Control: Wireless
• WiFi Enabled: Yes with Comfort App

Product Description

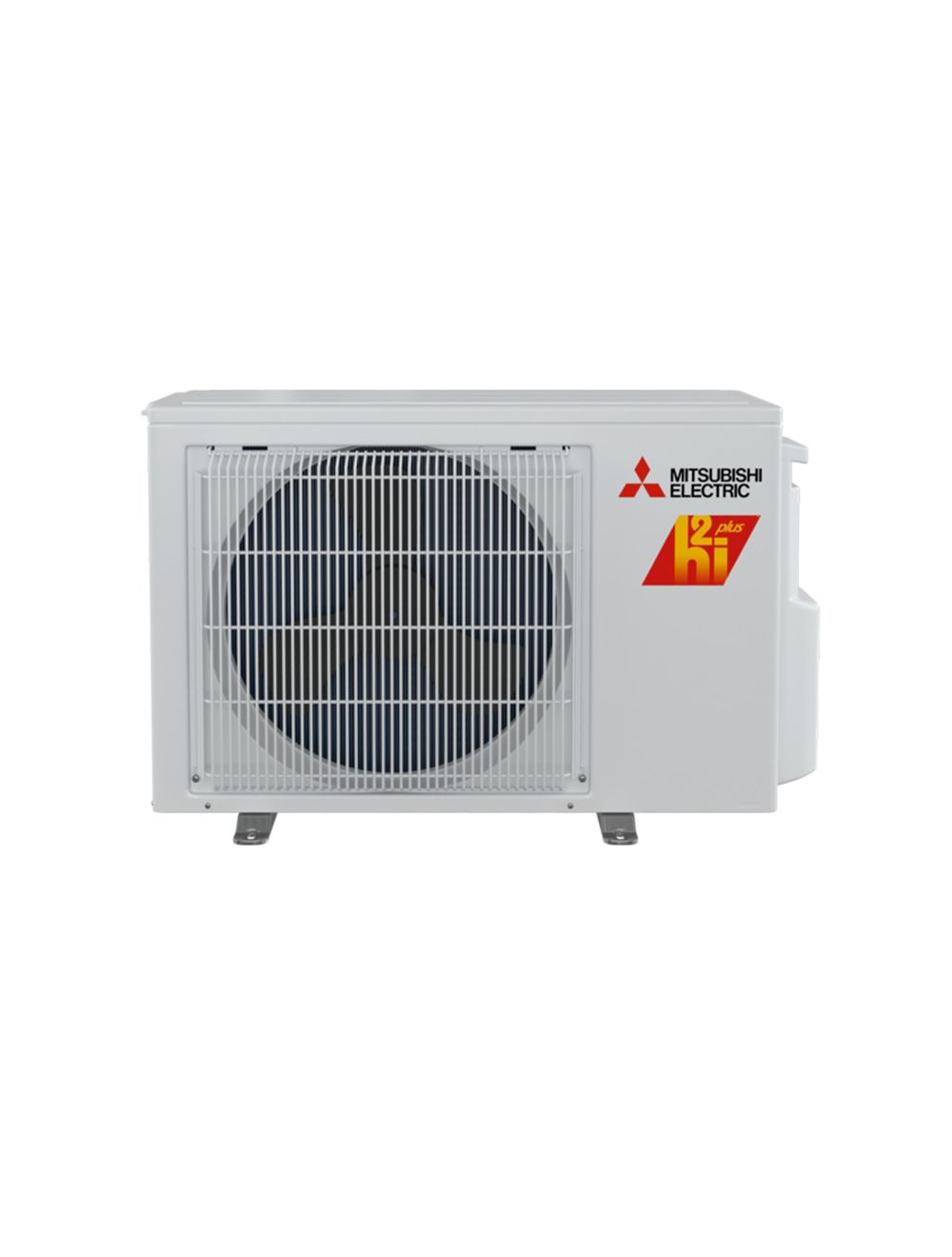

The Mitsubishi Electric MUZ-FX06NLHZ is a ductless heat pump system that provides both heating and cooling functions. This system utilizes Hyper-Heating technology to perform well even in cold weather conditions.

• Operates effectively in both heating and cooling modes.
• Utilizes inverter technology contributing to energy efficiency.
• Single-zone setup ideal for targeted climate control.

Product Highlights

The MUZ-FX06NLHZ ensures zoned comfort control in homes and businesses, making it suitable for various applications.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MUZ-FX06NLHZ

Technical Specifications

• Product Line: M-Series H2i
• Product Sub-line: Hyper-Heating
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling Capacity: 6000 BTU
• Heating Capacity: 9000 BTU
• SEER2: 35.0
• EER2: 21.45
• HSPF2: 13
• Minimum Outdoor Temperature for Heating: -22 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Minimum Circuit Ampacity: 12 Amps
• Recommended Breaker Size: 20 Amps
• Maximum Line Length: 65 Feet
• Product Weight (Outdoor): 89 Pounds
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• WiFi Enabled: Yes with Comfort App
