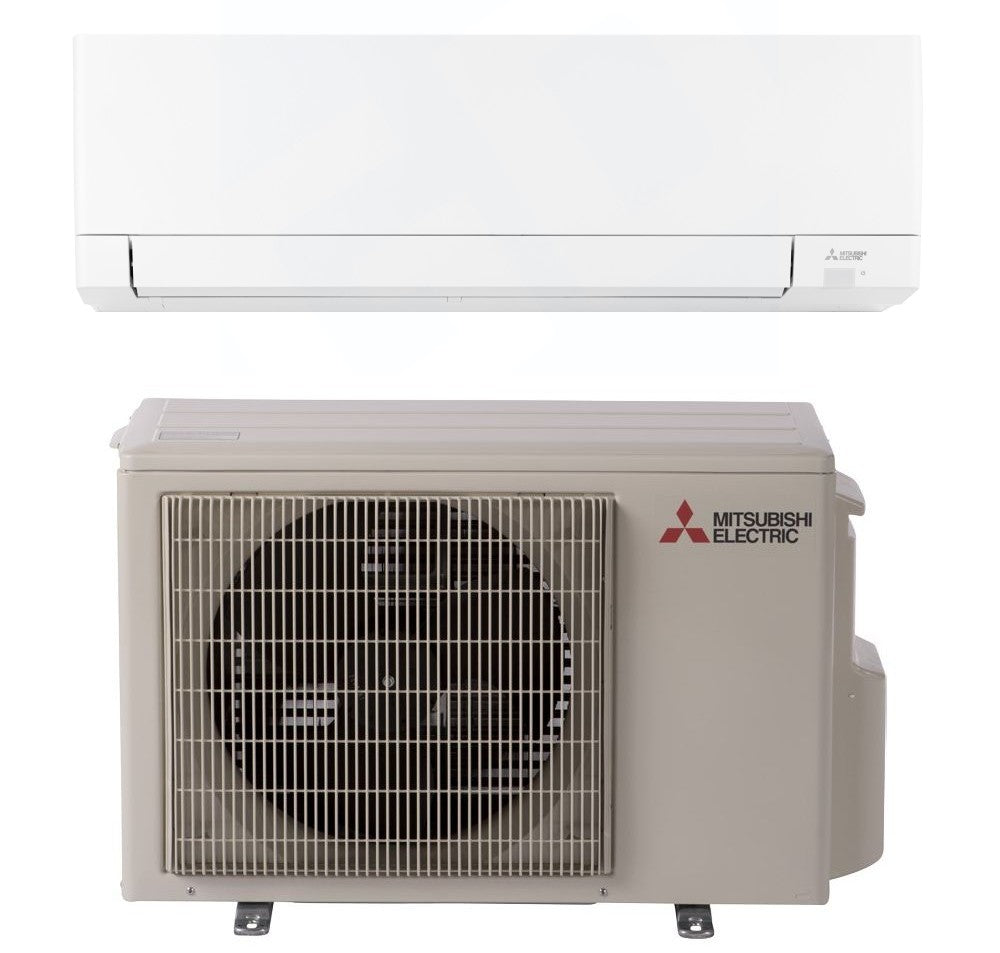

MITSUBISHI ELECTRIC SINGLE-ZONE HIGH EFFICIENCY HEAT PUMP SYSTEMS MUZ-GX36NL+MSZ-GX36NL - BTU 36000 - SEER 18.5 - R454B

Product Description

The Mitsubishi Electric MSZ-GX36NL is a wall-mounted heat pump system designed for effective heating and cooling. This model uses R-454B refrigerant and features INVERTER technology for efficient operation. It is ideal for indoor installation. The system offers various operating modes along with adjustable fan speeds and airflow directions.

• Operates in both heating and cooling modes
• Includes a remote control for convenient use
• Compatible with the Comfort App for easy control

Product Highlights

This unit provides multiple fan speed options and ensures clean air with a built-in Electrostatic Enzyme filter.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-GX36NL

Technical Specifications

• Product Line: GX Series
• Unit Type: Single Zone
• Number of Zones: 1
• Operating Mode: Heating and Cooling
• Installation Location: Indoor
• Mounting Type: Wall Mounted
• Refrigerant Type: R-454B
• Cooling Capacity: 33800 BTU
• Heating Capacity: 36000 BTU
• SEER2: 18.5
• EER2: 8.4
• HSPF2: 8.5
• Maximum Air Flow: 765 CFM
• Minimum Air Flow: 292 CFM
• Noise Level dB(A), Cooling: 30-37-41-48-53
• Voltage: 208/230 Volts
• Product Height: 12 13/16 Inches
• Product Width: 43 5/16 Inches
• Product Depth: 10 1/8 Inches
• Product Weight: 37 Pounds
• WiFi Enabled: Yes
• Remote Control: Wireless

Product Description

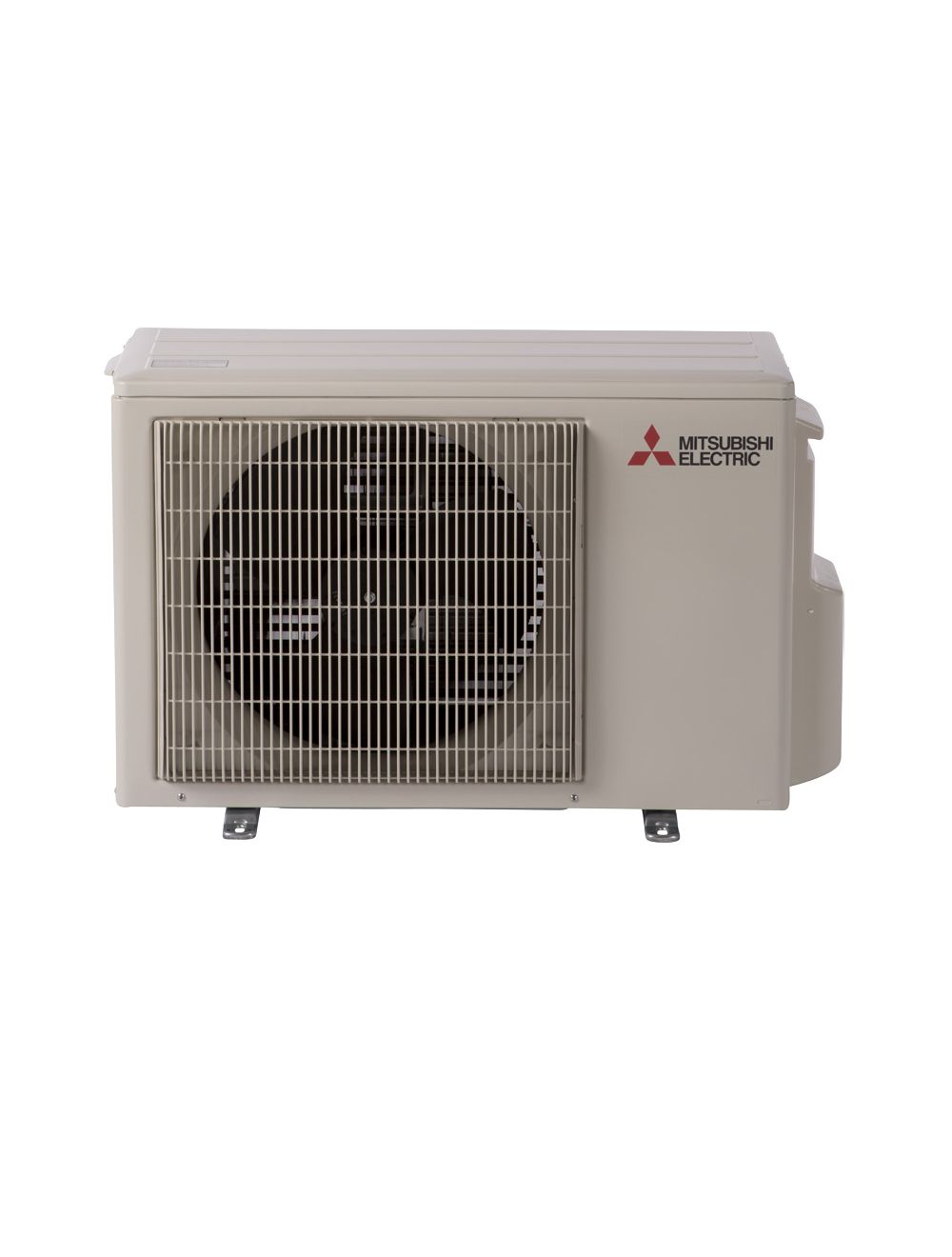

The Mitsubishi Electric MUZ-GX36NL is a heat pump system designed for efficient heating and cooling in a single zone. It uses R-454B refrigerant and INVERTER technology for optimal performance. This system includes an outdoor condenser unit and an indoor unit, providing flexible climate control.

• Operates efficiently in both cooling and heating modes.
• Features an inverter-driven compressor for precise temperature management.
• Wi-Fi enabled for convenient remote operation through a comfort app.

Product Highlights

This product is ideal for residential or small commercial settings needing effective temperature regulation in one area. Its compact design makes it easy to install.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Product Line: GX Series

Technical Specifications

• MPN: MUZ-GX36NL
• Unit Type: Single Zone
• System Capacity: 36,000 BTU
• Cooling Capacity: 33,800 BTU
• Heating Capacity: 36,000 BTU
• SEER: 18.5
• HSPF: 8.5
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Maximum Sound Level: 57 dB
• Minimum Outdoor Temperature for Heating: -4 F
• Indoor Unit Width: 43-5/16 Inches
• Indoor Unit Height: 12-13/16 Inches
• Outdoor Unit Width: 33 1/16 Inches
• Product Weight: 116 Pounds
• Wi-Fi Enabled: Yes
