MITSUBISHI ELECTRIC SINGLE-ZONE HIGH EFFICIENCY HEAT PUMP SYSTEMS MUZ-GX18NL+MSZ-GX18NL - BTU 18000 - SEER 22.5 - R454B

Product Description

The Mitsubishi Electric MSZ-GX18NL is a wall-mounted mini-split air handler. This model is suitable for both heating and cooling, with a capacity of 18,000 BTU. It is designed for indoor installation. This air handler connects with the Comfort App for remote management via smartphone or web browser.

• Heating and cooling operation
• Includes a wireless remote controller
• Utilizes R-454B refrigerant

Product Highlights

This unit features a dual barrier coating that helps minimize dust accumulation and includes an advanced filtration system for improved indoor air quality.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-GX18NL

Technical Specifications

• Product Line: GX Series
• Type: Wall Mounted
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling Capacity: 18000 BTU
• Heating Capacity: 21600 BTU
• SEER: 22.5
• EER: 14.05
• HSPF: 10.3
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Maximum Air Flow: 672 CFM
• Minimum Air Flow: 292 CFM
• Moisture Removal: 3.4 Pints/Hour
• Minimum Sound Level: 28 dB
• Maximum Sound Level: 49 dB
• Dimensions: 43-5/16 x 10-1/8 x 12-13/16 Inches
• Weight: 37 Pounds
• Remote Control: Wireless
• WiFi Enabled: Yes with Comfort App
• Installation Location: Indoor
• Liquid Connection Size: 1/4 Inch
• Gas Connection Size: 1/2 Inch
• ETL Listed: Yes
• AHRI Certified: Yes
• Multi-Zone Compatible: Yes

Product Description

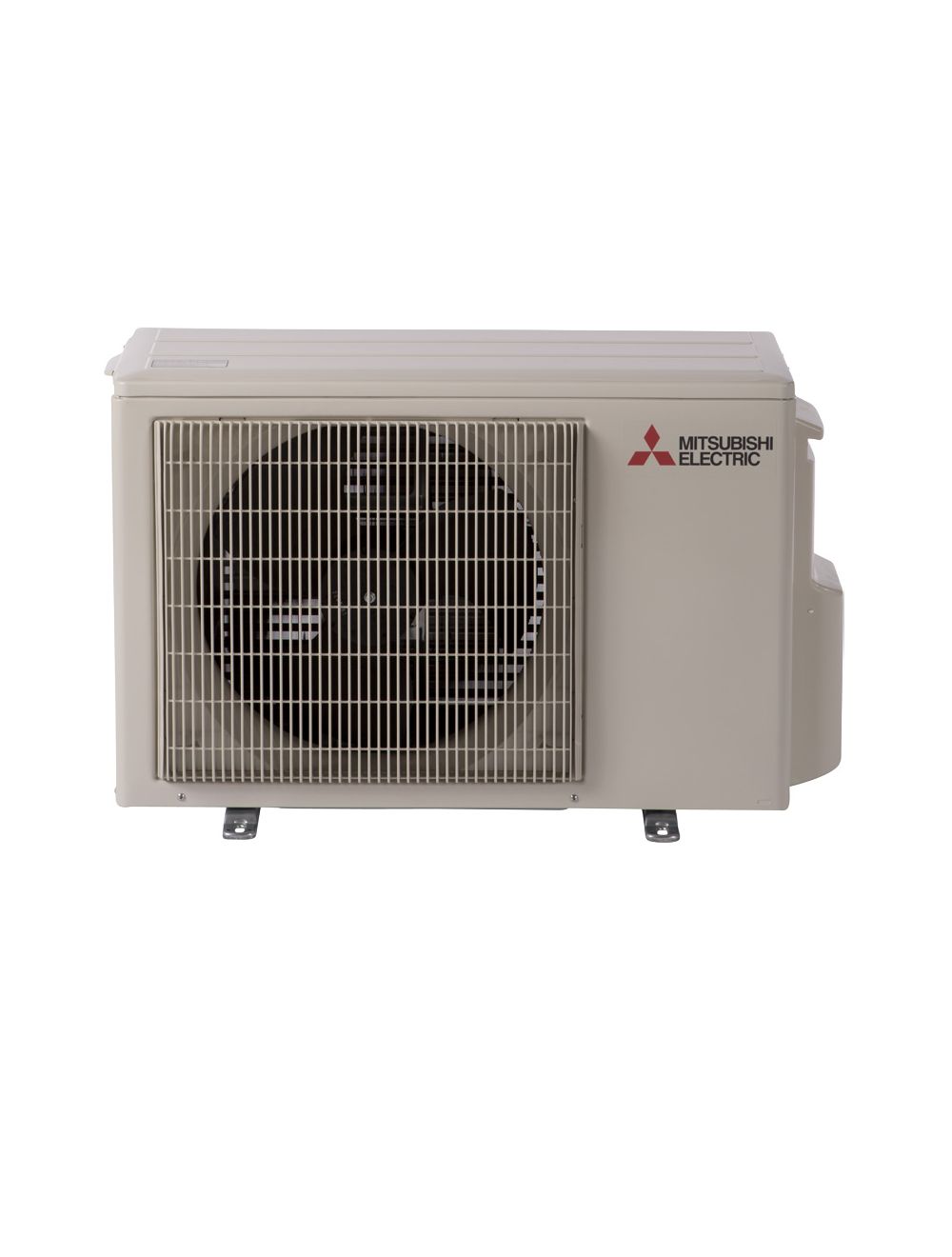

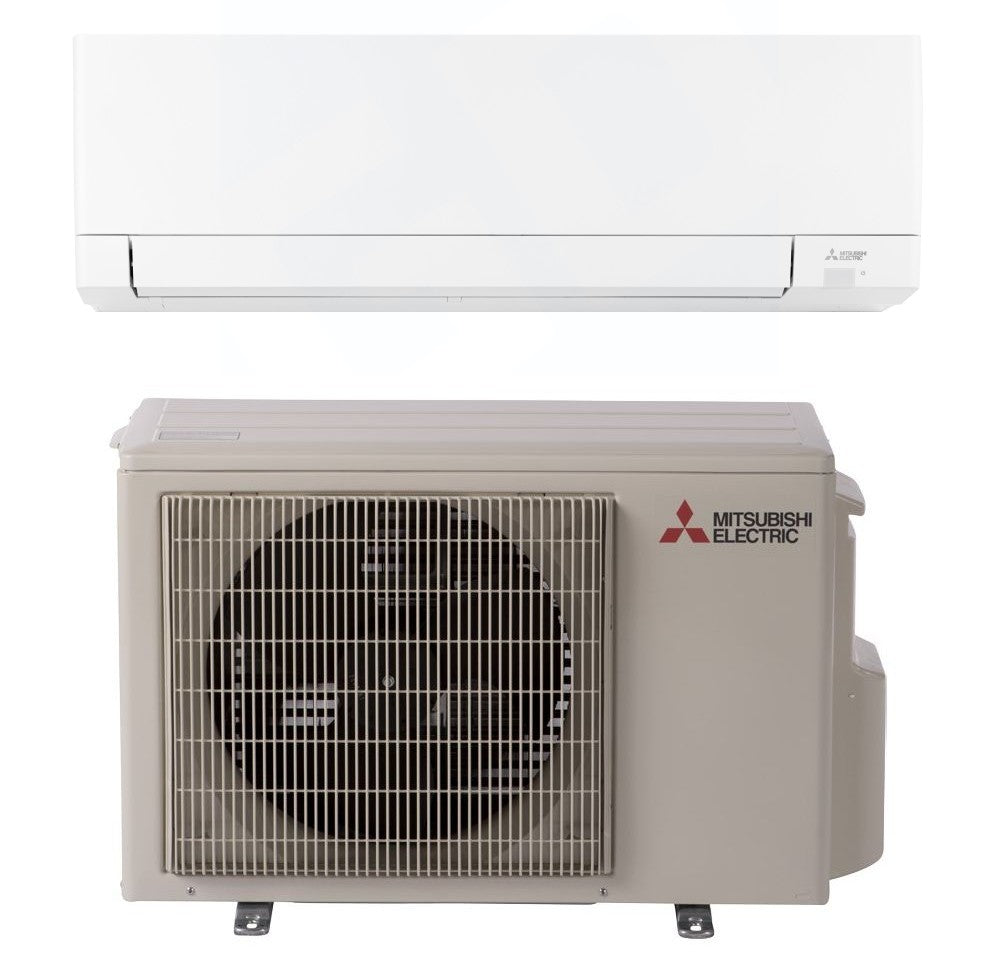

The Mitsubishi Electric MUZ-GX18NL is a reliable heat pump system for single-zone applications. It offers both cooling and heating functions with a system capacity of eighteen thousand BTU. The package includes an outdoor unit (MUZ-GX18NL) and an indoor unit (MSZ-GX18NL). This system employs INVERTER technology for efficient performance and is Wi-Fi enabled for remote control through a compatible app. The design prioritizes quiet operation and includes a handheld remote controller.

• Operates in both cooling and heating modes
• Features built-in Wi-Fi for remote access
• Utilizes INVERTER technology for efficient energy use

Product Highlights

This unit is suitable for year-round comfort, providing heating down to minus fourteen degrees Fahrenheit and cooling as low as one degree Fahrenheit.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MUZ-GX18NL

Technical Specifications

• Product Line: GX Series
• Unit Type: Single Zone
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 18,000 BTU
• Cooling Capacity: Up to 22,000 BTU
• Heating Capacity: Up to 27,400 BTU
• SEER2: 22.5
• EER2: 14.05
• HSPF2: 10.3
• Voltage: 208/230V
• Refrigerant Type: R-454B
• Compressor Stage: Inverter
• Wi-Fi Enabled: Yes, with Comfort App
• Indoor Unit: MSZ-GX18NL
• Outdoor Unit: MUZ-GX18NL
• Remote Controller: Included
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Dimensions (Indoor Unit): 43-5/16 x 10-1/8 x 12-13/16 inches
• Dimensions (Outdoor Unit): 34-5/8 x 33-1/16 x 13 inches
• Noise Level dB(A), Cooling: 28-49
• Parts Warranty: 10 years
• Compressor Warranty: 10 years
