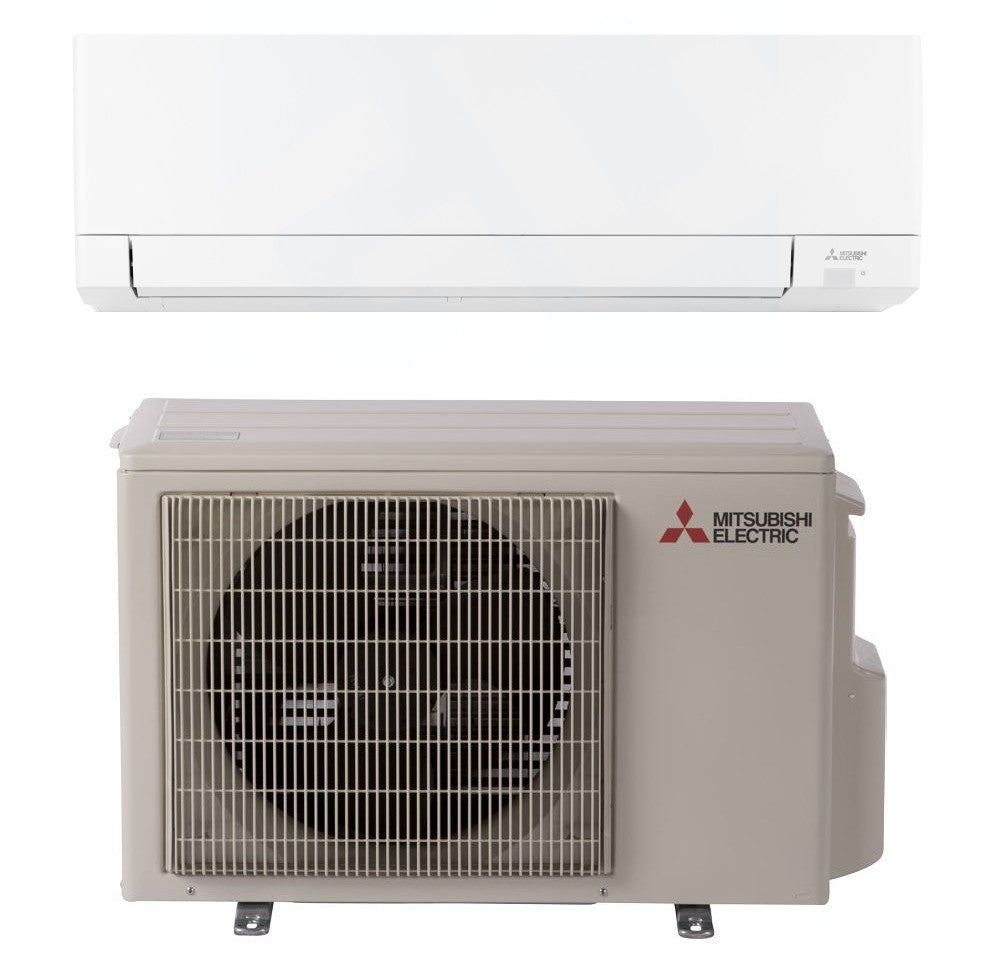

MITSUBISHI ELECTRIC SINGLE-ZONE HIGH EFFICIENCY HEAT PUMP SYSTEMS MUZ-GX12NL+MSZ-GX12NL - BTU 12000 - SEER 25.6 - R454B

Product Description

The Mitsubishi Electric MSZ-GX12NL is a wall-mounted indoor unit suitable for both single and multi-zone systems. This unit provides heating and cooling capabilities with a capacity of twelve thousand BTU, making it efficient for various indoor spaces. It allows for temperature control, fan speed adjustments, and mode selection via the Comfort App. The MSZ-GX12NL operates with low noise levels and features a dual barrier coating to resist dust and contaminants.

• Wall mounted for single or multi-zone systems
• Heating and cooling with twelve thousand BTU capacity
• Quiet operation with a dual barrier coating

Product Highlights

Ideal for residential and commercial applications, this unit is designed for indoor installation and uses environmentally friendly R-454B refrigerant.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-GX12NL

Technical Specifications

• Product Line: GX Series
• Unit Type: Wall Mounted
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 12000 BTU
• Heating Capacity: 14400 BTU
• Moisture Removal: 2.5 Pints/Hour
• Weight: 23 lbs
• Input Voltage: 208/230 Volts
• Sound Level: Minimum 19 dB, Maximum 45 dB
• Parts Warranty: 5 Years
• WiFi Enabled: Yes

Product Description

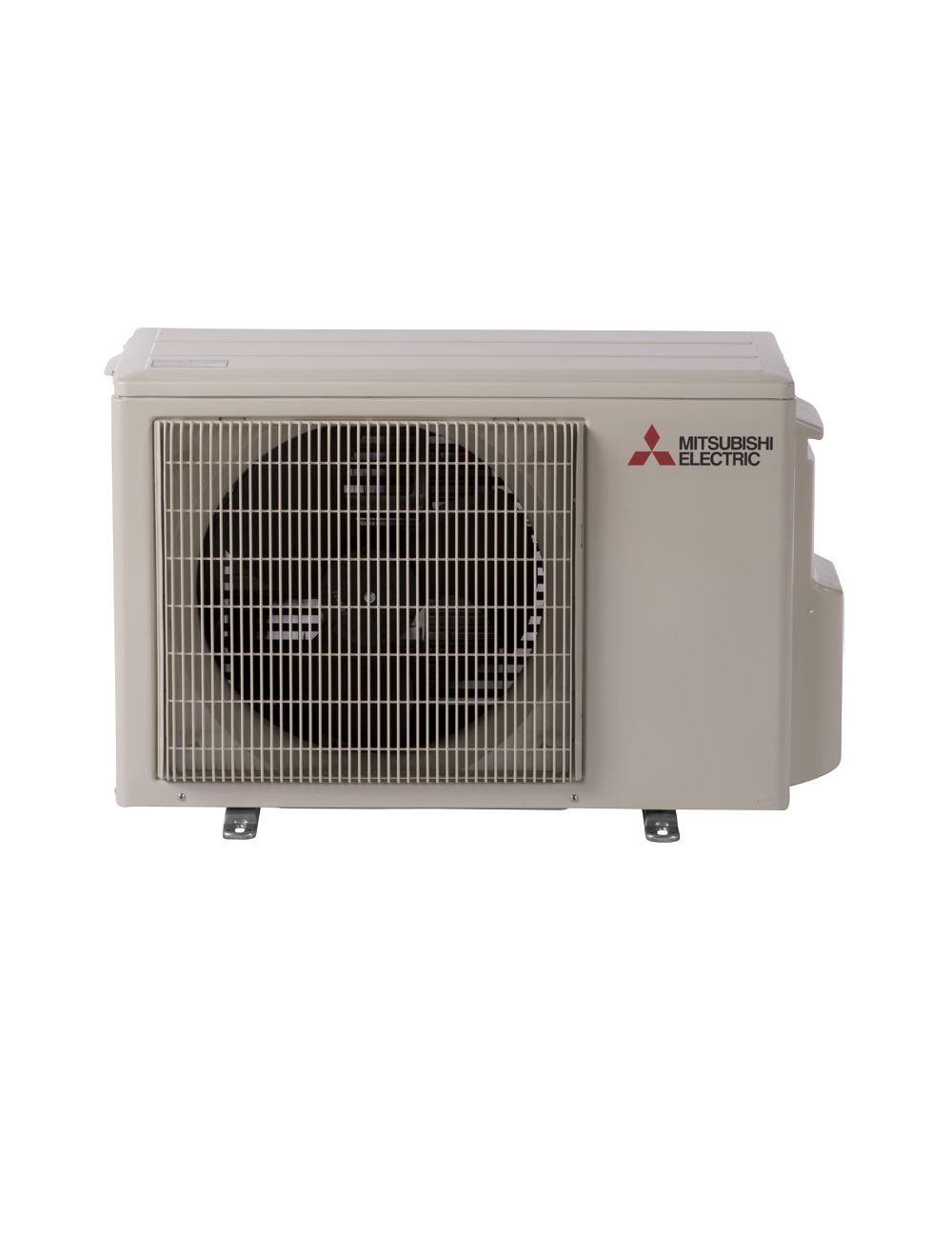

The Mitsubishi Electric MUZ-GX12NL is an outdoor condenser tailored for single-zone mini-split systems. This model delivers both heating and cooling capabilities with a capacity of twelve thousand BTU. It incorporates inverter technology paired with an electronic linear expansion valve, ensuring precise temperature control and optimized system performance. The unit features a Blue Fin anti-rust coating, designed to enhance durability and longevity. It operates on 208/230 volts with R-454B refrigerant.

• Single-zone compatibility for ductless heating and cooling.
• Inverter technology for precise temperature control.
• Blue Fin coating protects against corrosion.

Product Highlights

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MUZ-GX12NL

Technical Specifications

• Product Line: GX Series
• Type: Outdoor Condenser
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• System Capacity: 12,000 BTU
• Cooling Capacity up to: 14,000 BTU
• Heating Capacity up to: 19,100 BTU
• Refrigerant Type: R-454B
• SEER2: 25.6
• EER2: 13.35
• HSPF2: 10
• Low Ambient Heating: Yes
• Heating Minimum Temp: -34 F
• Cooling Minimum Temp: -1 F
• Voltage: 208/230 Volts
• Electrical Phase: 1-Phase
• Frequency: 60 Hz
• Product Weight: 77 Pounds
• Dimensions: 31-1/2 W x 11-14 D x 21-5/8 H
