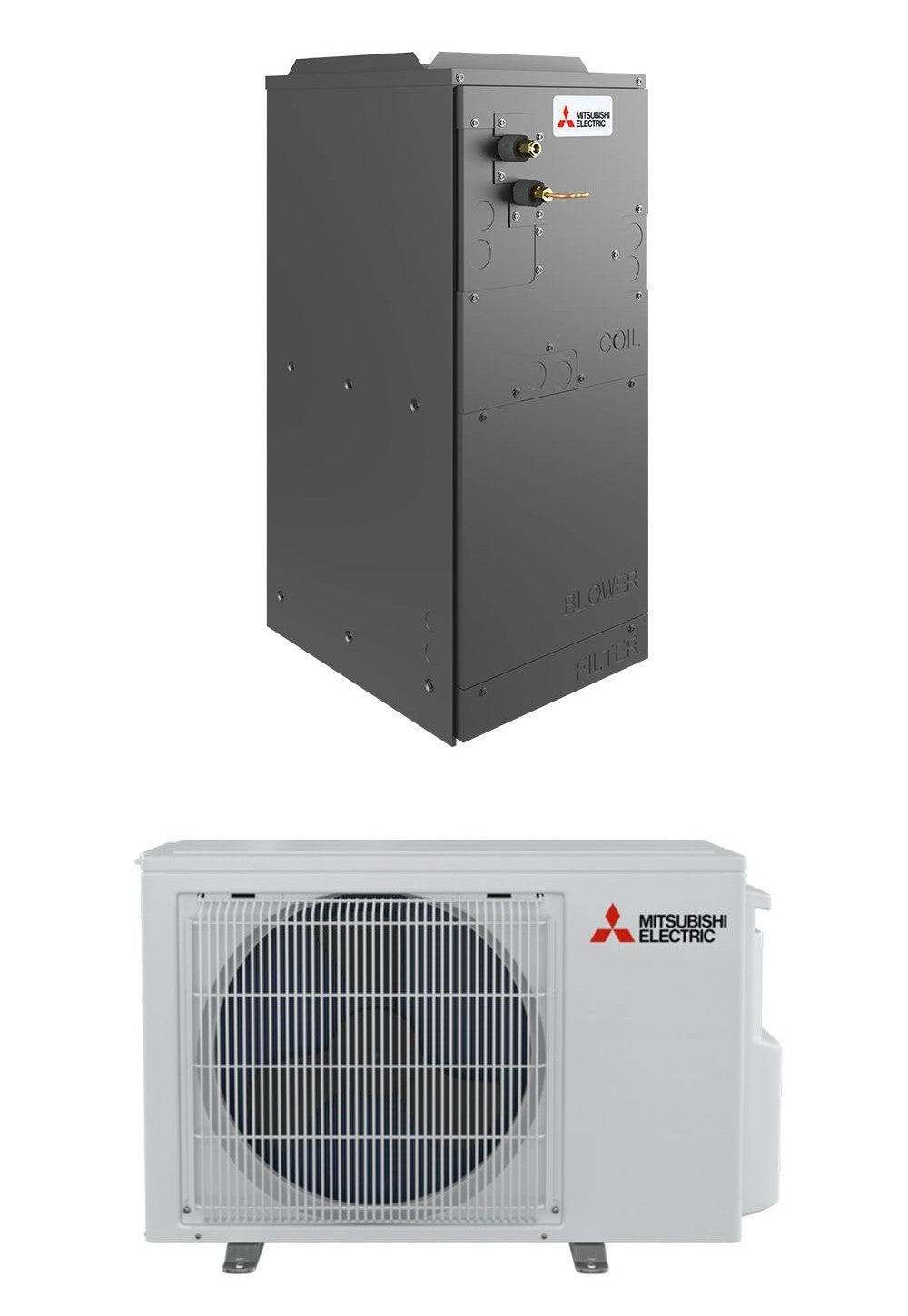

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA36NL+SVZ-AP36NL - BTU 36000 - SEER 15.8 - R454B

Product Description

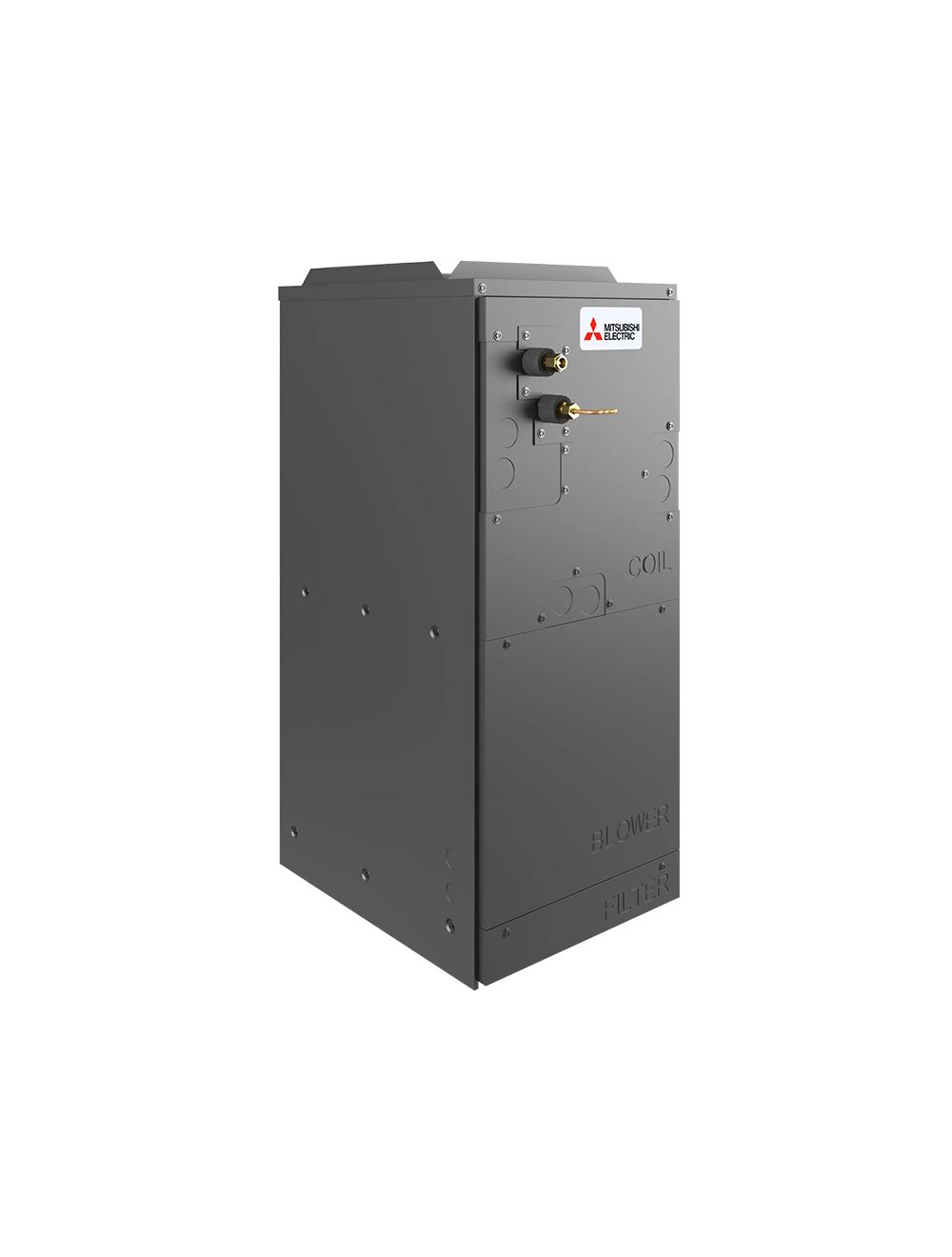

The Mitsubishi Electric SVZ-AP36NL is a multi-position air handler suitable for both single and multi-zone applications. This ducted air handler is compatible with R-454B refrigerant and is designed for efficient operation in heating and cooling modes. It supports horizontal and vertical installation, making it versatile for various setups. The enclosed ECM motor ensures quiet performance, while an INVERTER-driven compressor manages temperature efficiently.

• Ducted system for both heating and cooling.
• Flexible installation options: can be mounted horizontally or vertically.
• Compatible with Comfort App for remote management.

Product Highlights

This air handler is designed with functionality in mind, offering a reliable solution for comfortable indoor climates.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SVZ-AP36NL

Technical Specifications

• Unit Type: Single Zone
• Product Line: AP Series
• Operating Mode: Cooling & Heating
• System Capacity: 36,000 BTU
• Cooling Capacity: 36,000 BTU/hr
• Heating Capacity: 40,000 BTU/hr
• SEER2: 15.8
• EER2: 9.3
• HSPF2: 8.2
• Refrigerant: R-454B
• Input Voltage: 208/230 V
• Amperage: 2.7 A
• Cooling Wattage: 3410 W
• Heating Wattage: 3620 W
• Dimensions: 21 inches W x 21-5/8 inches D x 43-7/8 inches H
• Weight: 122 lbs
• WiFi Enabled: Yes, with Comfort App
• Indoor Unit Model: SVZ-AP36NL

Product Description

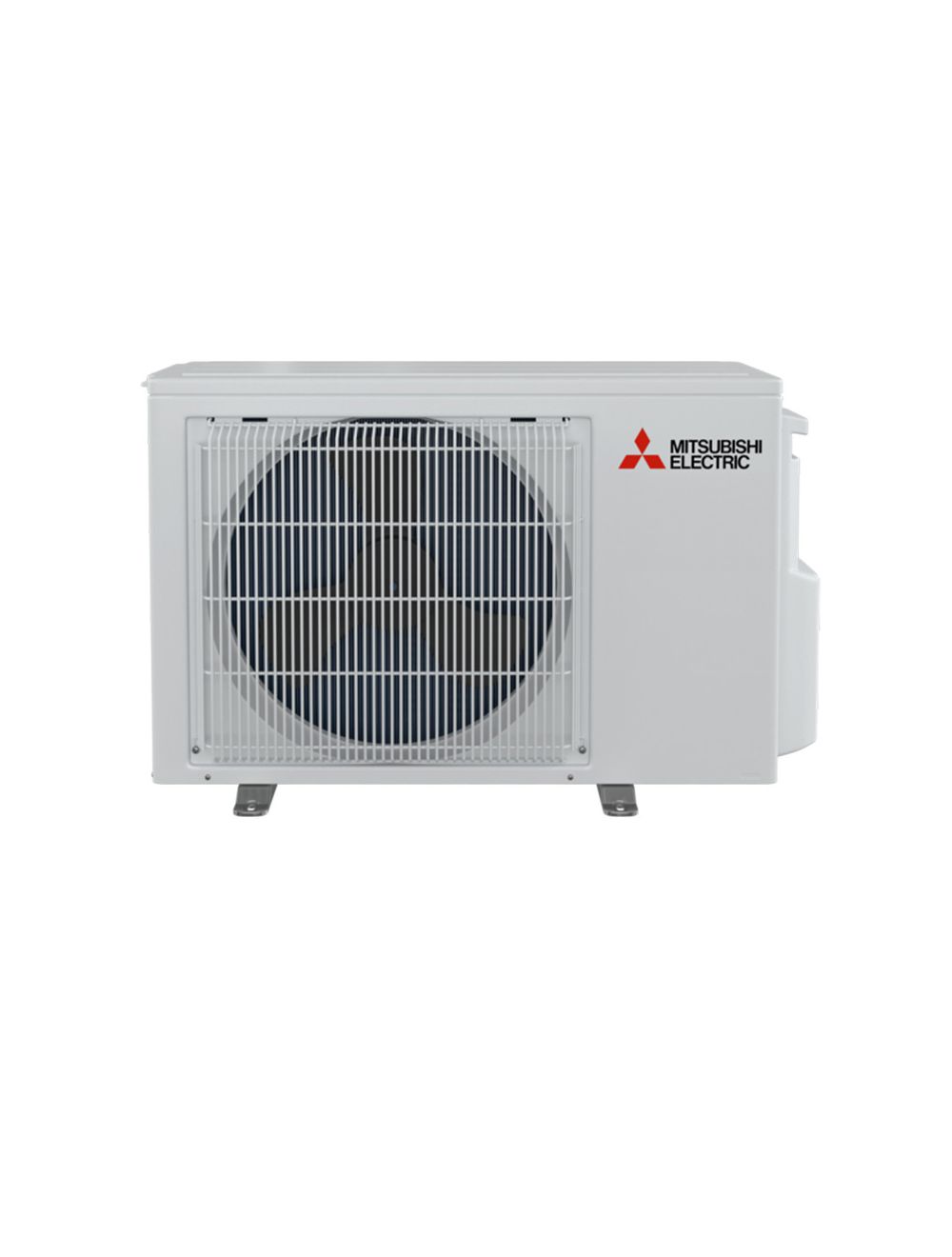

The Mitsubishi Electric SUZ-AA36NL is an outdoor condenser unit designed to work with single-zone mini-split systems. This model provides both heating and cooling when paired with suitable indoor units. It features advanced inverter technology and an electronic linear expansion valve for optimized temperature management and energy efficiency.

• Compatible with R-454B refrigerant.
• Automatically restarts after power outages.
• Blue fin coating for enhanced corrosion resistance.

Product Highlights

The SUZ-AA36NL is efficient and versatile for residential heating and cooling needs.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: SUZ-AA36NL

Technical Specifications

• Product Line: M-Series
• Product Type: Outdoor Condenser
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Cooling Capacity: 33000 BTU
• Heating Capacity: 34000 BTU
• Energy Efficiency Ratio (EER): 12.5
• Seasonal Energy Efficiency Ratio (SEER): 18.0
• Heating Seasonal Performance Factor (HSPF): 12.6
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Input Voltage: 208/230 Volts
• Maximum Sound Level: 55 dB
• Product Weight: 117 Pounds
• Product Height: 34 5/8 Inches
• Product Width: 33 1/16 Inches
• Product Depth: 13 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
