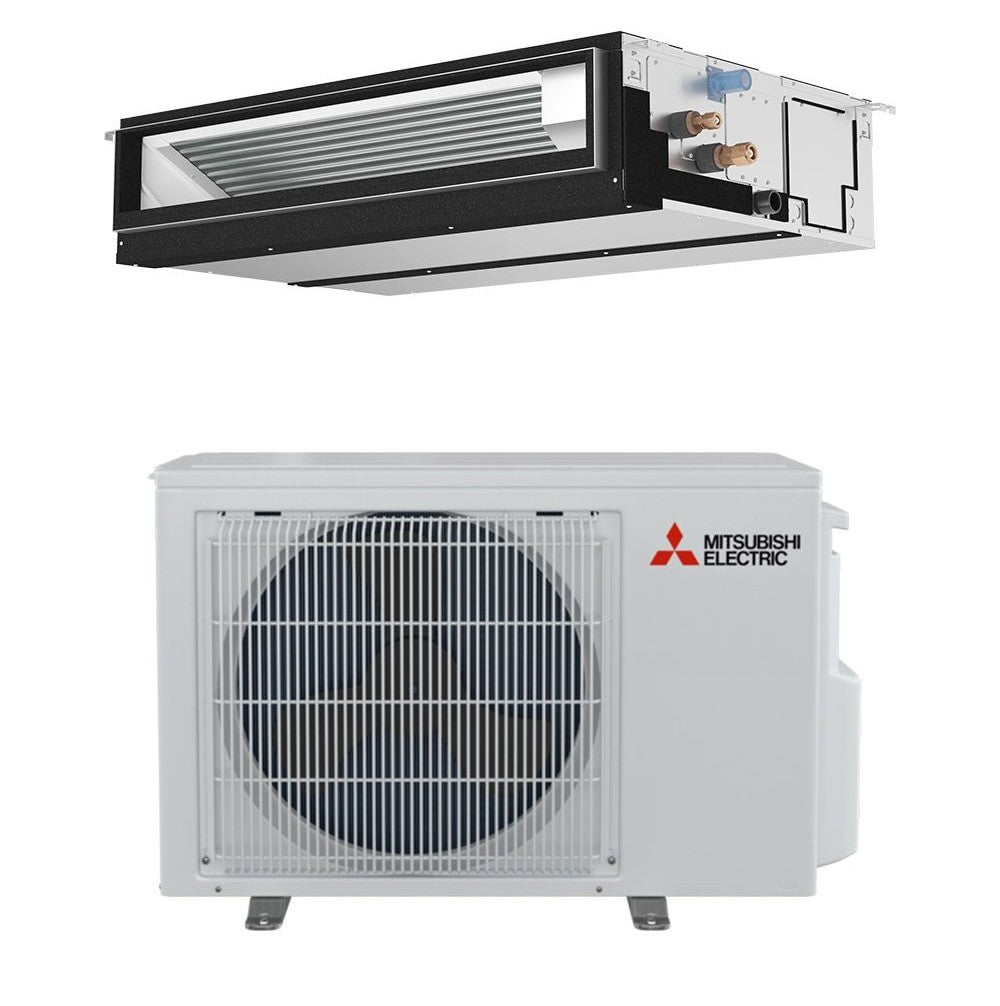

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA36NL+PEAD-AA36NL - BTU 36000 - SEER 19.4 - R454B

Product Description

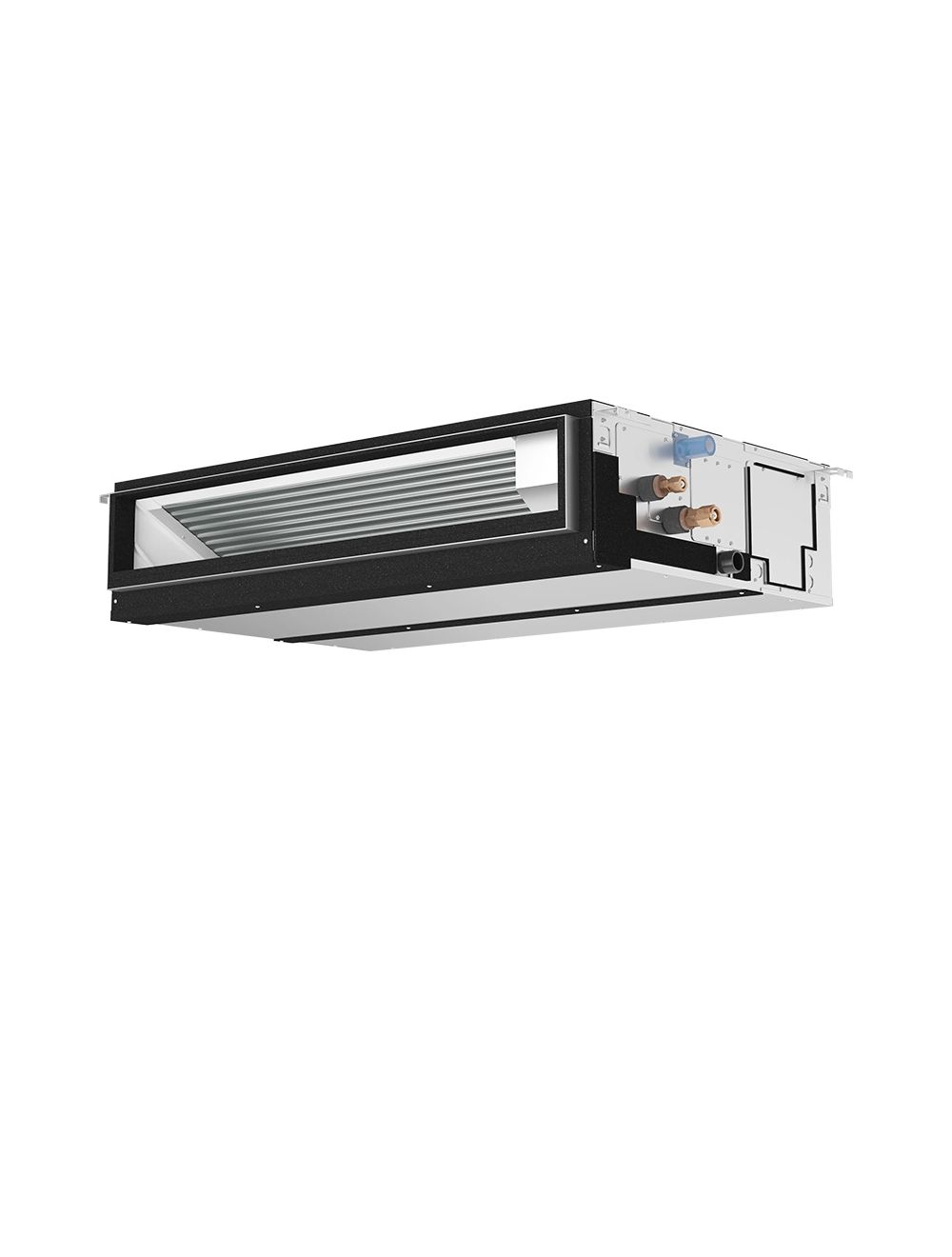

The Mitsubishi Electric PEAD-AA36NL is a concealed duct mini split indoor unit. It is designed for both single-zone and multi-zone configurations. This unit fits in short-run ducting and operates in heating and cooling modes. The PEAD-AA36NL uses R-454B refrigerant and offers multiple fan speeds, making it versatile for various indoor environments.

• Concealed duct design for unobtrusive installation.
• Compatible with both single-zone and multi-zone systems.
• Utilizes R-454B refrigerant.

Product Highlights

This unit offers effective air management for heating and cooling needs.

Product Information

Standard Information

• Product Line: P-Series
• Unit Type: Mid-Static Horizontal Ducted

Technical Specifications

• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 33,000 BTU
• Heating Capacity: 34,000 BTU
• Moisture Removal: 4.4 Pints/Hour
• Maximum Air Flow: 1,201 CFM
• Minimum Air Flow: 848 CFM
• Sound Level: 34 dB to 42 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 9 7/8 Inches
• Product Width: 55 1/8 Inches
• Product Depth: 28 7/8 Inches
• Product Weight: 82 Pounds
• Installation Location: Indoor
• ETL Listed: Yes
• AHRI Certified: Yes

Product Description

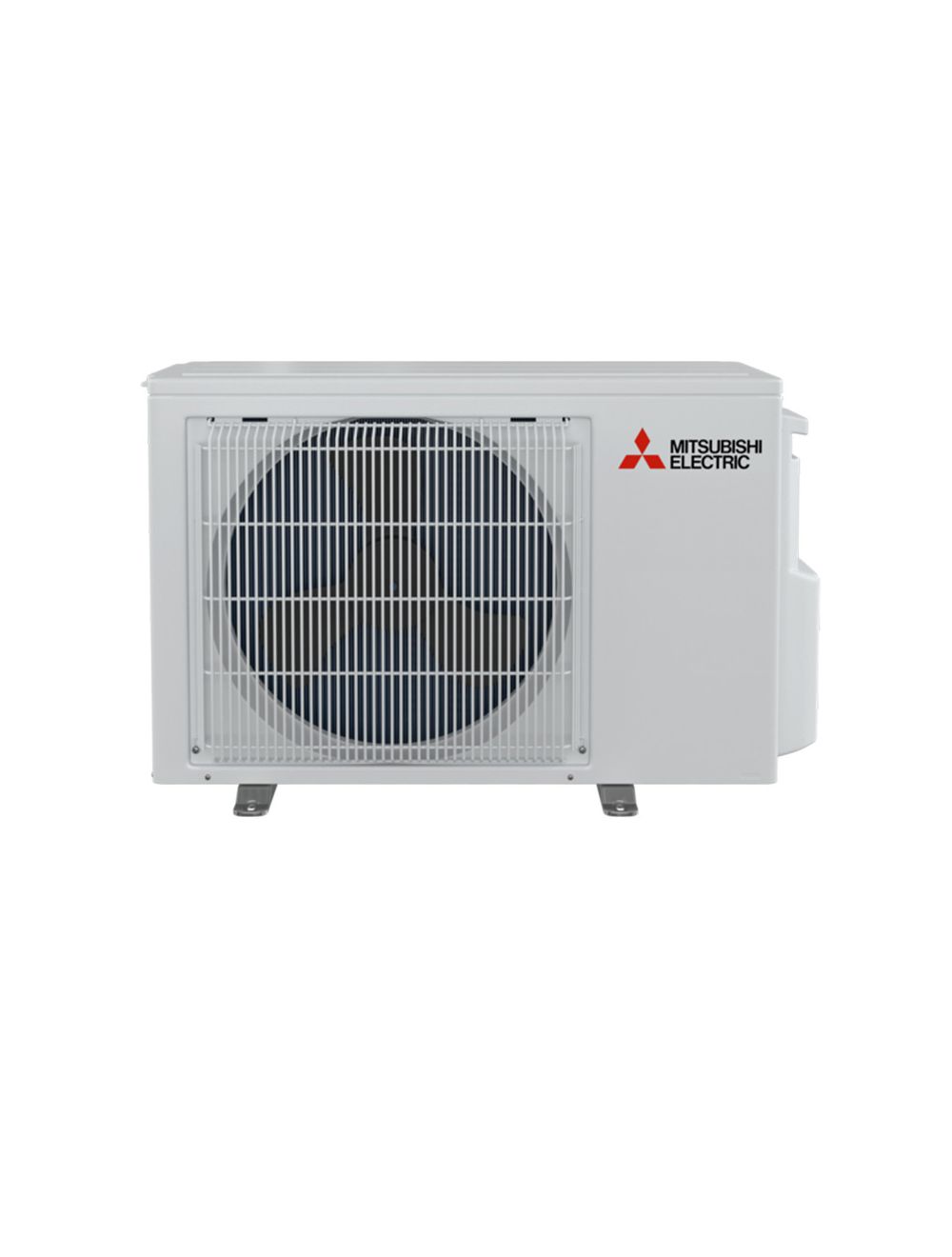

The Mitsubishi Electric SUZ-AA36NL is an outdoor condenser unit designed to work with single-zone mini-split systems. This model provides both heating and cooling when paired with suitable indoor units. It features advanced inverter technology and an electronic linear expansion valve for optimized temperature management and energy efficiency.

• Compatible with R-454B refrigerant.
• Automatically restarts after power outages.
• Blue fin coating for enhanced corrosion resistance.

Product Highlights

The SUZ-AA36NL is efficient and versatile for residential heating and cooling needs.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: SUZ-AA36NL

Technical Specifications

• Product Line: M-Series
• Product Type: Outdoor Condenser
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Cooling Capacity: 33000 BTU
• Heating Capacity: 34000 BTU
• Energy Efficiency Ratio (EER): 12.5
• Seasonal Energy Efficiency Ratio (SEER): 18.0
• Heating Seasonal Performance Factor (HSPF): 12.6
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Input Voltage: 208/230 Volts
• Maximum Sound Level: 55 dB
• Product Weight: 117 Pounds
• Product Height: 34 5/8 Inches
• Product Width: 33 1/16 Inches
• Product Depth: 13 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
