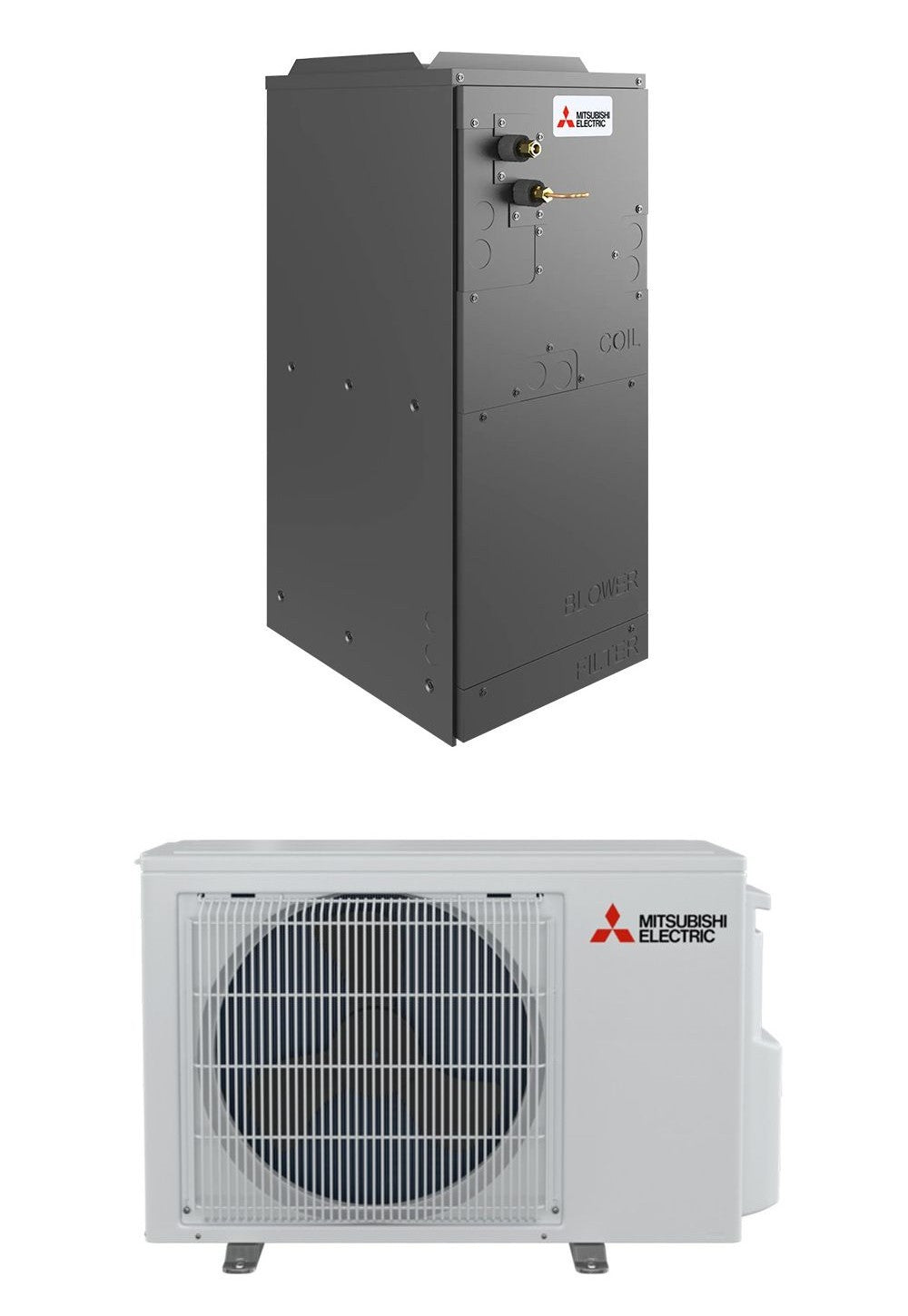

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA24NL+SVZ-AP24NL - BTU 24000 - SEER 19.5 - R454B

Product Description

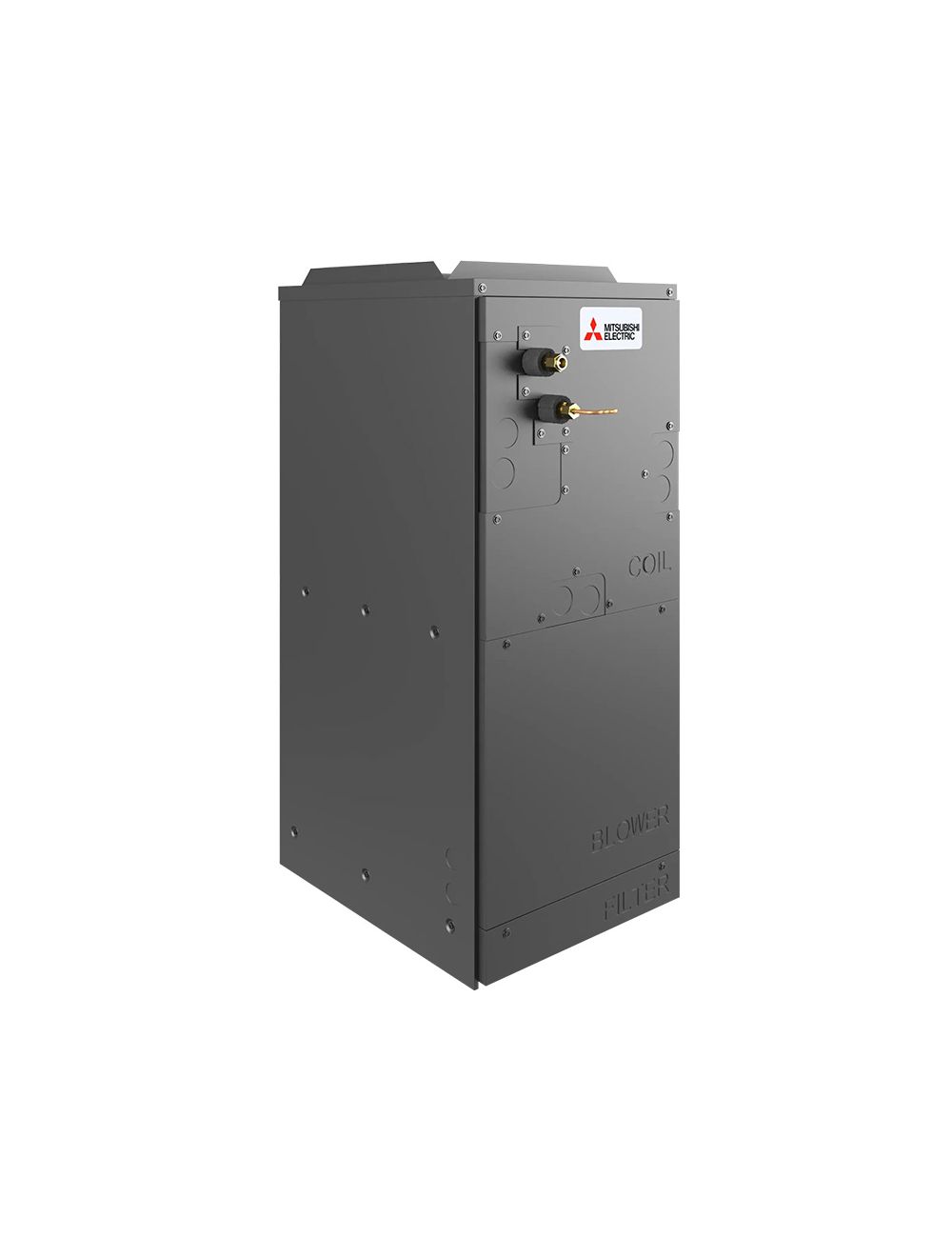

The Mitsubishi Electric SVZ-AP24NL is a ducted indoor unit suitable for multi-zone heating and cooling applications. This versatile unit allows for installation in either horizontal or vertical orientations. It is designed with a positive pressure cabinet and features fiberglass-free insulation, enhancing durability and efficiency. The enclosed ECM motor and blow-through design facilitate easy coil cleaning, ensuring optimal performance. This unit also offers selectable external static pressure and various control options, making it adaptable to user preferences. Optional accessories include an electric heat kit, humidifier control, and ERV control.

• Ducted air handler for large zone heating and cooling
• Multi-position installation options: horizontal and vertical
• Selectable external static pressure settings

Product Highlights

Product Information

Standard Information

• Unit Type: Indoor Unit
• Product Line: AP Series

Technical Specifications

• Operating Mode: Cooling & Heating
• Number of Zones: Multi
• System Capacity: 24,000 BTU
• Line Set Size: 3/8 x 5/8 inches
• WiFi Enabled: Yes with Comfort App
• Cooling Capacity: 24,000 BTU
• Heating Capacity: 23,000 BTU
• Room Capacity: 1,000 sq ft
• Airflow Cooling CFM: 471-573-700
• Noise Level dB(A): 36-41-45
• Dimensions (W x D x H): 17 x 21-5/8 x 39-13/16 inches

Product Description

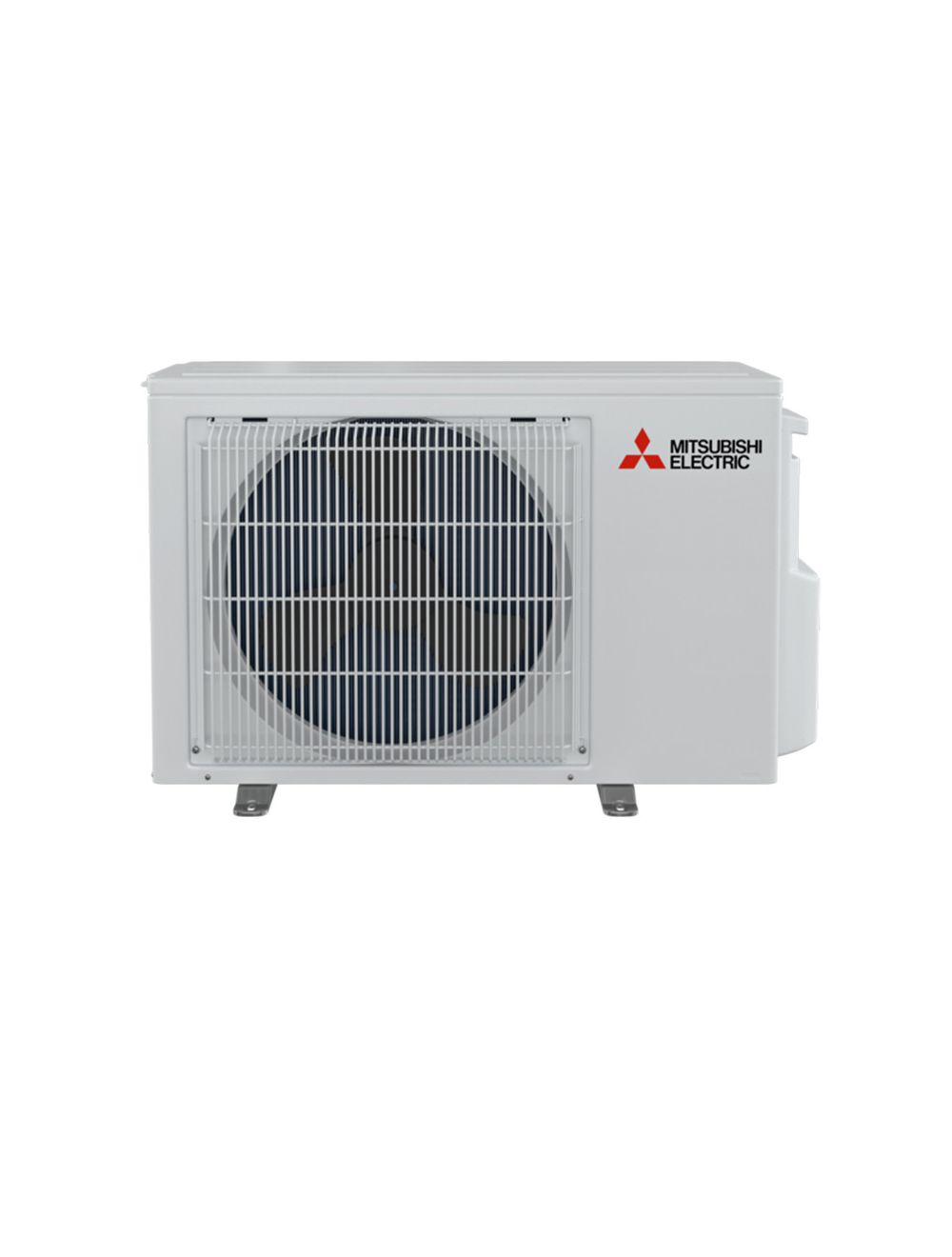

The Mitsubishi Electric SUZ-AA24NL is a single-zone outdoor heat pump unit with a capacity of twenty-four thousand BTU. This unit operates efficiently in both cooling and heating modes, ensuring comfort throughout the year. It uses R-454B refrigerant, which is recognized for lower environmental impact. The inverter-driven compressor contributes to quiet operation and energy efficiency.

• Operates in cooling and heating modes.
• Features an inverter-driven compressor for quiet performance.
• Utilizes R-454B refrigerant for efficient heat transfer.

Product Highlights

The SUZ-AA24NL is suitable for both residential and light commercial applications. It powers an indoor unit and is designed for durability with its Blue Fin Coating that protects against corrosion, enhancing lifespan even in harsh environments.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Unit Type: Outdoor Unit

Technical Specifications

• MPN: SUZ-AA24NL
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 24,000 BTU
• Cooling Capacity: up to 24,000 BTU
• Heating Capacity: up to 28,200 BTU
• Voltage: 208/230 V
• Cooling Power Consumption: 1900 W
• Heating Power Consumption: 2430 W
• Frequency: 60 Hz
• Heating CFM Rating: 1949 cfm
• Cooling CFM Rating: 1974 cfm
• EER Rating: 12.2
• SEER: 21.2
• HSPF: 10
• Connection Type: Flared Connection
• Compressor Type: Twin Rotary Compressor
• Liquid Line: 1/4 in
• Suction Line: 5/8 in
• Heating Sound Level: 55 dBA
• Cooling Sound Level: 55 dBA
• Heating Operating Temperature: 47 deg F
• Cooling Operating Temperature: 95 deg F
• Overall Length: 33.12 in
• Overall Width: 13 in
• Overall Height: 34-11/16 in
