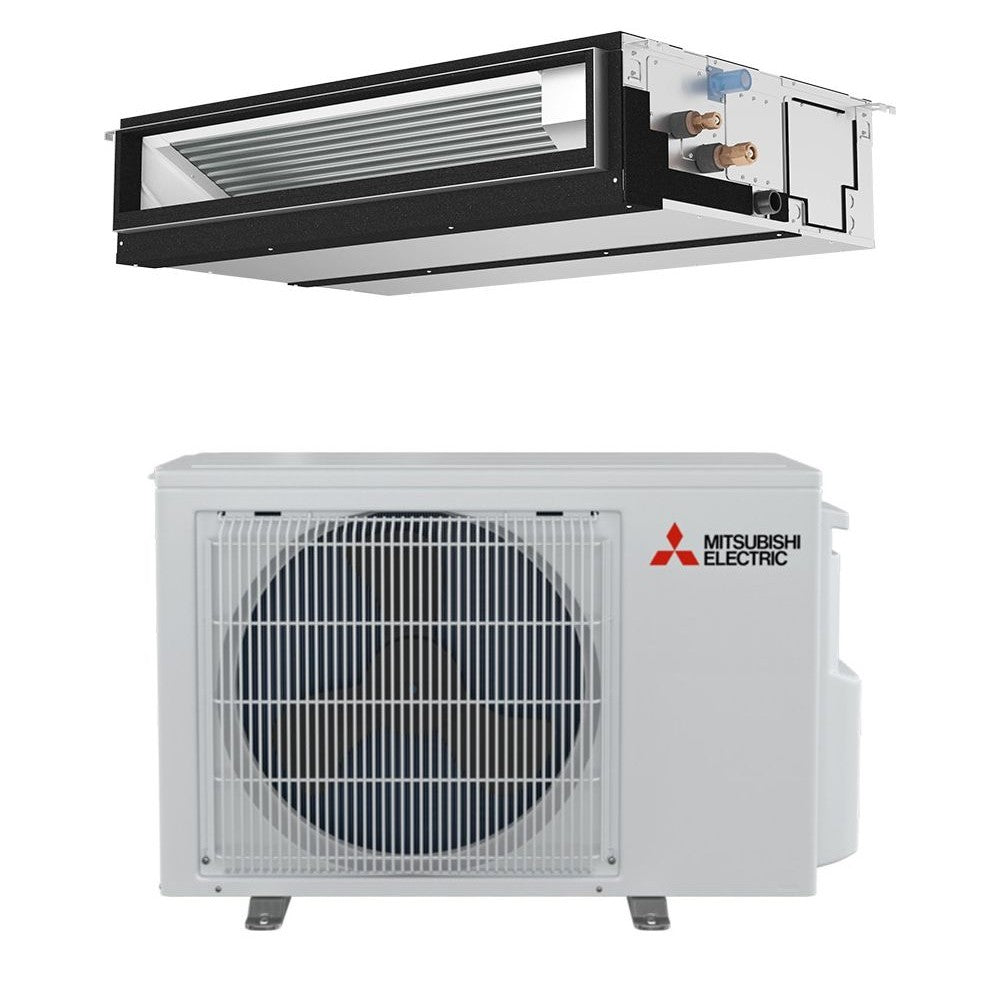

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA24NL+PEAD-AA24NL - BTU 24000 - SEER 21.2 - R454B

Product Description

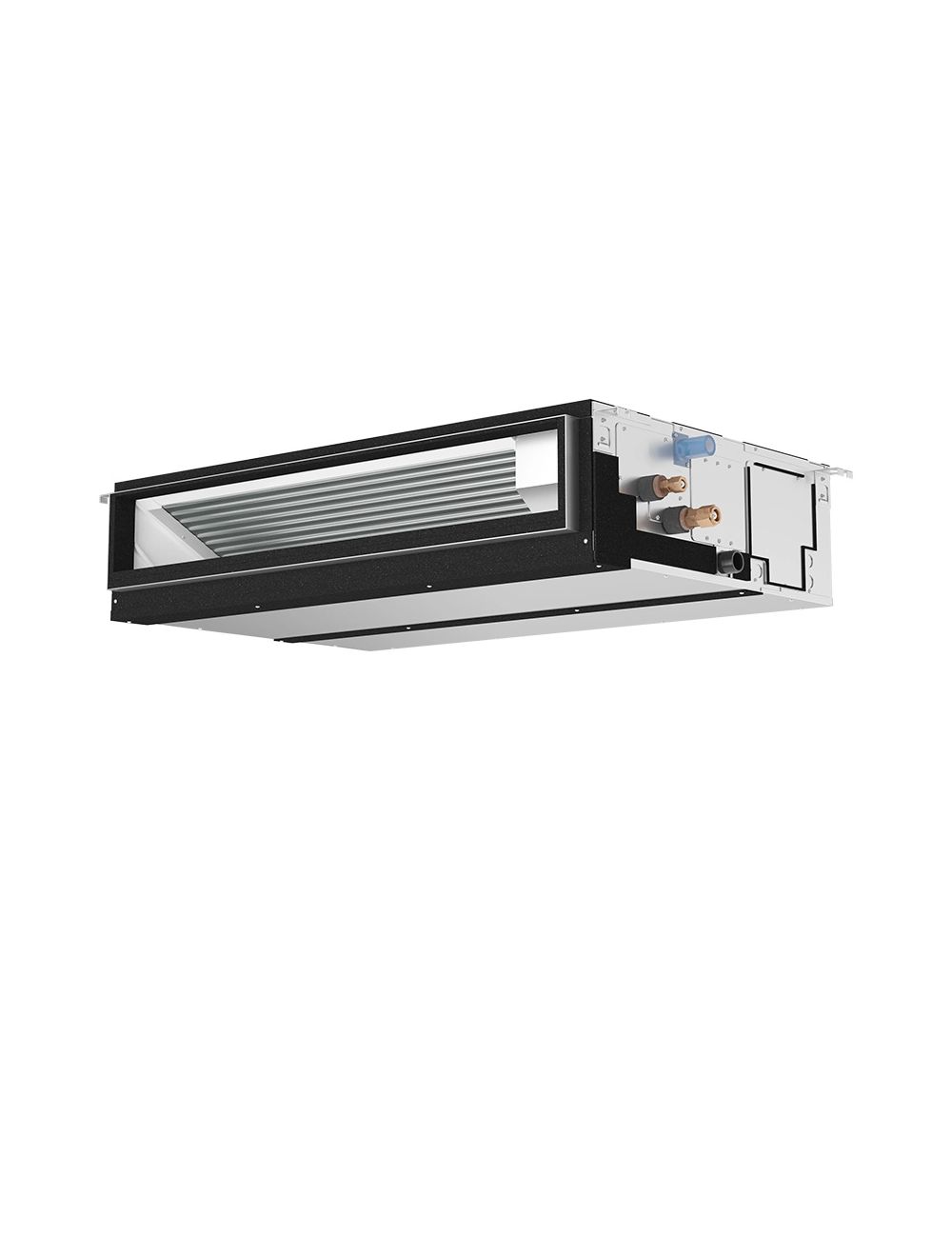

The Mitsubishi Electric PEAD-AA24NL is a ducted indoor unit ideal for residential and light commercial use. It is part of the Mid Static intelli-AIR series and is suitable for small homes or larger settings like offices and restaurants. This horizontal unit distributes heated or cooled air through concealed ductwork, making it suitable for multiple rooms or open layouts.

Installation is designed to be unobtrusive, fitting within attics, ceilings, or under floors. The unit operates quietly and, as a heat pump, it adjusts its power consumption to maintain the desired temperature.

• Built-in condensate lift mechanism, max height of twenty-seven and nine-sixteenths inches
• Wide external static pressure range from zero point fourteen to zero point sixty inches WG
• Concealed installation with short duct runs

Product Highlights

This indoor unit effectively manages airflow in various spaces while remaining discreet.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: PEAD-AA24NL

Technical Specifications

• Dimensions: forty-three and five-sixteenths inches W x twenty-eight and seven-eighths inches D x nine and seven-eighths inches H

Product Description

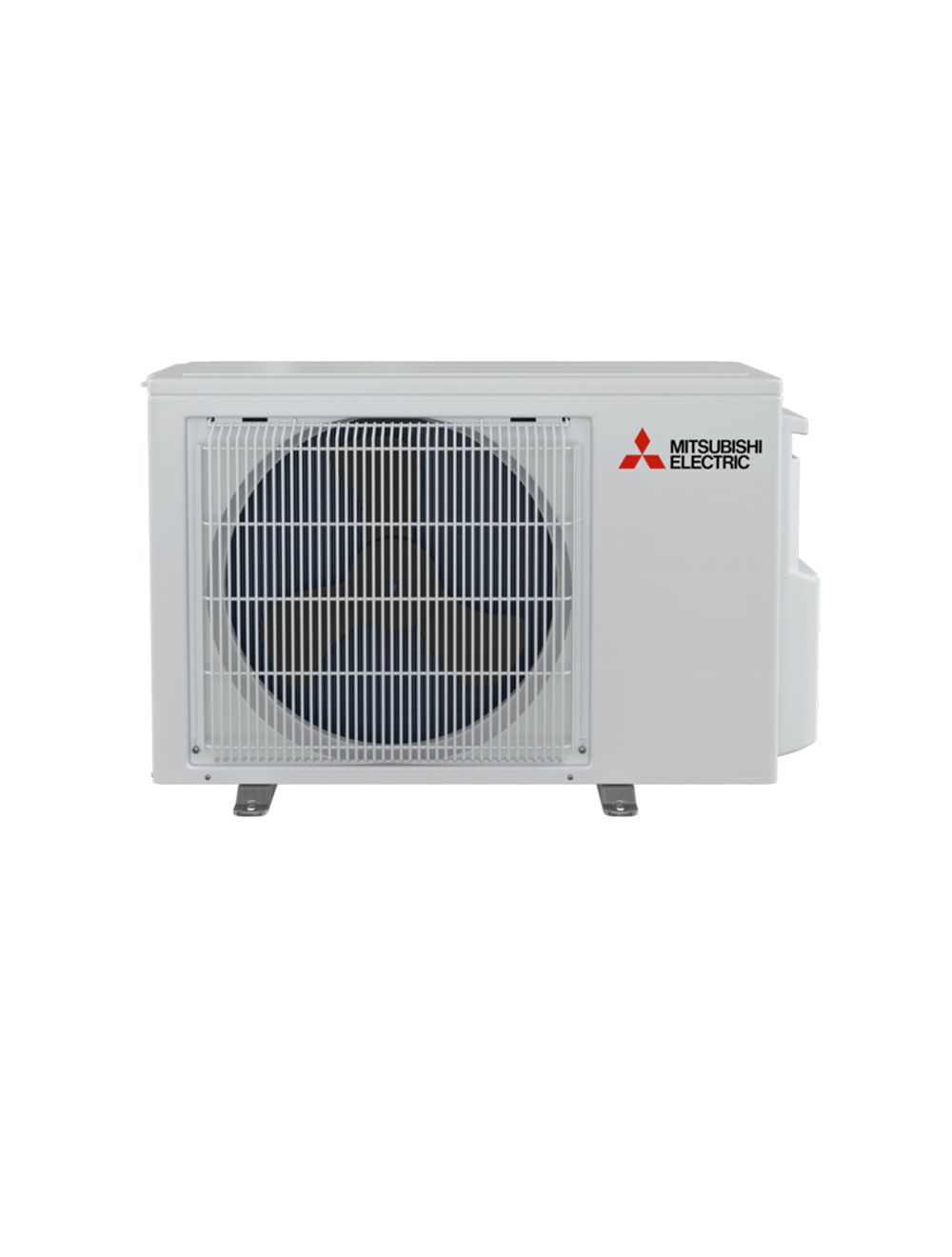

The Mitsubishi Electric SUZ-AA24NL is a single-zone outdoor heat pump unit with a capacity of twenty-four thousand BTU. This unit operates efficiently in both cooling and heating modes, ensuring comfort throughout the year. It uses R-454B refrigerant, which is recognized for lower environmental impact. The inverter-driven compressor contributes to quiet operation and energy efficiency.

• Operates in cooling and heating modes.
• Features an inverter-driven compressor for quiet performance.
• Utilizes R-454B refrigerant for efficient heat transfer.

Product Highlights

The SUZ-AA24NL is suitable for both residential and light commercial applications. It powers an indoor unit and is designed for durability with its Blue Fin Coating that protects against corrosion, enhancing lifespan even in harsh environments.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Unit Type: Outdoor Unit

Technical Specifications

• MPN: SUZ-AA24NL
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 24,000 BTU
• Cooling Capacity: up to 24,000 BTU
• Heating Capacity: up to 28,200 BTU
• Voltage: 208/230 V
• Cooling Power Consumption: 1900 W
• Heating Power Consumption: 2430 W
• Frequency: 60 Hz
• Heating CFM Rating: 1949 cfm
• Cooling CFM Rating: 1974 cfm
• EER Rating: 12.2
• SEER: 21.2
• HSPF: 10
• Connection Type: Flared Connection
• Compressor Type: Twin Rotary Compressor
• Liquid Line: 1/4 in
• Suction Line: 5/8 in
• Heating Sound Level: 55 dBA
• Cooling Sound Level: 55 dBA
• Heating Operating Temperature: 47 deg F
• Cooling Operating Temperature: 95 deg F
• Overall Length: 33.12 in
• Overall Width: 13 in
• Overall Height: 34-11/16 in
