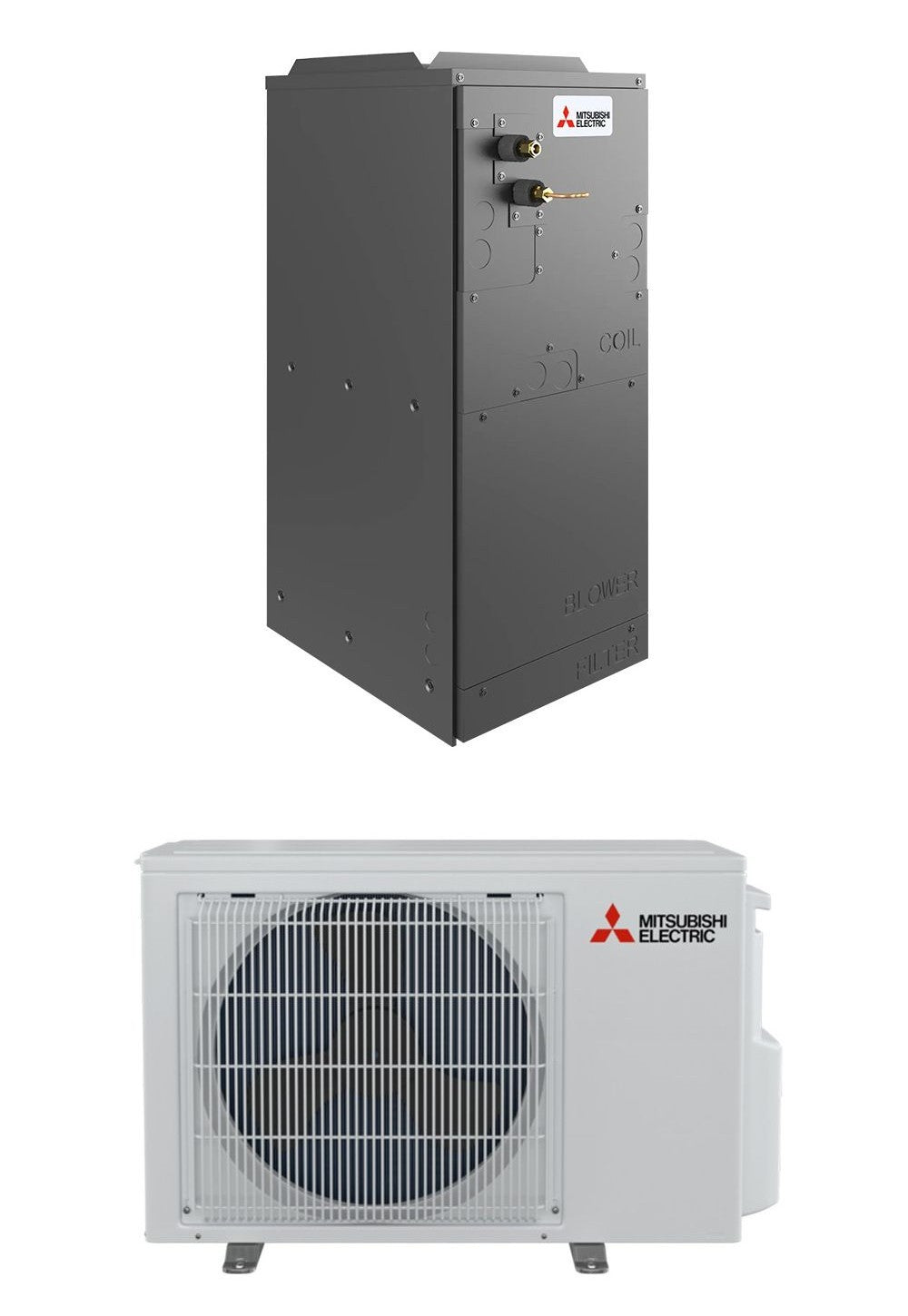

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA18NL+SVZ-AP18NL - BTU 18000 - SEER 16.2 - R454B

Product Description

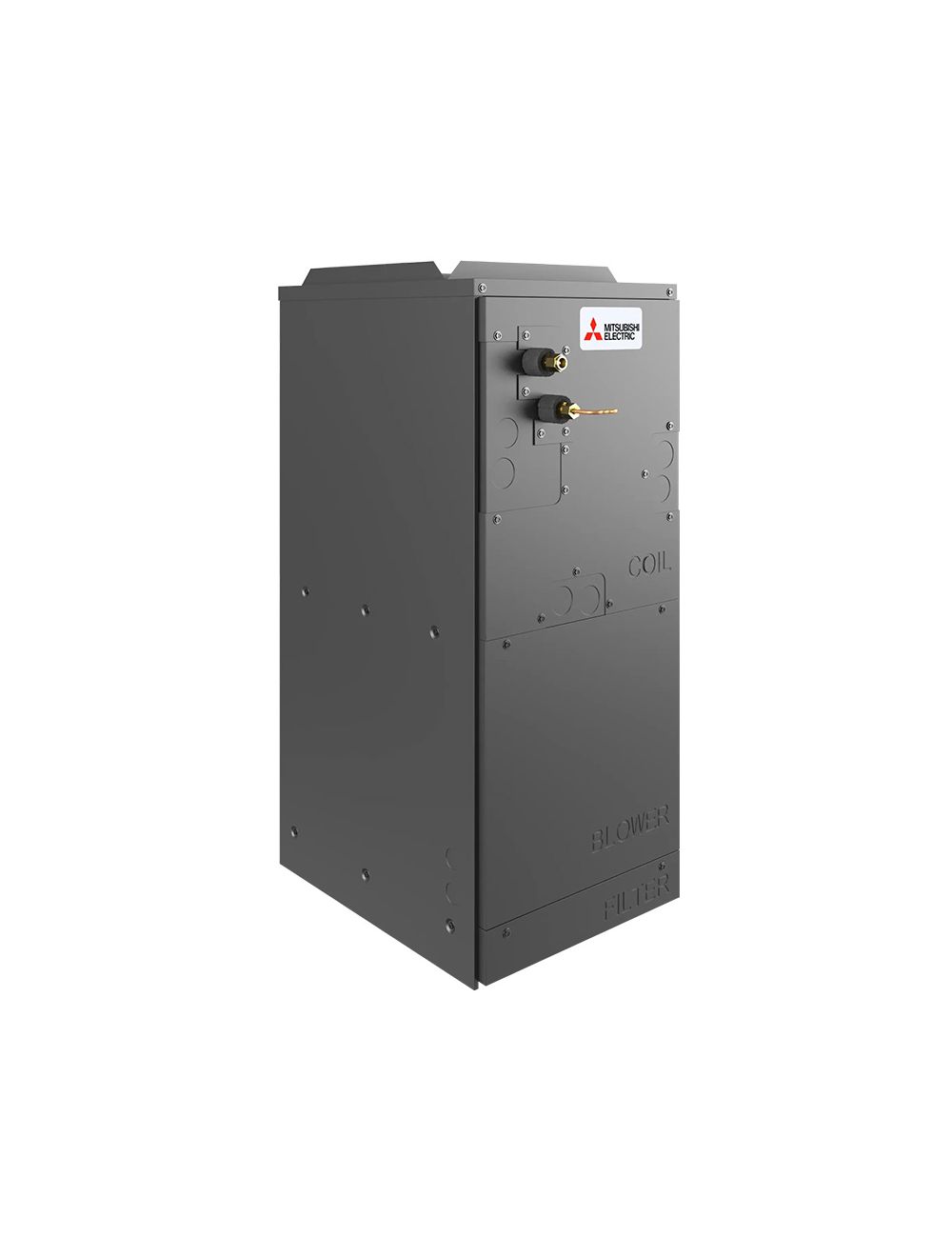

The Mitsubishi Electric SVZ-AP18NL is a multi-position air handler suited for horizontal or vertical installation. This ducted unit effectively handles heating and cooling for larger spaces. It includes a positive pressure cabinet and fiberglass-free insulation. With its enclosed ECM motor, it is ideal for multi-zone setups.

• Multi-position installation: horizontal or vertical
• Selectable external static pressure: 0.30, 0.50, and 0.80 in.WG
• Compatible with Comfort App for remote operation

Product Highlights

This air handler can cater to various heating and cooling needs across different zones, making it suitable for residential and light commercial applications.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SVZ-AP18NL

Technical Specifications

• Product Line: AP Series
• Unit Type: Single Zone
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 18,000 BTU
• Cooling Capacity up to: 18,000 BTU
• Heating Capacity up to: 23,800 BTU
• SEER2: 16.2
• EER2: 12
• HSPF2: 9.8
• Refrigerant: R454B
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Room Cooling/Heating Capacity up to: 750 sq ft
• Airflow Cooling CFM, Dry: 471-573-675
• Airflow Heating CFM, Dry: 471-573-675
• Noise Level dB(A), Cooling: 36-41-45
• Noise Level dB(A), Heating: 36-41-45
• Dimensions: 17 x 21-5/8 x 39-13/16
• Indoor Unit Model Number: SVZ-AP18NL
• Outdoor Unit: SUZ-AA18NL
• Controller Model Number: MRCH2
• Wireless Receiver Model Number: MIFH2
• Cable Model Number: MRC2
• Line Set Size: 1/4 x 1/2
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No
• Remote Controller: NOT Included

Product Description

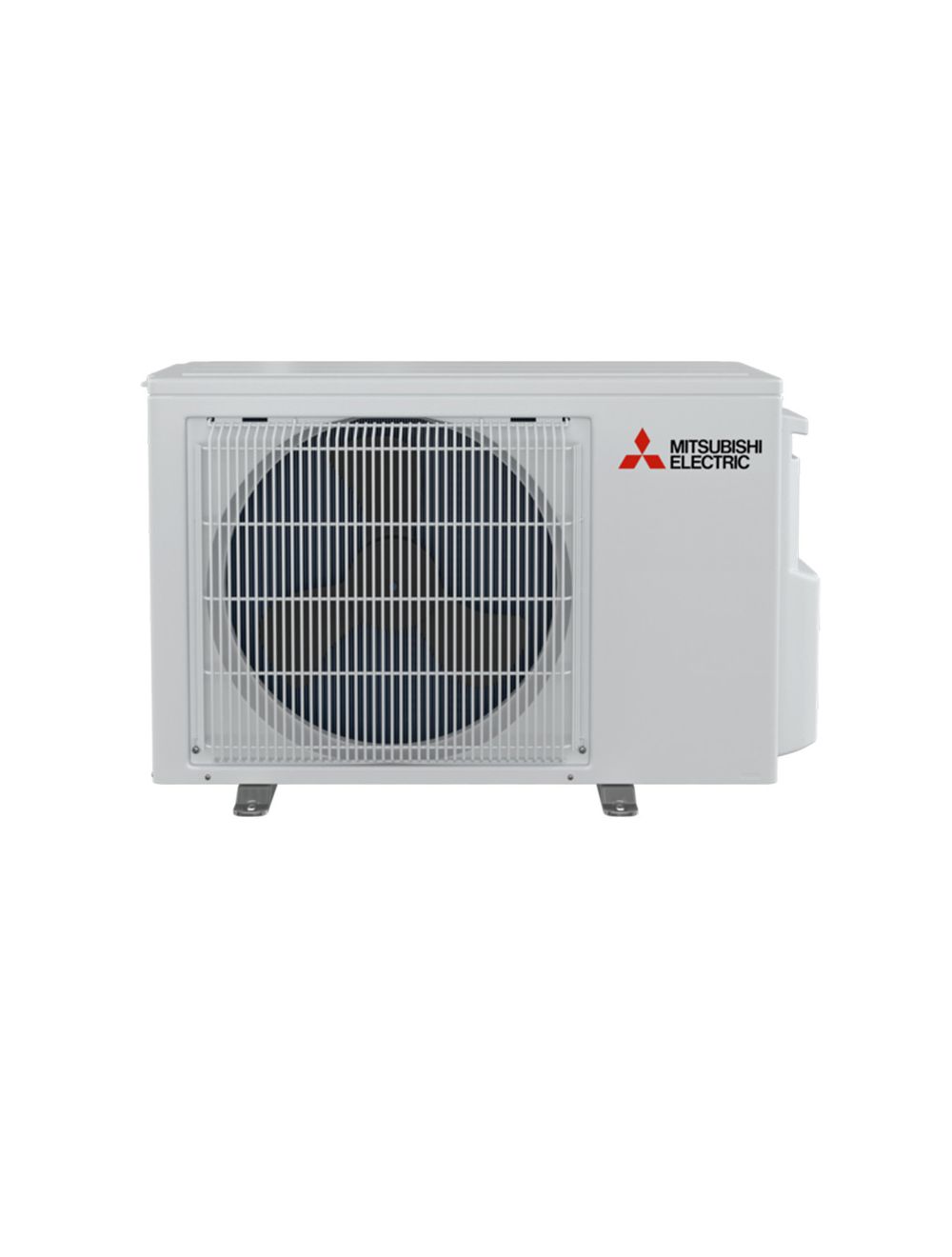

The Mitsubishi Electric SUZ-AA18NL is a single-zone heat pump outdoor unit designed for efficient cooling and heating solutions. This unit is part of the SUZ Series and features an inverter-driven compressor for optimal performance. It is compatible with a variety of indoor units, providing flexibility in installation and system design.

• Single-zone outdoor unit connects to one indoor unit.
• Uses R-454B refrigerant.
• Designed for quiet operation with Blue Fin corrosion protection.

Product Highlights

This heat pump unit is ideal for residential and light commercial use, offering reliable heating and cooling with energy efficiency.

Product Information

Standard Information

• Model Number: SUZ-AA18NL
• Unit Type: Outdoor Unit

Technical Specifications

• Product Line: SUZ Series
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 16,400 - 18,000 BTU
• Cooling Capacity: up to 16,400 - 18,000 BTU
• Heating Capacity: up to 21,000 - 23,800 BTU
• Room Cooling/Heating Capacity: up to 750 sq ft
• Line Set Size: 1/4 x 1/2 inches
• Dimensions: 33-1/16 W x 13 D x 34-5/8 H inches
