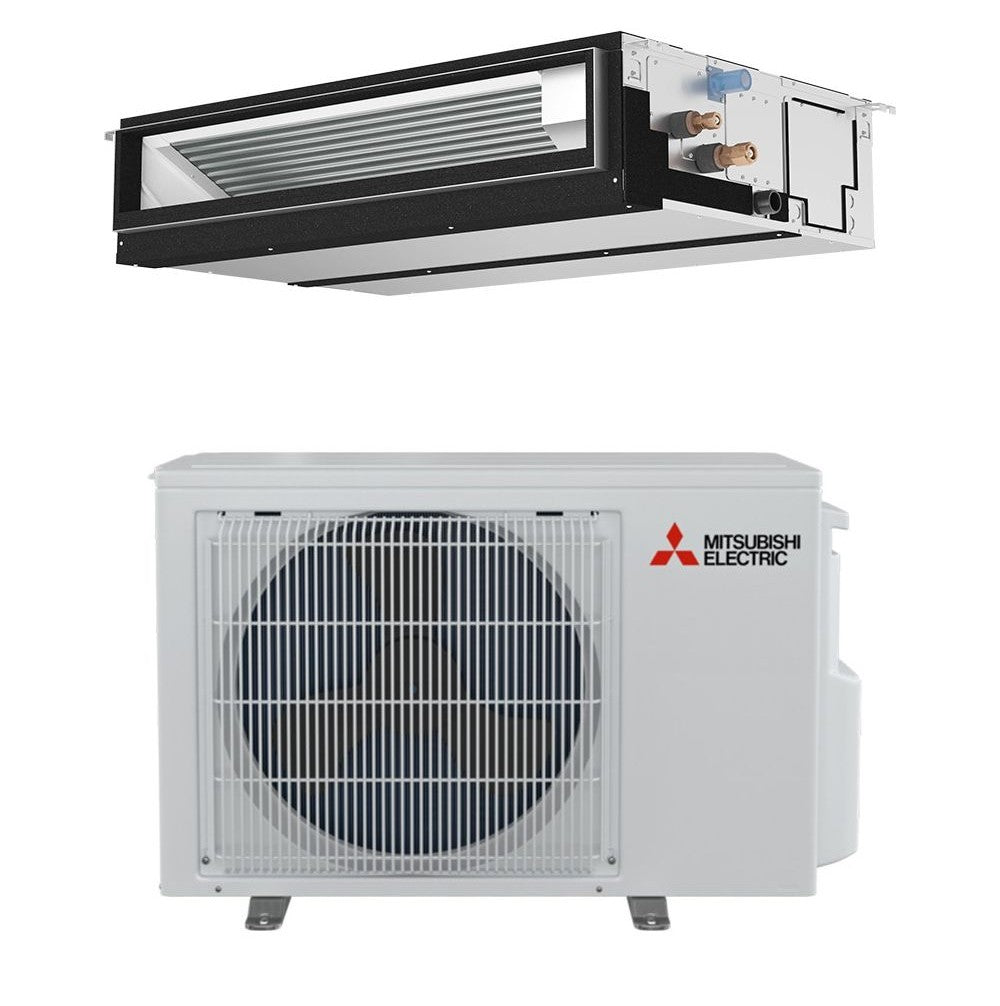

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA18NL+PEAD-AA18NL - BTU 18000 - SEER 17.2 - R454B

Product Description

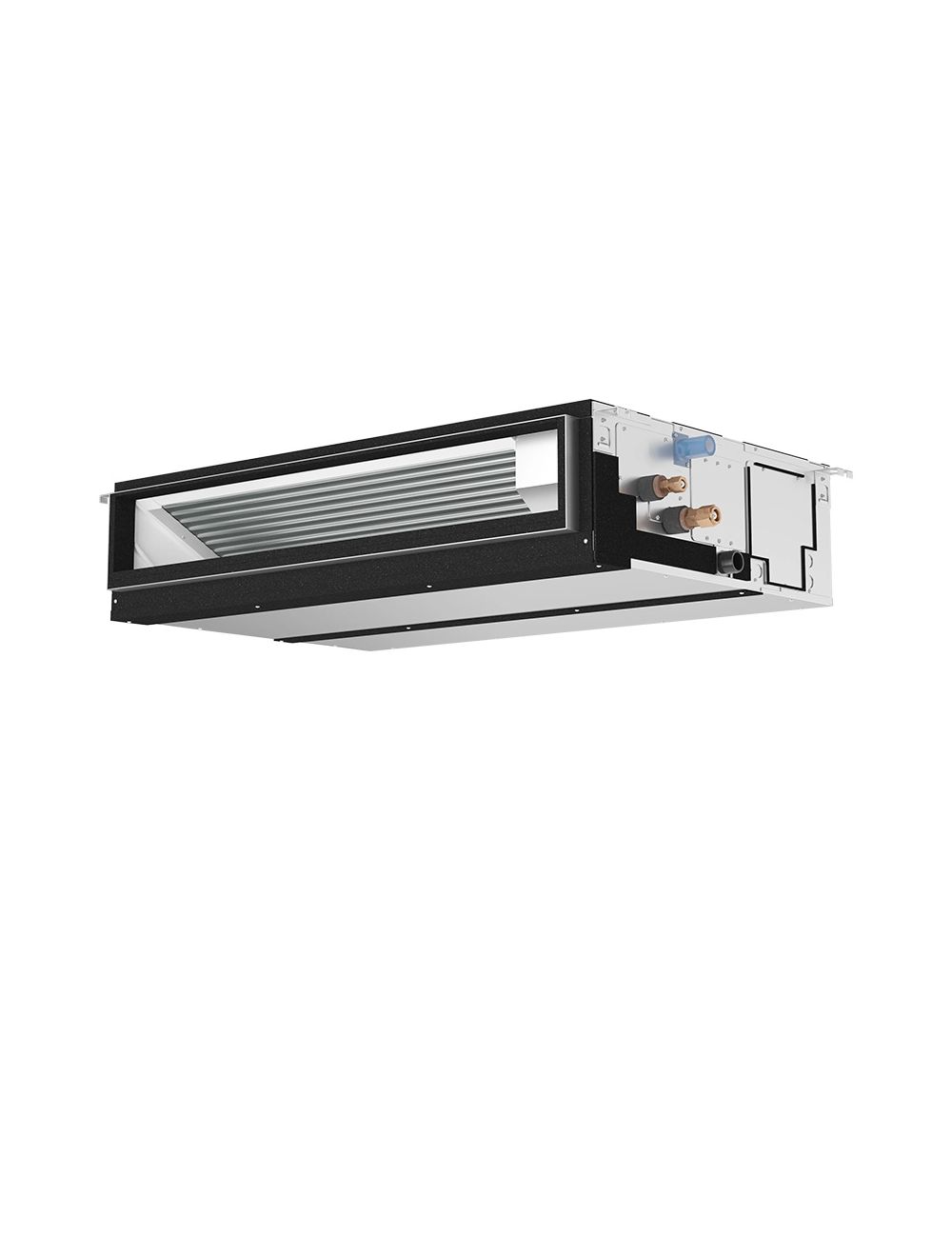

The Mitsubishi Electric PEAD-AA18NL is designed for concealed installation in ducted systems, providing efficient heating and cooling. This unit can function in both single-zone and multi-zone setups.

• Built-in condensate lift mechanism for easy installation.
• Offers multiple control options through an app and third-party devices.
• Features unobtrusive ceiling-concealed installation with short ductwork.

Product Highlights

This indoor unit ensures quiet operation and discreet comfort, making it suitable for various room sizes and types.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PEAD-AA18NL

Technical Specifications

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 18,000 BTU, 20,000 BTU
• Installation Type: Ducted
• Unit Type: Indoor
• Refrigerant: R-454B
• Airflow: 600 CFM, 900 CFM
• Moisture Removal: 2.9 Pints/Hour, 5.9 Pints/Hour
• Voltage: 208/230 V
• Cooling Capacity at 95F: 18,500 BTU/h
• Heating Capacity at 47F: 22,000 BTU/h

Product Description

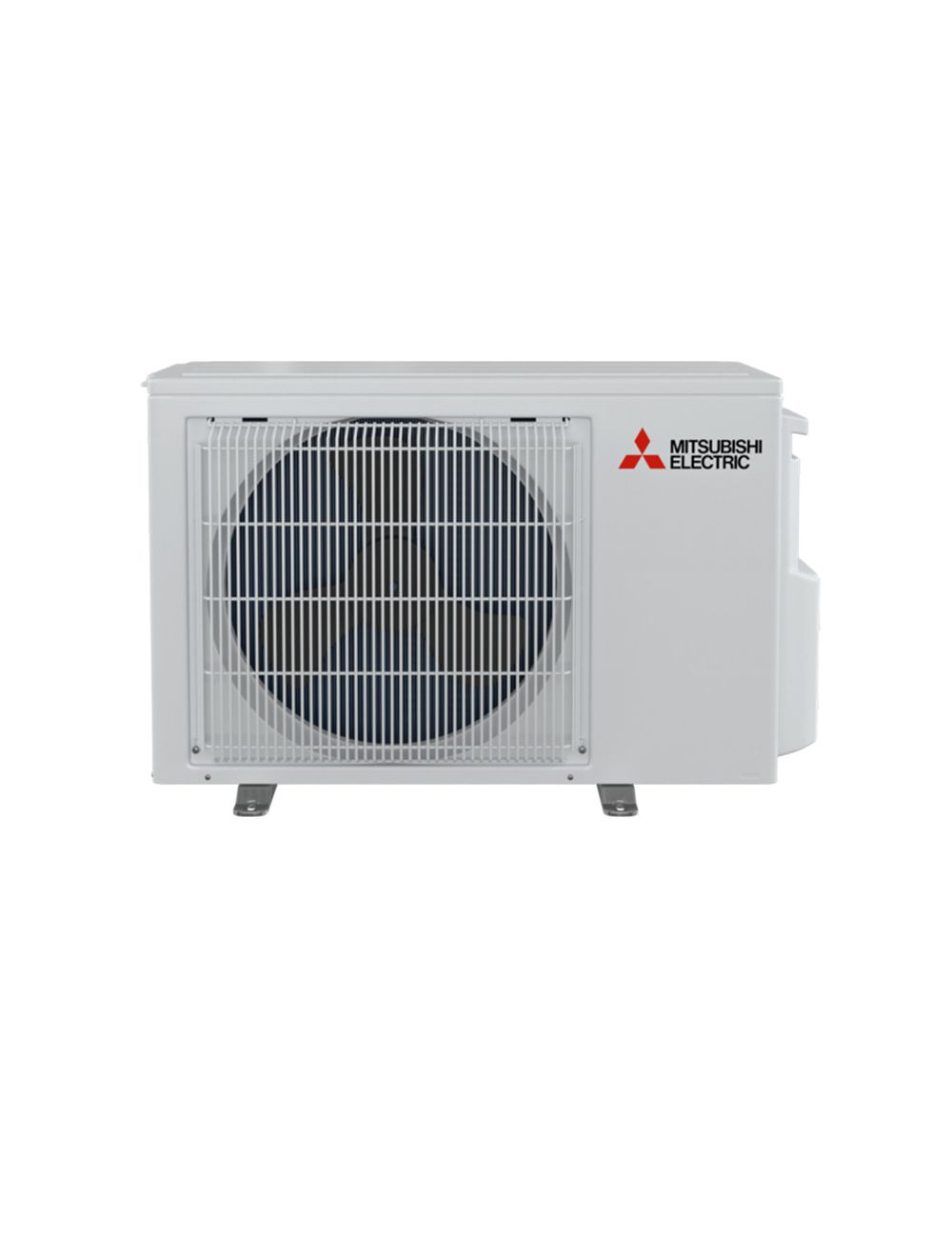

The Mitsubishi Electric SUZ-AA18NL is a single-zone heat pump outdoor unit designed for efficient cooling and heating solutions. This unit is part of the SUZ Series and features an inverter-driven compressor for optimal performance. It is compatible with a variety of indoor units, providing flexibility in installation and system design.

• Single-zone outdoor unit connects to one indoor unit.
• Uses R-454B refrigerant.
• Designed for quiet operation with Blue Fin corrosion protection.

Product Highlights

This heat pump unit is ideal for residential and light commercial use, offering reliable heating and cooling with energy efficiency.

Product Information

Standard Information

• Model Number: SUZ-AA18NL
• Unit Type: Outdoor Unit

Technical Specifications

• Product Line: SUZ Series
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 16,400 - 18,000 BTU
• Cooling Capacity: up to 16,400 - 18,000 BTU
• Heating Capacity: up to 21,000 - 23,800 BTU
• Room Cooling/Heating Capacity: up to 750 sq ft
• Line Set Size: 1/4 x 1/2 inches
• Dimensions: 33-1/16 W x 13 D x 34-5/8 H inches
