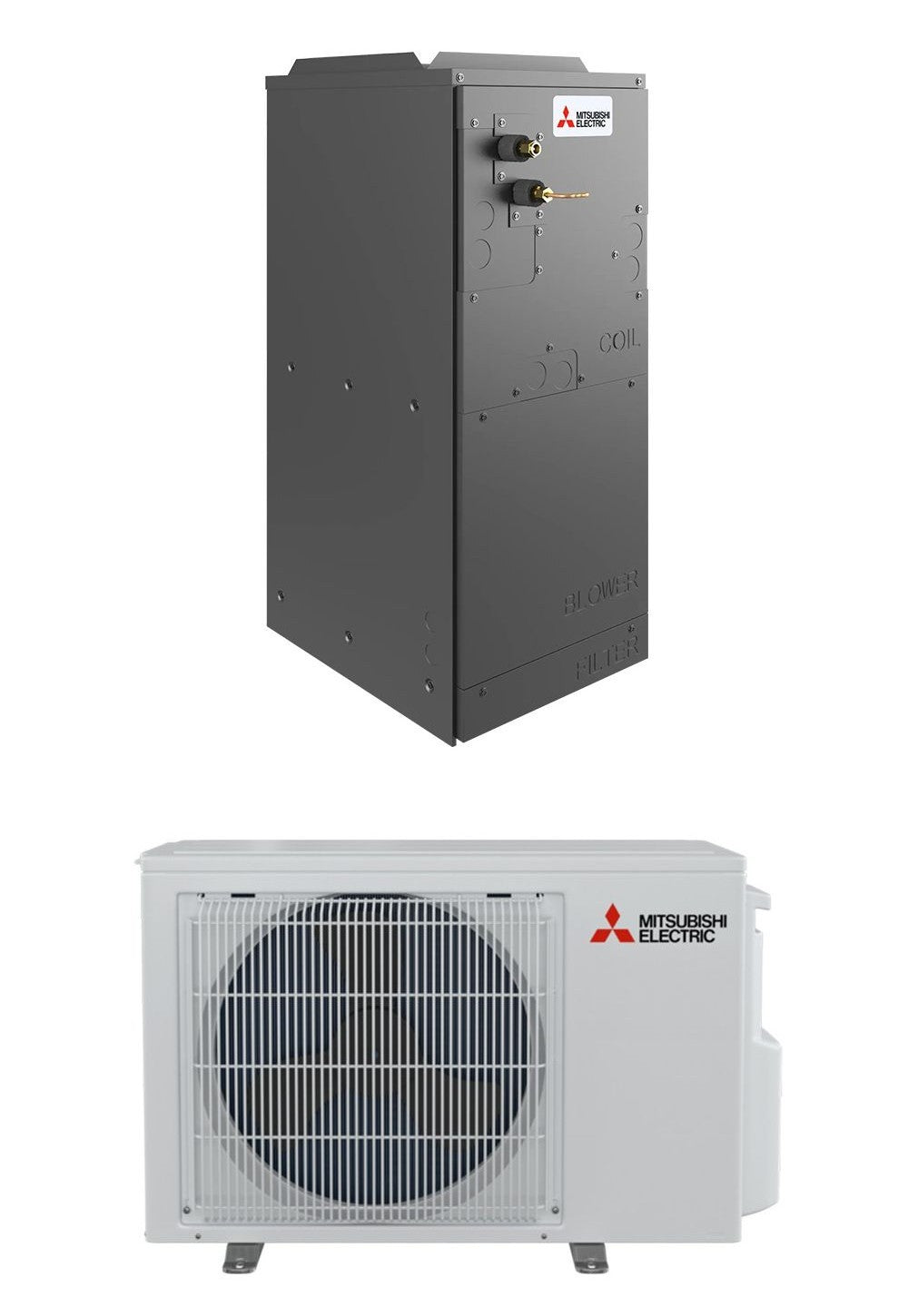

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA12NL+SVZ-AP12NL - BTU 12000 - SEER 18.4 - R454B

Product Description

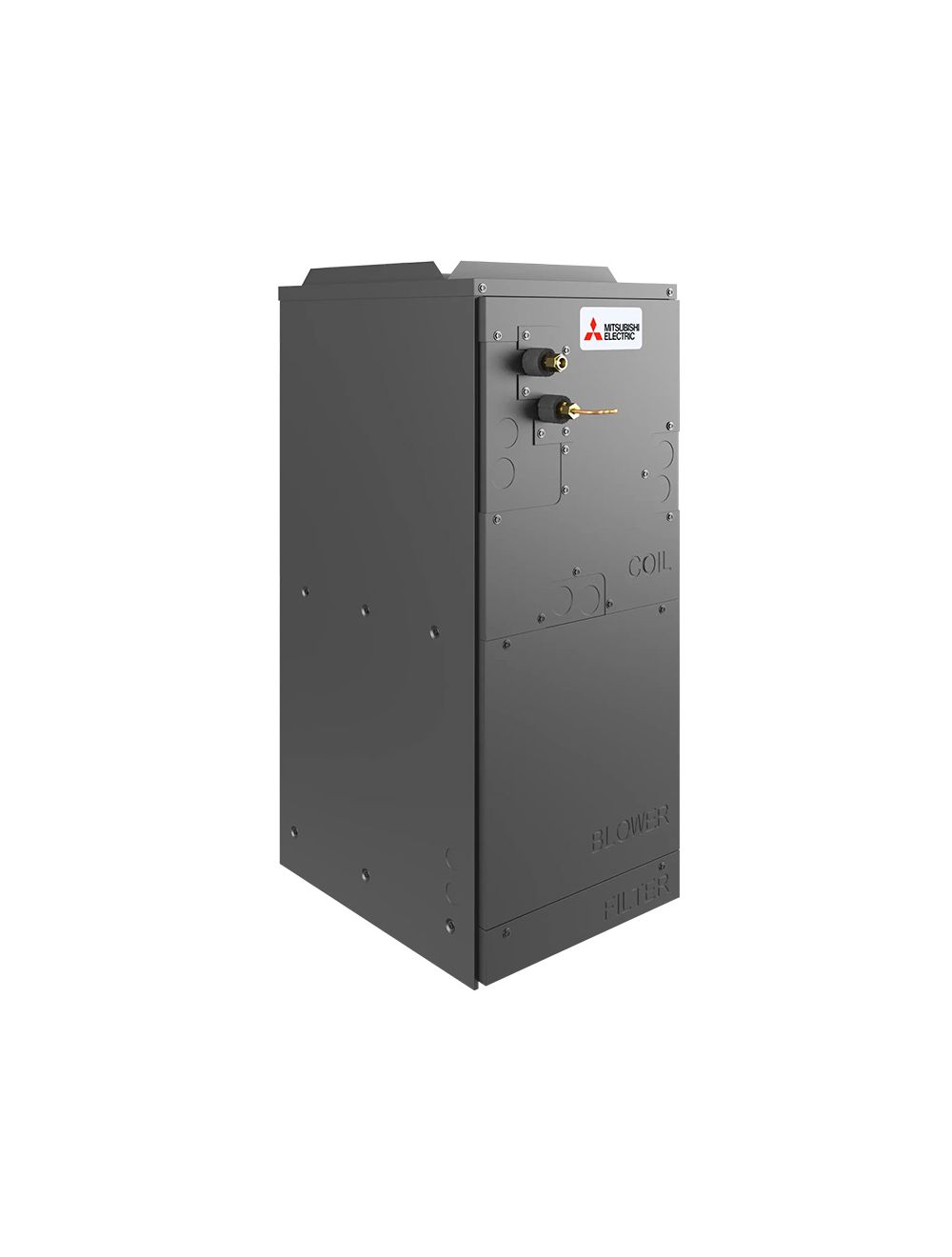

The Mitsubishi Electric SVZ-AP12NL is a ducted air handler for indoor installation with multi-position capabilities. It is designed for both cooling and heating, offering a nominal capacity of twelve thousand BTU. The unit can be installed either horizontally or vertically and comes with an enclosed ECM motor.

• Supports horizontal (left or right) and vertical (up or down) installation.
• Includes positive pressure cabinet design.
• Compatible with optional electric heat kit, humidifier control, and ERV control.

Product Highlights

This air handler provides efficient air circulation and temperature control for diverse applications in residential or commercial spaces.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Unit Type: Indoor Unit

Technical Specifications

• MPN: SVZ-AP12NL
• Operating Mode: Cooling & Heating
• System Capacity: 12,000 BTU
• Cooling Capacity: 11,400 BTU/hr
• Heating Capacity: 15,000 BTU/hr
• Refrigerant: R-454B
• Input Voltage: 208/230 V
• Amperage: 14 A
• Noise Level dB(A), Cooling: 36-41-45
• Noise Level dB(A), Heating: 36-41-45
• Dimensions: 17 x 21-5/8 x 39-13/16 inches
• Weight: 97 lbs
• WiFi Enabled: Yes with Comfort App
• Controller Model Number: MRCH2
• Cable Model Number: MRC2
• Cable Length: 39-23/64 inches

Product Description

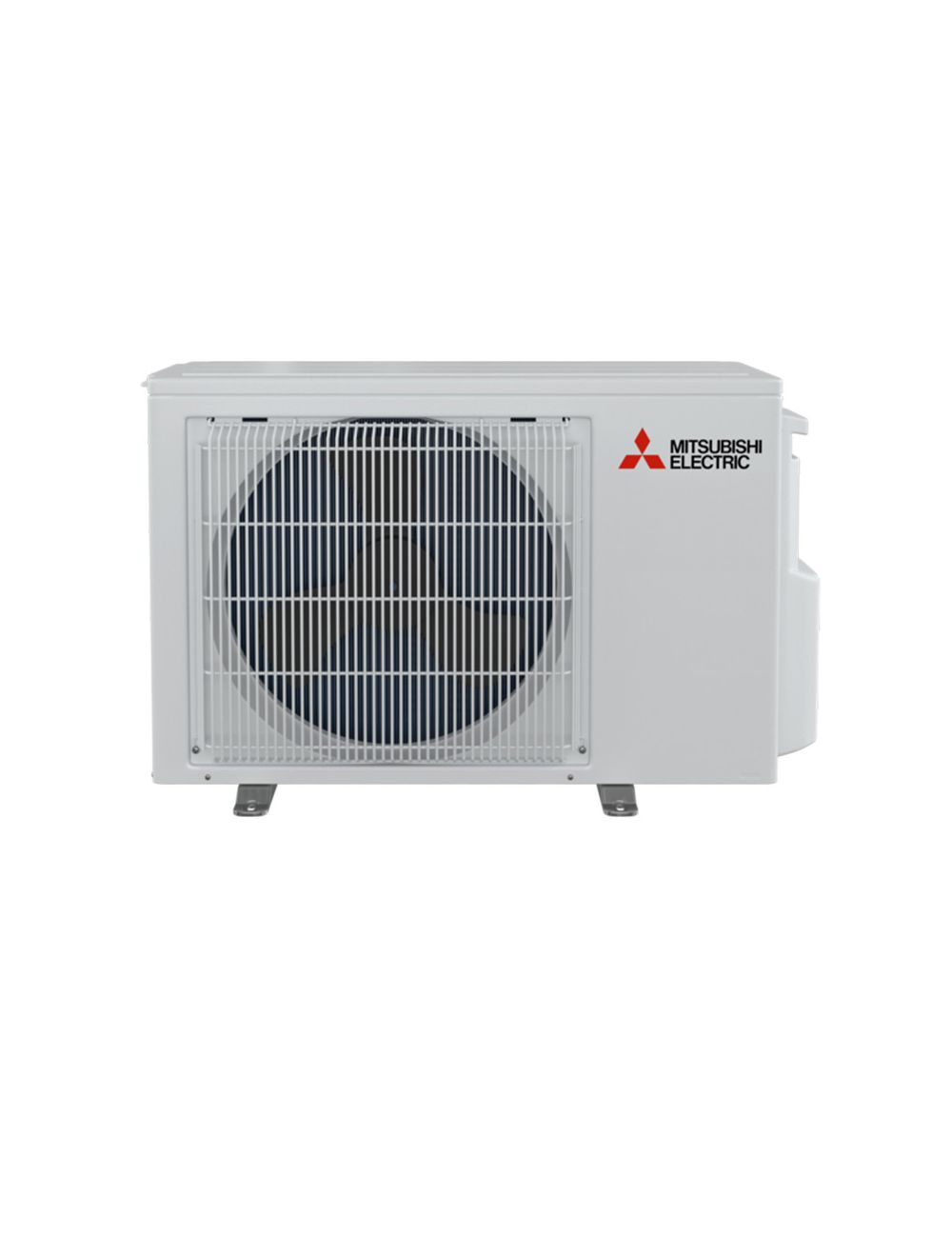

The Mitsubishi Electric SUZ-AA12NL is an outdoor condenser designed for single-zone mini-split systems. This versatile unit provides both heating and cooling functions when paired with compatible indoor models. It features an inverter-driven compressor that adjusts output to maintain a steady temperature while being compatible with R-454B refrigerant. The Blue Fin coating offers corrosion protection, making it suitable for outdoor installation and operation.

• Designed for single-zone mini-split applications.
• Heating and cooling capabilities.
• Utilizes R-454B refrigerant for efficiency.

Product Highlights

The unit is efficient and reliable, ideal for residential or light commercial use. Its compact design allows for easy installation in various locations.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SUZ-AA12NL

Technical Specifications

• Type: Outdoor Condenser, Heat Pump
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling Capacity: 12000 BTU
• Heating Capacity: 15000 BTU
• SEER2: 19.6, 20.7
• EER2: 12.6
• HSPF2: 8.7
• Voltage: 208/230 Volts
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: -1 F, 14 F
• Weight: 81 Pounds
• Dimensions: 21.625 Inches x 31.5 Inches x 11.25 Inches
• Noise Level: Maximum sound level of 51 dB
